INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-9

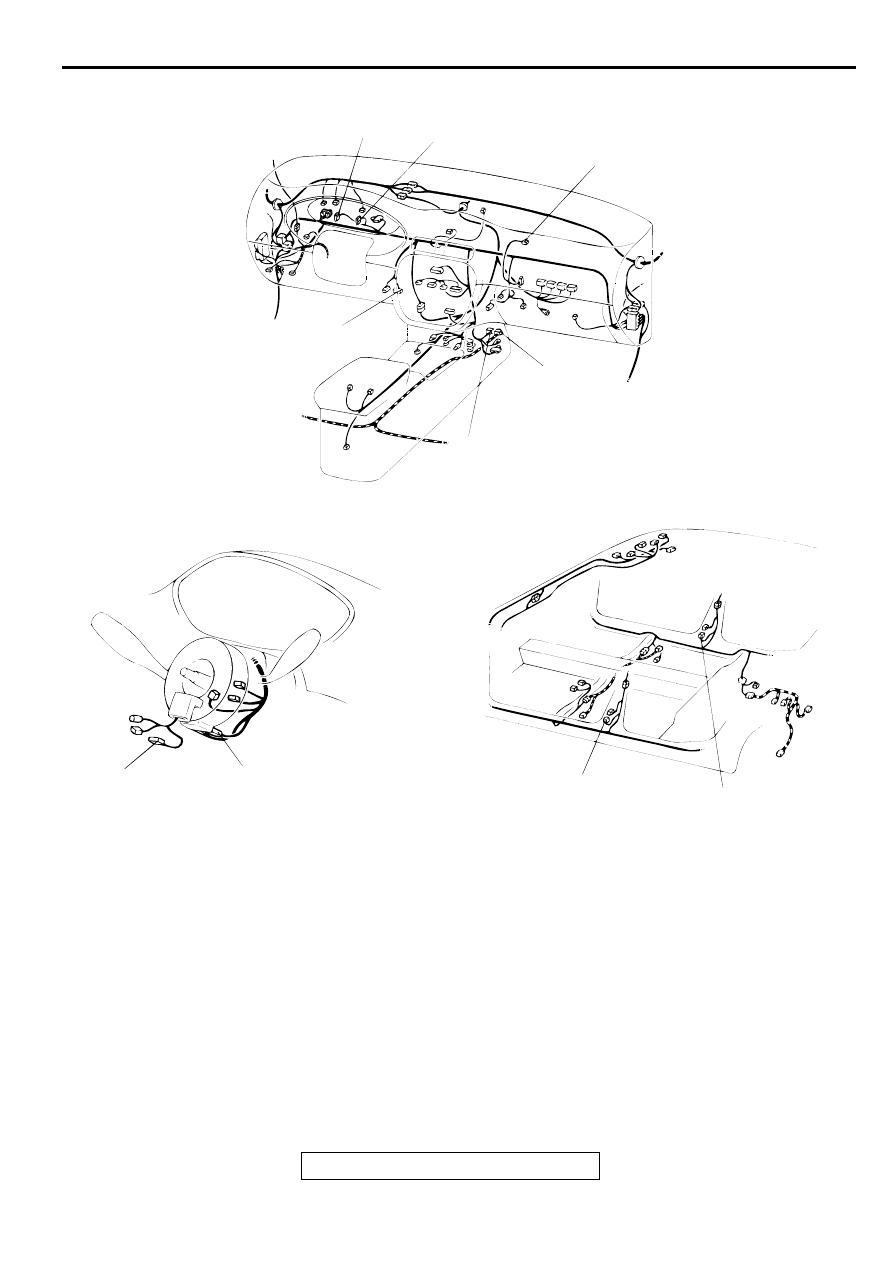

CONFIGURATION DIAGRAMS

AC003192AB

DASH PANEL

C-29

C-30

C-09

C-23

C-45

C-44

STEERING COLUMN

C-60

C-62

FLOOR AND ROOF

D-20

D-09

A-01 (2-B)

AUTO-CRUISE CONTROL
VACUUM PUMP

C-09

AIR BAG MODULE

(FRONT PASSENGER'S SIDE)

C-23

DATA LINK CONNECTOR

(FOR SCAN TOOL)

C-29

COMBINATION METER

(FOR SRS WARNING LIGHT)

C-30

COMBINATION METER

(FOR SRS WARNING LIGHT)

C-44

SRS-ECU

C-45

SRS-ECU <VEHICLES WITH SRS
SIDE AIR BAG>

C-60

CLOCK SPRING

C-62

AIR BAG MODULE

(DRIVER'S SIDE)

D-09

SIDE IMPACT SENSOR (RH)

<VEHICLES WITH SRS SIDE

AIR BAG>

D-20

SIDE IMPACT SENSOR (LH)

<VEHICLES WITH SRS SIDE

AIR BAG>

INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-10

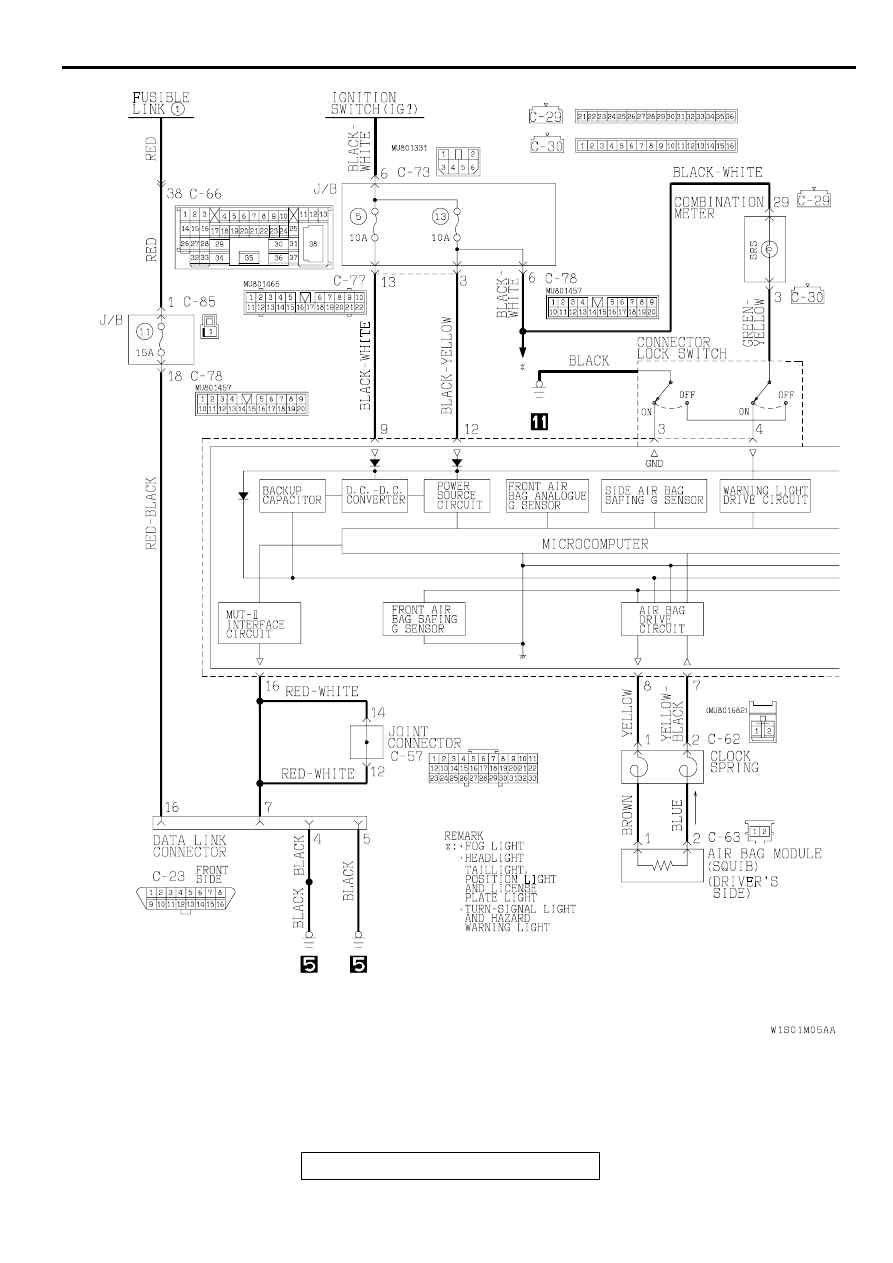

CIRCUIT DIAGRAM

WARNING

Do not repair, splice, or modify the SRS wiring (except for specific repairs to the front
wiring harness, the instrument panel wiring harness and the side air bag wiring harness
shown on

P.52B-15

): replace the wiring if necessary, after reading and following all

precautions and procedures in this manual.

Do not use an analog ohmmeter to check the SRS wiring or components; use only the
special tools (refer t

P.52B-60

) and a digital multi-meter (refer to

P.52B-61

).
