Mitsubishi Galant. Manual - part 590





52B-1

GROUP 52B

SUPPLEMENTAL



RESTRAINT

SYSTEM(SRS)

CONTENTS

GENERAL INFORMATION . . . . . . . .

52B-3

SERVICE PRECAUTIONS. . . . . . . . .

52B-15

SRS AIR BAG DIAGNOSIS . . . . . . . .

52B-17

INTRODUCTION. . . . . . . . . . . . . . . . . . . . .

52B-17

TROUBLESHOOTING STRATEGY . . . . . .

52B-17

TROUBLE CODE DIAGNOSIS. . . . . . . . . .

52B-17

DIAGNOSTIC TROUBLE CODE CHART . .

52B-18

TROUBLE SYMPTOM CHART. . . . . . . . . .

52B-20

DIAGNOSTIC TROUBLE CODE
PROCEDURES. . . . . . . . . . . . . . . . . . . . . .

52B-20

SRS WARNING LIGHT CHECK . . . . . . . . .

52B-55

SYMPTOM PROCEDURES . . . . . . . . . . . .

52B-56

SPECIAL TOOLS. . . . . . . . . . . . . . . .

52B-60

TEST EQUIPMENT  . . . . . . . . . . . . . .

52B-61

SRS MAINTENANCE. . . . . . . . . . . . .

52B-61

POST-COLLISION DIAGNOSIS  . . . .

52B-61

INDIVIDUAL COMPONENT SERVICE

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-65

SRS CONTROL UNIT(SRS-ECU)  . . .

52B-65

SRS CONTROL UNIT(SRS-ECU) REMOVAL
AND INSTALLATION  . . . . . . . . . . . . . . . . .

52B-65

SRS CONTROL UNIT(SRS-ECU) INSPECTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-67

AIR BAG MODULE(S) AND CLOCK
SPRING. . . . . . . . . . . . . . . . . . . . . . . .

52B-67

AIR BAG MODULE(S) AND CLOCK SPRING
REMOVAL AND INSTALLATION  . . . . . . . .

52B-67

AIR BAG MODULE(S) AND CLOCK SPRING
INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

52B-73

SIDE IMPACT SENSOR . . . . . . . . . . .

52B-74

SIDE IMPACT SENSOR REMOVAL AND
INSTALLATION . . . . . . . . . . . . . . . . . . . . . .

52B-74

SIDE IMPACT SENSOR INSPECTION. . . .

52B-77

AIR BAG MODULE AND SEAT BELT PRE-
TENSIONER DISPOSAL PROCEDURES

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-77

SPECIFICATIONS  . . . . . . . . . . . . . . .

52B-88

FASTENER TIGHTENING SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52B-88

SERVICE SPECIFICATIONS  . . . . . . . . . . .

52B-88

52B-2

WARNING

••••

Carefully read and observe the information in the SRS SERVICE PRECAUTIONS prior to any service.

••••

For information concerning diagnosis or maintenance, always observe the procedures in the SRS Diagnosis or
the SRS Maintenance sections, respectively.

••••

If any SRS components are removed or replaced in connection with any service procedures, be sure to follow the
procedures in the INDIVIDUAL COMPONENT SERVICE section for the comportments involved.

••••

If you have any questions about the SRS, please contact the MMSA Tech Line.

Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS
AFTER HANDLING.

WARNING

INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-3

.

IN TR O D U C TIO N

M1524000100086

WARNING

Extreme care must be used when servicing the SRS to avoid injury to the service personnel
(by inadvertent deployment of the air bags) or the driver (by rendering the SRS inoperative).

The Supplemental Restraint System (SRS) is designed to supplement the driver's and front passenger's seat
belts to help reduce the risk or severity of injury to the driver and front passenger by activating and deploying
both front air bags in certain frontal collisions.

The SRS consist of two air bag modules, SRS air bag control unit (SRS-ECU), SRS warning light, and clock
spring. Air bags are located in the center of the steering wheel and above the glove box. Each air bag is
made up of a folded air bag and an inflator unit. The control unit under the floor console monitors the system
and has a safing G-sensor and an analog G-sensor. The warning light on the instrument panel indicates the
operational status of the SRS. The clock spring is installed in the steering column. Only authorized service
personnel should do work on or around the SRS components. Those service personnel should read this
manual carefully before starting any such work.

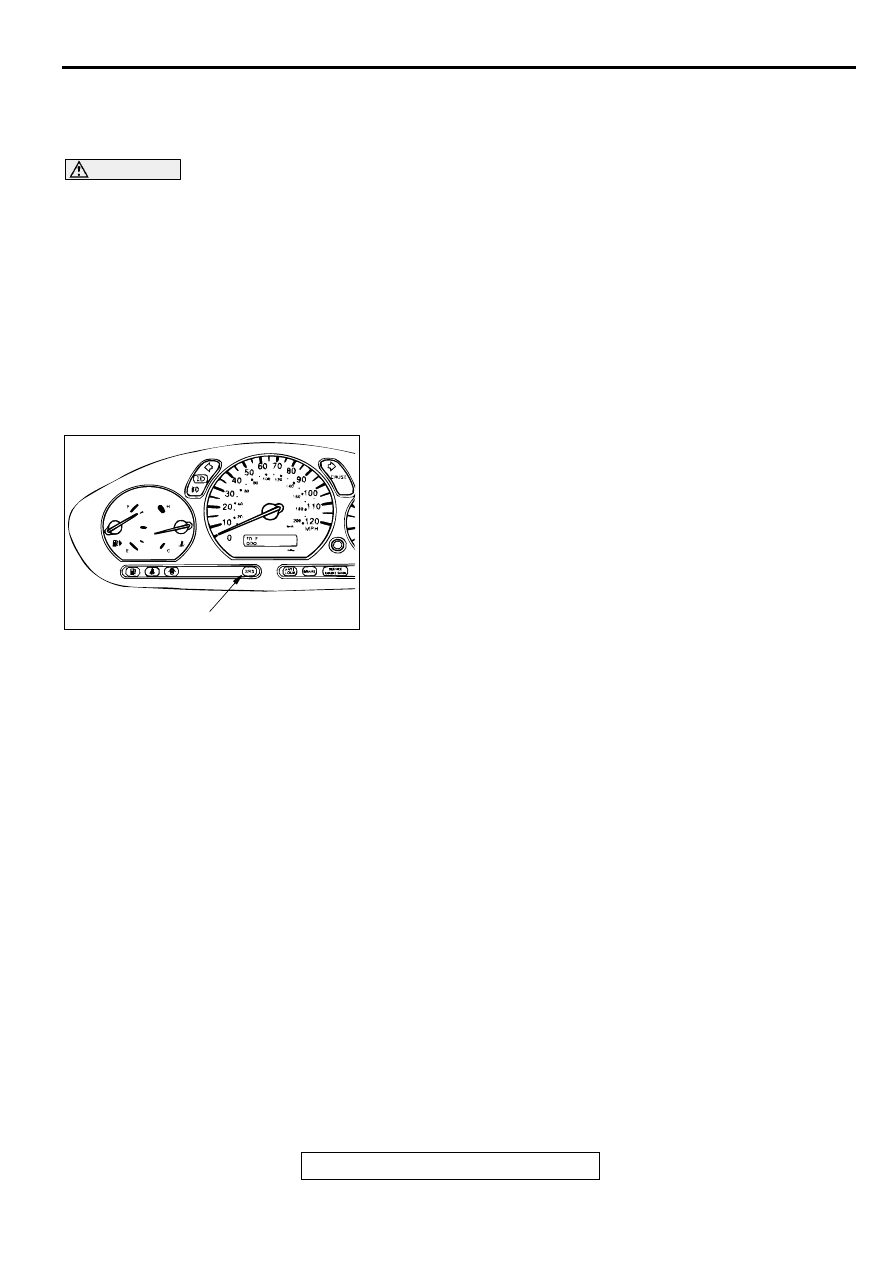

ON-BOARD DIAGNOSTIC/SRS WARNING LIGHT
FUNCTION
The diagnosis unit monitors the SRS system and stores data
concerning any detected faults in the system. When the ignition
switch is in "ON" or "START" position, the SRS warning light
should illuminate for about 7 seconds and then turn "OFF".
That indicates that the SRS system is in operational order. If
the SRS warning light does any of the following, immediate
inspection by an authorized dealer is needed.
1. The SRS warning light does not illuminate as described

above.

2. The SRS warning light stays on for more than 7 seconds.

3. The SRS warning light illuminates while driving.
If a vehicle's SRS warning light is in any of these three
conditions when brought in for inspection, the SRS system
must be inspected, diagnosed and serviced in accordance with
this manual.

AC003188AB

SRS WARNING LIGHT

INTRODUCTION

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

52B-4

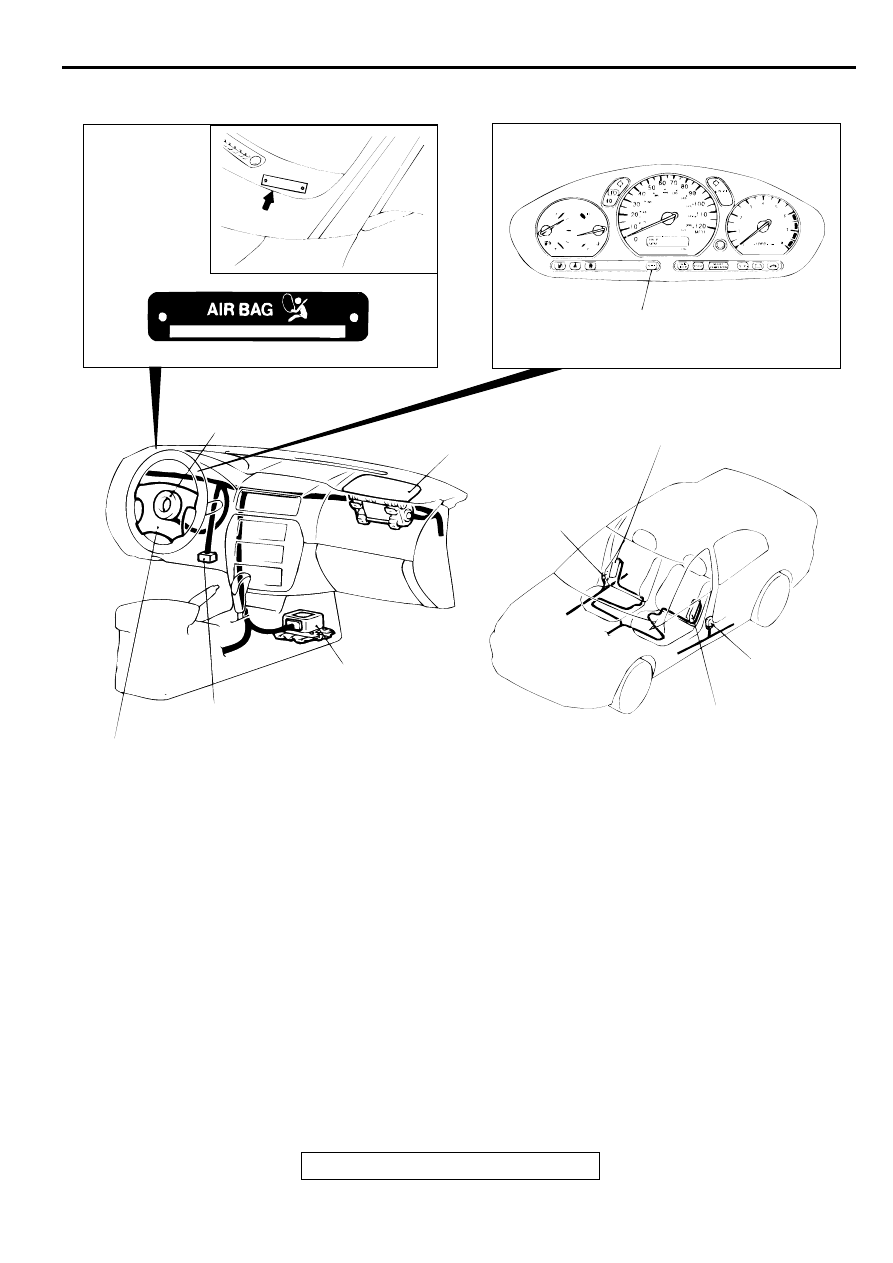

CONSTRUCTION DIAGRAM

NOTE: This construction diagram shows the general
view of the SRS components. For details, refer to
"Schematic, (

P.52B-8

)" "Configuration

Diagrams(

P.52B-8

)" and "Circuit Diagram. (

P.52B-

10

)"

WARNING/CAUTION LABELS

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustration.
Follow label instructions when servicing SRS. If labels are dirty or damaged, replace them.

AC003189AB

VEHICLES
IDENTIFICATION
CODE CHART
PLATE

SRS WARNING LIGHT

CLOCK SPRING

AIR BAG MODULE
(DRIVER'S SIDE)

DATA LINK CONNECTOR
(FOR SCAN TOOL)

SRS-ECU

AIR BAG MODULE
(FRONT PASSENGER'S SIDE)

SIDE AIR BAG
MODULE

SIDE IMPACT
SENSOR

SIDE AIR BAG MODULE

SIDE IMPACT
SENSOR
