FRONT SEAT BELT

TSB Revision

INTERIOR

52A-21

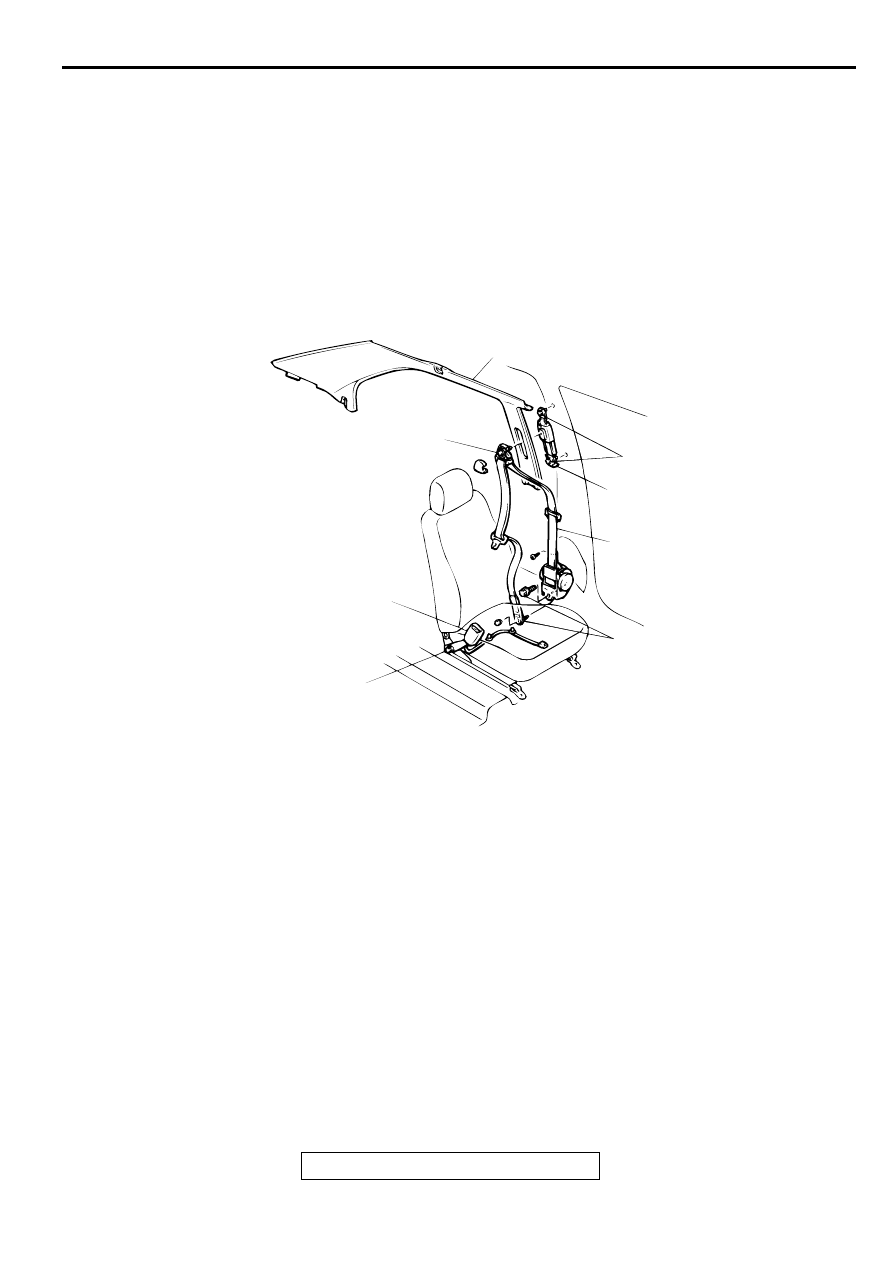

FR O N T SEAT B ELT

REMOVAL AND INSTALLATION

M1523001300079

DISASSEMBLY STEPS

1. REAR SEAT CUSHION COVER
2. REAR SEAT CUSHION PAD
3. REAR SEATBACK COVER
4. REAR SEATBACK PAD

5. LOCK A ASSEMBLY
6. LOCK B ASSEMBLY
7. STOPPER
8. LOCK KNOB

DISASSEMBLY STEPS (Continued)

AC003155AB

1

2

3

4

44 N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

OUTER SEAT BELT REMOVAL
STEPS

1. OUTER SEAT BELT
2. REAR PILLAR TRIM (REFER TO

P.52A-12

.)

3. ADJUSTABLE SEAT BELT ANCHOR

INNER SEAT BELT REMOVAL
STEPS

•

FRONT SEAT ASSEMBLY (REFER
TO

P.52A-15

.)

•

FRONT SEAT SHIELD COVER
(REFER TO

P.52A-16

.)

4. INNER SEAT BELT

FRONT SEAT BELT

TSB Revision

INTERIOR

52A-22

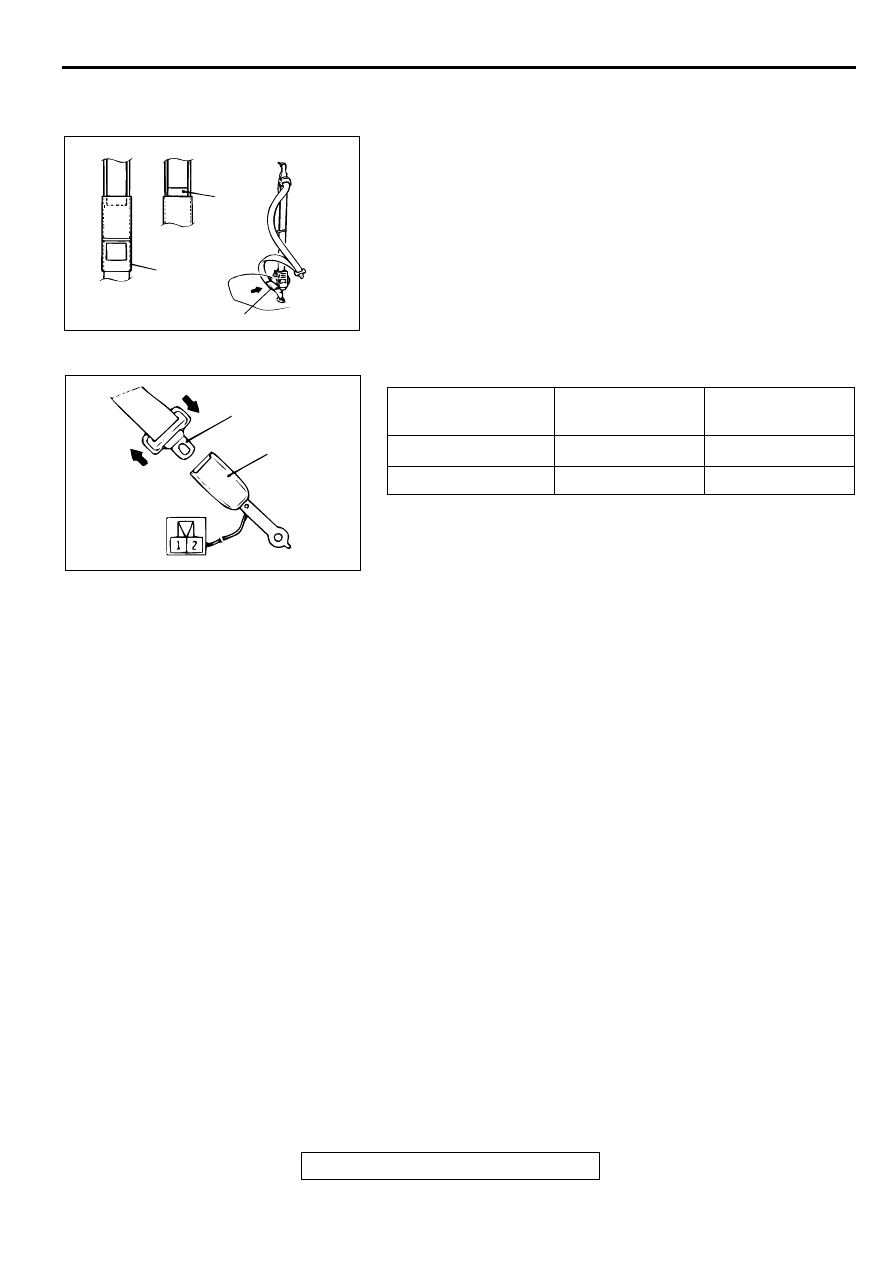

INSPECTION

M1523001400076

OUTER SEAT BELT CHECK
Check that the B section (red) of the label attached to the outer
seat belt is not exposed from the outer seat belt sleeve. If it is
exposed, replace the outer seat belt.

SEAT BELT BUCKLE SWITCH CONTINUITY CHECK

AC003156AB

SLEEVE

B

SLEEVE

VIEW A

GOOD

BAD

A

ITEMS

TESTER
CONNECTION

SPECIFIED
CONDITION

Fastened seat belt

−

No continuity

Unfastened seat belt

1

−

 2

Continuity

ACX00636

TONGUE

BUCKLE

AB

REAR SEAT BELT

TSB Revision

INTERIOR

52A-23

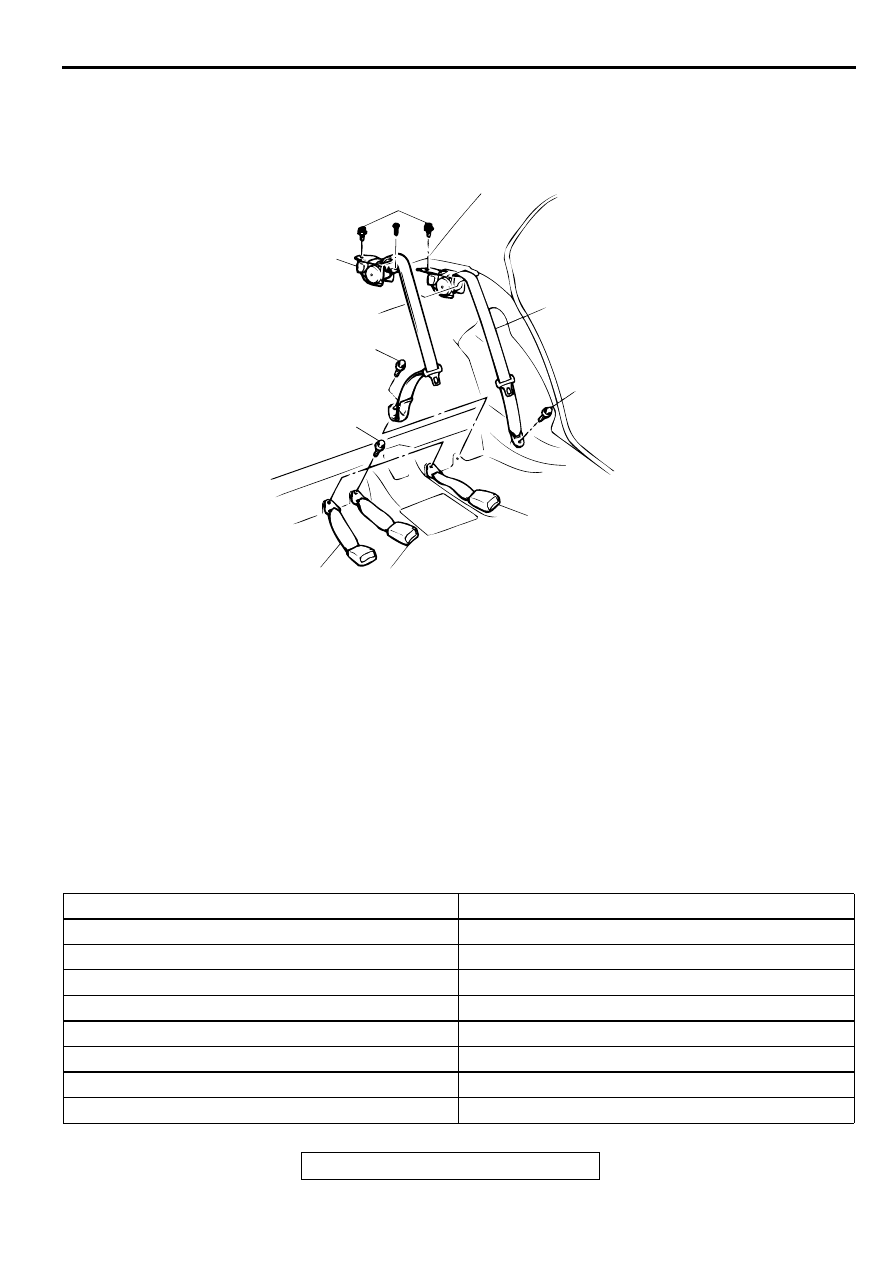

R EA R  SEAT B ELT

REMOVAL AND INSTALLATION

M1523001600070

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1521004100078

AC003157AB

1

2

2

3

4

44 N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

REMOVAL STEPS

•

REAR SEAT (REFER TO

P.52A-20

.)

1. REAR CENTER SEAT BELT

ASSEMBLY (INNER)

2. REAR SEAT BELT ASSEMBLY

(INNER)

•

REAR SHELF TRIM (REFER TO

P.52A-12

.)

3. REAR SEAT BELT ASSEMBLY

(OUTER)

4. CENTER REAR SEAT BELT

ASSEMBLY (OUTER)

REMOVAL STEPS (Continued)

ITEMS

SPECIFICATION

Adjustable seat belt anchor bolt

44 N

⋅

m (33 ft-lb)

Catch bolt

12 N

⋅

m (106 in-lb)

Front inner seat belt bolt

44 N

⋅

m (33 ft-lb)

Front outer seat belt bolt

44 N

⋅

m (33 ft-lb)

Front seat bolt

44 N

⋅

m (33 ft-lb)

Front seat nut

29 N

⋅

m (21 ft-lb)

Front seat reclining adjuster bolt

22 N

⋅

m (16 ft-lb)

High-mounted stoplight nut

5 N

⋅

m (44 in-lb)

SPECIFICATIONS

TSB Revision

INTERIOR

52A-24

Rear center seat belt bolt

44 N

⋅

m (33 ft-lb)

Rear inner seat belt bolt

44 N

⋅

m (33 ft-lb)

Rear outer seat belt bolt

44 N

⋅

m (33 ft-lb)

Rear center seat belt bolt

44 N

⋅

m (33 ft-lb)

Rear seatback bolt

22 N

⋅

m (16 ft-lb)

Tether anchor bolt

22 N

⋅

m (16 ft-lb)

ITEMS

SPECIFICATION
