TRIMS

TSB Revision

INTERIOR

52A-13

11. SPACER 10mm (0.4 inch)
12. SPACER 7mm (0.3 inch)
13. FIBER WASHER

UPPER TETHER ANCHOR
REMOVAL STEPS (Continued)

AC003145AB

14

15

16

17

18

I

I

J

J

K

K

L

L

NOTE
      : Clip position

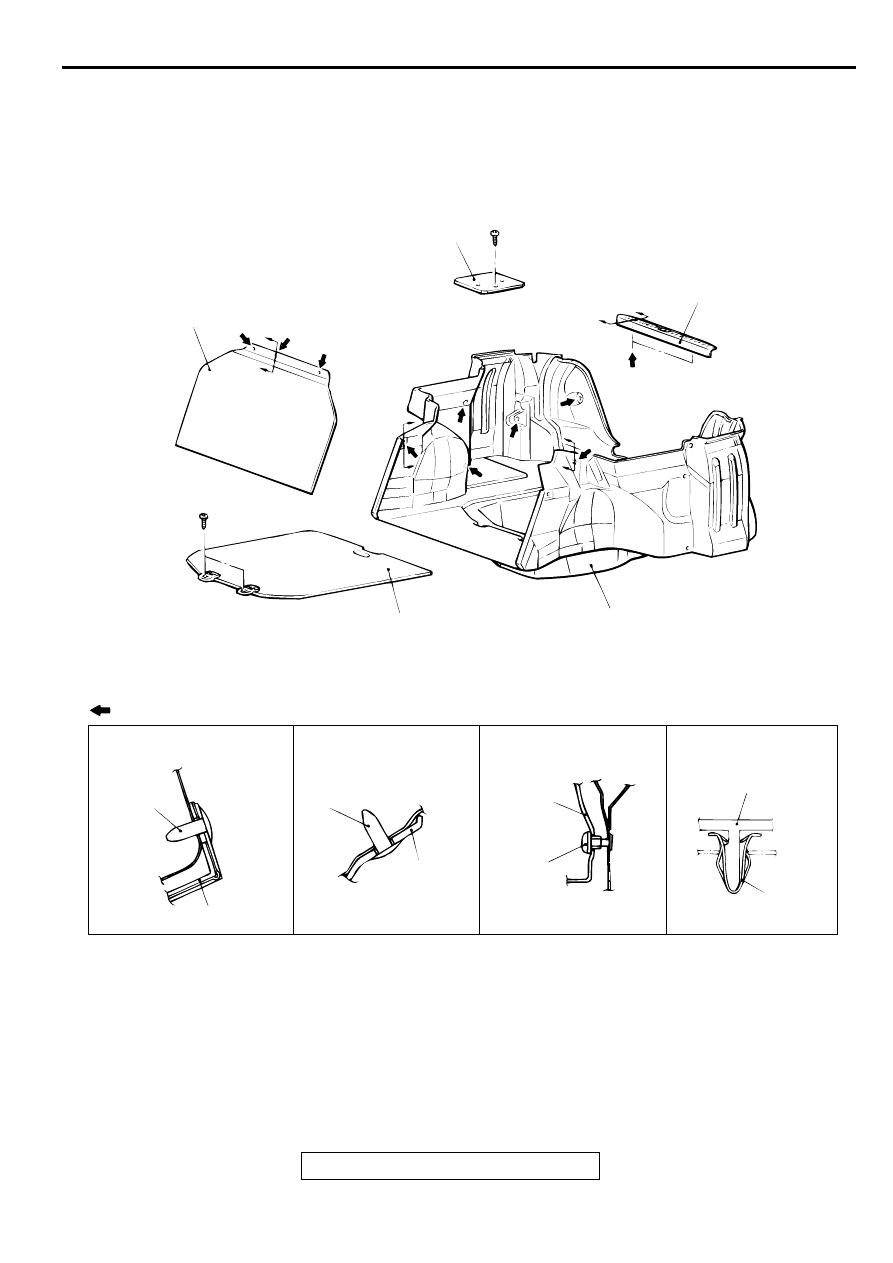

SECTION I – I

SECTION J – J

SECTION K – K

SECTION L – L

CLIP

TRUNK FRONT TRIM

CLIP

TRUNK TRIM
ASSEMBLY

TRUNK TRIM
ASSEMBLY

CLIP

REAR END
TRIM COVER

CLIP

REMOVAL STEPS

14. TRUNK FRONT TRIM
15. CORNER PLATE
16. TRUNK TRIM ASSEMBLY

17. REAR END TRIM COVER
18. TRUNK FLOOR BOARD

REMOVAL STEPS (Continued)

HEADLINING

TSB Revision

INTERIOR

52A-14

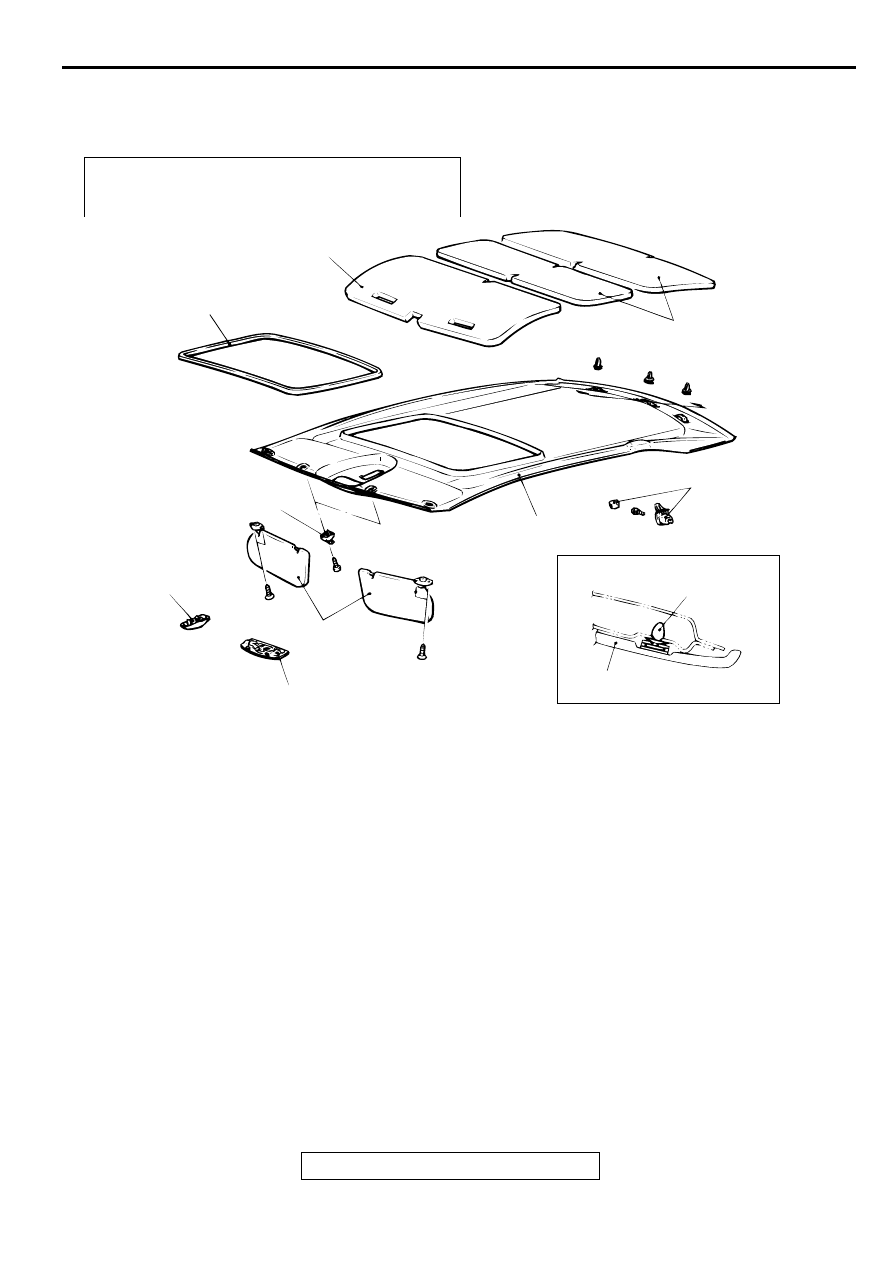

H EA D LIN IN G

REMOVAL AND INSTALLATION

M1521001400070

Pre-removal and Post-installation Operation
• Front Pillar Trim, Center Pillar Lower Trim and Rear Pillar

Trim Removal and Installation (Refer to

P.52A-12

.)

AC003146AB

1

2

3

4

5

6

7

8

9

A

A

SECTION A – A

CLIP

HEADLINING

REMOVAL STEPS

1. SUNVISOR ASSEMBLY
2. SUNVISOR HOLDER
3. DOME LIGHT ASSEMBLY
4. SUNROOF SWITCH COVER

<VEHICLES WITH SUNROOF>

5. COAT HANGER

6. FRONT ROOF PAD
7. REAR ROOF PAD
8. HEADLINING TRIM <VEHICLES

WITH SUNROOF>

9. HEADLINING

REMOVAL STEPS (Continued)

INSIDE REAR VIEW MIRROR

TSB Revision

INTERIOR

52A-15

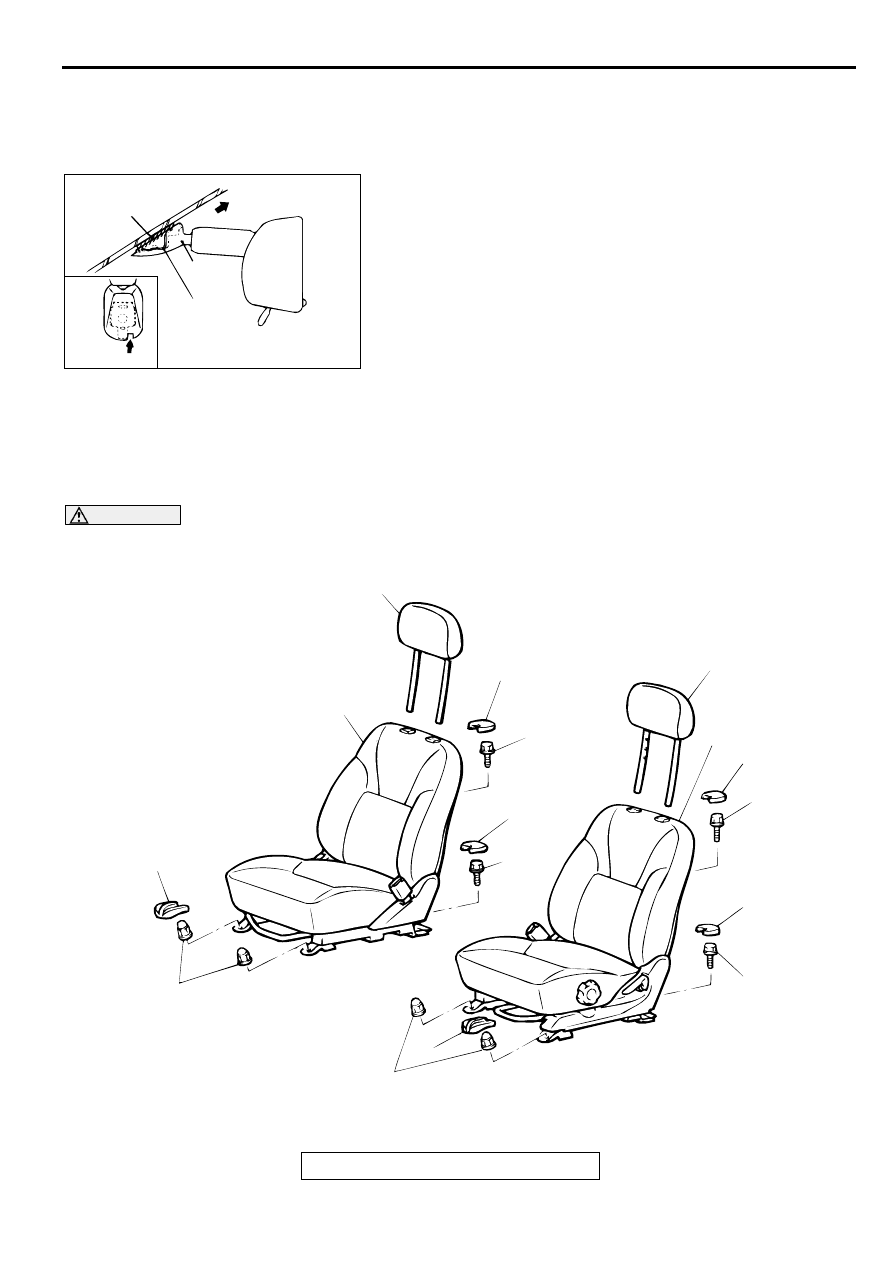

IN SID E R EA R VIEW  M IR R O R

REMOVAL AND INSTALLATION

M1521002700074

Insert a narrow flat-tip screwdriver into the slit in the inside rear
view mirror in the direction of the arrow in the illustration.

NOTE: While the spring is pushed in, connection between the
spring and the pawl of the button is released.

FR O N T SEAT ASSEM B LY

REMOVAL AND INSTALLATION

M1522001300076

WARNING

Before removing a seat equipped with a side air bag module, refer to GROUP 52B, SRS
Service Precautions

P.52B-15

.

AC000333 AB

BUTTON

BRACKET

SPRING

SLIT

AC003147

1

1

2

2

2

2

2

2

3

3

44  N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

44 N·m
33 ft-lb

29 N·m
21 ft-lb

29 N·m
21 ft-lb

AB

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-16

INSTALLATION SERVICE POINT

>>A<< FRONT SEAT ASSEMBLY INSTALLATION
First install all of the front seat assembly mounting nuts and
bolts, and then tighten them to the specified torque.

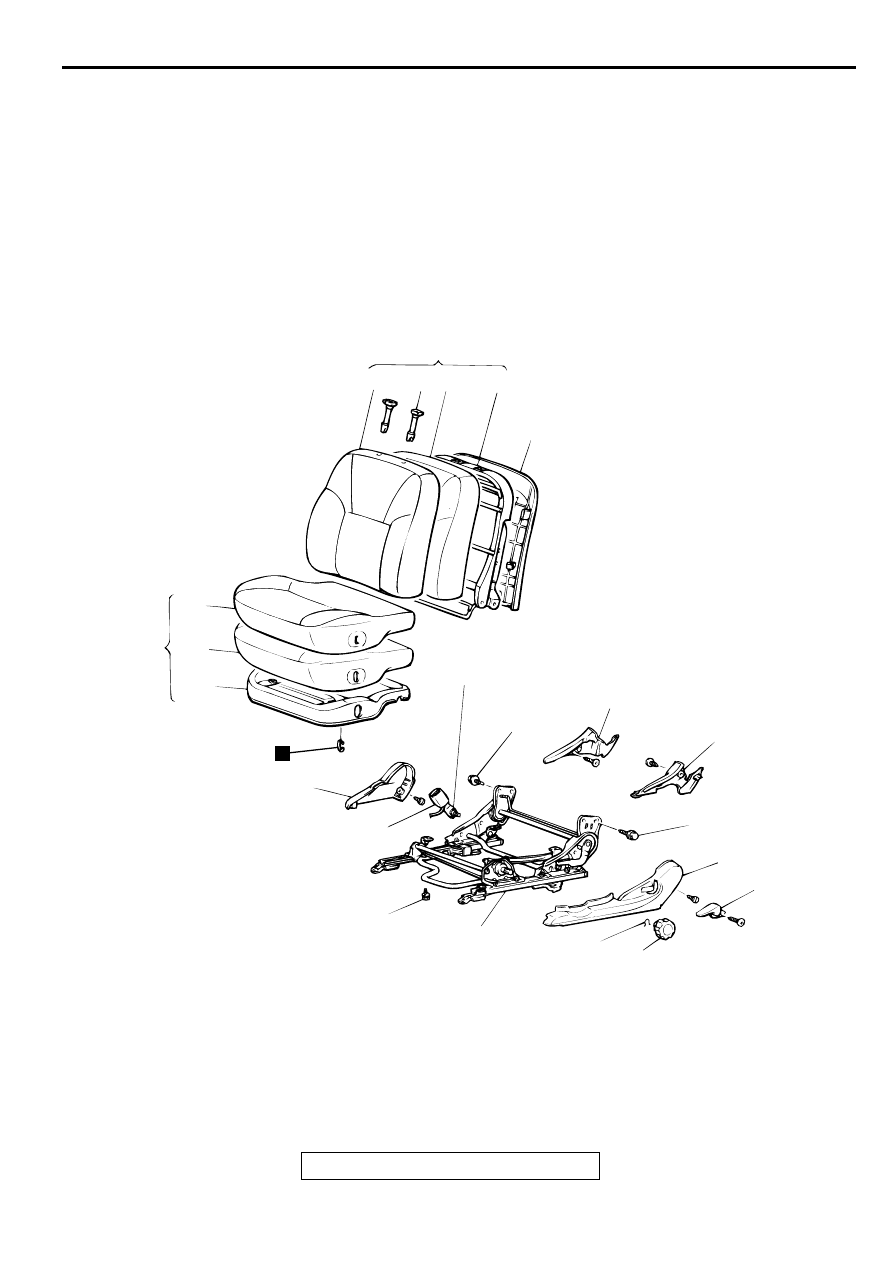

DISASSEMBLY AND ASSEMBLY

M1522001500100

1. HEAD RESTRAINT

FRONT SEAT ASSEMBLY
REMOVAL STEPS

•

HARNESS CONNECTOR

2. SEAT ANCHOR COVER

>>A<<

3. FRONT SEAT ASSEMBLY

AC003663AB

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

22 N·m
16 ft-lb

22 N·m
16 ft-lb

44 N·m
33 ft-lb

12 N·m
106 in-lb

N

<WITHOUT POWER SEAT>

DISASSEMBLY STEPS

1. RECLINING ADJUSTER KNOB
2. CLIP
3. HEIGHT ADJUSTER KNOB
4. FRONT SEAT SHIELD COVER
5. FRONT SEAT SHIELD COVER
6. INNER SEAT BELT
7. FRONT SEAT CUSHION ASSEMBLY
8. FRONT SEAT CUSHION COVER

9. FRONT SEAT CUSHION PAD
10. FRONT SEAT CUSHION FRAME

<<A>>

11. FRONT SEATBACK PANEL
12. FRONT SEATBACK ASSEMBLY
13. HEADRESTRAINT GUIDE
14. FRONT SEATBACK COVER
15. FRONT SEATBACK PAD

DISASSEMBLY STEPS (Continued)
