ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-279

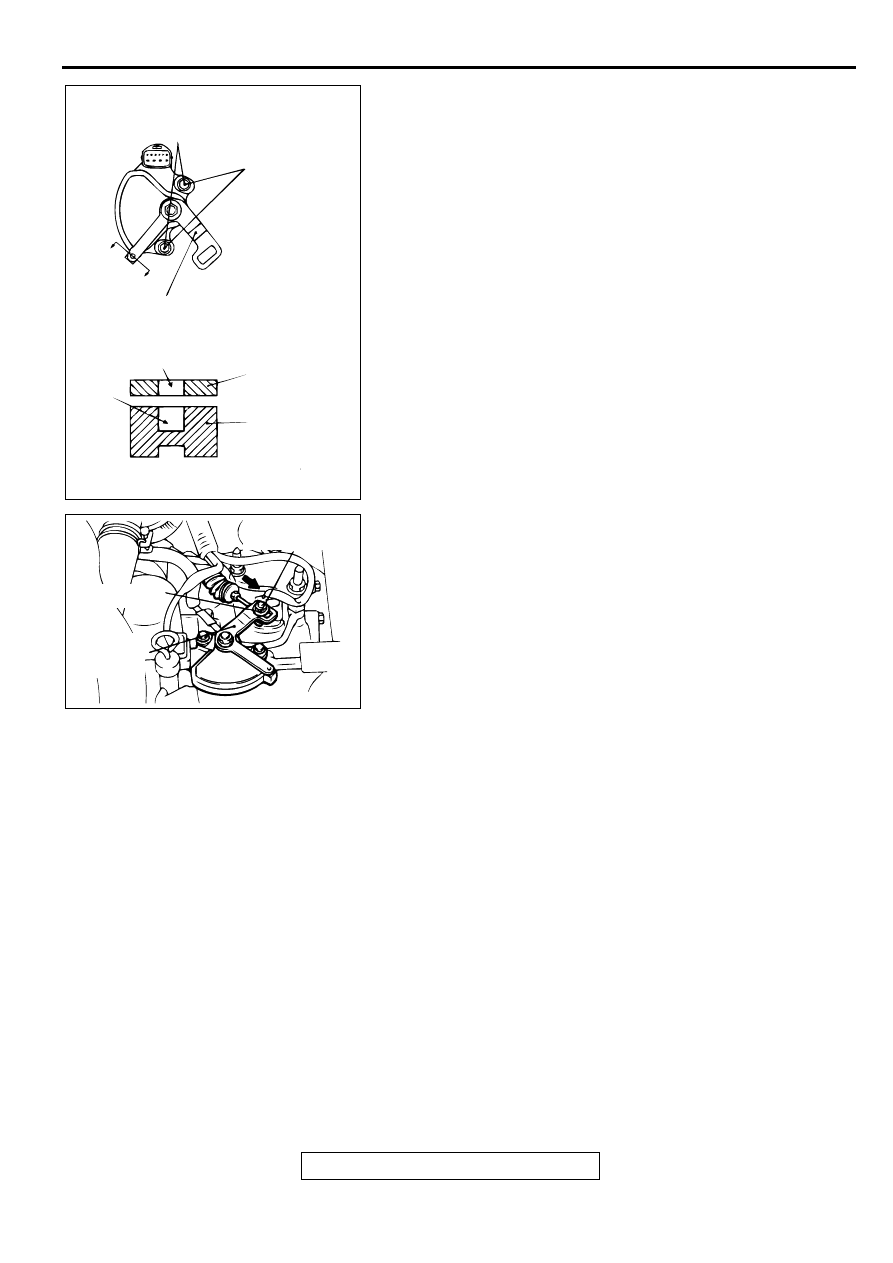

4. Loosen the park/neutral position switch body mounting bolts

and turn the park/neutral position switch body so the hole in
the end of the manual control lever and the hole (section A



A in the figure on the left) in the flange of the park/neutral
position switch body flange are aligned.

5. Tighten the park/neutral position switch body mounting bolts

to the specified torque. Be careful at this time that the switch
body does not move.

Tightening torque: 11

±±±±

 1 N

⋅⋅⋅⋅

m (96

±±±±

 8 in-lb)

6. Gently pull the transaxle control cable in the direction of the

arrow, until the cable is taut. Tighten the adjusting nut.

Tightening torque: 12

±±±±

 2 N

⋅⋅⋅⋅

m (100

±±±±

 22 in-lb)

7. Check that the selector lever is in the "N" position.

8. Check that each position of the manual control lever

matches each position of the selector lever.

AUTOMATIC TRANSAXLE CONTROL
COMPONENT CHECK

CRANKSHAFT POSITION SENSOR CHECK

M1231009000054

Refer to GROUP 13A <2.4L Engine>, Diagnosis

 Inspection

Procedure Using an Oscilloscope

P.13A-422

.

Refer to GROUP 13B <3.0L Engine>, Diagnosis

 Inspection

Procedure Using an Oscilloscope

P.13B-504

.

THROTTLE POSITION SENSOR CHECK

M1231003900059

Refer to GROUP 13A <2.4L Engine>, On-vehicle Service



Throttle Position Sensor Check

P.13A-444

.

Refer to GROUP 13B <3.0L Engine>, On-vehicle Service



Throttle Position Sensor Check

P.13B-524

.

AC001893 AB

11 ± 1 N·m
96 ± 8 in-lb

A

A

SECTION A - A

MOUNTING
BOLTS

MANUAL
CONTROL LEVER

HOLE IN END

HOLE IN
FLANGE

MANUAL
CONTROL
LEVER

PARK/NEUTRAL
POSITION
SWITCH BODY

AC001894

MANUAL
CONTROL
LEVER

ADJUSTING
NUT

12 ± 2 N·m
100 ± 22 in-lb

AB

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-280

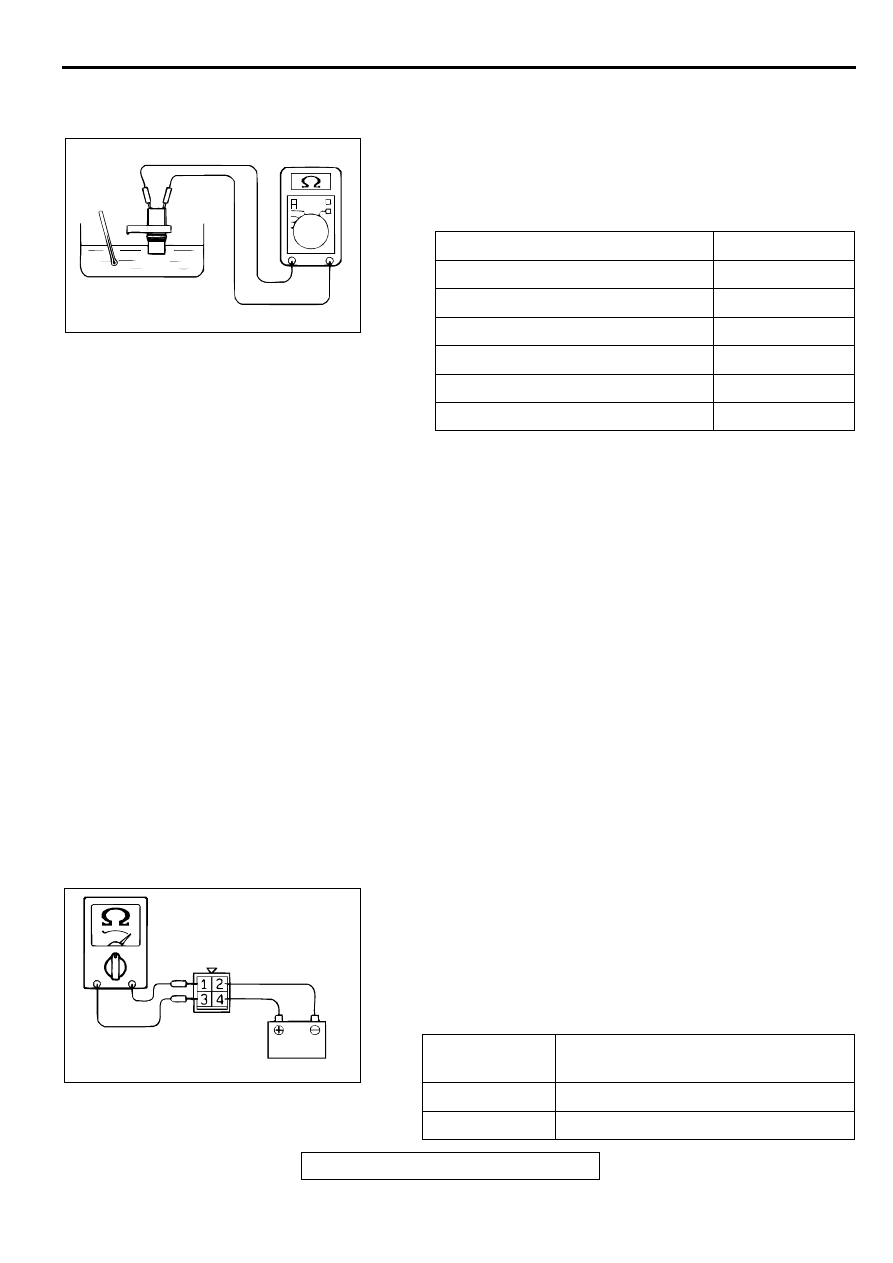

A/T FLUID TEMPERATURE SENSOR CONTINUITY
CHECK

M1231004500043

1. Remove the A/T fluid temperature sensor.

2. Measure the resistance between terminals 1 and 2 of the A/

T fluid temperature sensor connector.

Standard value:

3. Replace the sensor if not within the standard value.

PARK/NEUTRAL POSITION SWITCH CHECK

M1231001400092

Refer to

P.23A-278

.

STOPLIGHT SWITCH CHECK

M1231009100051

Refer to GROUP 35A, On-vehicle Service

 Stoplight Switch

Check

P.35A-18

.

VEHICLE SPEED SENSOR CHECK

M1231004600051

Refer to GROUP 54A, Combination Meters Assembly and
Vehicle Speed Sensor

 Combination Meters Assembly and

Vehicle Speed Sensor

P.54A-65

.

DUAL PRESSURE SWITCH CHECK

M1231004700058

Refer to GROUP 55A, On-vehicle Service

 Dual Pressure

Switch Check

P.55-21

.

A/T CONTROL RELAY CHECK

M1231009300044

1. Remove the A/T control relay.

2. Use jumper wires to connect the A/T control relay terminal 2

to the negative battery terminal and terminal 4 to the positive
battery terminal.

3. Check the continuity between terminal 1 and terminal 3 of

the A/T control relay when the jumper wires are connected
to and disconnected from the battery.

A/T FLUID TEMPERATURE

RESISTANCE

0

°

C (32

°

F)

16.7

 20.5 k

20

°

C (68

°

F)

7.3

 8.9 k

40

°

C (104

°

F)

3.4

 4.2 k

60

°

C (140

°

F)

1.9

 2.2 k

80

°

C (176

°

F)

1.0

 1.2 k

100

°

C (212

°

F)

0.57

 0.69 k

ACX01203AB

ATF

JUMPER WIRE

CONTINUITY BETWEEN
TERMINALS NO.1 AND NO.3

Connected

Continuity

Disconnected

No continuity

AC002288

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-281

4. If there is any problem with the A/T control relay, replace it.

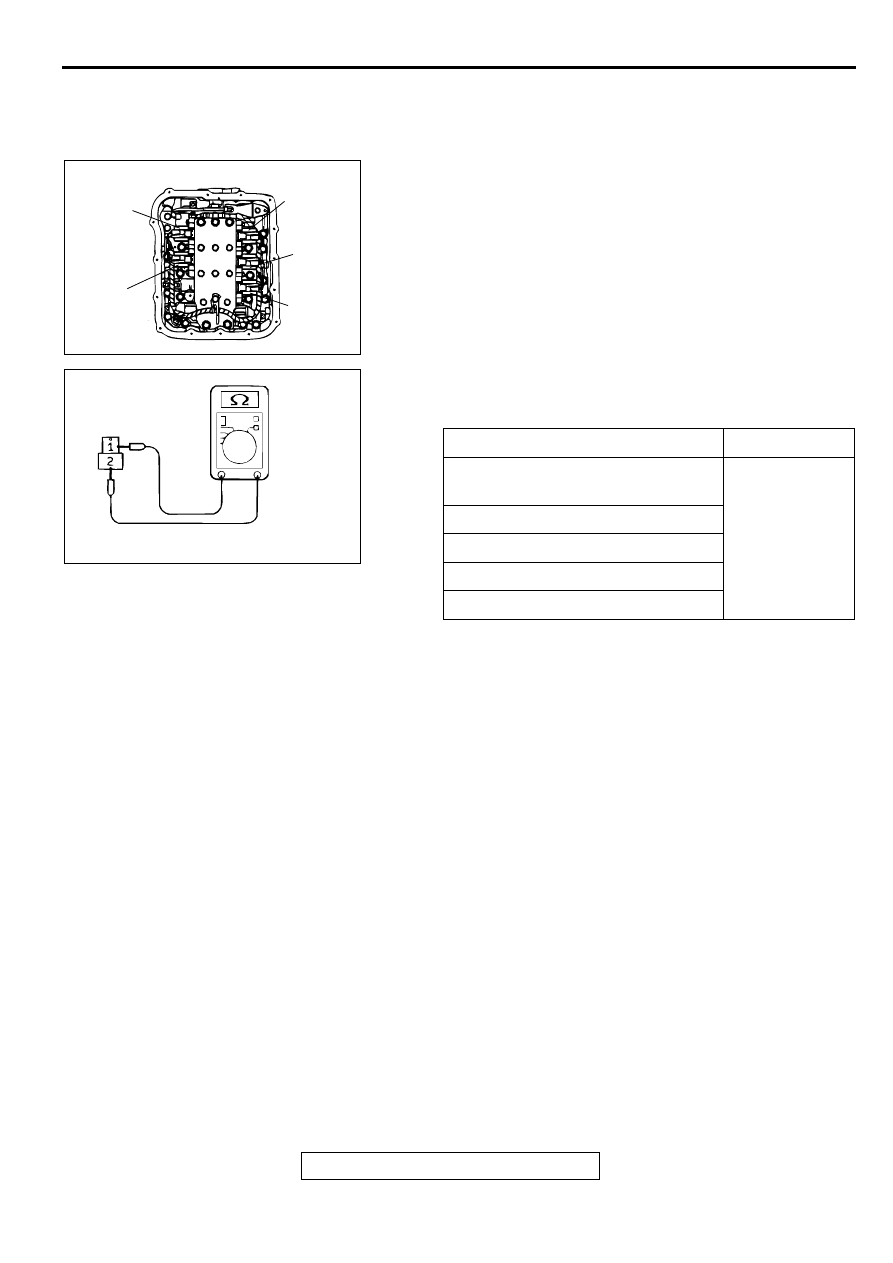

SOLENOID VALVE CHECK

M1231009400041

1. Remove the valve body cover.

2. Disconnect the connectors of each solenoid valve.

3. Measure the resistance between terminals 1 and 2 of each

solenoid valve.

Standard value:

4. If the resistance is not within the standard value, replace the

solenoid valve.

NAME

RESISTANCE

Torque converter clutch solenoid
valve

2.7

 3.4

 [at

20

°

C (68

°

F)]

Low-reverse solenoid valve

Second solenoid valve

Underdrive solenoid valve

Overdrive solenoid valve

AC002219AD

LOW-
REVERSE
SOLENOID
VALVE

OVERDRIVE
SOLENOID
VALVE

TORQUE
CONVERTER
CLUTCH
SOLENOID

SECOND
SOLENOID
VALVE

UNDERDRIVE
SOLENOID
VALVE

AC002289

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23A-282

SELECTOR LEVER OPERATION CHECK

M1231001300062

1. Apply the parking brake, and check that the selector lever

moves smoothly and accurately to each range position.

2. Check that the engine starts when the selector lever is at the

N or P position, and that it does not start when the selector
lever is in any other position.

3. Start the engine, release the parking brake, and check that

the vehicle moves forward when the selector lever is moved
from N range to D, 3, 2 or L range, and that the vehicle
reverses when the selector lever is moved to R range.

4. Stop the engine.

5. Turn the ignition switch to the ON position, and check that

the backup lamp illuminates and the buzzer sounds when
the selector lever is shifted from P to R range.

NOTE: The A/T mis-operation prevention mechanism is
provided so that the selector lever cannot be moved from
the P position if the ignition switch is at a position other than
the LOCK (OFF) position and the brake pedal is not
depressed.

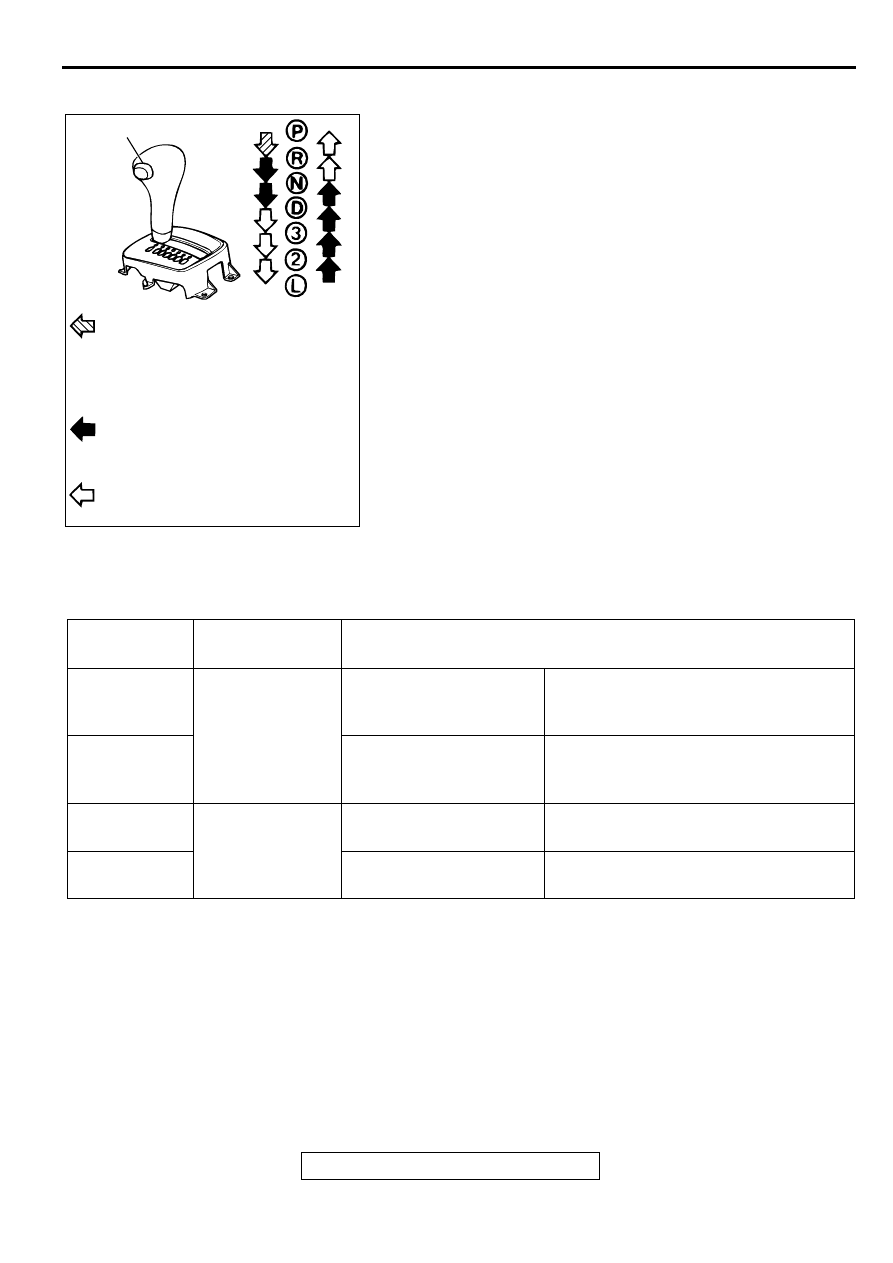

KEY INTERLOCK MECHANISM CHECK

M1232000900075

1. Carry out the following inspection.

2. When any of the above checks are not normal, adjust the

key interlock cable in following procedure.

(1) Remove the floor console. (Refer to GROUP 52A

 Floor

console

P.52A-11

.)

(2) Shift selector lever to "P."
(3) Turn the ignition key to "LOCK" (OFF) position.

AC004082AB

: MOVE WHILE THE BRAKE PEDAL IS
  DEPRESSED AND THE BUTTON IS
  PUSHED WITH THE IGNITION KEY
  AT ANY POSITIONS OTHER THAN
  "LOCK"(OFF).

: MOVE WITHOUT PUSHING THE
  BUTTON.

: MOVE WHILE THE BUTON IS PUSHED.

PUSH BUTTON

INSPECTION
PROCEDURE

INSPECTION
REQUIREMENTS

INSPECTION ITEM (NORMAL CONDITION)

1

Brake pedal:
Depressed

Ignition key position:
"LOCK" (OFF) or removed

Push in the selector lever push button.
Shifting from "P" to other positions is
not possible.

2

Ignition key position:
"ACC"

Push in the selector lever push button.
Shifting from "P" to other positions is
possible.

3

Brake pedal:
Not depressed

Selector lever: Other than
"P"

Turning the ignition key to "LOCK" (OFF)
position is not possible.

4

Selector lever: "P"

Turning the ignition key to "LOCK" (OFF)
position smoothly is possible.
