TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-29

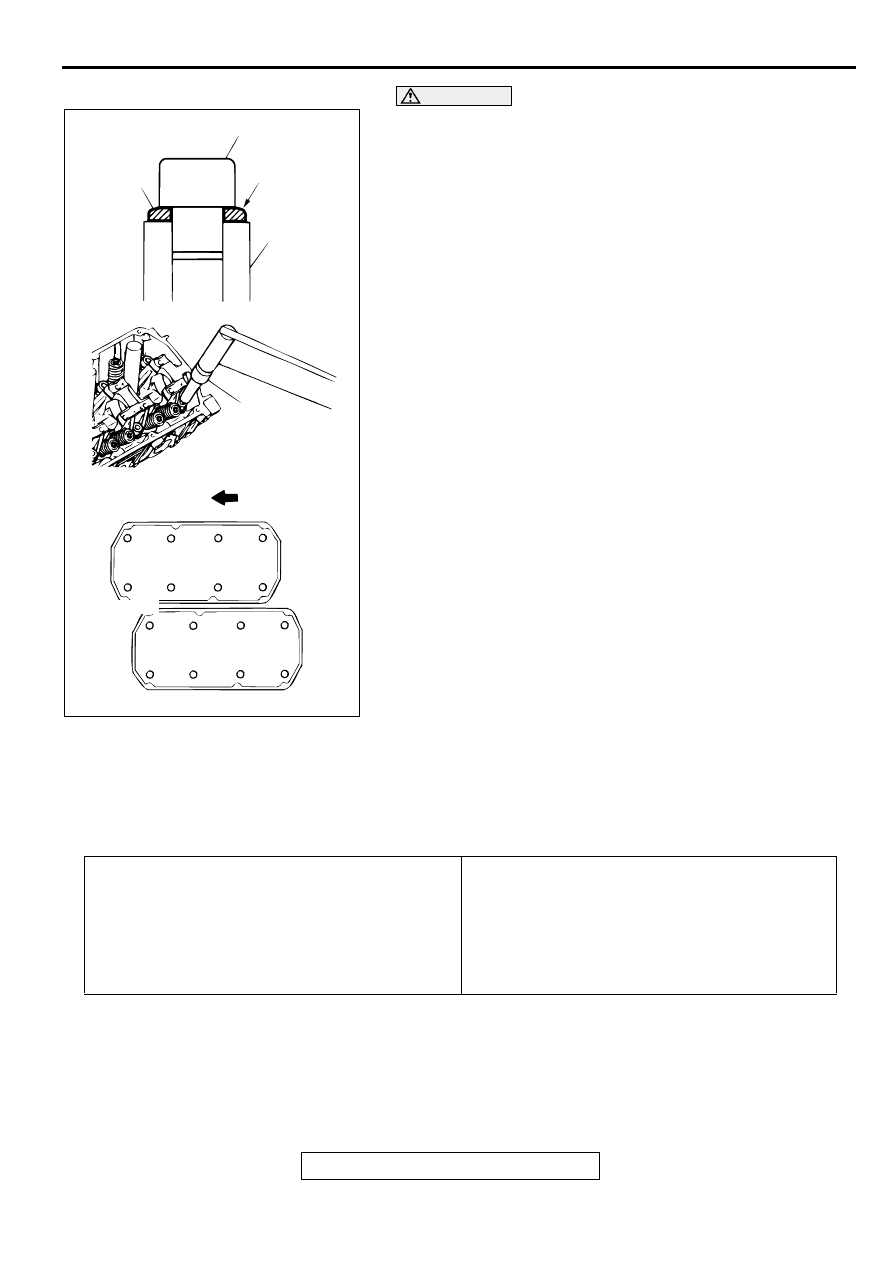

CAUTION

Attach the cylinder head bolt washer in the direction
shown in the illustration.
2. Using special tool MD998051 and a torque wrench, tighten

the bolts to the specified torque in the order shown in the
illustration. (in two or three steps)

Tightening torque: 103

−−−−

 113 N

⋅⋅⋅⋅

m (76

−−−−

 83 ft-lb)

3. Loosen the mounting bolts in the reverse sequence to that

shown.

4. Tighten the mounting bolts progressively in the shown

sequence to the specified torque again.

Tightening torque: 103

−−−−

 113 N

⋅⋅⋅⋅

m (76

−−−−

 83 ft-lb)

TIM IN G  B ELT

REMOVAL AND INSTALLATION

M1112004300117

AC001733

2

3

7

6

1

5

4

8

1

4

8

5

2

3

7

6

EXHAUST SIDE

EXHAUST SIDE

INTAKE SIDE

FRONT OF
ENGINE

AB

MD998051

CYLINDER
HEAD BOLT
WASHER

CYLINDER HEAD BOLT

ROUNDED
SHOULDER

CYLINDER
HEAD

Pre-removal Operation

Generator Removal (Refer to GROUP 16, Generator

P.16-14

.)

Engine Mount Bracket Removal (Refer to GROUP 32,
Engine Mounting

P.32-5

.)

Post-installation Operation

Engine Mount Bracket Installation (Refer to GROUP 32,
Engine Mounting

P.32-5

.)

Generator Installation (Refer to GROUP 16, Generator

P.16-14

.)

Drive Belt Tension Adjustment [Refer to GROUP 00,
Maintenance Service

 Drive Belts (Check Condi-

tion).

P.00-39

]

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-30

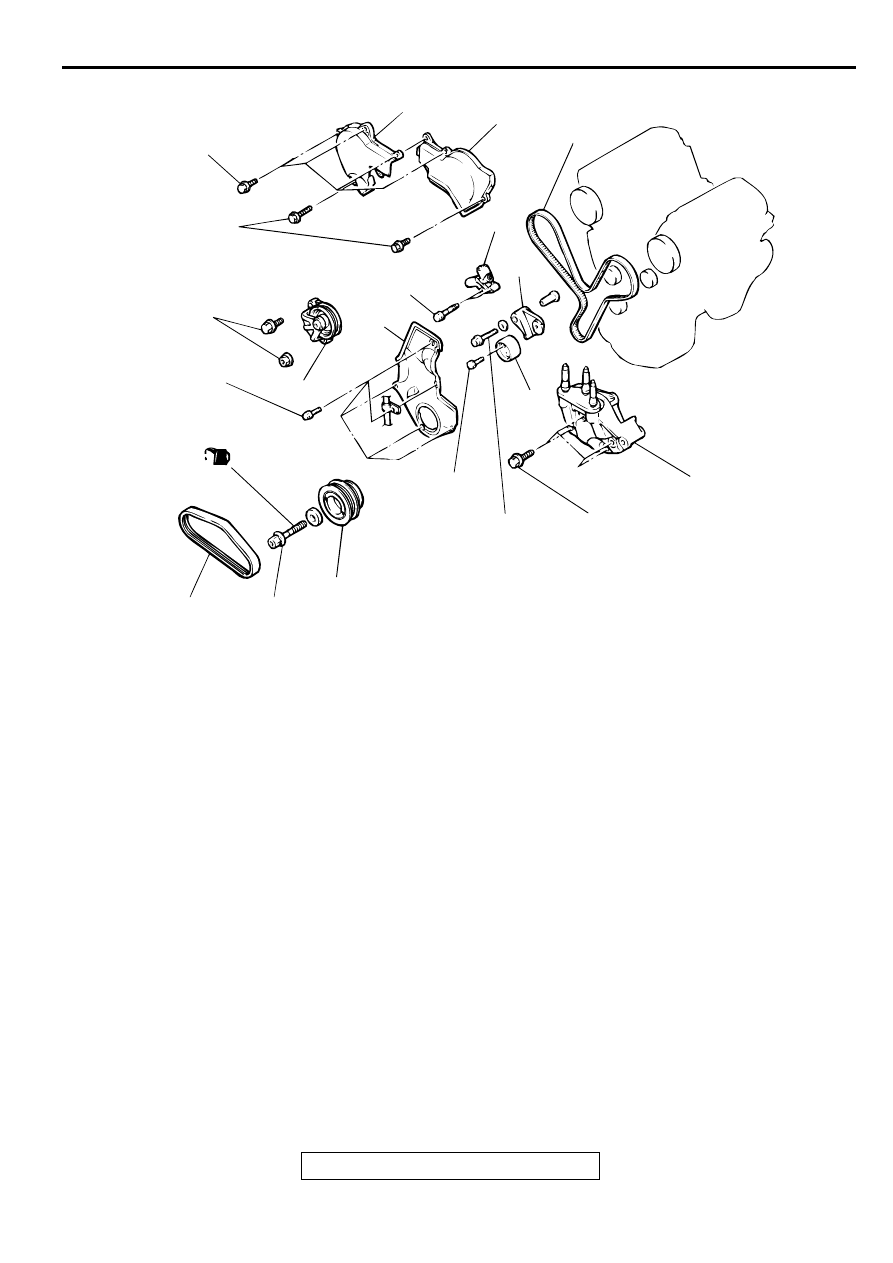

Required Special Tools:
MB990767: End Yoke Holder
MD998715: Crankshaft Pulley Holder Pin

MD998767: Tensioner Wrench
MD998769: Crankshaft Pulley Spacer

AC001734 AC

177 – 186 N·m
131 – 137 ft-lb

44 N·m
32 ft-lb

44 N·m
32 ft-lb

48 N·m
35 ft-lb

44 N·m
32 ft-lb

24 N·m
18 ft-lb

12 – 15 N·m
106 – 133 in-lb

9.8 – 12 N·m
87 – 106 in-lb

4

5

8

9

11

6

3

10

2

1

7

(ENGINE OIL)

12 – 15 N·m
106 – 133 in-lb

REMOVAL STEPS

1.

DRIVE BELT (POWER STEERING
OIL PUMP)

<<A>>

>>D<<

2.

CRANKSHAFT PULLEY

3.

TENSIONER PULLEY ASSEMBLY
(POWER STEERING OIL PUMP)

4.

TIMING BELT FRONT UPPER
COVER, RIGHT

5.

TIMING BELT FRONT UPPER
COVER, LEFT

6.

TIMING BELT FRONT LOWER
COVER

>>C<<

7.

ENGINE SUPPORT BRACKET,
RIGHT

<<B>>

>>B<<

8.

TIMING BELT

>>A<<

9.

AUTO-TENSIONER

10. TENSIONER PULLEY
11. TENSIONER ARM

REMOVAL STEPS (Continued)

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-31

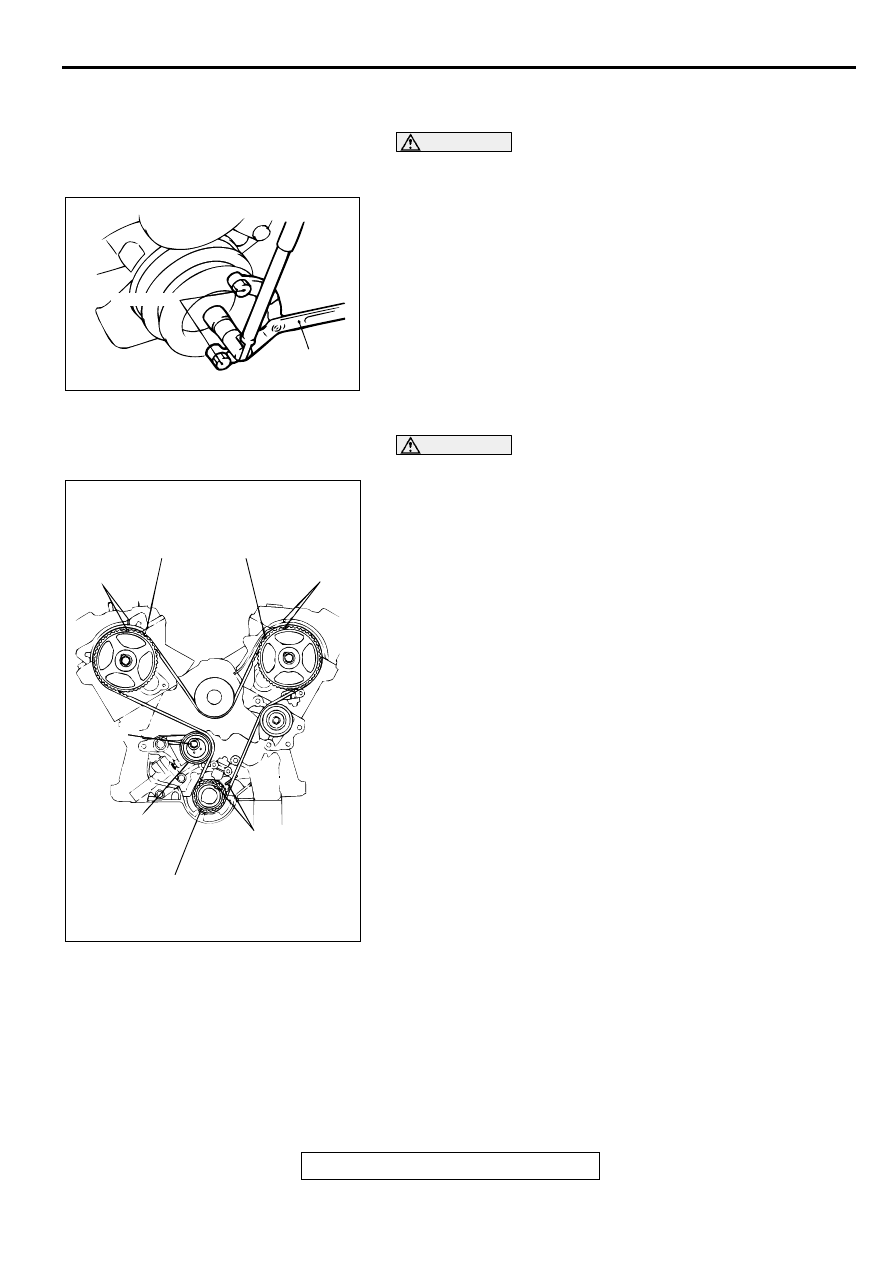

REMOVAL SERVICE POINTS

<<A>> CRANKSHAFT PULLEY REMOVAL

CAUTION

Use only the specified special tools, or a damaged pulley
damper could result.
Use special tools MB990767 and MD998715 to remove the
crankshaft pulley from the crankshaft.

<<B>> TIMING BELT REMOVAL

CAUTION

Never turn the crankshaft counterclockwise.
1. Turn the crankshaft clockwise to align each timing mark and

to set the number 1 cylinder to compression top dead center.

2. If the timing belt is to be reused, chalk an arrow on the flat

side of the belt, indicating the clockwise direction.

3. Loosen the center bolt of the tensioner pulley, then remove

the timing belt.

AC001735

MD998715

MB990767

AB

AC001736AB

TIMING MARKS

TIMING
MARKS

TIMING
MARKS

CAMSHAFT
SPROCKET
(LEFT BANK)

CAMSHAFT
SPROCKET
(RIGHT BANK)

CRANKSHAFT
SPROCKET

TENSIONER
PULLEY

CENTER
BOLT

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-32

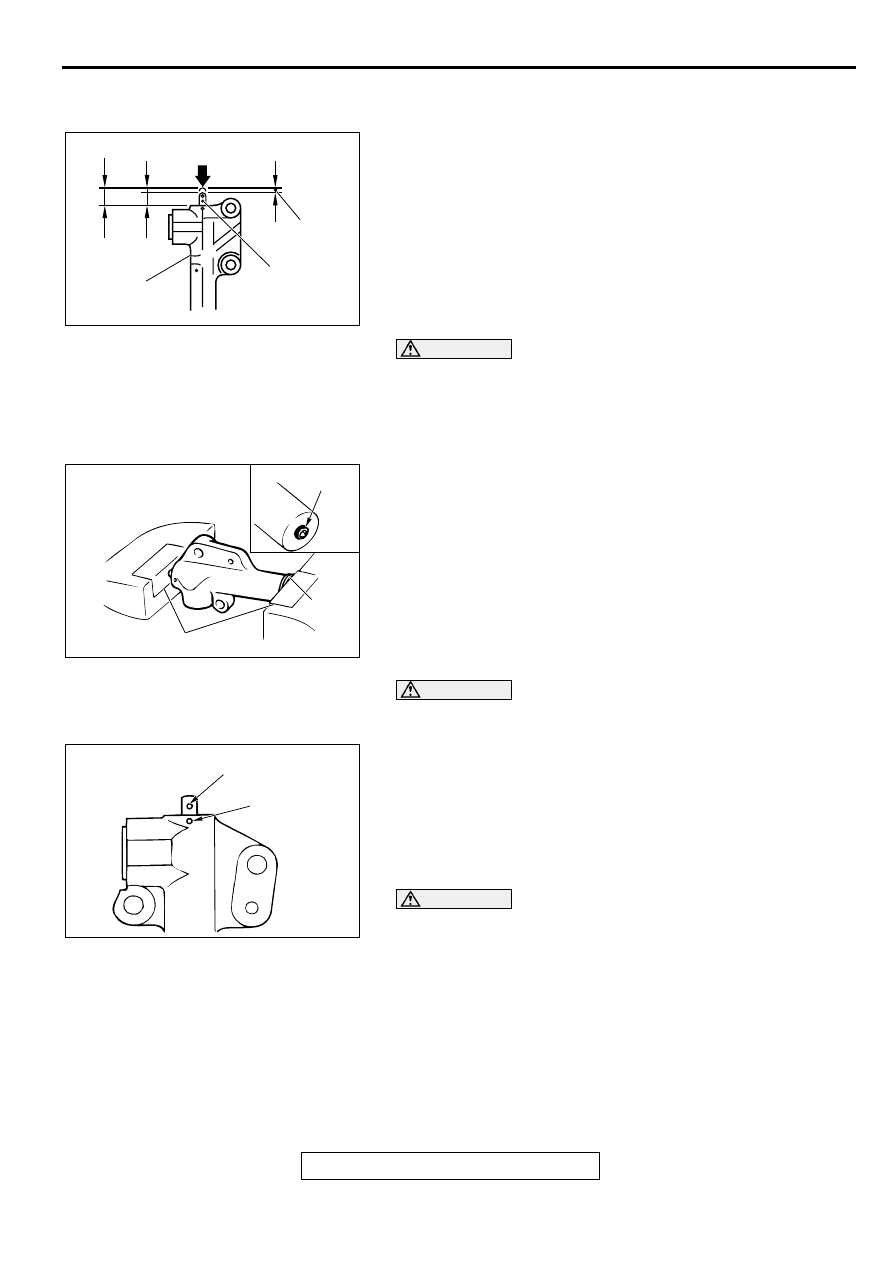

INSTALLATION SERVICE POINTS

>>A<< AUTO-TENSIONER INSTALLATION
1. While holding the auto-tensioner with your hand, press the

end of the pushrod against a metal surface (such as the
cylinder block) with a force of 98

 196 N (22

 44 pound)

and measure how far the pushrod is pushed in.

Standard value: Within 1 mm (0.04 inch)
A: Length when no force is applied
B: Length when force is applied

−−−−

 B: Amount pushed in

2. If it is not within the standard value range, replace the auto-

tensioner.

CAUTION

Place the auto-tensioner perpendicular to the jaws of
the vice.

If there is a plug at the base of the auto-tensioner, insert
a plain washer onto the end of the auto-tensioner to
protect the plug.

3. Place two blocks in a vice as shown in the illustration, and

then place the auto-tensioner in the vice.

CAUTION

Never compress the pushrod too fast, or it may be
damaged.
4. Slowly compress the pushrod of the auto-tensioner until pin

hole A in the pushrod is aligned with pin hole B in the
cylinder.

5. Insert the setting pin into the pin holes once they are

aligned.

NOTE: If replacing the auto-tensioner, the pin will already be
inserted into the pin holes of the new part.

CAUTION

Do not remove the setting pin from the auto-tensioner.
6. Install the auto-tensioner to the engine.

ACX00306AC

A

B

AUTO-TENSIONER

AMOUNT
PUSHED IN

PUSHROD

98 – 196 N
(22 – 44 lb)

ACX00333

PLUG

PLAIN
WASHER

DOLLY BLOCKS

AB

ACX00334 AB

PIN HOLE A

PIN HOLE B
