TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-33

>>B<< TIMING BELT INSTALLATION

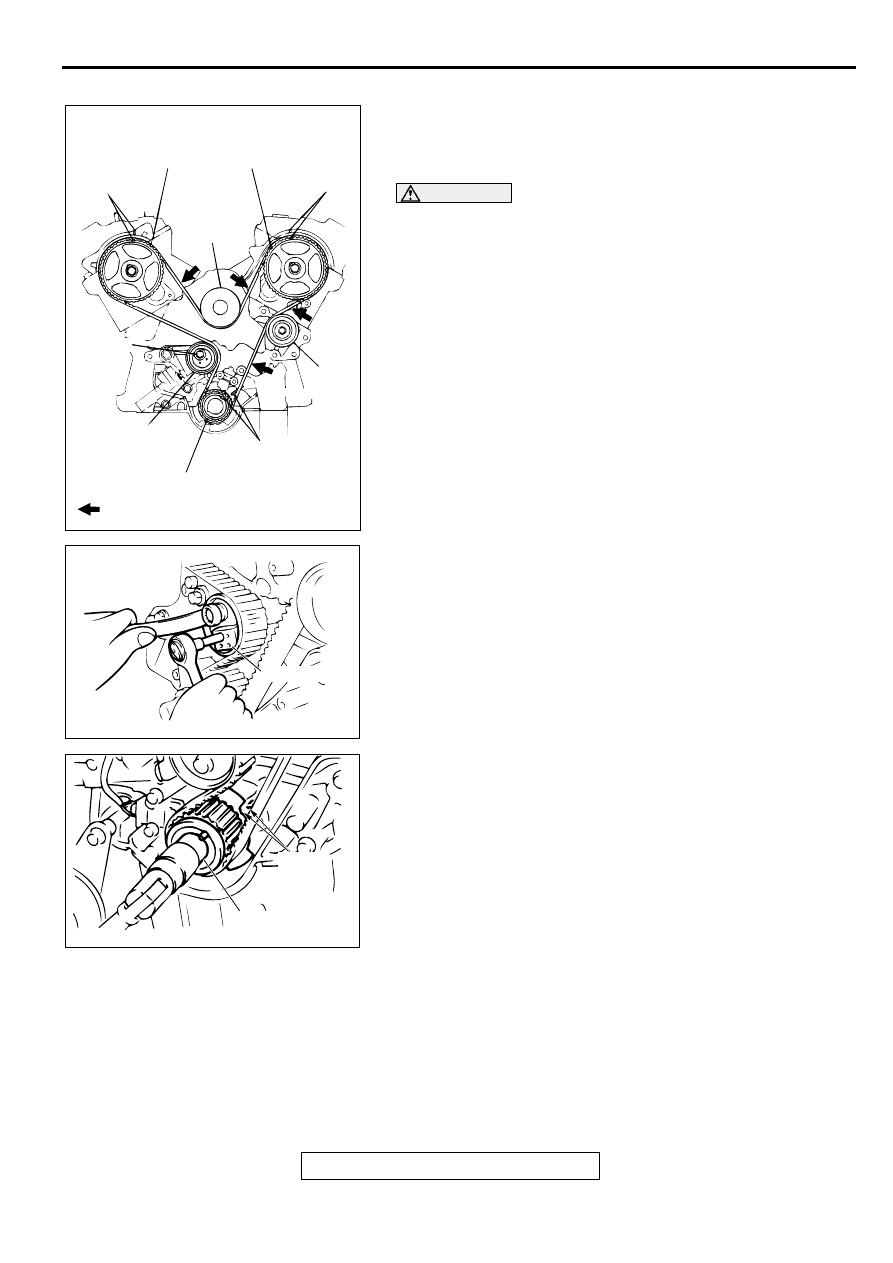

1. Align the timing marks on the camshaft sprockets with those

on the rocker cover and the timing mark on the crankshaft
sprocket with that on the engine block as shown in the
illustration.

CAUTION

The camshaft sprocket (right bank) can turn easily due to
the spring force applied, so be careful not to get your
fingers caught.
2. Install the timing belt by the following procedure so that

there is no deflection in the timing belt between each
sprocket and pulley.

(1) Crankshaft sprocket
(2) Idler pulley
(3) Camshaft sprocket (Left bank)
(4) Water pump pulley
(5) Camshaft sprocket (Right bank)
(6) Tensioner pulley

3. Turn the camshaft sprocket (Right bank) counterclockwise

until the tension side of the timing belt is firmly stretched.
Check all the timing marks again.

4. Use special tool MD998767 to push the tensioner pulley into

the timing belt, then temporarily tighten the center bolt.

5. Use special tool MD998769 to turn the crankshaft 1/4 turn

counterclockwise, then turn it again clockwise until the
timing marks are aligned.

AC001737

CRANKSHAFT SPROCKET

TENSIONER
PULLEY

TIMING MARKS

CENTER
BOLT

TIMING
MARKS

CAMSHAFT
SPROCKET
(LEFT BANK)

CAMSHAFT
SPROCKET
(RIGHT BANK)

WATER
PUMP
PULLEY

IDLER
PULLEY

: BELT TENSION SIDE

ACX00335AB

MD998767

ACX00336 AB

MD998769

TIMING
MARK

TIMING BELT

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-34

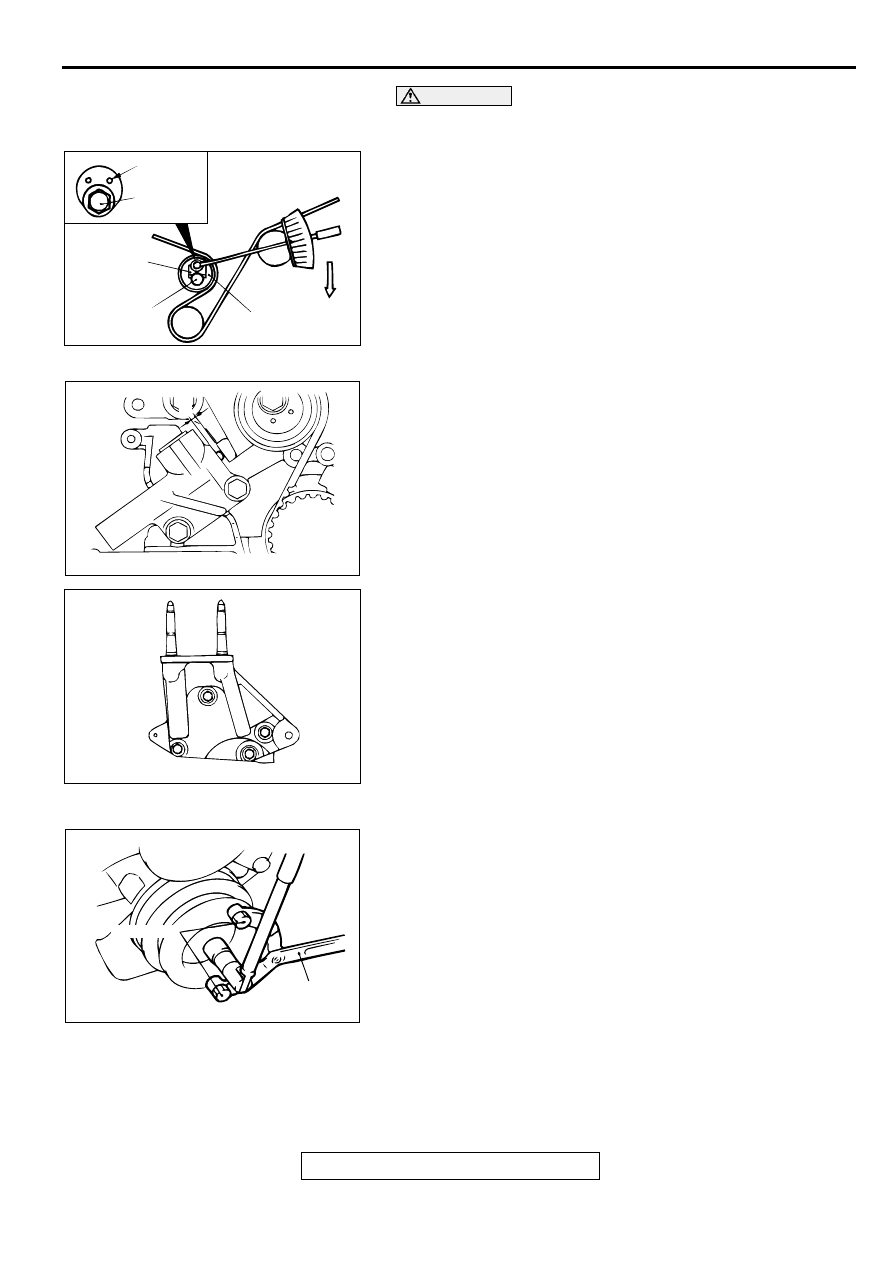

CAUTION

When tightening the center bolt, be careful that the
tensioner pulley does not turn with the bolt.
6. Loosen the center bolt of the tensioner pulley. Use special

tool MD998767 and a torque wrench to apply the tension
torque to the timing belt as shown in the illustration. Then
tighten the center bolt to the specified torque.

Standard value: 4.4 N

⋅⋅⋅⋅

m (39 in-lb) <Timing belt

tension torque>

Tightening torque: 48 N

⋅⋅⋅⋅

m (35 ft-lb)

7. Remove the setting pin that has been inserted into the auto-

tensioner.

8. Turn the crankshaft clockwise twice to align the timing

marks.

9. Wait for at least five minutes, then check that the auto-

tensioner pushrod extends within the standard value range.

Standard value (A): 3.8

−−−−

5.0 mm (0.15

−−−−

0.20 inch)

10.If not, repeat the operation in steps (5) to (9) above.

11.Check again that the timing marks of the sprockets are

aligned.

>>C<< CARIGHT ENGINE SUPPORT BRACKET
INSTALLATION

Tighten the right engine support bracket mounting bolts in the
order shown in the illustration.

>>D<< CRANKSHAFT PULLEY INSTALLATION
Use special tools MB990767 and MD998715 to install the
crankshaft pulley.

ACX00756AC

CENTER
BOLT

PIN HOLES

48 N·m
35 ft-lb

MD998767

TENSION
PULLEY

4.4 N·m
(39 in-lb)

ACX00339

AC001738AB

AC001735

MD998715

MB990767

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-35

INSPECTION

M1112004400084

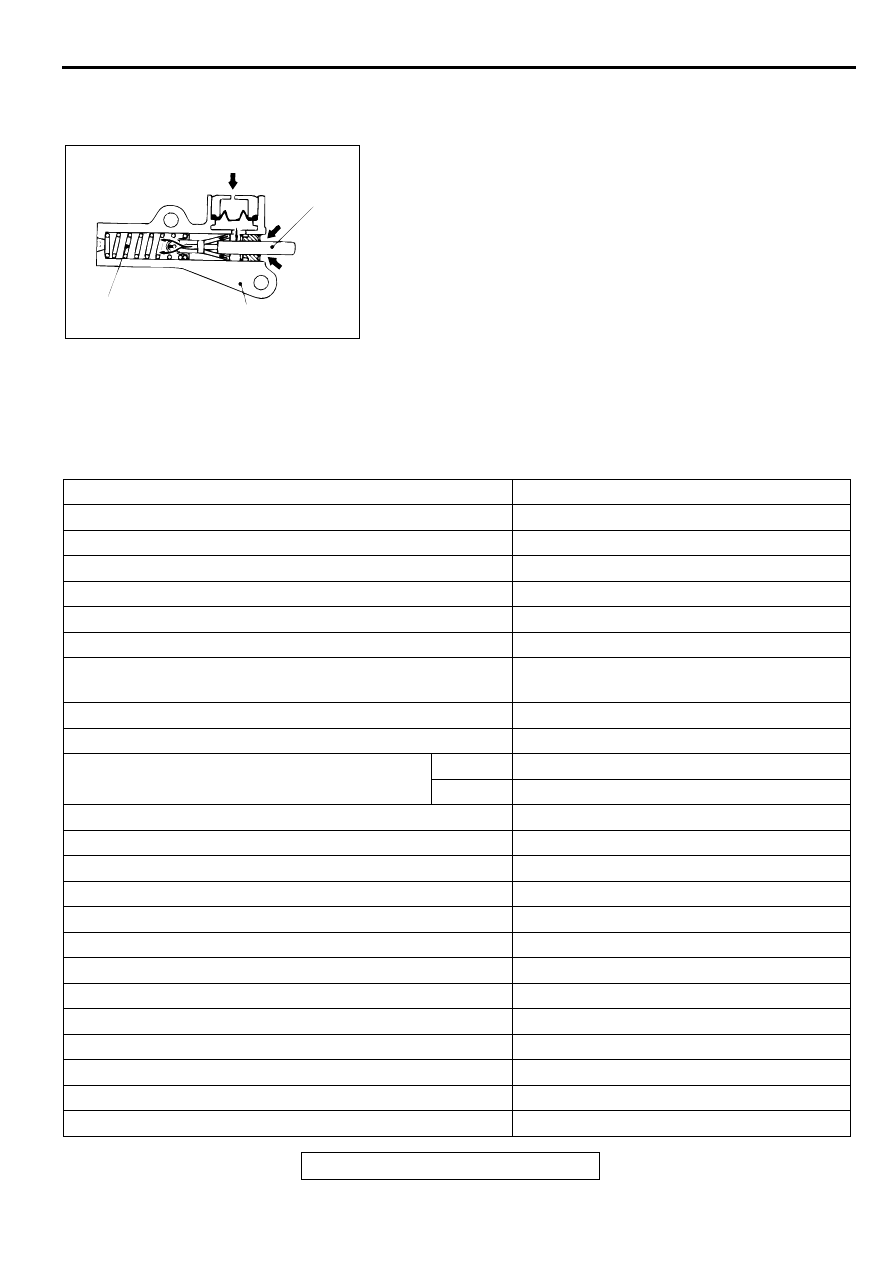

AUTO-TENSIONER

•

Check the auto-tensioner for possible leaks.

•

Check the pushrod for cracks.

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1111003800138

AC001740AB

PUSHROD

SPRING

AUTO-TENSIONER

ITEMS

SPECIFICATIONS

Auto-tensioner attaching bolt

24 N

⋅

m (18 ft-lb)

Camshaft sprocket attaching bolt

88 N

⋅

m (65 ft-lb)

Camshaft thrust case attaching bolt

13 N

⋅

m (115 in-lb)

Control wiring harness protector attaching bolt

4.9 N

⋅

m (43 in-lb)

Crankshaft bolt

177

−

186 N

⋅

m (131

−

137 ft-lb)

Crankshaft position sensor attaching bolt

8.8 N

⋅

m (78 in-lb)

Cylinder head bolt <cold engine>

103

−

113 N

⋅

→

0 N

⋅

→

103

−

113 N

⋅

(76

−

83 ft-lb

→

0 ft-lb

→

−

83 ft-lb)

Distributor attaching bolt

13 N

⋅

m (115 in-lb)

Drive plate bolt

−

76 N

⋅

m (53

−

56 ft-lb)

Engine mount bracket attaching bolt

M10

86 N

⋅

m (63 ft-lb)

M1281 N

⋅

m (60 ft-lb)

Engine mount bracket attaching nut

86 N

⋅

m (63 ft-lb)

Engine mount stay attaching nut

35 N

⋅

m (26 ft-lb)

Engine support bracket right attaching nut

44 N

⋅

m (32 ft-lb)

Ground wire attaching bolt

8.9 N

⋅

m (78 in-lb)

High-pressure fuel hose attaching bolt

4.9 N

⋅

m (43 in-lb)

Lower oil pan attaching bolt

9.8

−

12 N

⋅

m (87

−

106 in-lb)

Oil dipstick guide attaching bolt

48 N

⋅

m (35 ft-lb)

Oil pan cover attaching bolt

9.8

−

12 N

⋅

m (87

−

106 in-lb)

Oil pan drain plug

39 N

⋅

m (29 ft-lb)

Power steering oil pump attaching bolt

42 N

⋅

m (31 ft-lb)

Rocker arm and shaft assembly attaching bolt

−

34 N

⋅

m (21

−

25 ft-lb)

Rocker cover attaching bolt

3.4 N

⋅

m (30 in-lb)

Starter attaching bolt

−

33 N

⋅

m (19

−

24 ft-lb)

SPECIFICATIONS

TSB Revision

ENGINE MECHANICAL <3.0L>

11C-36

SERVICE SPECIFICATIONS

M1111000300145

SEALANT

M1111000500172

Tensioner pulley attaching bolt

44 N

⋅

m (32 ft-lb)

Timing belt front lower cover attaching bolt

9.8

−

12 N

⋅

m (87

−

106 in-lb)

Timing belt front upper cover attaching bolt

9.8

−

12 N

⋅

m (87

−

106 in-lb)

−

15 N

⋅

m (106

−

133 in-lb)

Timing belt rear cover attaching bolt

−

15 N

⋅

m (106

−

133 in-lb)

Timing belt tensioner arm attaching bolt

44 N

⋅

m (32 ft-lb)

Timing belt tensioner pulley attaching bolt

48 N

⋅

m (35 ft-lb)

Upper oil pan attaching bolt

5.9 N

⋅

m (52 in-lb)

M10

35 N

⋅

m (26 ft-lb)

ITEMS

SPECIFICATIONS

ITEMS

STANDARD VALUE

LIMIT

Basic ignition timing at idle

BTDC

−

Actual ignition timing at idle

Approximately 15

BTDC

−

CO content %

0.5 or less

−

HC contents ppm

100 or less

−

Curb idle speed r/min

700

100

−

Compression pressure (250

−

400 r/min) kPa (psi)

824 (119)

Minimum 575 (83)

Compression pressure difference of all cylinder kPa (psi)

−

98 (14)

Intake manifold vacuum at curb idle kPa (in Hg)

−

Minimum 60 (18)

Auto-tensioner pushrod movement mm (in)

Within 1.0 (0.04)

−

Auto-tensioner rod protrusion mm (in)

3.8

−

5.0 (0.15

−

0.20)

−

ITEM

SPECIFIED SEALANT

Oil pan

MITSUBISHI GENUINE Sealant Part No.
MD970389 or equivalent
