MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-214

STEP 2. Check the cylinder 1, 4 heated oxygen sensor
(front).

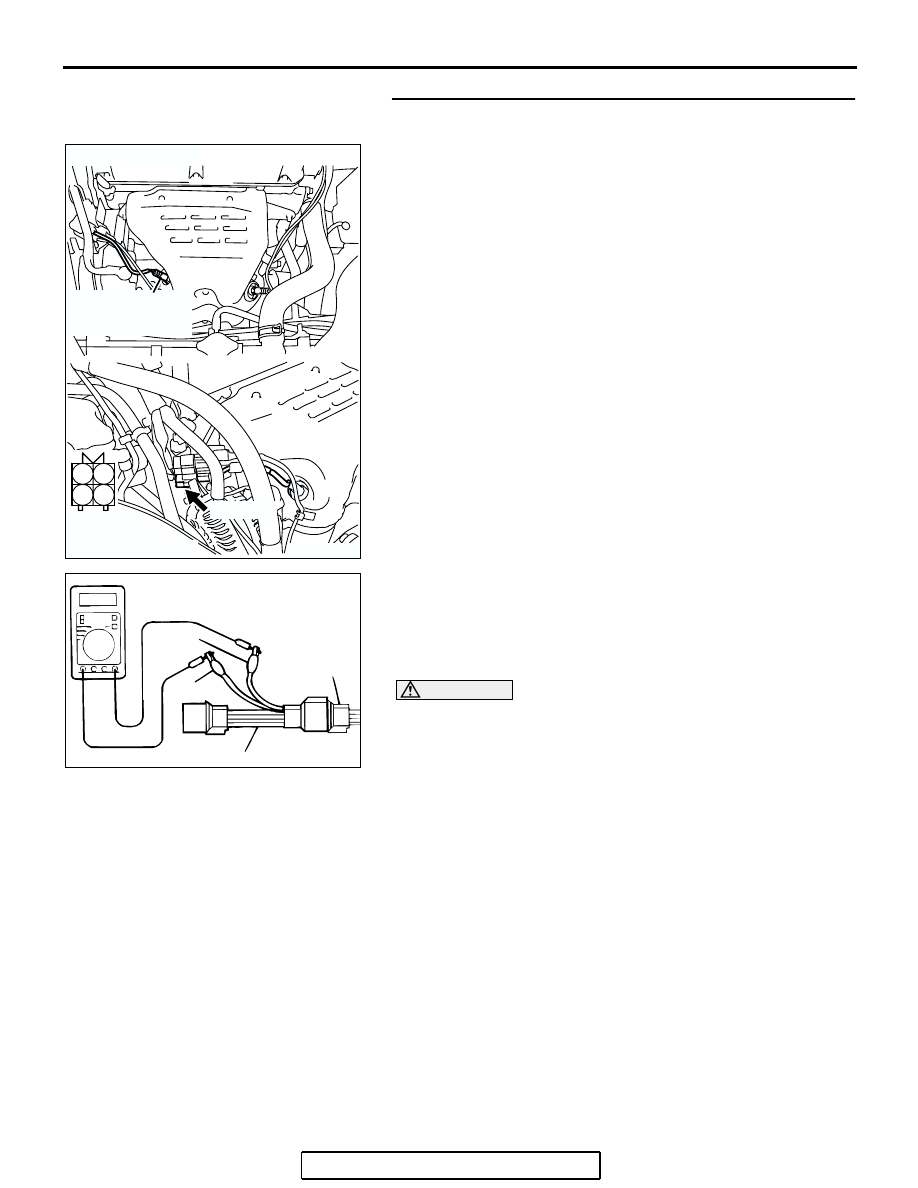

(1) Disconnect the cylinder 1, 4 heated oxygen sensor (front)

connector B-37 and connect test harness special tool
MB991316 to the connector on the cylinder 1, 4 heated
oxygen sensor (front) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Perform a racing for 5 minutes or more with the engine

speed of 4,500 r/min.

(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) While repeatedly revving the engine, measure the cylinder

1, 4 heated oxygen sensor (front) output voltage.

Standard value: 0.6

 1.0 volt

CAUTION

• Be very careful when connecting the jumper wires;

incorrect connection can damage the heated oxygen
sensor.

• Be careful the heater is broken when voltage of beyond

8 volts is applied to the heated oxygen sensor heater.
NOTE: If the sufficiently high temperature [of approximate
400

°

C (752

°

F) or more] is not reached although the heated

oxygen sensor is normal, the output voltage would be possi-
bly low although the rich air/fuel ratio. Therefore, if the out-
put voltage is low, use a jumper wire to connect the terminal
No. 1 (red clip) and the terminal No. 3 (blue clip) of the
heated oxygen sensor with the positive terminal and the
negative terminal of 8 volts power supply respectively, then
check again.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Go to Step 3.
NO :  Replace the cylinder 1, 4 heated oxygen sensor

(front). Then go to Step 5.

AK303821

1

2

3

4

AB

CONNECTOR: B-37

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (FRONT)

B-37 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01624

HEATED
OXYGEN
SENSOR
COMPONENT
SIDE
CONNECTOR

MB991316

WHITE

BLACK

AN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-215

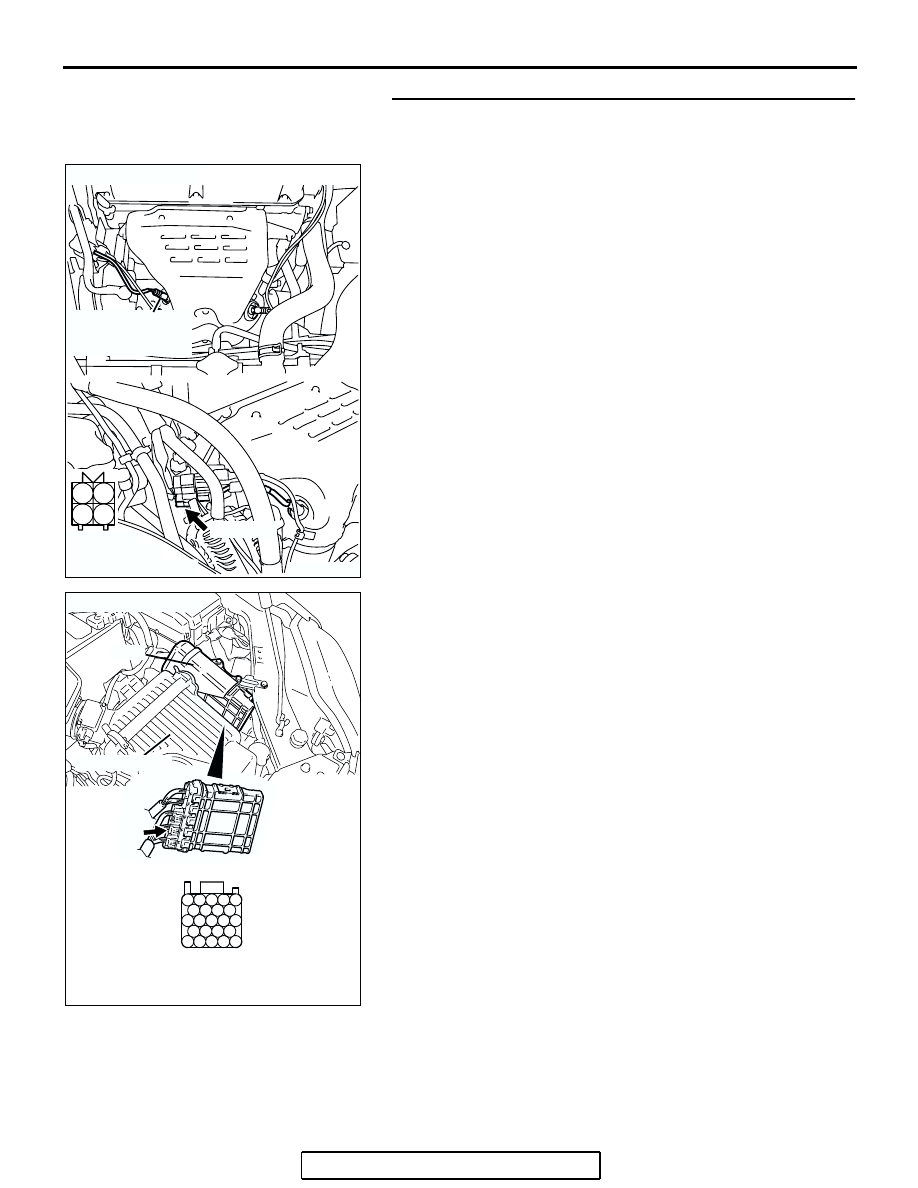

STEP 3. Check harness connector B-37 at cylinder 1, 4
heated oxygen sensor (front) and connector B-22 at PCM
for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 5.

AK303821

1

2

3

4

AB

CONNECTOR: B-37

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (FRONT)

B-37 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-216

STEP 4. Check for short circuit to ground between cylinder
1, 4 heated oxygen sensor (front) connector B-37 (terminal
No. 4) and PCM connector B-22 (terminal No. 92).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 5.
NO :  Repair it. Then go to Step 5.

AK303821

1

2

3

4

AB

CONNECTOR: B-37

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (FRONT)

B-37 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-217

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-6

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0131 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0132: Cylinder 1, 4 Heated Oxygen Sensor Circuit High Voltage (sensor 1)

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

AK303819

1

2

3

4

BLA

CK

BLUE

BLA

CK

TO PCM

FROM MFI RELAY

PINK

69

92

4

3

1

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (FRONT)

POWERTRAIN CONTROL
MODULE (PCM)

B-37

MU802665

2

B-22

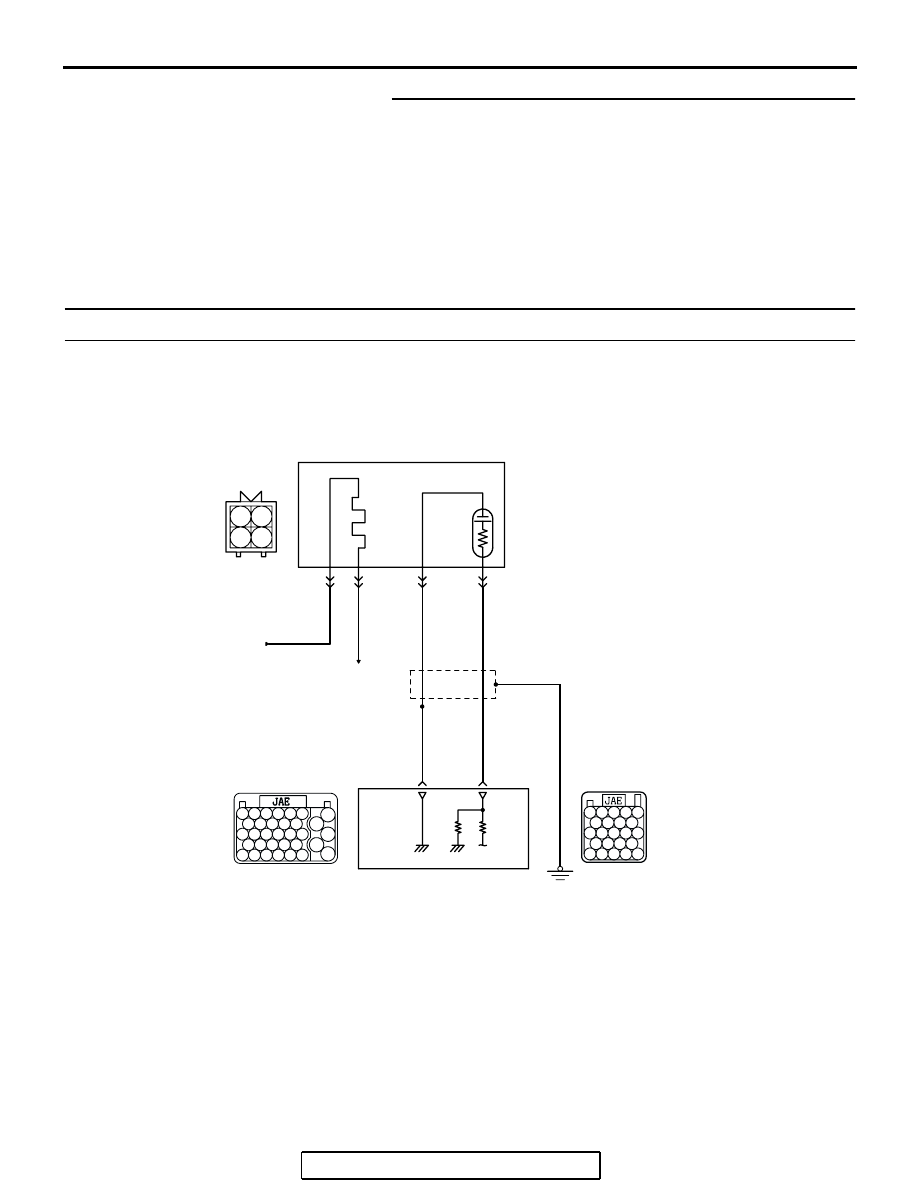

Cylinder 1, 4 Heated Oxygen Sensor (front) Circuit
