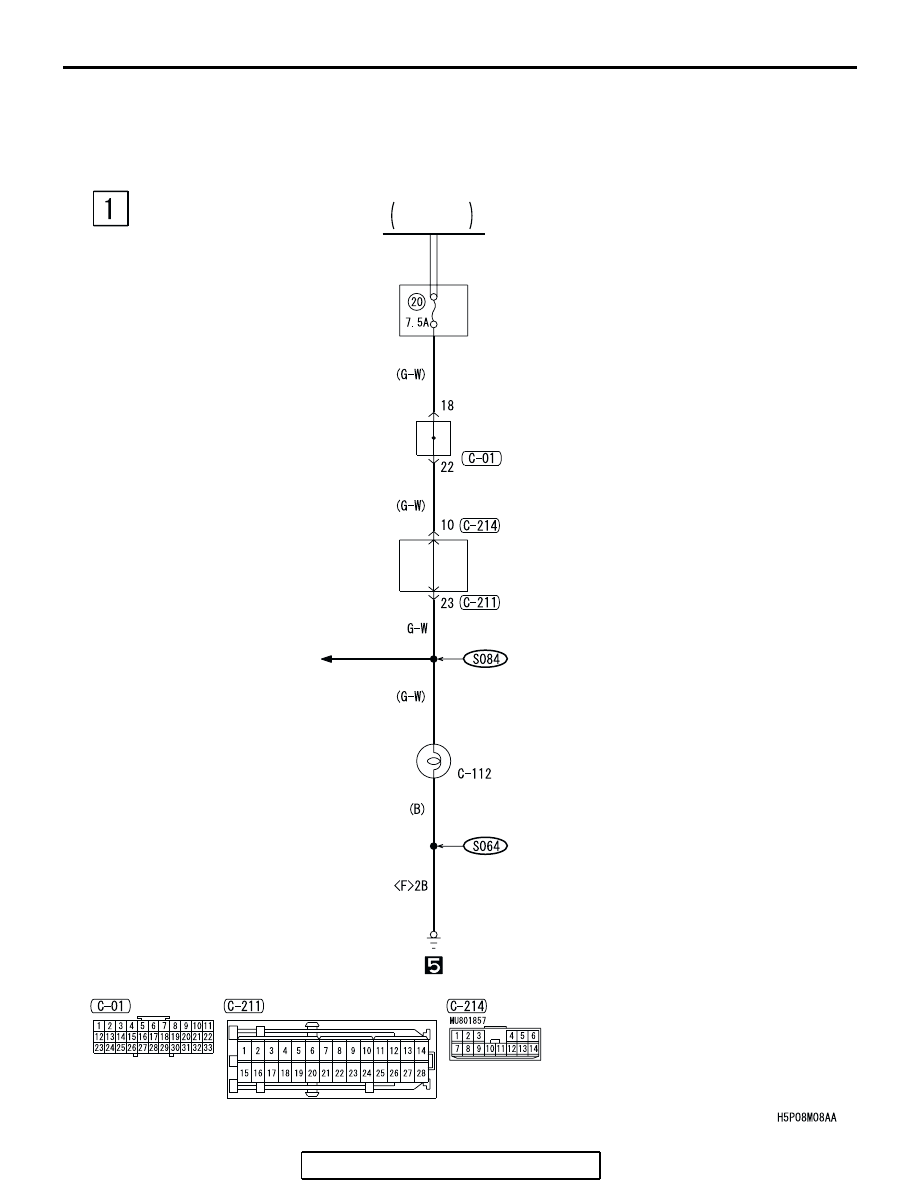

GLOVE BOX LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-110

GLOVE BOX LIGHT

M1901002200592

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·HEATED SEAT
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONING
 SYSTEM
·METER AND GAUGE
·MULTI-CENTER
 DISPLAY
·REAR WINDOW
 DEFOGGER AND
 DOOR MIRROR
 HEATER
·RHEOSTAT
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)
·TURN-SIGNAL LIGHT
 AND HAZARD WARNING
 LIGHT

TAILLIGHT
RELAY

FRONT-ECU

RELAY
BOX

JOINT
CONNECTOR (1)

JUNCTION
BLOCK

GLOVE BOX
LIGHT

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

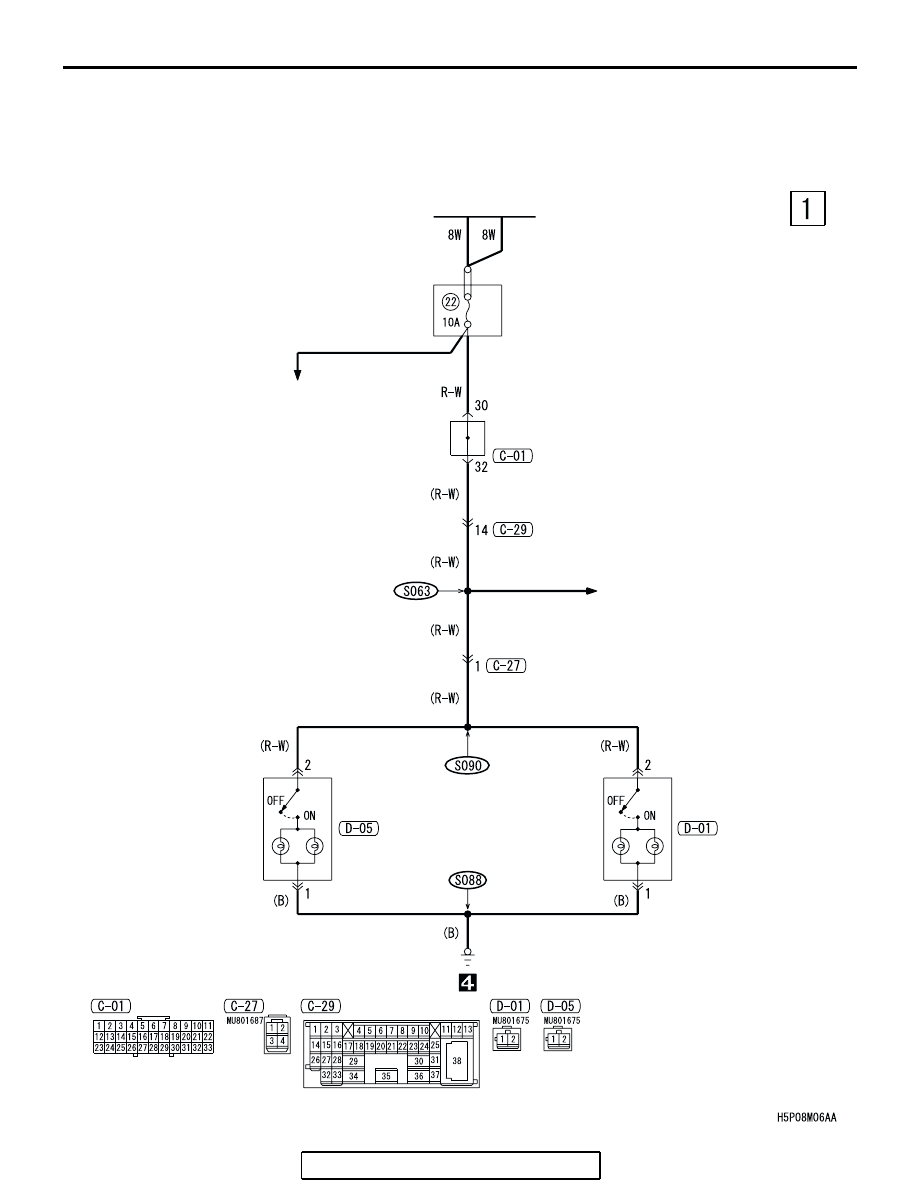

VANITY MIRROR LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-111

VANITY MIRROR LIGHT

M1901002400488

BATTERY

VANITY
MIRROR
LIGHT (LH)

VANITY
MIRROR
LIGHT (RH)

JOINT
CONNECTOR (1)

RELAY
BOX

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·AUTOMATIC AIR
 CONDITIONING SYSTEM
·BRAKE WARNING
 LIGHT, OIL PRESSURE
 WARNING LIGHT,
 FUEL WARNING LIGHT
·CENTRAL DOOR
 LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·DOOR AJAR WARNING
 TONE ALARM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
·ENGINE IMMOBILIZER SYSTEM
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·INVECS-II 4A/T
·LIGHTING MONITOR TONE ALARM
·MANUAL AIR CONDITIONING SYSTEM
·METER AND GAUGE
·MFI SYSTEM
·MULTI-CENTER DISPLAY
·SEAT BELT WARNING TONE ALARM
·SUPPLEMENTAL
 RESTRAINT SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 FRONT SIDE MARKER LIGHT
 AND LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER
 AND WASHER

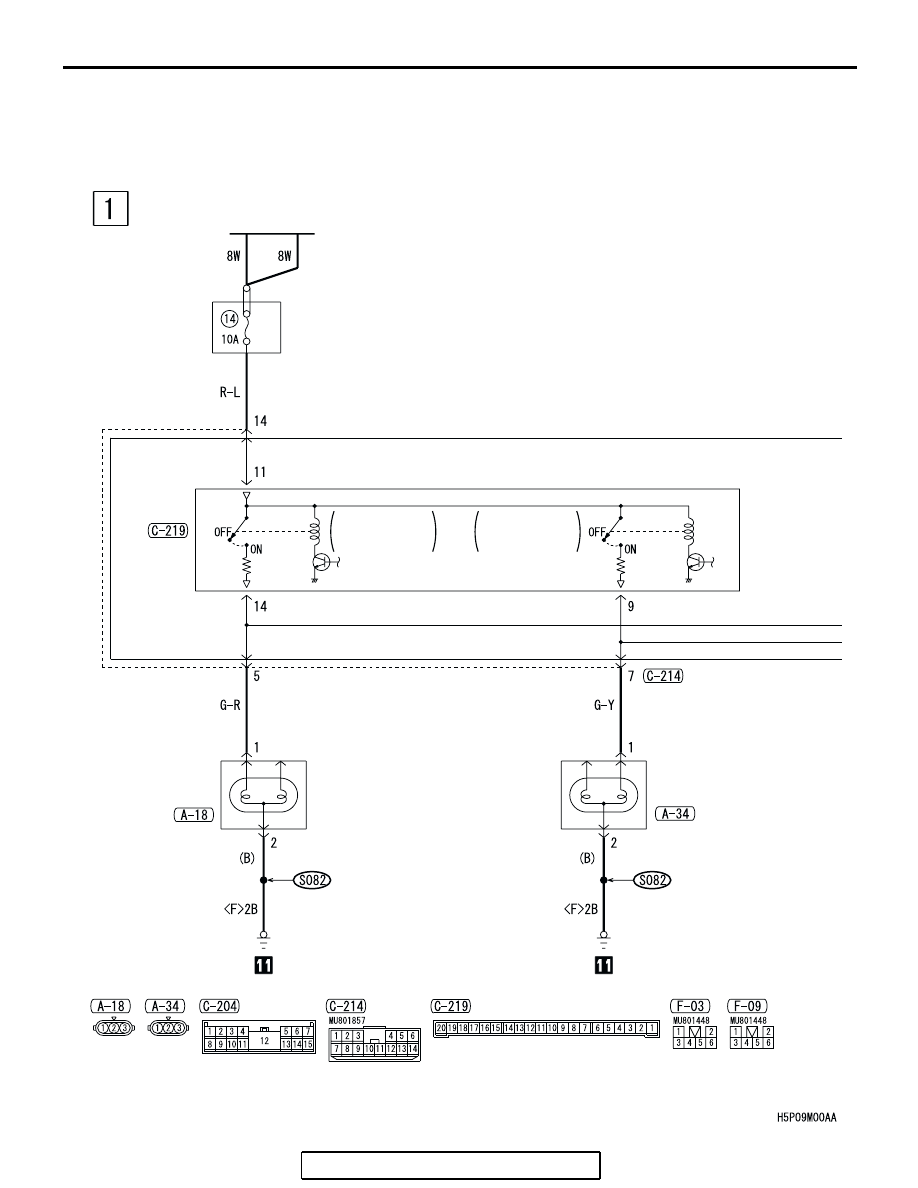

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-112

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

M1901002901163

BATTERY

RELAY
BOX

ETACS-
ECU

TURN-SIGNAL
LIGHT RELAY
: LH

TURN-SIGNAL
LIGHT RELAY
: RH

FRONT
COMBINATION
LIGHT (LH)

FRONT
COMBINATION
LIGHT (RH)

JUNCTION BLOCK SIDE

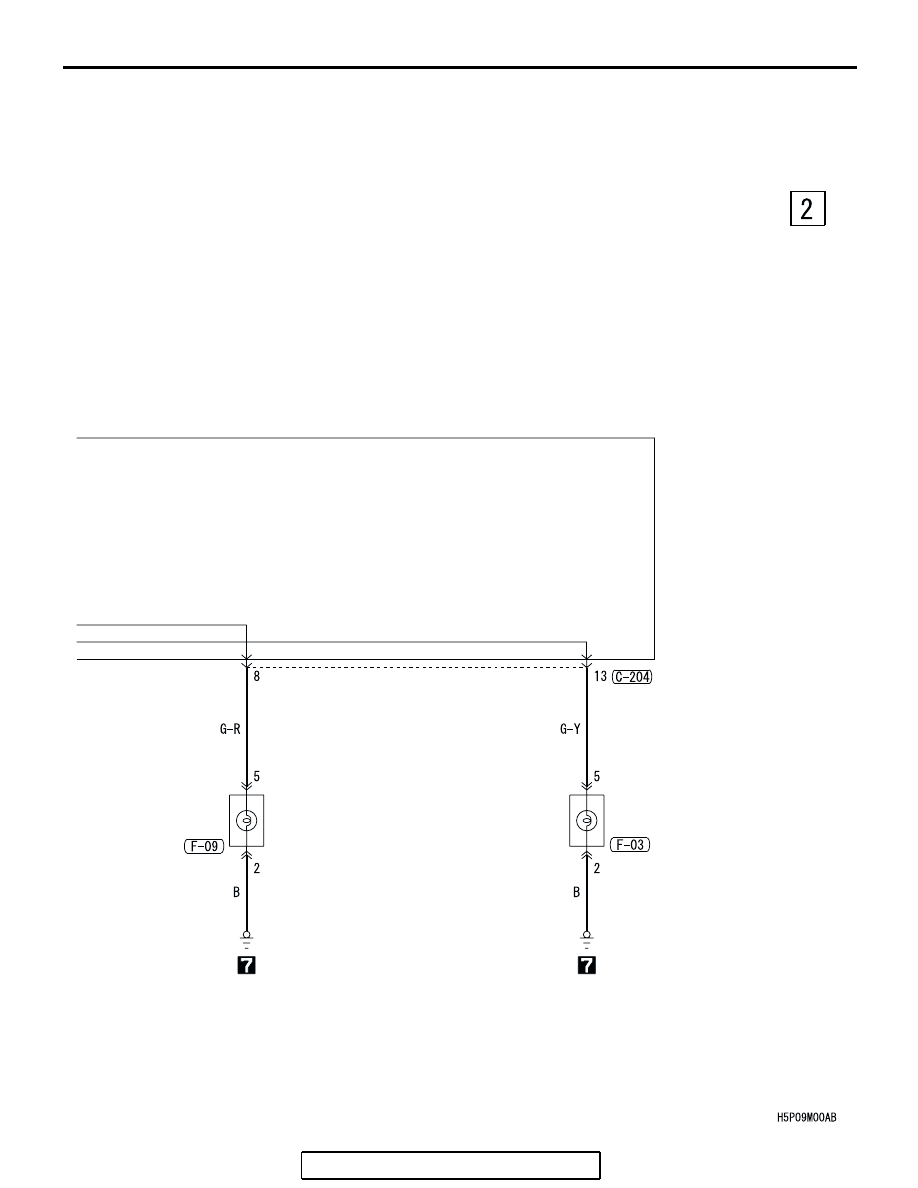

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-113

REAR
COMBINATION
LIGHT (LH)

REAR
COMBINATION
LIGHT (RH)

JUNCTION
BLOCK

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET
