TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-114

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT (CONTINUED)

BATTERY

IGNITION
SWITCH (IG2)

RELAY
BOX

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

FRONT-
ECU

RELAY
BOX

JOINT
CONNECTOR (1)

TAILLIGHT
RELAY

POWER
SUPPLY

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-115

RELAY BOX
 (FUSE      )

22

JOINT
CONNECTOR (1)

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

TURN-
SIGNAL
SWITCH

COLUMN-ECU

COLUMN
SWITCH

UPPER
SIDE

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·MANUAL AIR
 CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY
·VANITY MIRROR LIGHT

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-116

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT (CONTINUED)

COMBINATION
METER

JOINT
CONNECTOR (3)

DATA LINK
CONNECTOR

ETACS-
ECU

(FUSE     )

22

JOINT
CONNECTOR (1)

JOINT
CONNECTOR (2)

(FUSE     )

23

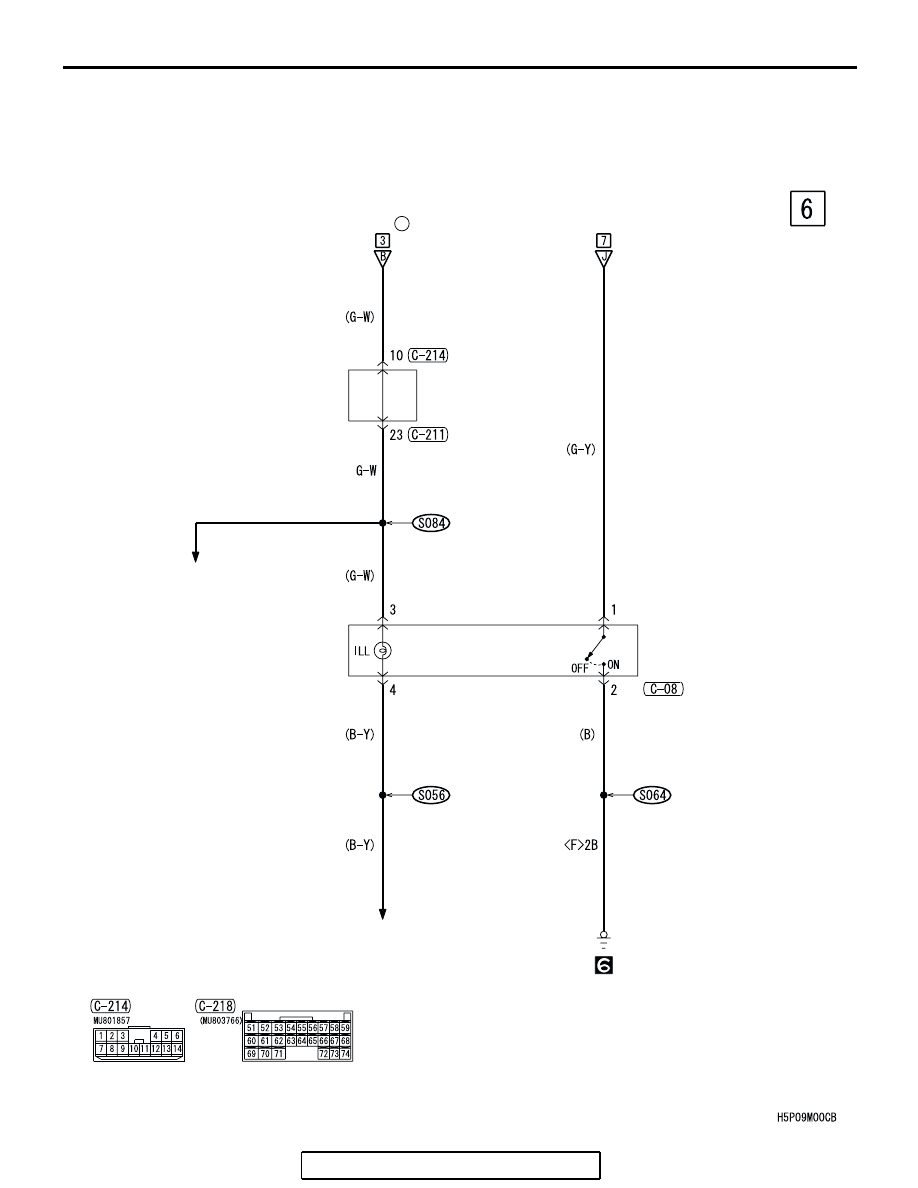

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-117

JUNCTION
BLOCK

ETACS-
ECU

RHEOSTAT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·GLOVE BOX LIGHT
·HEATED SEAT
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONING
 SYSTEM
·METER AND
 GAUGE
·MULTI-CENTER
 DISPLAY
·REAR WINDOW DEFOGGER
 AND DOOR MIRROR HEATER
·RHEOSTAT
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)

HAZARD
WARNING
LIGHT
SWITCH

(FUSE     )

20

JOINT
CONNECTOR (1)
