INTERIOR  –

Trims <5–door models>

52A-2

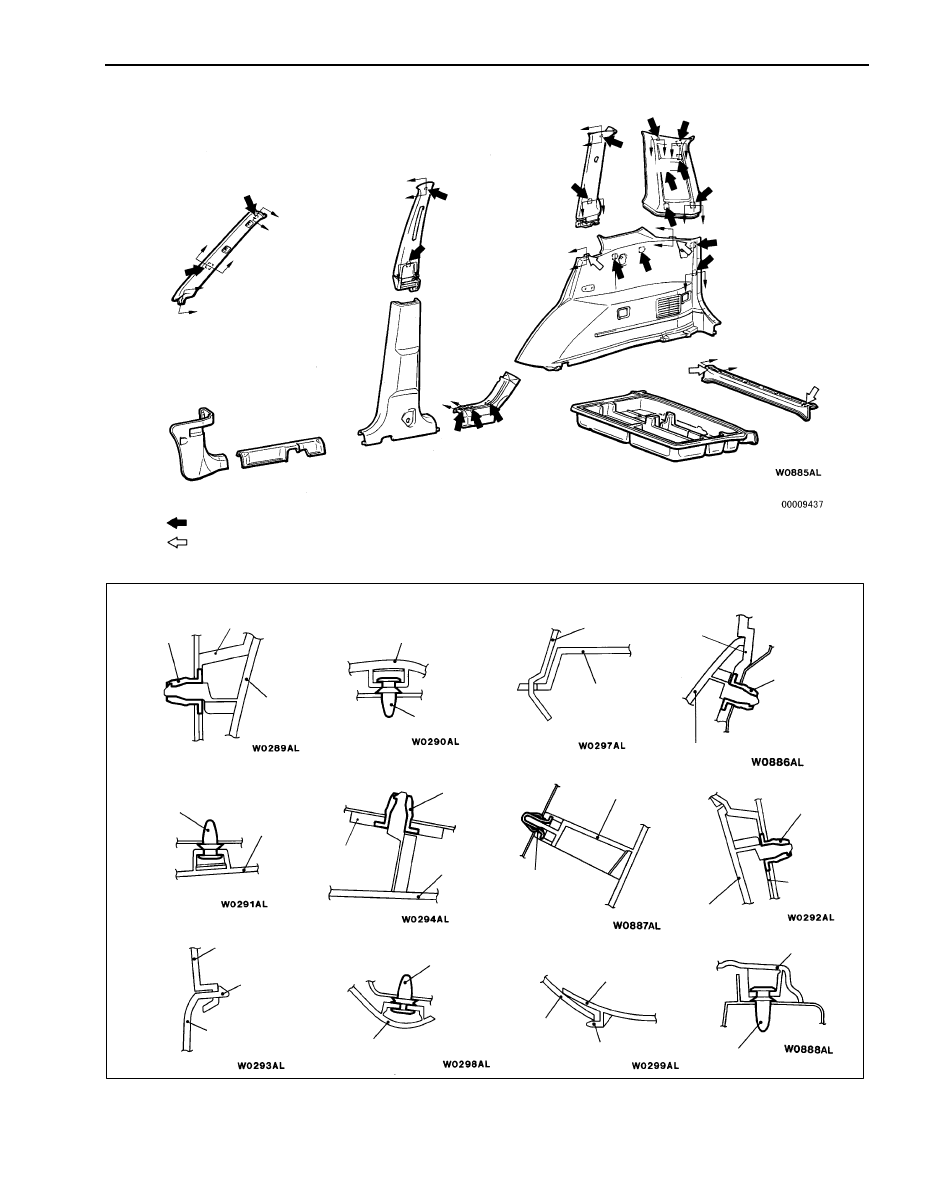

CLIP AND CLAW POSITIONS

NOTE

: Clip positions
: Claw positions

Section A –  A

Section B –  B

Section C –  C

Section H –  H

Section I –  I

Section J – J

Section K –  K

Section F –  F

Section E –  E

Section D –  D

Section G –  G

Clip

Clip

Clip

Clip

Front
pillar
trim

Clip

Clip

Clip

Clip

A

A

Front pillar trim

Front pillar
trim

Center pillar trim

Pillar trim

Rear pillar trim

Quarter pillar
upper trim

Center pillar
trim

Quarter trim

Quarter trim

Quarter trim

Claw

Claw

Rear step plate

B

B

C

C

D

D

E

E

F F

G G

H

H

E

E

E

E

I

I

K

K

For door trim, refer to GROUP 42.

Instrument
panel

I

I

J

J

L

L

Headlining

Head-
lining

Headlining

Rear pillar trim

Head-
lining

Rear step plate

Clip

Section L –  L

INTERIOR  –

Headlining <5-door models>

52A-3

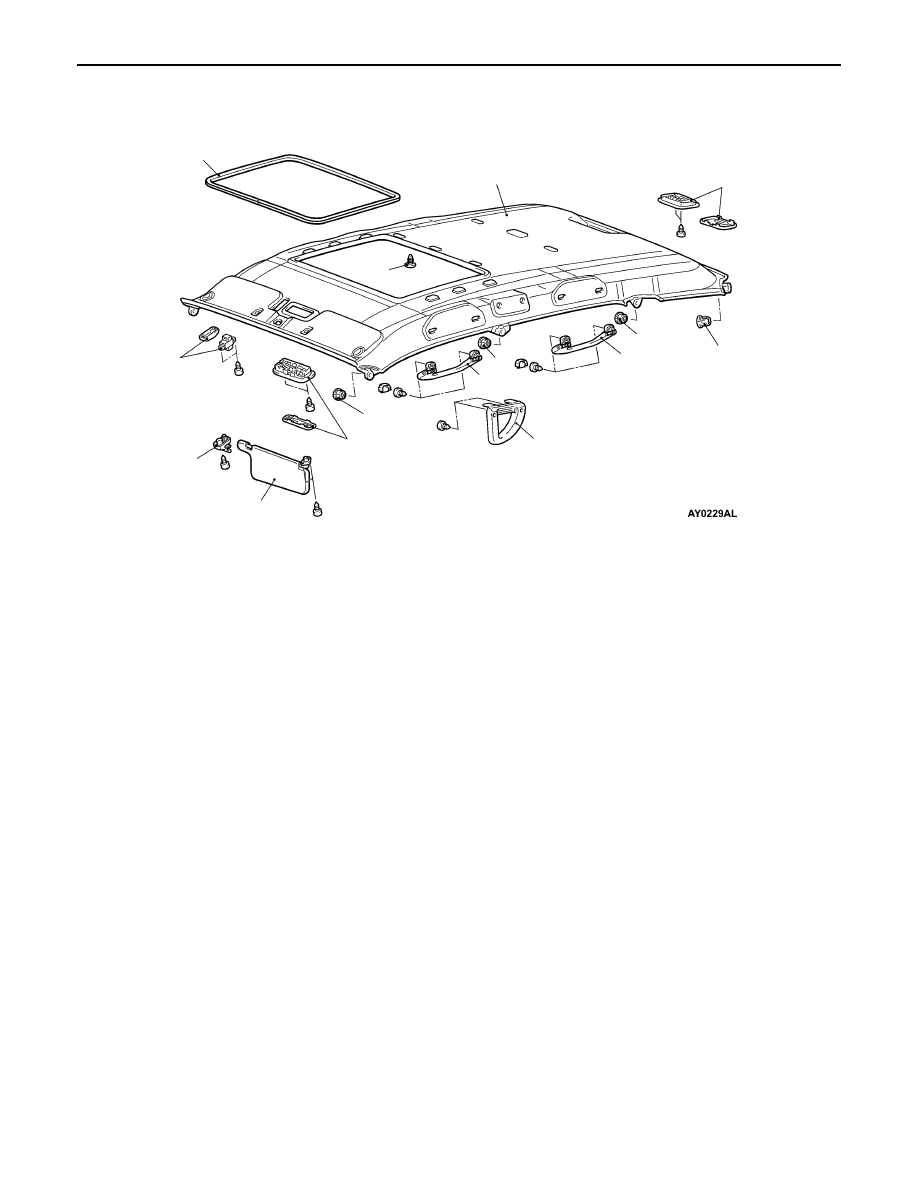

HEADLINING <5-DOOR MODELS>

REMOVAL AND INSTALLATION

1

3

5

2

6

10

7

11

9

9

1

4

9

8

9

Removal steps

1. Assist grip
2. Grip (rear)
3. Sun visor assembly
4. Sun visor holder
5. Front room lamp assembly
6. Sunroof switch

<Vehicles with sunroof>

7. Rear room lamp assembly



Front pillar trim (Refer to P.52A-1.)



Center pillar trim (Refer to P.52A-1.)



Quarter pillar upper trim
(Refer to P.52A-1.)



Rear pillar trim (Refer to P.52A-1.)

8. Trim clip <Vehicles without

sunroof>

9. Clip

10. Sunroof drip moulding

<Vehicles with sunroof>

11. Headlining

INTERIOR  –

Seat <5-door models>

52A-4

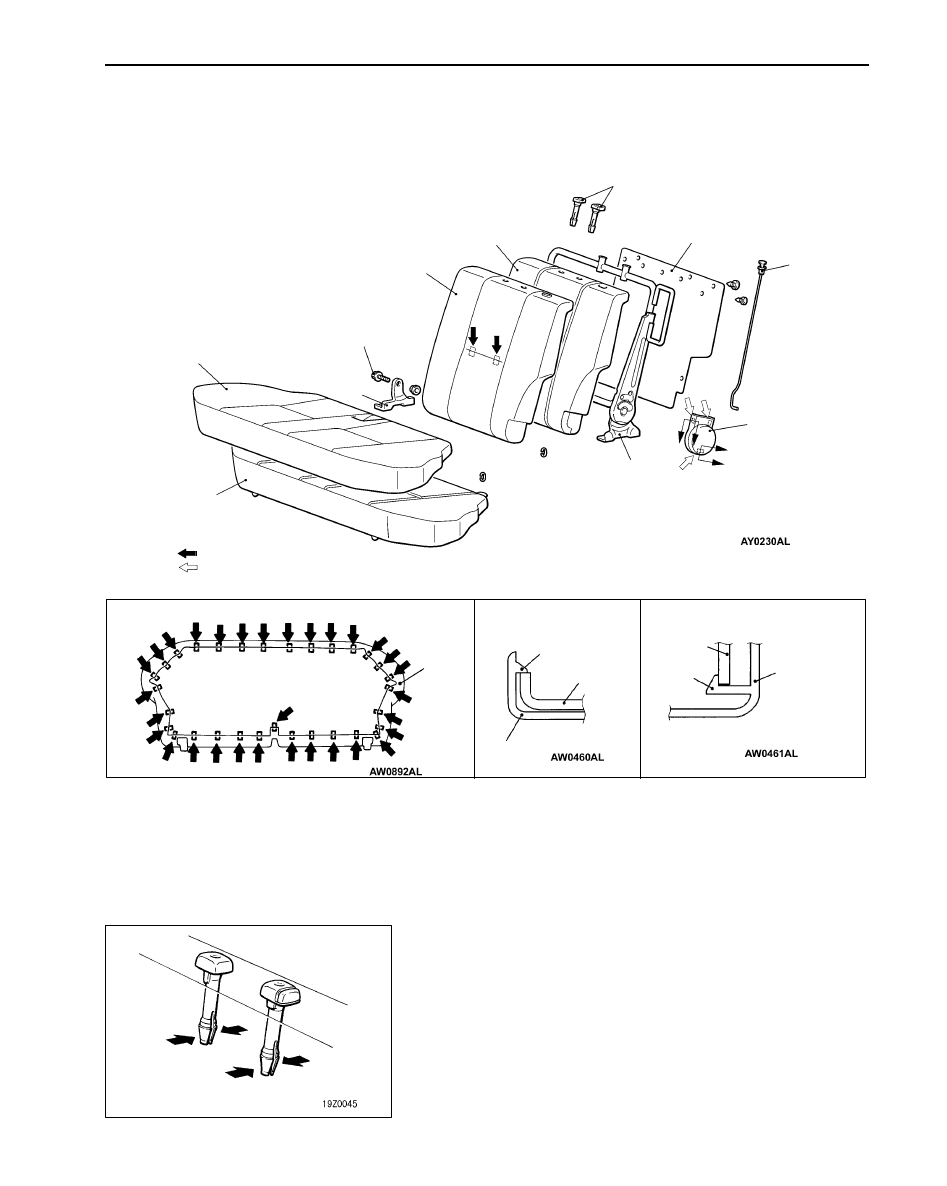

SEAT <5-DOOR MODELS>

REAR SEAT
DISASSEMBLY AND REASSEMBLY

1

4

5

2

6

8

7

3

NOTE

: Clip position
: Claw position

<Back view of rear seat cushion>

9

10

A

A

B

B

1

10

8

10

8

Claw

Claw

Section A –  A

Section B –  B

13 Nm

Disassembly steps

1. Rear seat cushion cover
2. Rear seat cushion pad



A



3. Headrestraint guide
4. Rear seat back cover
5. Rear seat back panel

6. Rear seat back pad
7. Folding knob assembly
8. Reclining adjuster cover
9. Rear seat center hinge

10. Rear seat back frame assembly

REMOVAL SERVICE POINT



A



HEADRESTRAINT GUIDE REMOVAL

INTERIOR  –

Seat Belt <5-door models>

52A-5

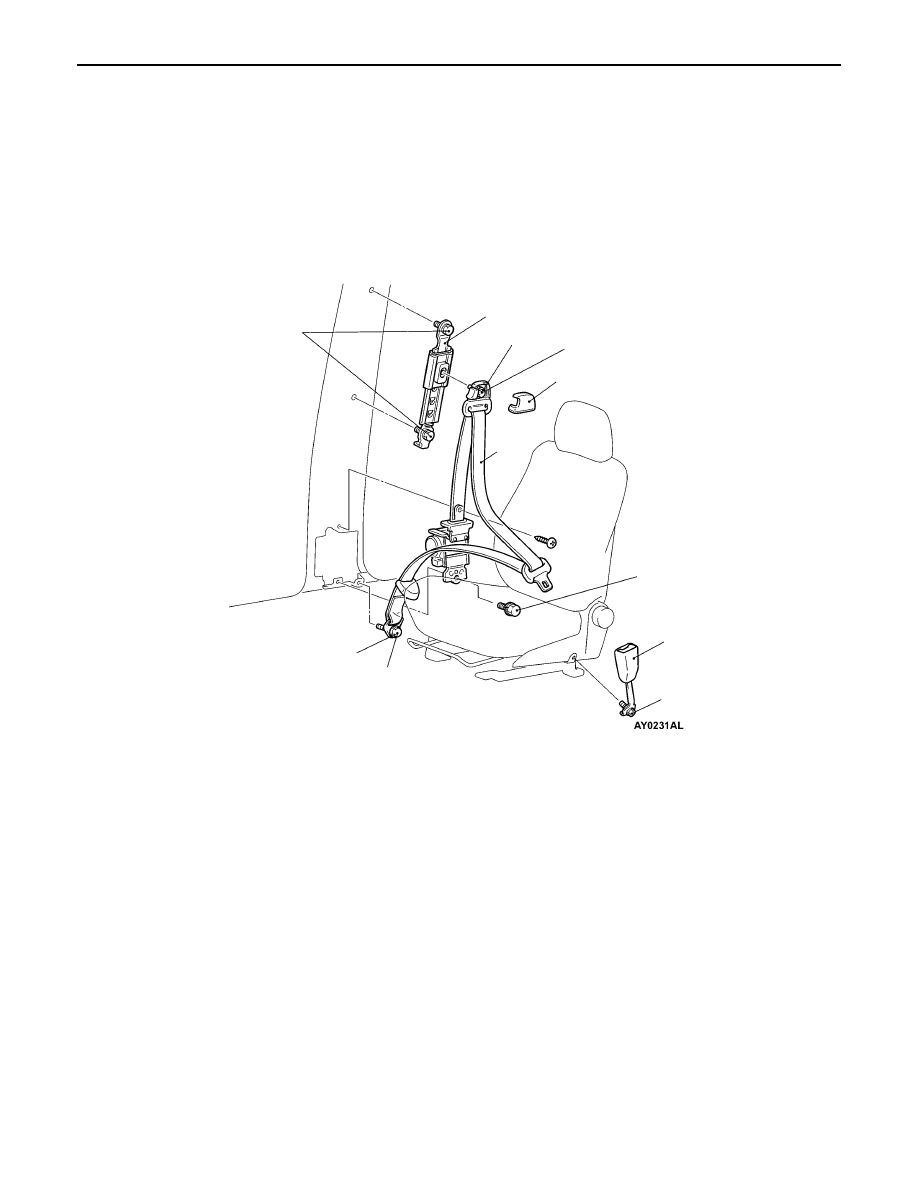

SEAT BELT <5-DOOR MODELS>

FRONT SEAT BELT
REMOVAL AND INSTALLATION

Caution: SRS
Before removal of the seat belt pre-tensioner, refer to GROUP 52B – SRS Service Precautions and
Seat Belt with Pre-tensioner.

1

3

4

44 Nm

44 Nm

44 Nm

2

2

44 Nm

5

44 Nm

Outer seat belt removal steps

1. Sash guide cover
2. Outer seat belt connection



Center pillar lower trim
(Refer to P.52A-1.)



Center pillar upper trim
(Refer to P.52A-1.)

3. Adjustable seat belt anchor
4. Outer seat belt

Inner seat belt removal

5. Inner seat belt
