INTERIOR –

Seat

52A-16

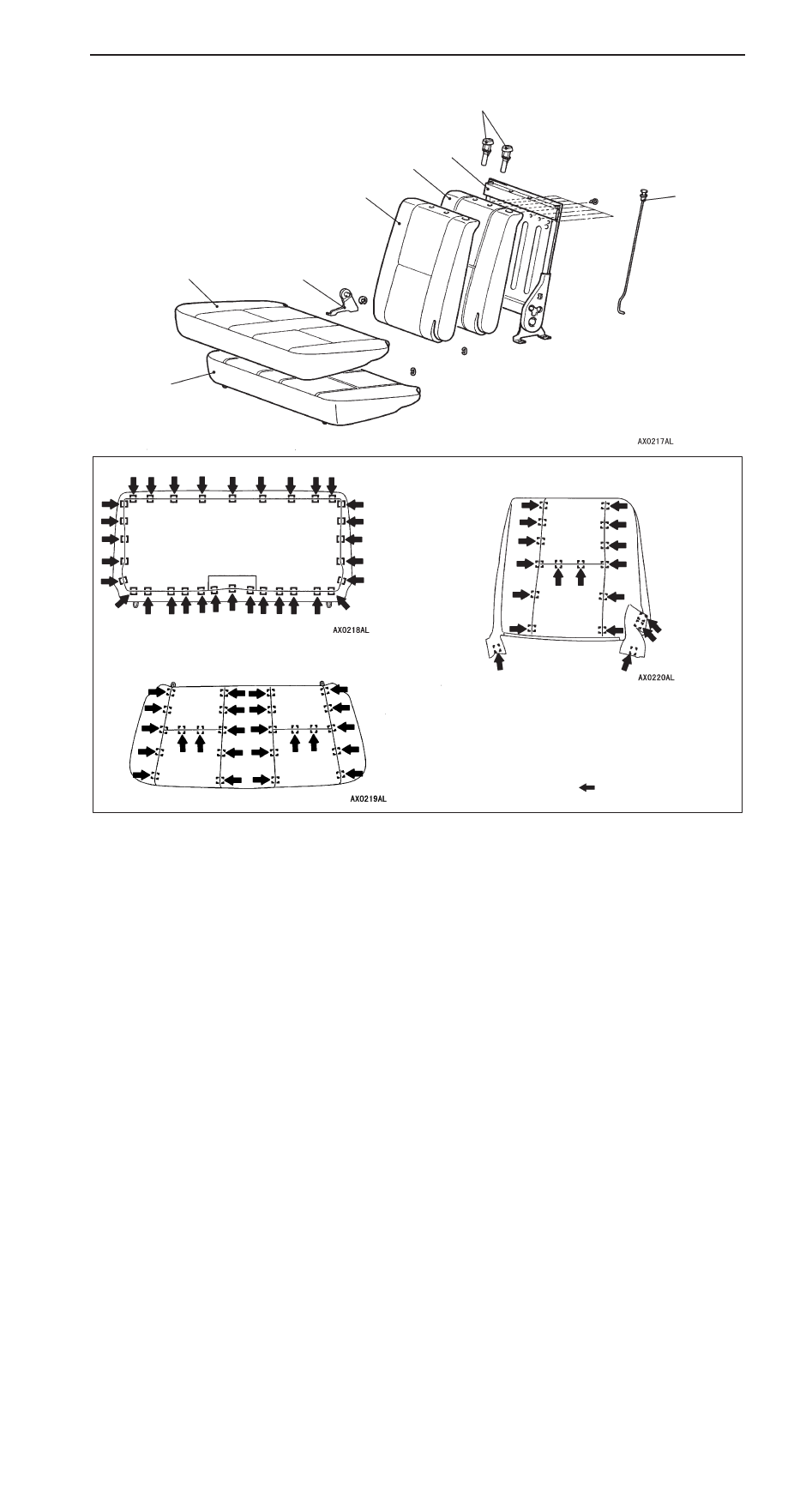

DISASSEMBLY AND REASSEMBLY

1

4

5

2

6

8

7

3

<Back view of rear seat cushion>

NOTE

: Hog ring positions

<Front view of rear seat cushion>

<Front view of rear seat back>

Disassembly steps

1. Rear seat cushion cover
2. Rear seat cushion pad

A

A

"

3. Headrestraint guide
4. Rear seat back cover

5. Rear seat back pad
6. Rear seat back frame assembly
7. Rear seat center hinge
8. Folding knob assembly

INTERIOR –

Seat Belt

52A-17

SEAT BELT

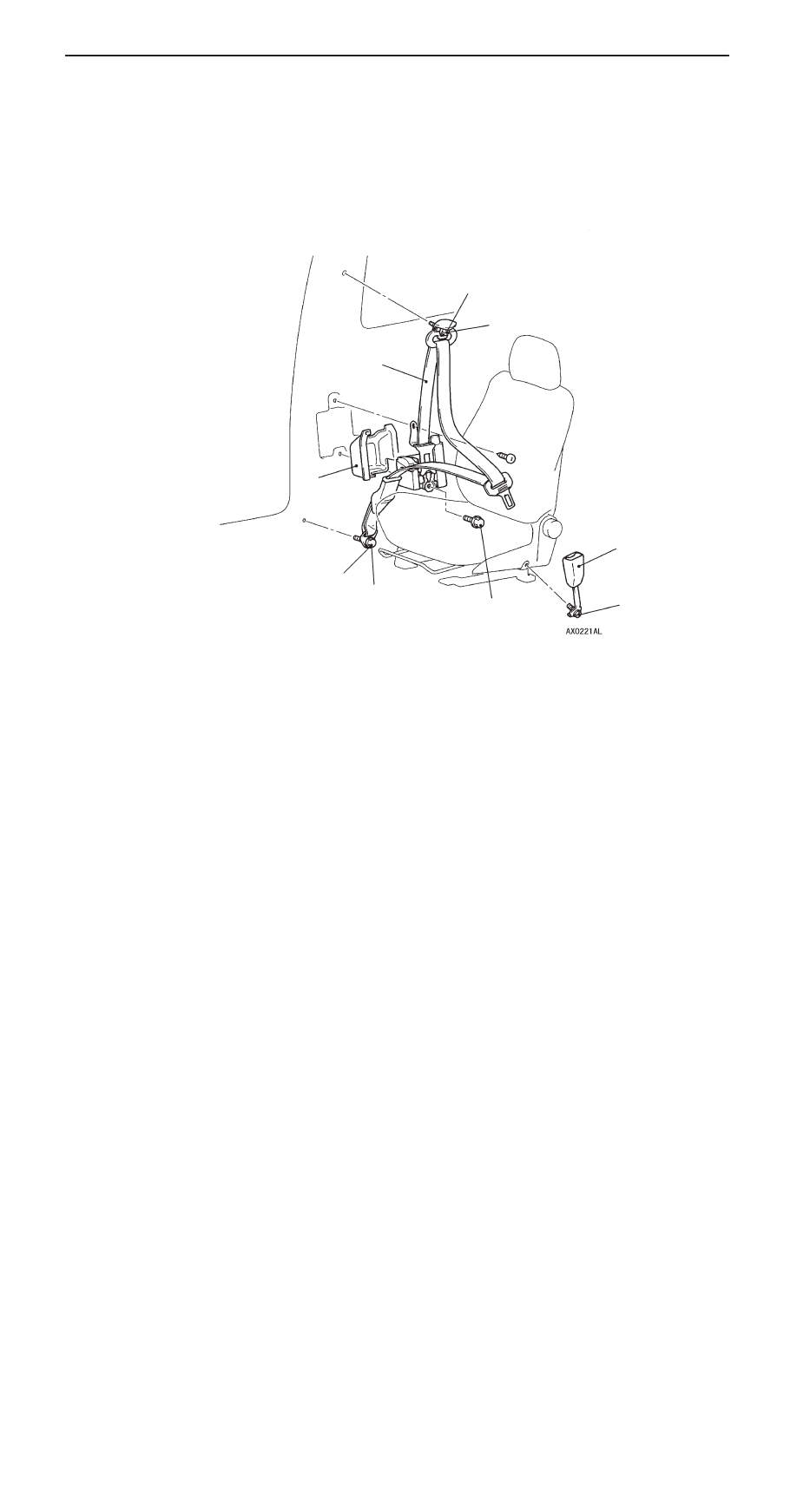

FRONT SEAT BELT
REMOVAL AND INSTALLATION

Caution: SRS
Before removal of the seat belt pre-tensioner, refer to GROUP 52B – SRS Service Precautions and
Seat Belt with Pre-tensioner.

1

3

4

44 Nm

44 Nm

44 Nm

2

1

44 Nm

Outer seat belt removal steps

1. Outer seat belt connection

D

Quarter trim (Refer to P.52A-9.)

2. Outer seat belt
3. Front noise protector

Inner seat belt removal

4. Inner seat belt

INTERIOR –

Seat Belt

52A-18

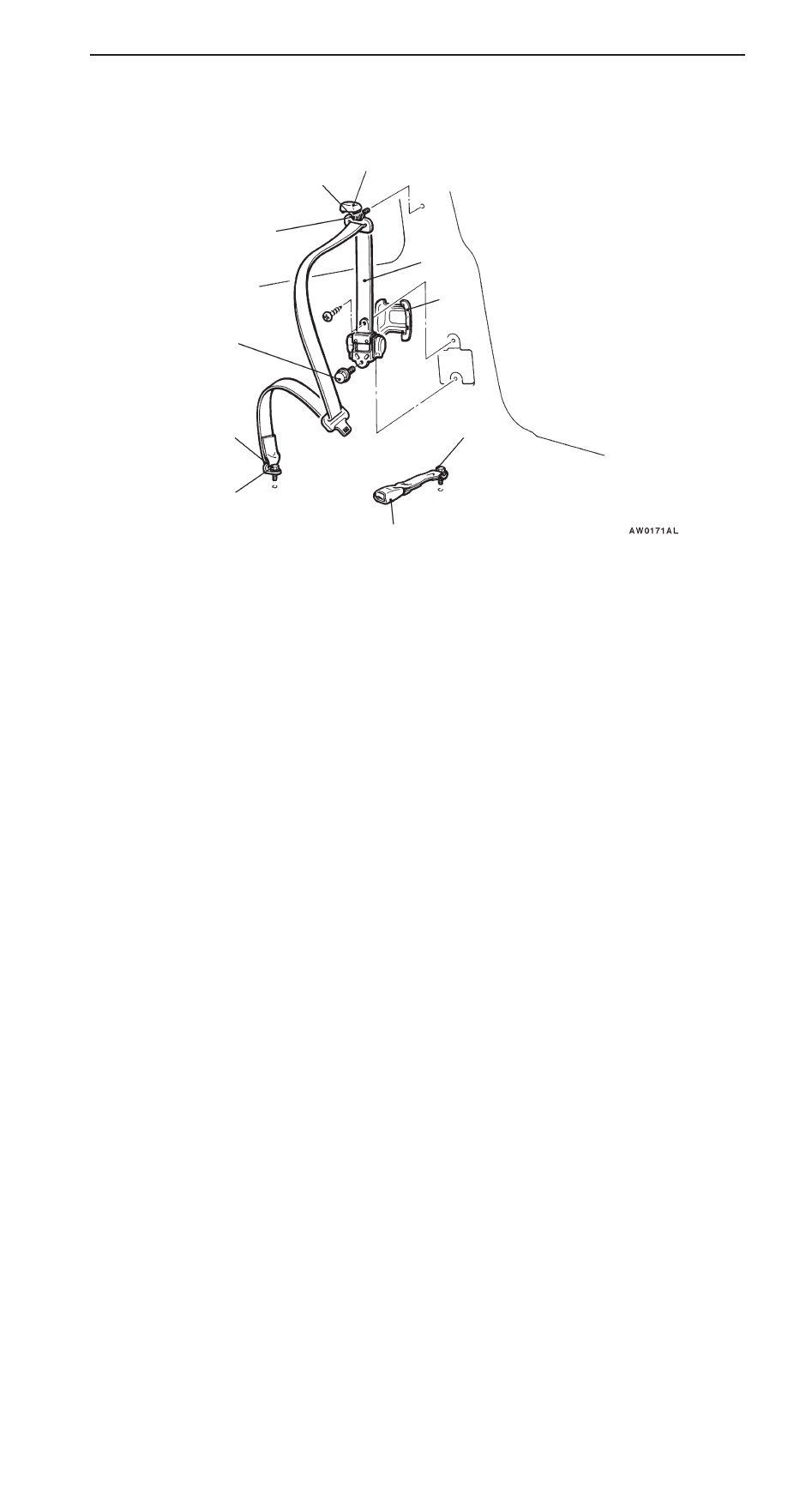

REAR SEAT BELT
REMOVAL AND INSTALLATION

1

2

44 Nm

44 Nm

44 Nm

2

3

4

5

44 Nm

Removal steps

D

Rear seat cushion assembly
(Refer to P.52A-15.)

1. Sash guide cover
2. Outer seat belt connection

D

Luggage floor box <Option>
(Refer to P.52A-9.)

D

Rear pillar trim (Refer to P.52A-9.)

D

Quarter trim (Refer to P.52A-9.)

3. Outer seat belt
4. Rear noise protector
5. Inner seat belt

INTERIOR  –

General/Trims <5–door models>

52A-1

GROUP 52A

INTERIOR

GENERAL

OUTLINE OF CHANGE



Due to the introduction of 5-door models, the service procedures for the trims, the headlining, the
seat and the seat belts have been added. The other items are the same as before.

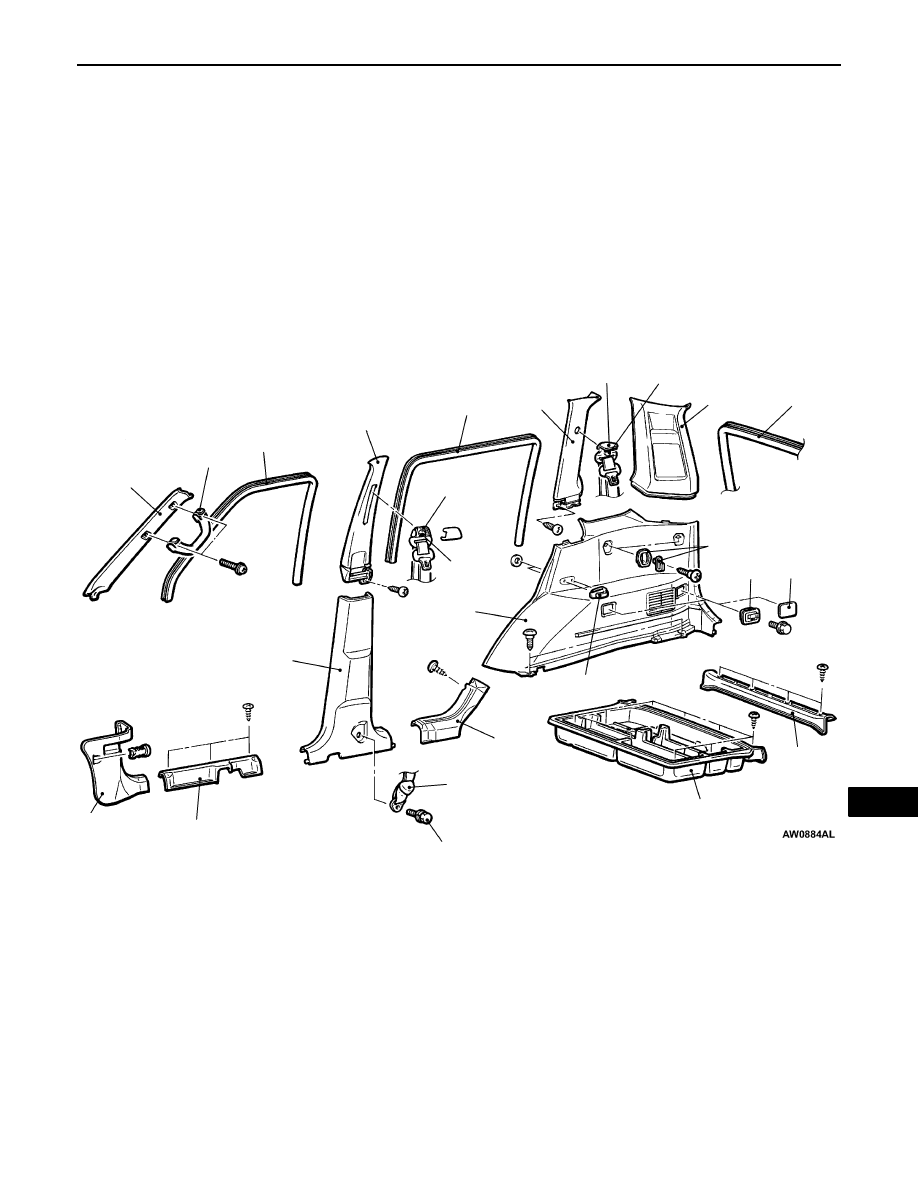

TRIMS <5-DOOR MODELS>

REMOVAL AND INSTALLATION

1

3

4

5

2

6

8

9

10

7

44 Nm

44 Nm

44 Nm

13

14

17

15

12

11

16

18

19

20

21

22

1. Front scuff plate
2. Cowl side trim
3. Front door opening trim
4. Assist grip (front)
5. Front pillar trim
6. Rear scuff plate
7. Front seat belt connection
8. Center pillar lower trim
9. Rear door opening trim

10. Front seat belt connection

11. Center pillar upper trim

12. Rear step plate



Rear seat (Refer to ’00 PAJERO PININ
Workshop Manual <pub.No.
CKRE00E1> Group 52A)

13. Luggage floor box <Option>
14. Luggage room hook
15. Net hook <Option>
16. Cover
17. Quarter lower trim
18. Hook
19. Back door opening trim
20. Rear pillar trim
21. Rear seat belt connection
22. Quarter pillar upper trim
