EXTERIOR  –

Marks

51-2

INSTALLATION SERVICE POINT

"

A

A

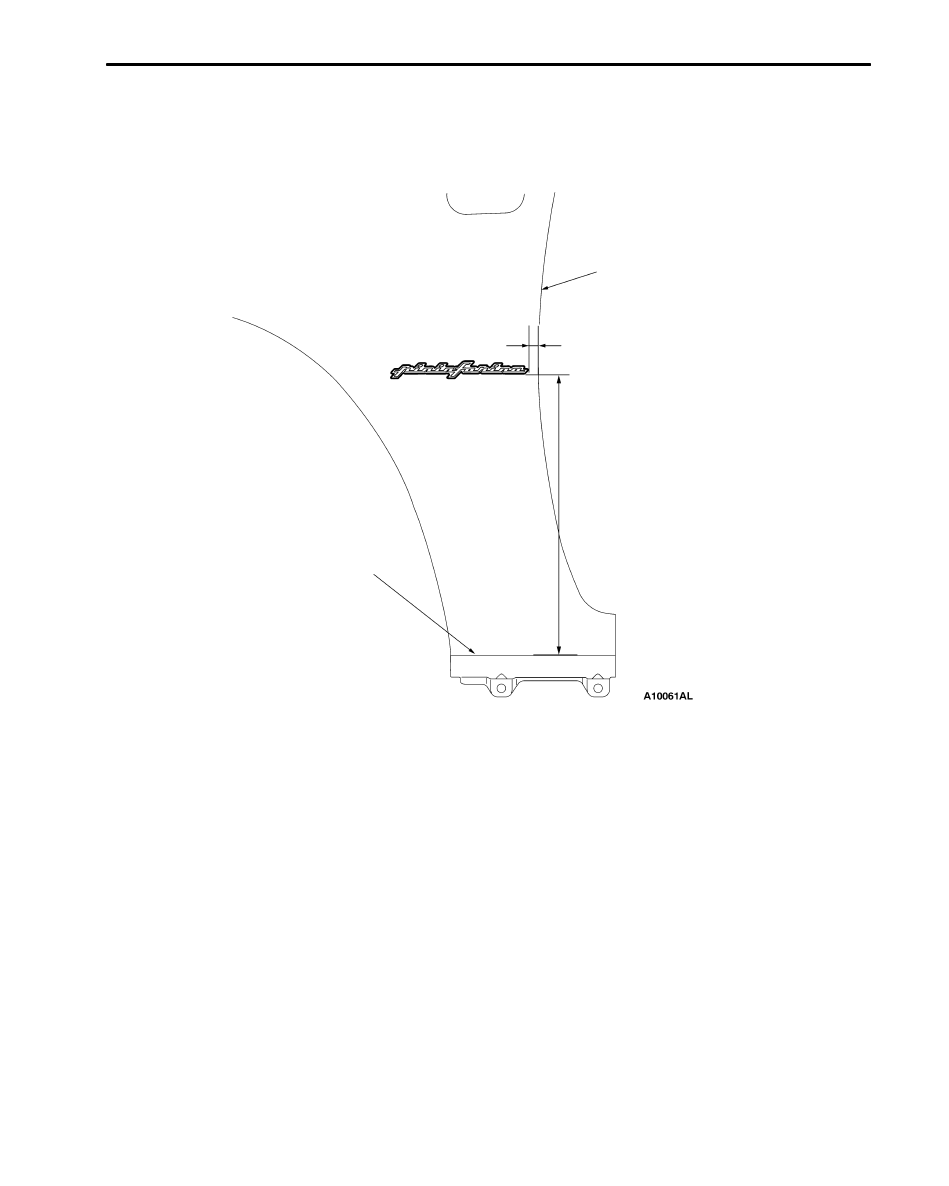

INSTALLATION OF MARK

1.

APPLICATION POSITION

342 mm

 R end line

Front fender panel end line

10 mm

(1) Pininfarina mark

2.

INSTALLATION PROCEDURE

(1) Clean the mark installation surfaces on the body with

unleaded petrol.

(2) Peel off the backing paper from the reverse side of the

marks, and then attach the marks to the vehicle body
so that they fit properly into position.

Caution
When attaching the marks, the surrounding
temperature should be 20 – 38

_

C and the air should

be completely free from dust.
If the surrounding temperature is lower than 20

_

C,

the marks and the places on the body where the marks
are to be attached should be heated to 20 – 38

_

C.

When the marks are attached, care should be used
not to allow bubble to enter between tape and the
body.

INTERIOR

Click on the applicable bookmark to selected the required model year

52A-2

INTERIOR

CONTENTS

SPECIAL TOOL

3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSTRUMENT PANEL*

3

. . . . . . . . . . . . . . . . . . . . . .

FLOOR CONSOLE

7

. . . . . . . . . . . . . . . . . . . . . . . . .

TRIMS

9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INSIDE REAR VIEW MIRROR

11

. . . . . . . . . . . . . .

HEADLINING

11

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEAT

12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Seat*

12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat

15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEAT BELT

17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Seat Belt

17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Belt

18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING!

(1) Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to personal

injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and passenger (from
rendering the SRS inoperative).

(2) Service or maintenance of any SRS component or SRS-related component must be performed only at an authorized

MITSUBISHI dealer.

(3) MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B – Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-related
component.

NOTE

The SRS includes the following components: SRS-ECU, SRS warning lamp, air bag module, clock spring, side impact sensors and
interconnecting wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or
maintenance) are indicated in the table of contents by an asterisk (*).

INTERIOR –

Special Tool/Instrument Panel

52A-3

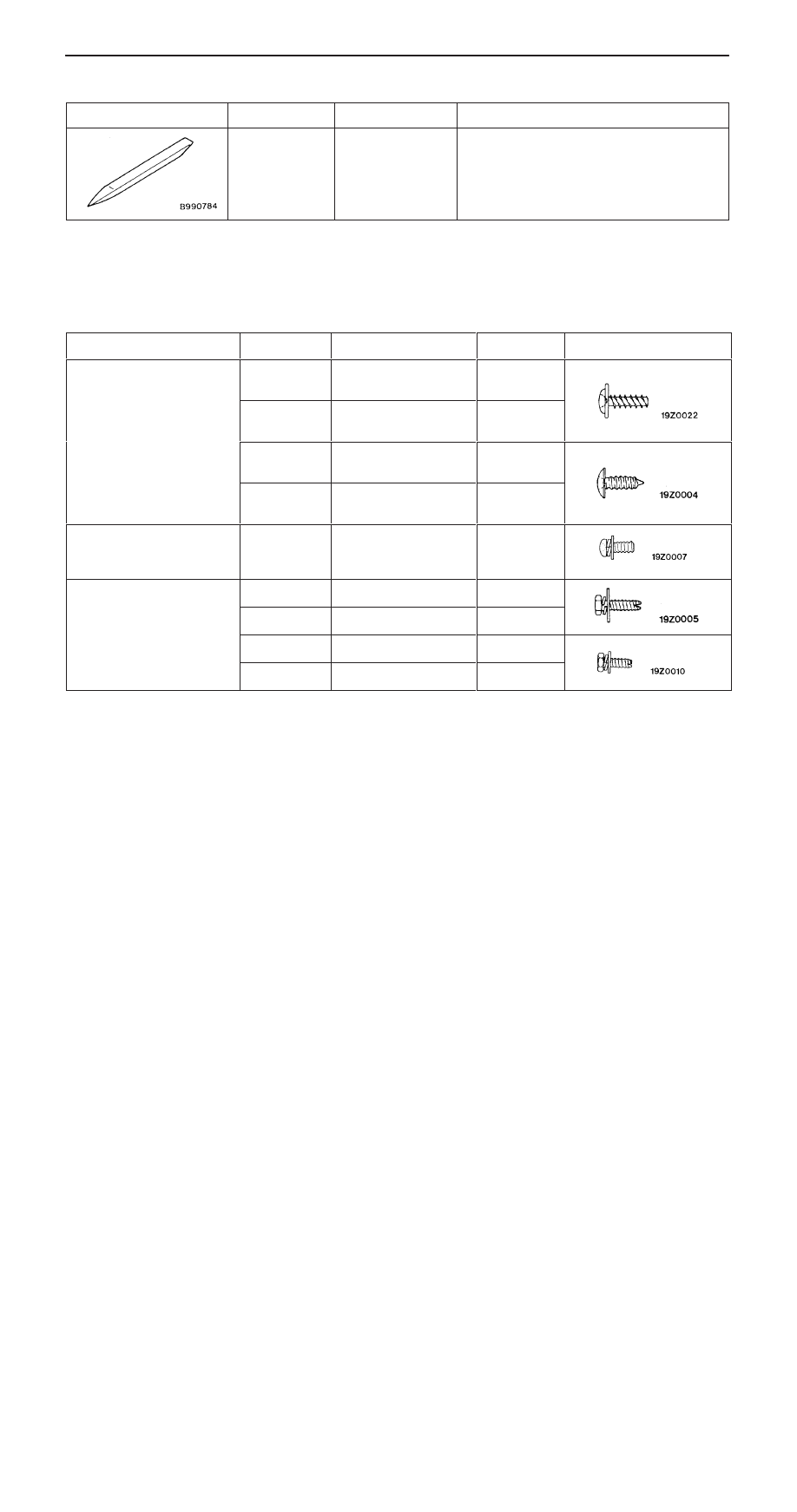

SPECIAL TOOL

Tool

Number

Name

Use

MB990784

Ornament remover

Removal of switch, trim, etc.

INSTRUMENT PANEL

REMOVAL AND INSTALLATION

For installation of the instrument panel, the bolts and screws described below are used. They are indicated
by symbols in the illustration.

Name

Symbol

Size mm (D

×

 L)

Colour

Shape

Tapping screw

a

5



12

–

b

5



20

–

c

5



16

–

d

5



16

Black

Washer-assembled screw

e

5



10

–

Washer-assembled bolt

f

6



16

–

g

8



20

–

h

5



12

–

i

6



16

–

D = Thread diameter
L = Effective thread length
