EXTERIOR  –

General/Rear bumper

51-1

GROUP 51

EXTERIOR

GENERAL

OUTLINE OF CHANGES



Due to the introduction of 5-door models, the rear bumper service procedure has been added.



Due to the introduction of 5-door models, the service procedures for the roof drip moulding and the
side protector moulding have been added.



Due to the change on the front deck garnish, the service procedure has been changed.



The side protector moulding for 5-door models has a “Pininfarina” mark and “Pininfarina” logo mark.
Due to this, the service procedure has been established.



Due to the change on the GDI mark, the service procedure has been changed.

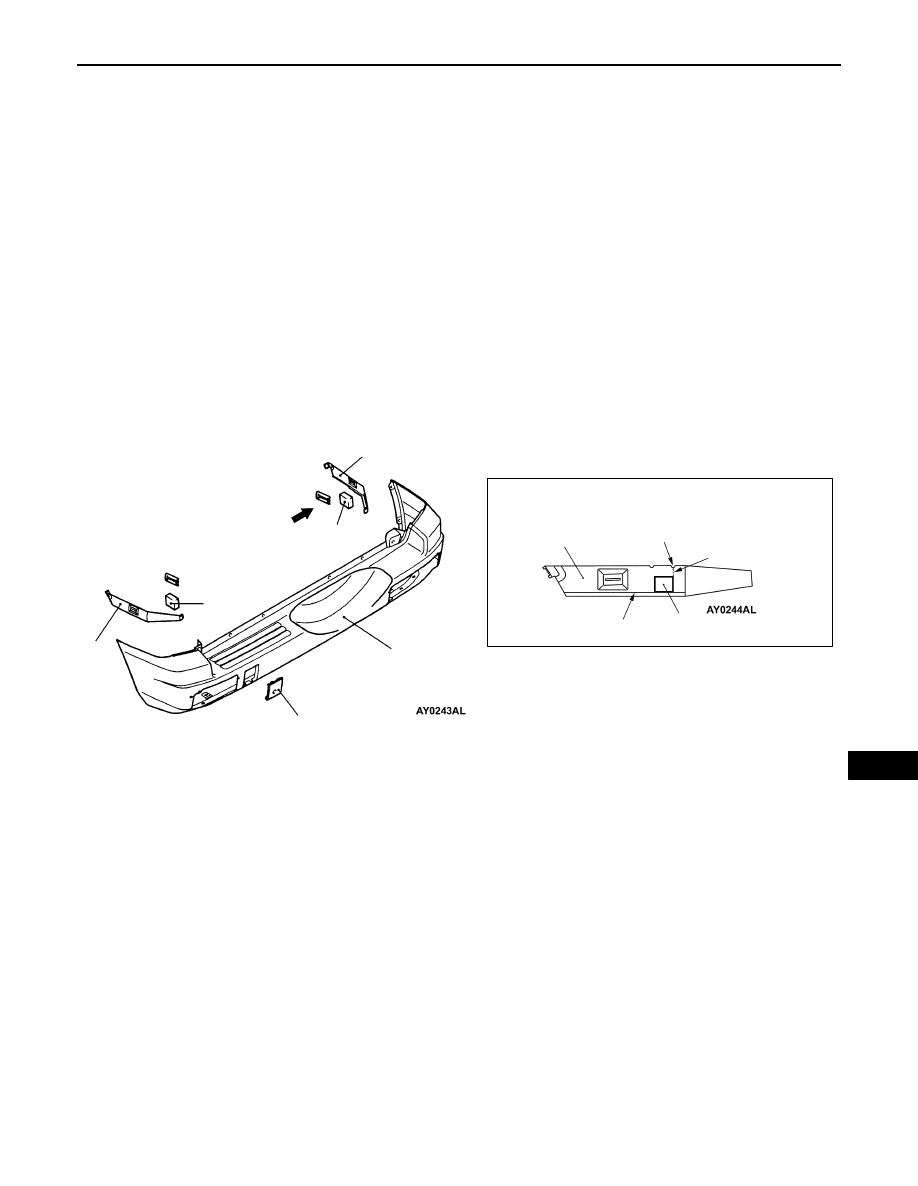

REAR BUMPER

DISASSEMBLY AND REASSEMBLY

1

2

3

4

A

View A
Location of rear bumper pad)

1

2

Notch

Vertical line

Press line

2

1

Disassembly steps



Rear combination lamp assembly and
rear combination lamp assembly
bracket <R.H. drive vehicles>



Rear fog assembly and rear fog
assembly bracket <L.H. drive
vehicles>

1. Rear bumper face side bracket
2. Rear bumper pad
3. Rear bumper cover
4. Rear bumper face

EXTERIOR  –

Moulding

51-2

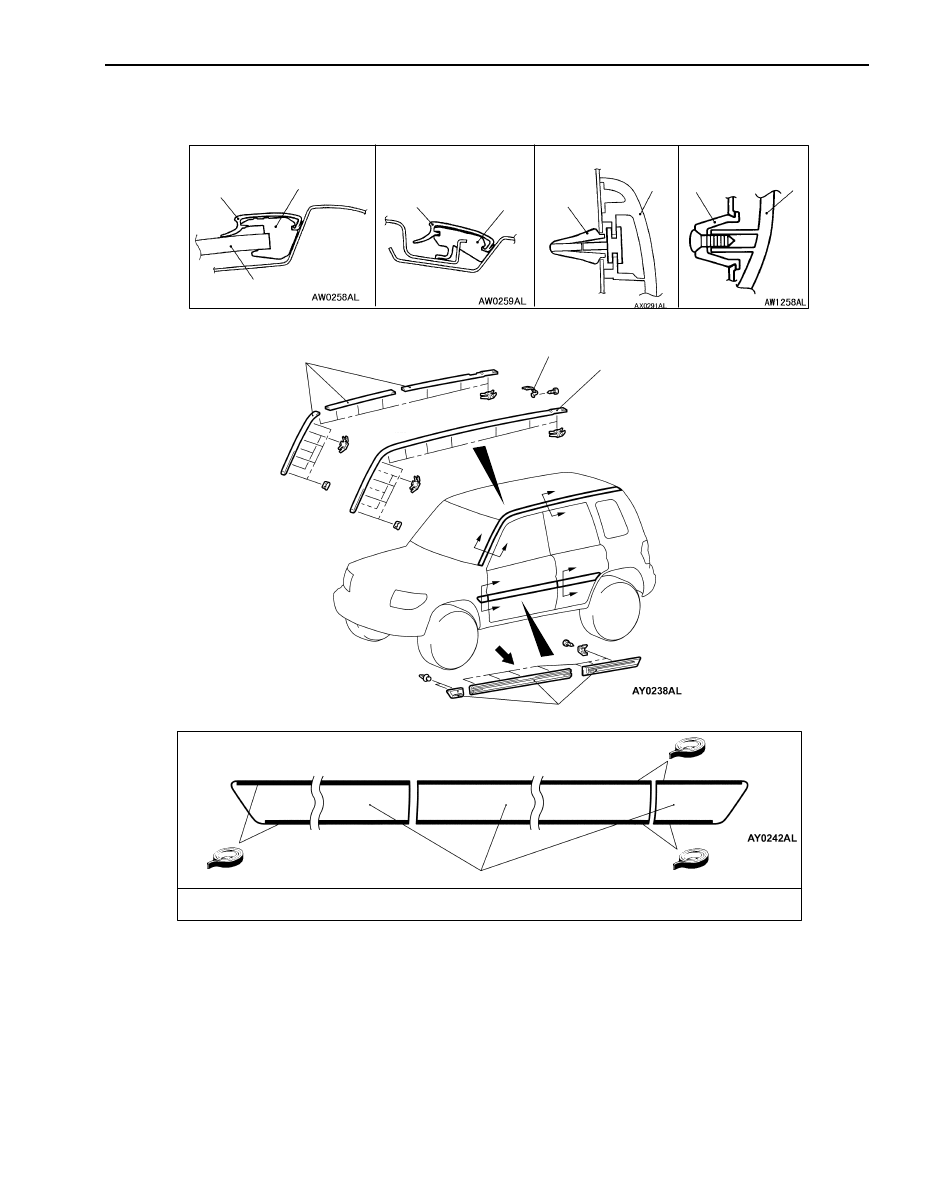

MOULDING

REMOVAL AND INSTALLATION

2

3

2

Section A –  A

Clip

Section B –  B

Clip

Windshield

B

1

A

A

Section D –  D

Clip

Adhesive: double-sided tape [5 mm width and 0.8 mm thickness]

B

E

<Vehicles with roof rail>

2

 <Vehicles without roof rail>

C

C

View E

3

D

D

Clip

3

Section C –  C

3

Roof drip moulding removal steps



Roof rail assembly

1. Roof drip cover



A



2. Roof drip moulding

Side protector moulding removal



B



A



3. Side protector moulding

NOTE
For the removal and installation service points of the
roof drip moulding and the side protector moulding, refer
to the Basic Manual.

EXTERIOR  –

Garnish

51-3

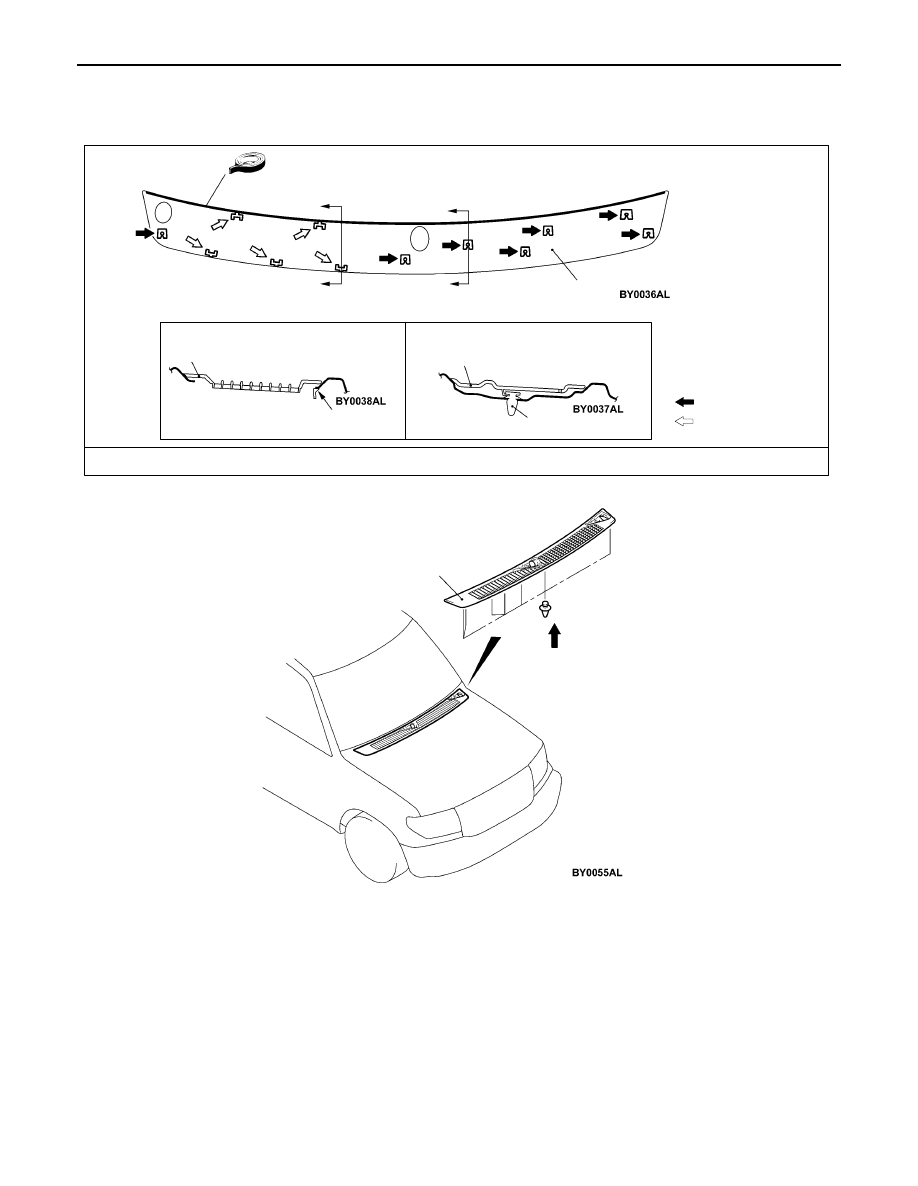

GARNISH

REMOVAL AND INSTALLATION

B

B

A

C

C

Clip

1

1

1

1

: Clip positions

NOTE

: Claw positions

View A

Section B –  B

Section C –  C

Claw

Adhesive: double-sided tape [5 mm width and 0.8 mm thickness]

Front deck garnish removal steps



Wiper arm and blade assembly



A





A



1. Front deck garnish

NOTE
For the removal and installation service points of the
side protector moulding, refer to the Basic Manual.
