EXTERIOR  –

Marks

51-4

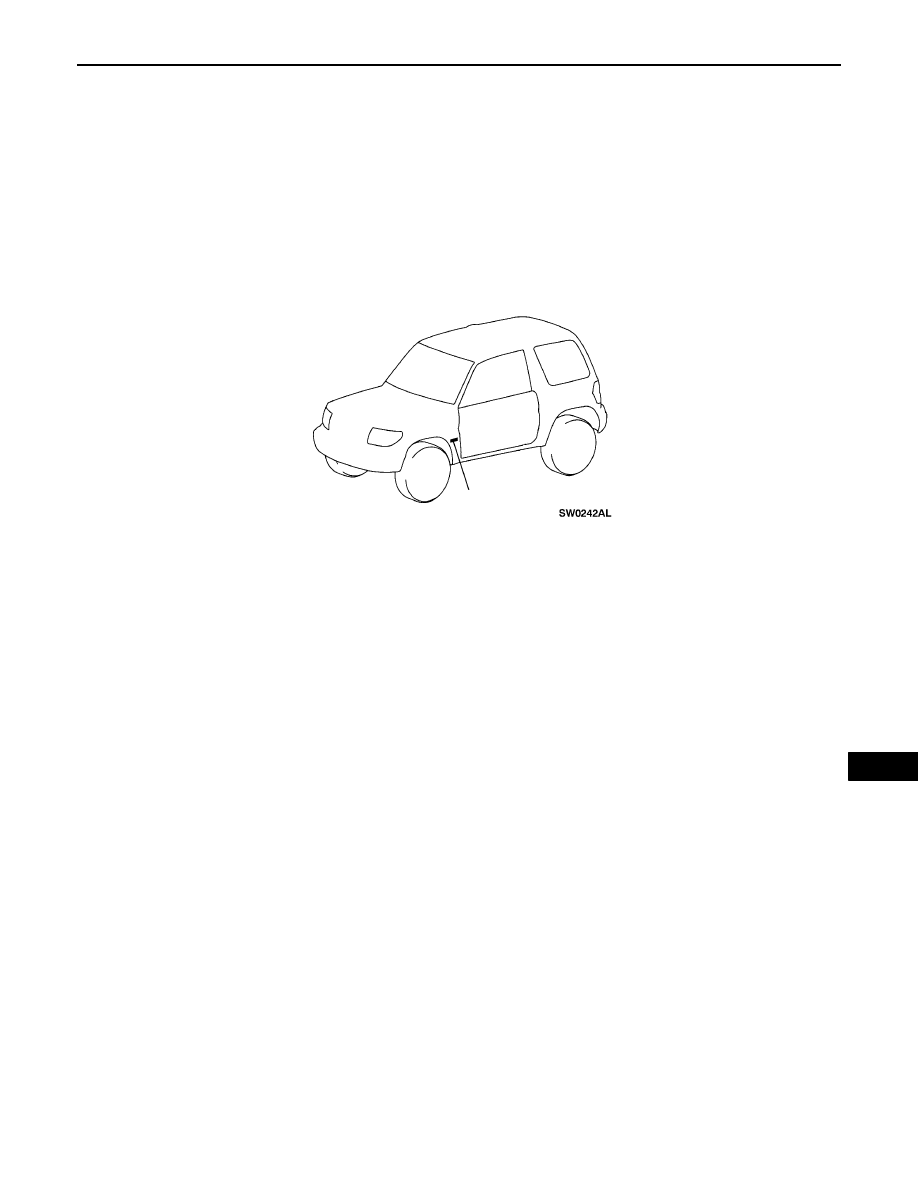

MARKS

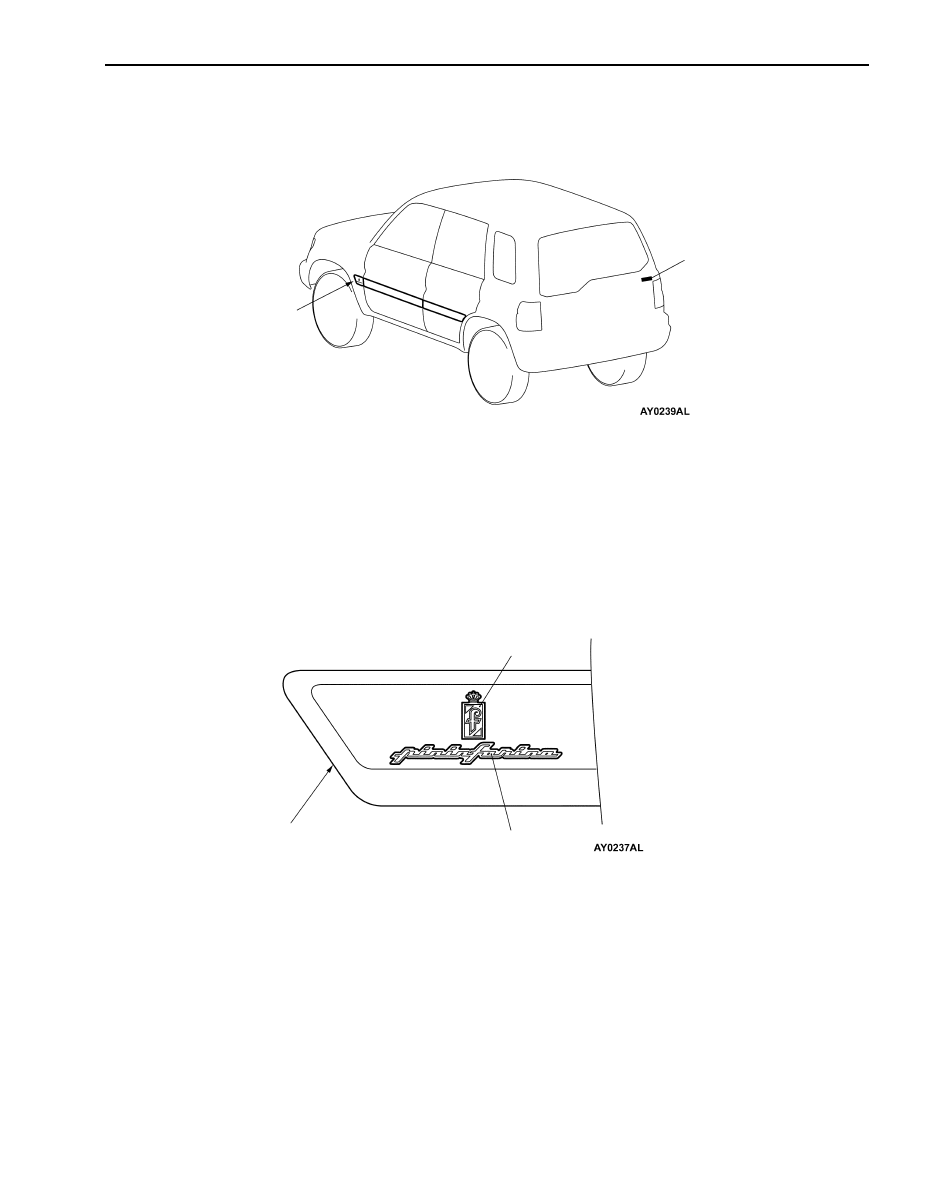

REMOVAL AND INSTALLATION

3

1,2



A



1. Pininfarina mark



A



2. Pininfarina logo mark



A



3. GDI mark

INSTALLATION SERVICE POINT



A



MARK INSTALLATION

(1) PININFARINA MARK,(2) PININFARINA LOGO MARK

Side protect  moulding

1

2

EXTERIOR  –

Marks

51-5

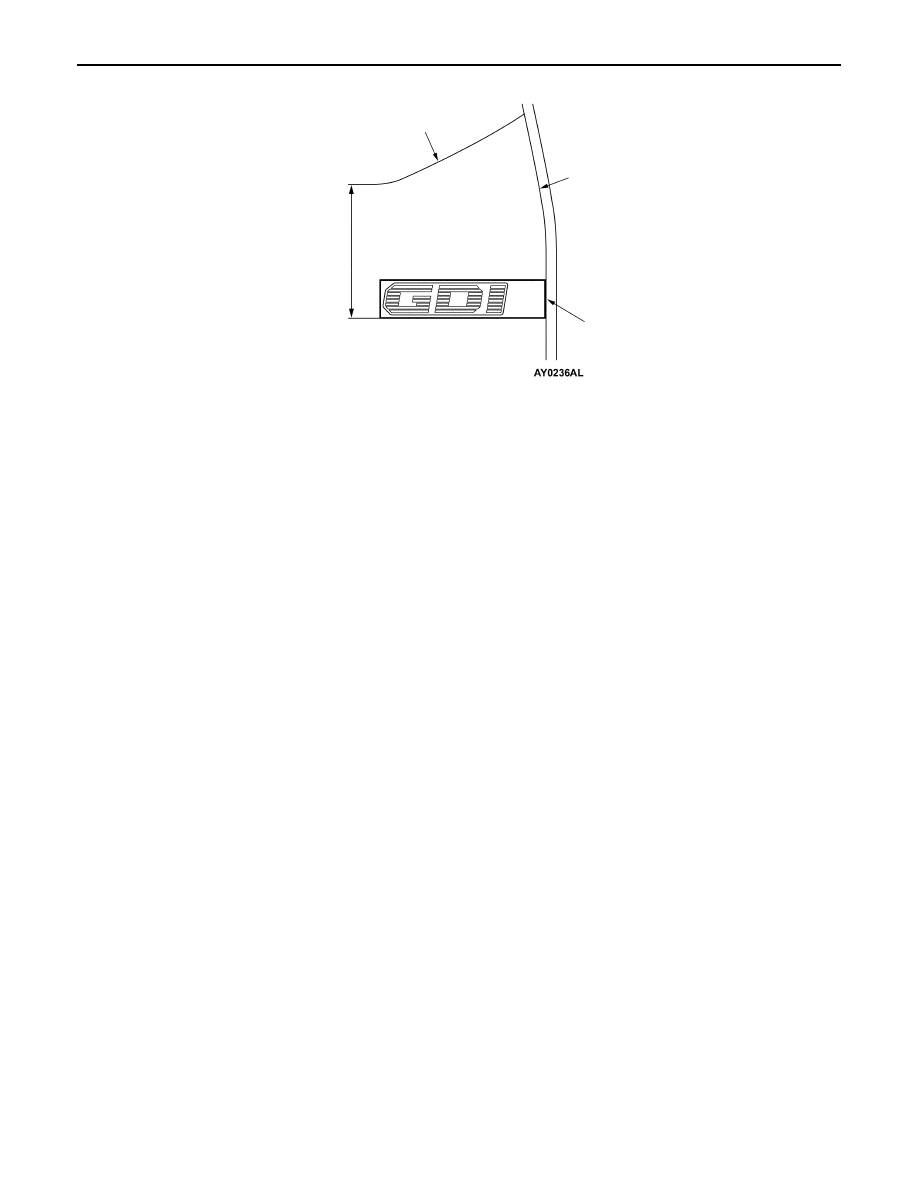

(3)  GDI MARK

Back door end line

Window moulding end line

124

±

 1 mm

Align the application tape end
with the back door end line.

1.

Clean the mark installation surfaces on the body with
unleaded petrol.

2.

Peel off the backing paper from the reverse side of the
marks, and then attach the marks to the vehicle body
so that they fit properly into position.

Caution
When attaching the marks, the surrounding
temperature should be 20 – 38



C and the air should

be completely free from dust.
If the surrounding temperature is lower than 20



C,

the marks and the places on the body where the marks
are to be attached should be heated to 20 – 38



C.

NOTES

EXTERIOR  –

General/Marks

51-1

GROUP 51

EXTERIOR

GENERAL

OUTLINE OF CHANGES

The following service procedures have been changed due to the addition of marks.

MARKS

REMOVAL AND INSTALLATION

1

"

A

A

1. Pininfarina logo mark <Vehicles for

MPI>
