EXTERIOR –

Marks

51-20

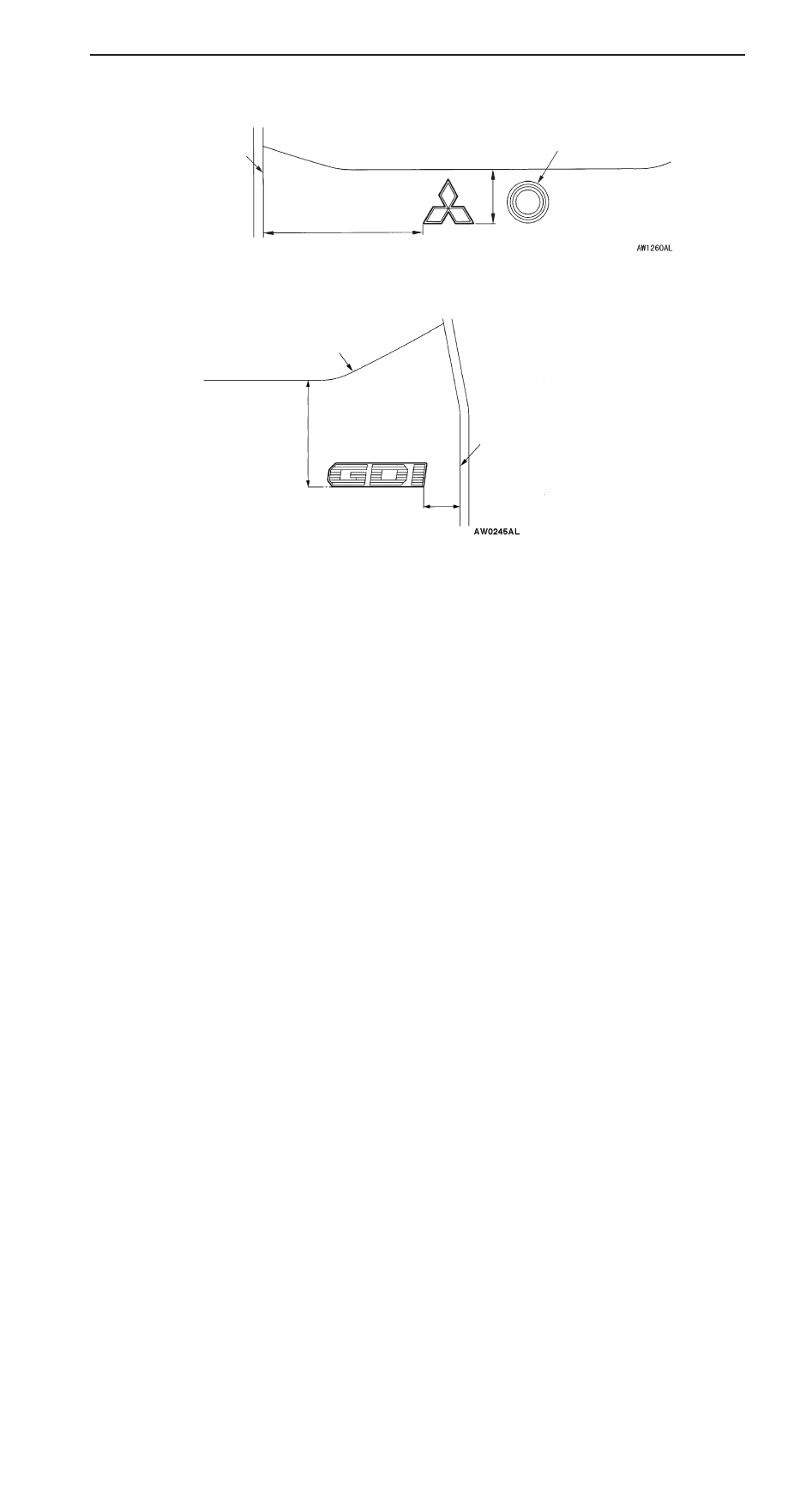

(7) GDI mark

121 mm

Back door end line

Window moulding end line

42 mm

(6) Three diamonds mark

Back door end line

Key cylinder

165 mm

56 mm

2.

INSTALLATION PROCEDURE

(1) Clean the mark installation surfaces on the body with

unleaded petrol.

(2) Peel off the backing paper from the reverse side of the

marks, and then attach the marks to the vehicle body
so that they fit properly into position.

Caution
When attaching the marks, the surrounding
temperature should be 20 – 38 C and the air should
be completely free from dust.
If the surrounding temperature is lower than 20 C,
the marks and the places on the body where the marks
are to be attached should be heated to 20 – 38 C.
When the marks are attached, care should be used
not to allow bubble to enter between tape and the
body.

EXTERIOR – Outside

Door Mirror

51-21

OUTSIDE DOOR MIRROR

REMOVAL AND INSTALLATION

1

3

2

4

4

5

A

A

6

Section A – A

Clip

A

A

1

5

A

A

A

A

1

7

<Electric remote-con-
trolled door mirror>

<Manual-controlled
door mirror >

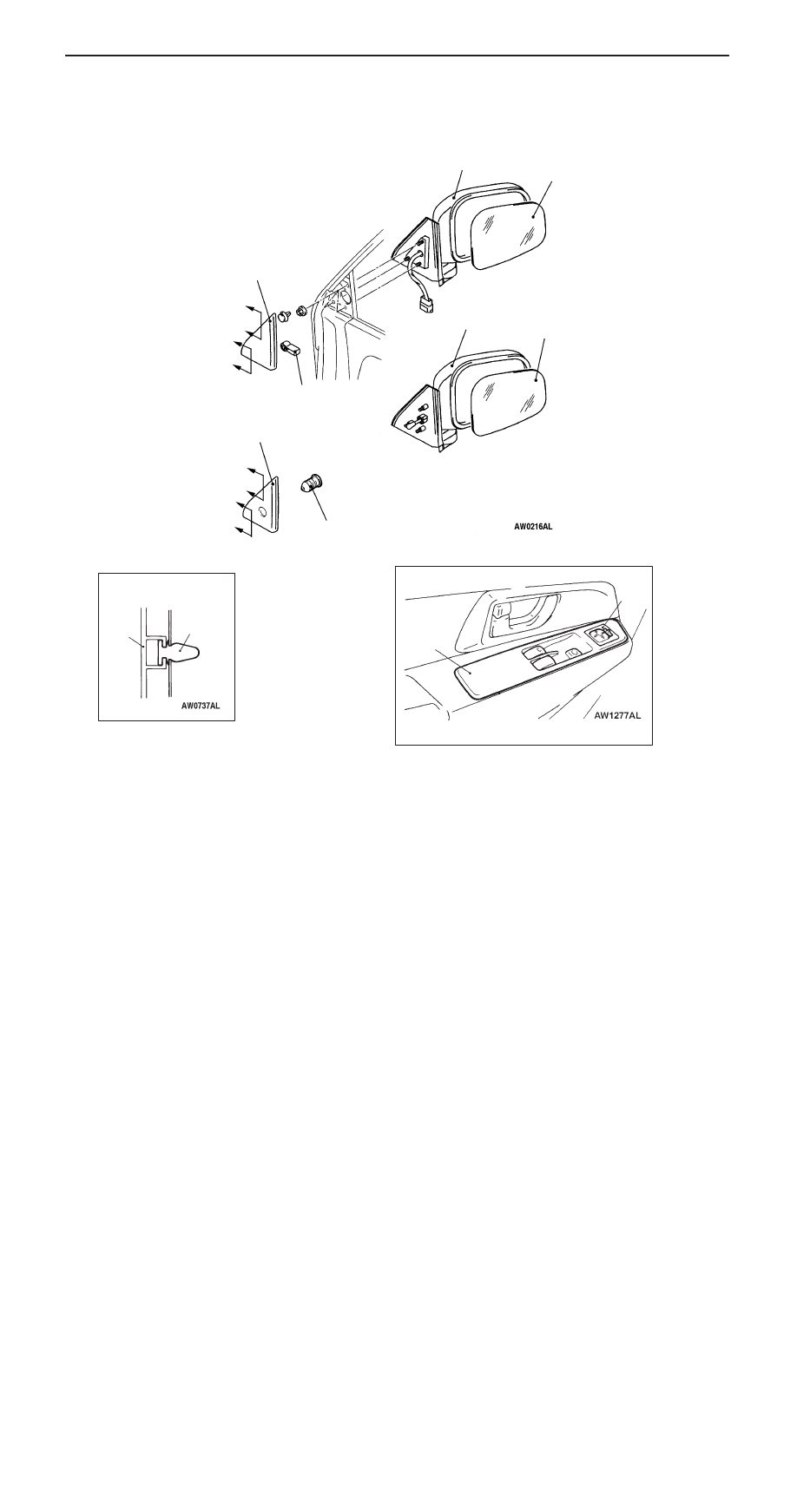

Door mirror removal steps

1. Delta inner cover
2. Clip
3. Boot
4. Mirror assembly

A

A

" "

A

A

5. Mirror

Electric remote-controlled mirror
switch removal steps

6. Power window and remote-

controlled mirror switch assembly
(Refer to GROUP 42 – Door trim
and water proof film.)

7. Electric remote-controlled mirror

switch

EXTERIOR – Outside

Door Mirror

51-22

REMOVAL SERVICE POINT

A

A

"

MIRROR REMOVAL

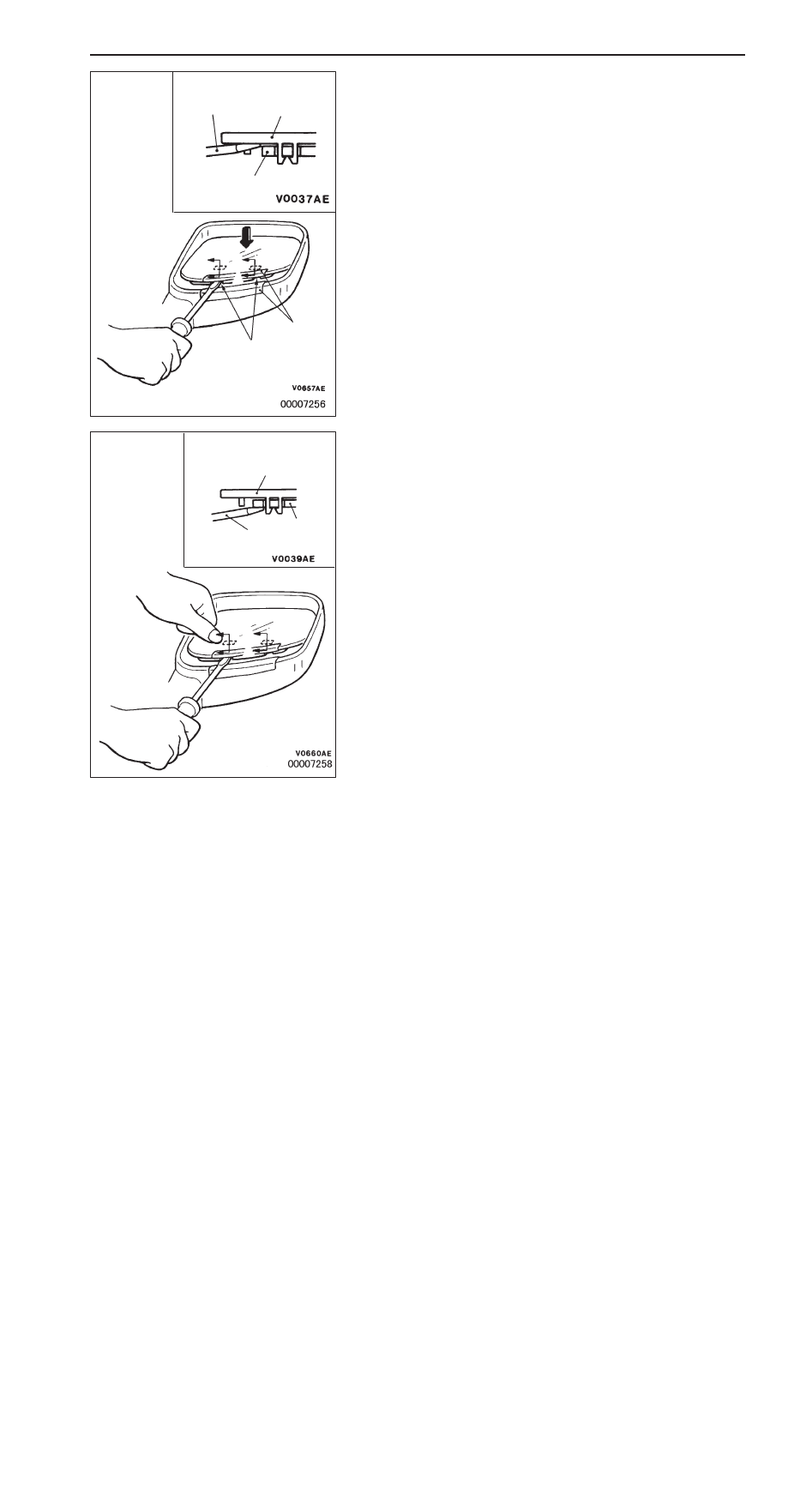

Using a hand, push the upper part of mirror to tilt it. Apply
a protection tape as shown in the illustration. Insert a flat-tipped
screwdriver between a notch behind the mirror and the pivot
plate, and then pry off the lower part of mirror from the pivot
plate.

INSTALLATION SERVICE POINT

"

A

A

MIRROR INSTALLATION

While holding the pivot plate with a flat-tipped screwdriver,
push the mirror to engage the clips at its lower part with the
pivot plate.

Section A – A

Flat-tipped
screwdriver

Mirror

Pivot plate

Protection
tape

Notches

A

A

A

A

Section A – A

Flat-tipped
screwdriver

Mirror

Pivot plate

A

A

A

A

EXTERIOR – Outside

Door Mirror

EXTERIOR – Outside

Door Mirror

51-23

INSPECTION

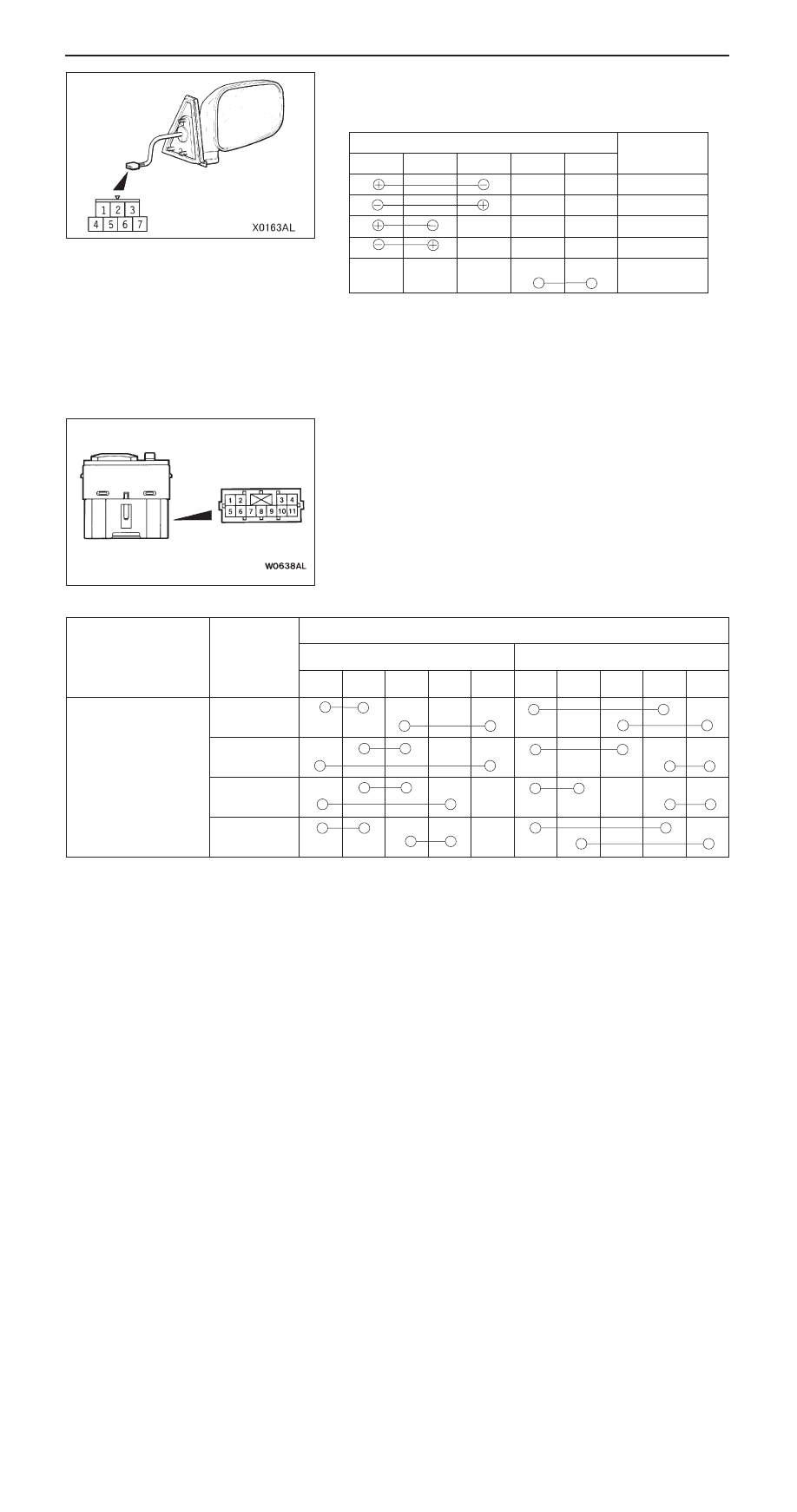

ELECTRIC REMOTE-CONTROLLED MIRROR
OPERATION CHECK

Battery connection terminal

Direction of

ti

1

2

3

6

7

operation

UP

DOWN

LEFT

RIGHT

Vehicles with
heater mirror

ELECTRIC REMOTE-CONTROLLED MIRROR SWITCH
CONTINUITY CHECK

Switch

Switch
position

Terminal No.

position

Left mirror

Right mirror

1

6

9

10

11

1

2

3

6

9

Adjustment switch

UP

DOWN

RIGHT

LEFT
