INTERIOR –

Instrument Panel

52A-4

Caution: SRS
1.

For the passenger side air bag module removal/installation, always observe the service procedures
of GROUP 52B – Air Bag Module.

2.

Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

Pre-removal and Post-installation Operation
Steering Column Mounting Bolt Removal and
Installation

1

d

3

4

5

2

6

8

9

10

12

11

13

19

20

21

16

18

23

14

15

17

e

b

c

7

h

i

h

f

a

5 Nm

c

a

8

e

f

f

f

f

f

c

5 Nm

17

22

c

c

f

f

c

c

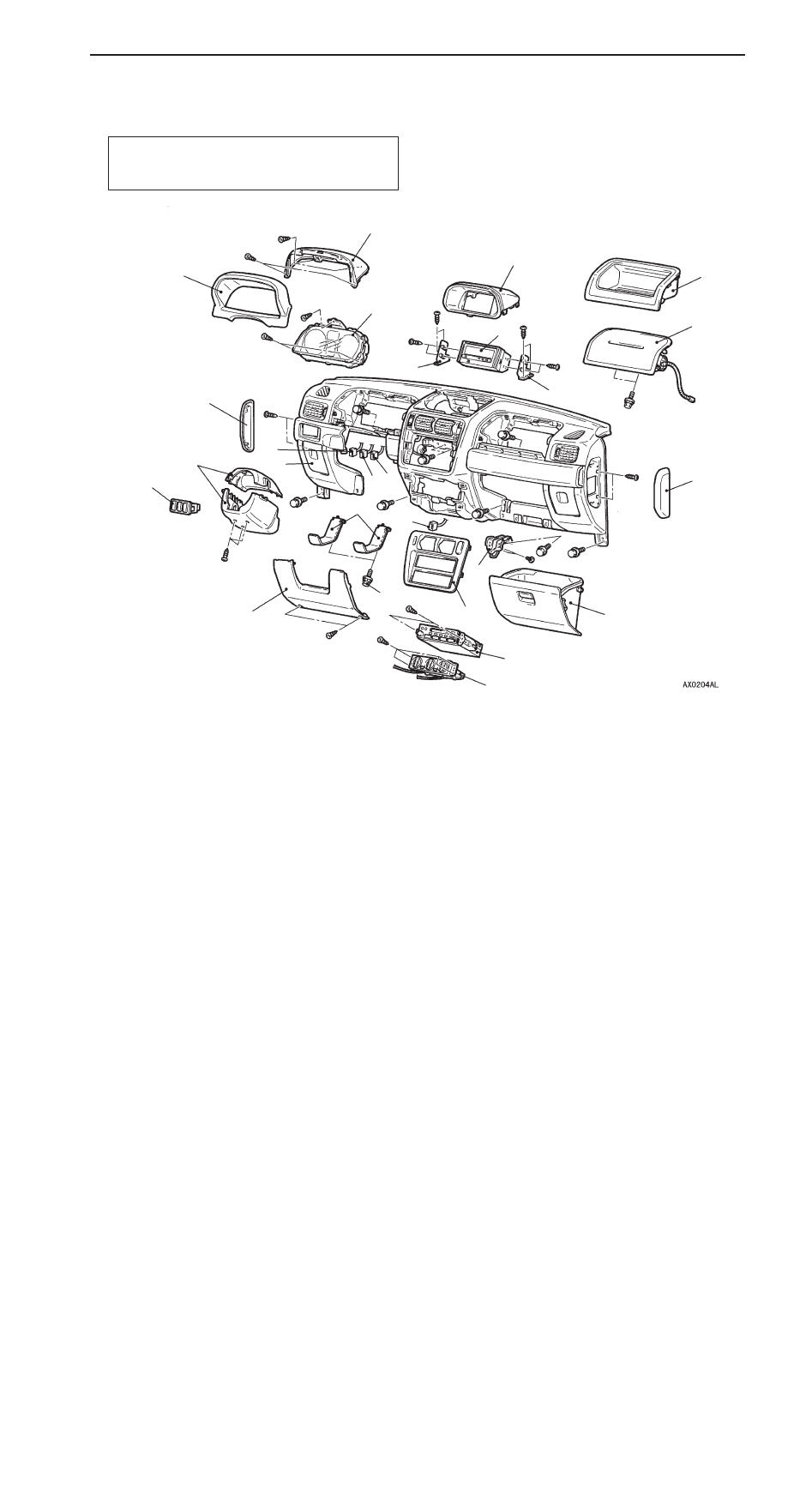

Removal steps

1. Column cover
2. Under cover
3. Meter hood B
4. Combination meter
5. Meter hood A
6. Multi-center display hood
7. Multi-center display
8. Multi-display bracket
9. Center panel

10. Radio and tape player

11. Heater control assembly or auto-

matic A/C control panel assembly

12. Glove box striker
13. Instrument tray <Vehicles without

front air bag module>

14. Passenger’s side air bag module

<Vehicles with front air bag
module>

15. Glove box
16. Switch panel assembly

<Vehicles with fog lamp>

17. Instrument panel side cover

D

Scuff plate (Refer to P.52A-9.)

D

Cowl side trim (Refer to P.52A-9.)

D

Floor console (Refer to P.52A-7.)

D

Front pillar trim (Refer to P.52A-9.)

18. Rheostat connector
19. Leveling switch connector
20. Fog lamp switch connector

<Vehicles with fog lamp>

21. Hazard lamp switch connector
22. Instrument panel assembly
23. Knee protector bracket

INTERIOR –

Instrument Panel

52A-5

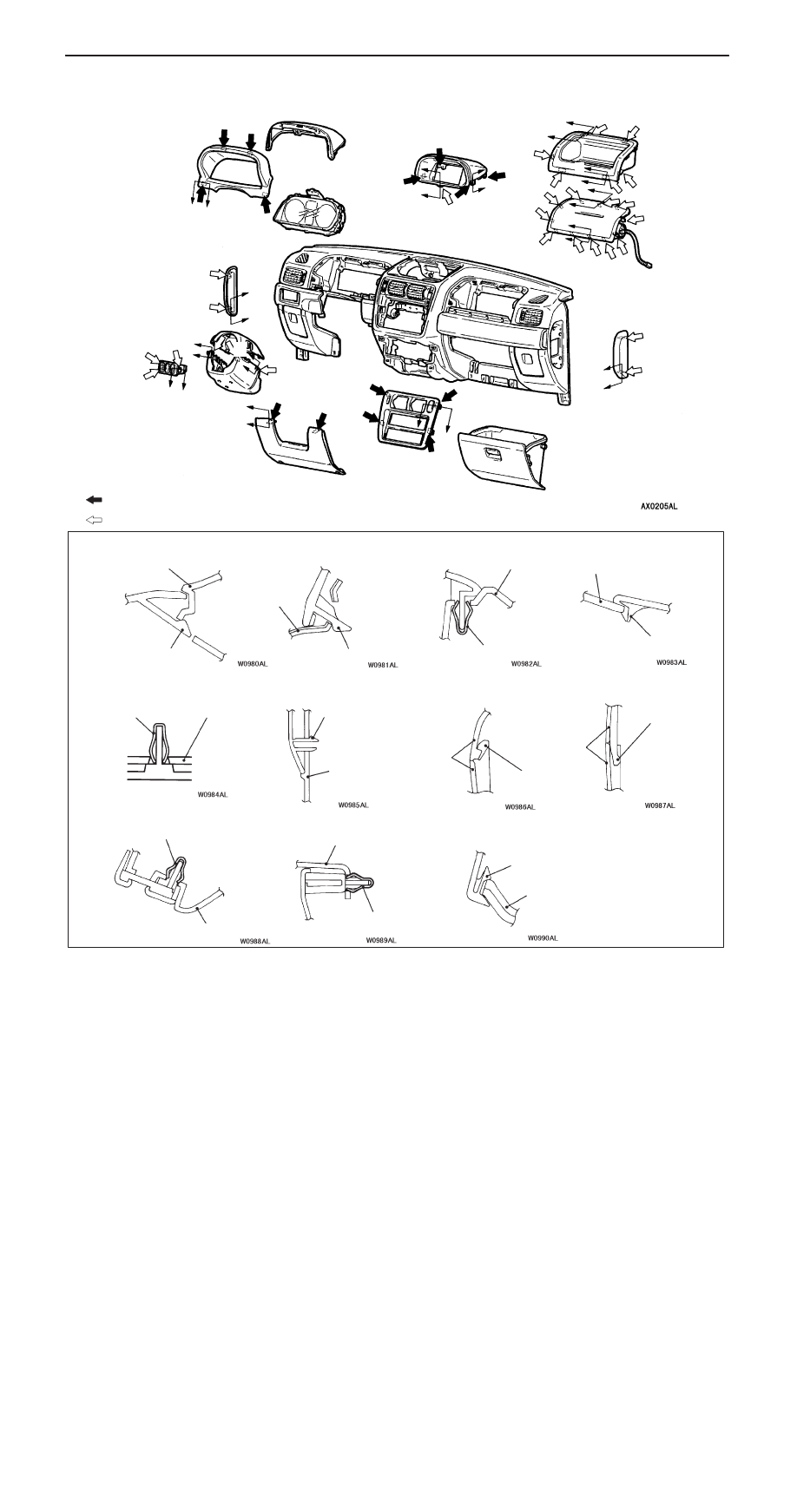

CLIP AND CLAW POSITIONS

B

Section D – D

Section E – E

Section  F  –  F

Section G –
G

Claw

Clip

Claw

Section H – H

E

D

D

H

H

F

Claw

Claw

F

K

K

J

E

Section A – A

Section B – B

Claw

Instrument panel

Clip

Section C – C

Claw

Clip

I

B

B

C

C

A

F

F

NOTE

: Claw positions

: Clip positions

A

A

Instrument panel

Instrument
panel

Instrument
panel

Section I – I

Section J – J

Section K – K

Instrument panel

Instrument panel

Clip

Instrument panel

Garnish

Garnish

C

olumn

cover

C

olumn

cover

Claw

J

I

B

G

G

A

B

INTERIOR –

Instrument Panel

52A-6

DISASSEMBLY AND REASSEMBLY

1

3

4

5

2

6

8

9

10

12

11

A

a

6

1

7

a

a

a

a

a

a

A

a

a

a

a

a

a

a

a

Section A – A

a

2

12

1

6

a

a

11

Claw

NOTE

: Claw positions

a

A

A

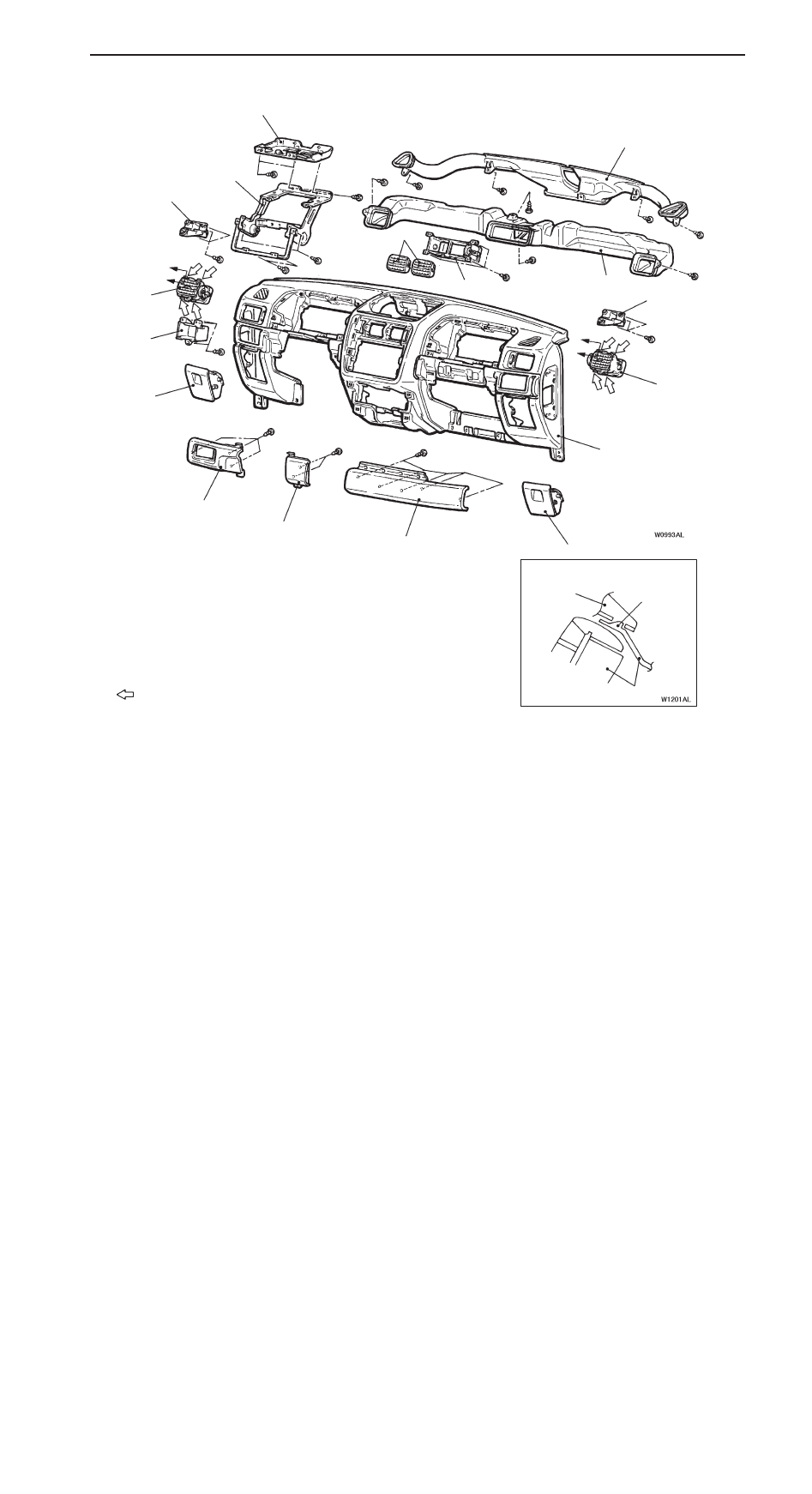

Disassembly steps

1. Garnish
2. Parcel box
3. Connector holder
4. Distribution duct
5. Defroster duct
6. Side air outlet assembly
7. Center air outlet

8. Center air outlet case
9. Instrument panel reinforcement

10. Center support panel

11. Instrument panel side support

bracket

12. Instrument panel

INTERIOR –

Floor Console

52A-7

FLOOR CONSOLE

REMOVAL AND INSTALLATION

1

3

4

5

2

6

9

5 Nm

14

5 Nm

11

8

7

10

12

13

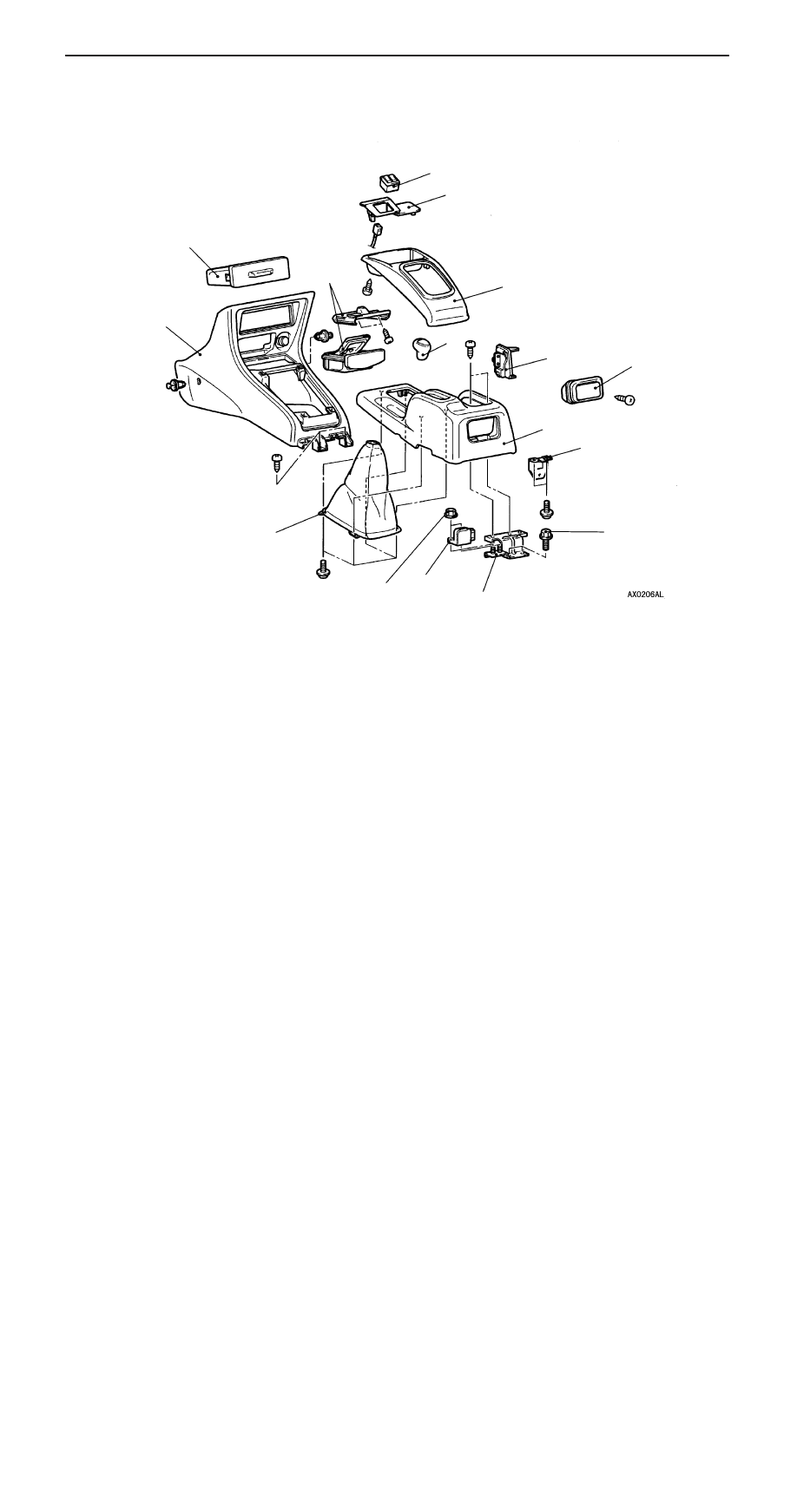

Removal steps

1. Selector nob <M/T>
2. Rear floor console
3. Transfer lever cover <M/T>
4. Rear ashtray assembly
5. Holder
6. Ashtray bracket
7. G sensor <Vehicles with ABS>
8. Floor console bracket

<Vehicles with ABS>

9. Front floor console

10. Box with lid

11. Heated seat switch

<Vehicles with heated seat>

12. A/T panel or M/T panel
13. Switch panel

<Vehicles with heated seat>

14. Front ashtray assembly
