Mitsubishi Pajero Pinin. Manual - part 261

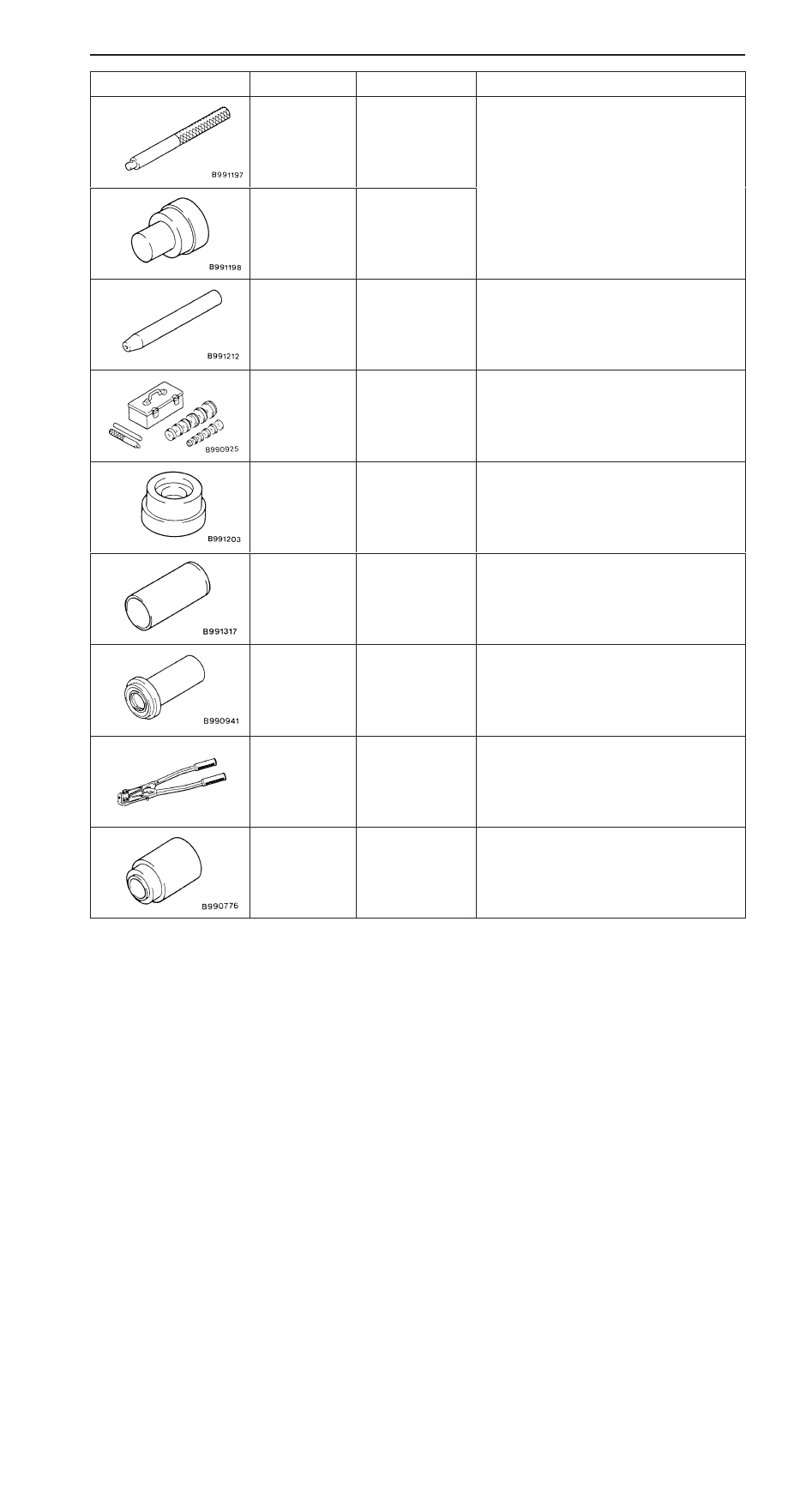

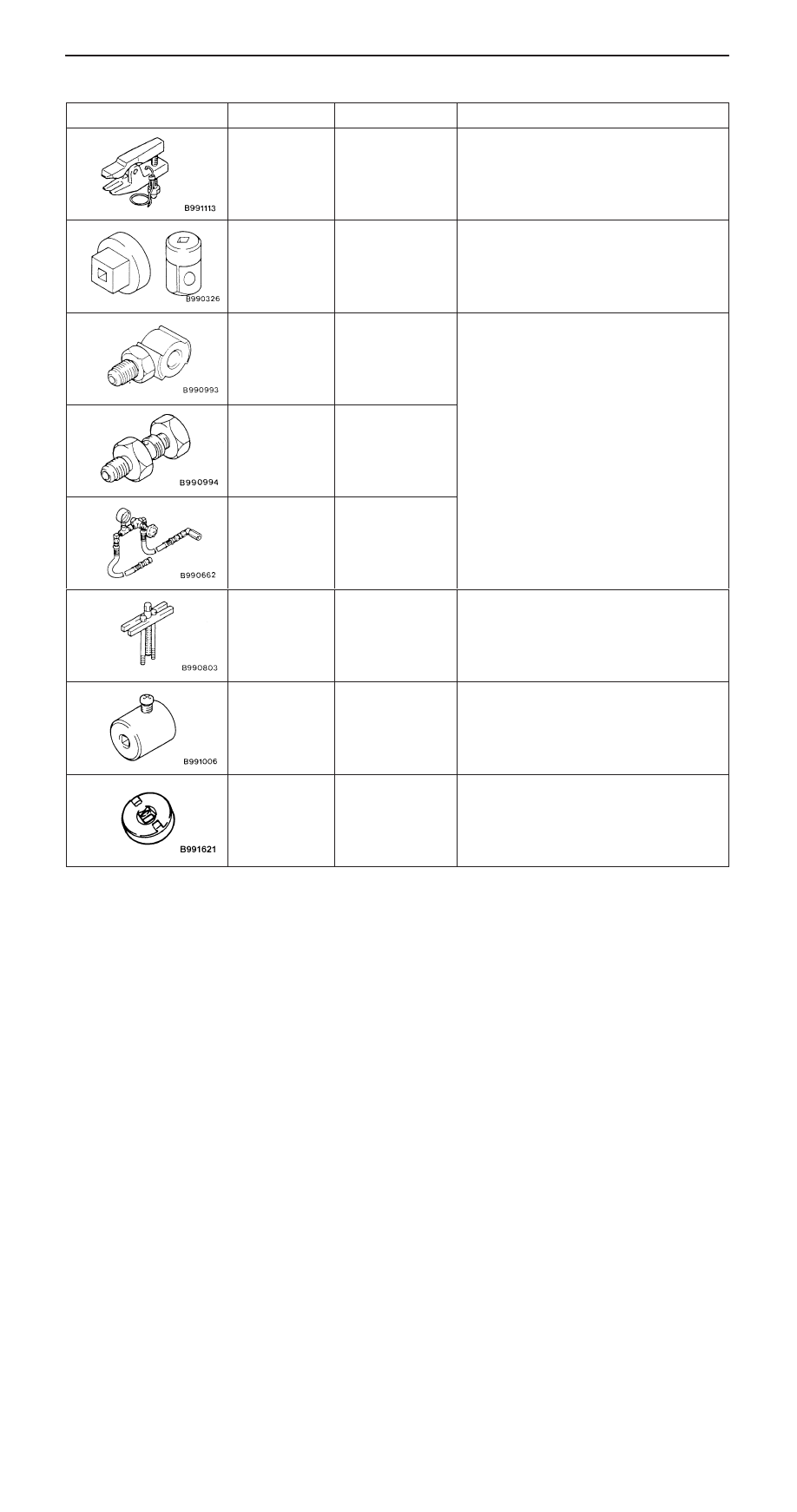

STEERING –

Special Tools

37A-5

SPECIAL TOOLS

Tool

Number

Name

Use

MB990635,
MB991113 or
MB991406

Steering linkage
puller

Tie rod end disconnection

MB990326

Preload socket

Ball joint turning torque measurement

MB990993

Power steering oil
pressure gauge
adapter
(pump side)

Oil pressure measurement

MB990994

Power steering oil
pressure gauge
adapter
(hose side)

MB990662

Oil pressure gauge
assembly

MB990803

Steering wheel
puller

Steering wheel disconnection

MB991006

Preload socket

Total pinion torque measurement

MB991621

Rack support
cover wrench

Rack support cover removal

Total pinion torque adjustment

STEERING –

Special Tools

37A-6

Tool

Use

Name

Number

MB991197

Bar (long type)

Gear housing oil seal press fitting

MB991199

Oil seal installer

MB991213

Oil seal protector

Rack assembly installation

MB990925

Bearing and oil
seal installer set

Oil seal and bearing press fitting
(Refer to GROUP 26 – Special Tools.)

MB991203

Oil seal and
bearing installer

Valve housing oil seal and bearing press
fitting

MB991317

Seal ring installer

Pinion seal ring compression

MB990941

Torque tube
bearing installer

Valve housing lower oil seal press fitting

MB991561

Boot band
crimping tool

Bellows band installation

MB990776

Front axle base

Dust cover press fitting

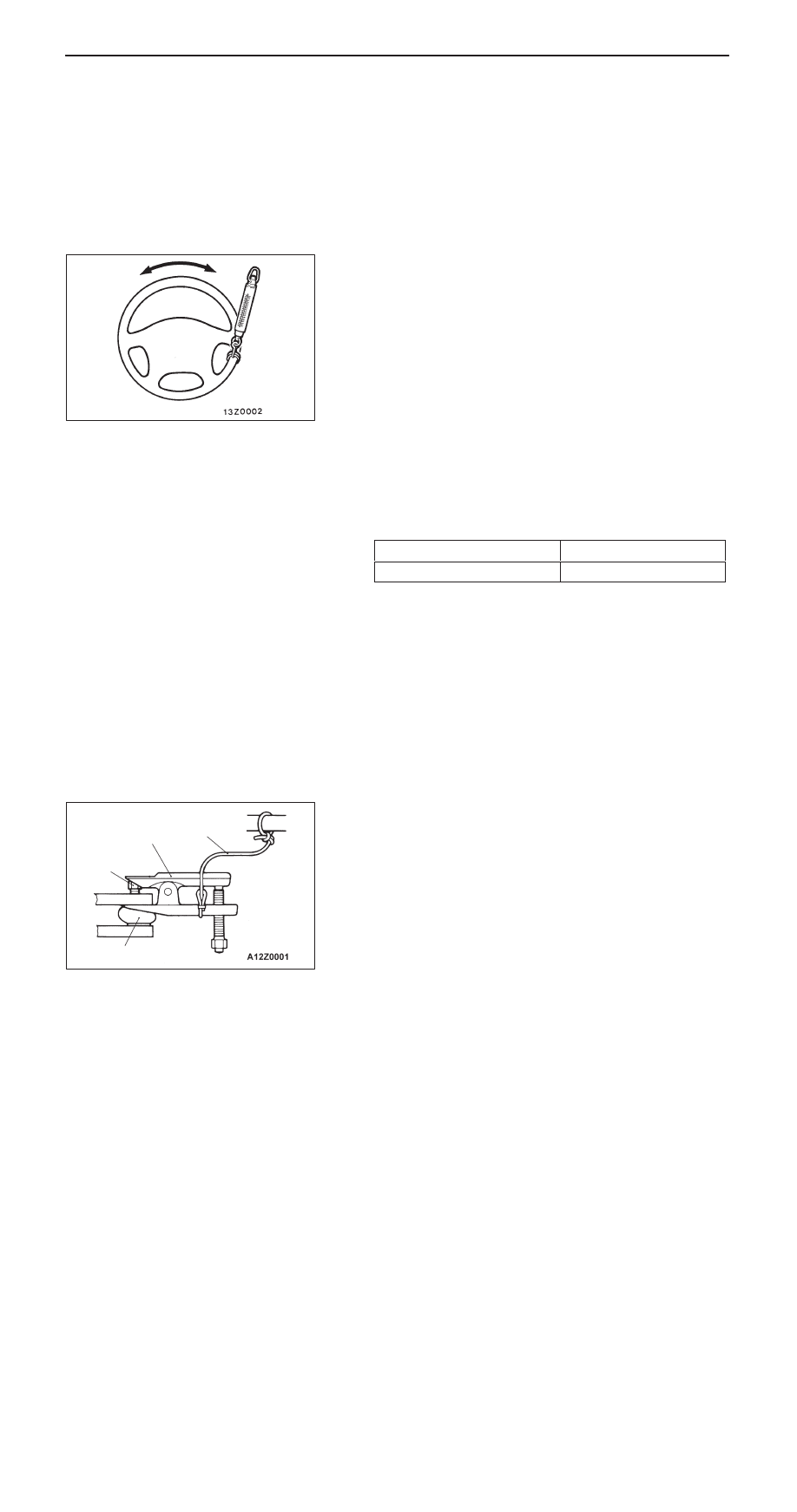

STEERING –

On-vehicle Service

37A-7

ON-VEHICLE SERVICE

STEERING WHEEL FREE PLAY CHECK

With the engine running (hydraulic pressure operating),
put the front wheels in straight-ahead position.

Lightly turn the steering wheel left and right to measure
circumferential play on the steering wheel before the
wheels start to move.

Limit: 30 mm or less

When the play exceeds the limit, check steering shaft
connections and steering linkage for looseness. Repair
or replace if necessary.

If the play still exceeds the limit, put the steering wheel
in straight-ahead position with the engine stopped. Then,
load 5 N in the circumferential direction on the steering
wheel and measure circumferential play.

Standard value: 0 – 10 mm

In case the play exceeds the standard value again, remove
the steering gear box and linkage. Then, check and adjust
total pinion torque. (Refer to P.37A-18.)

STEERING ANGLE CHECK

Put the front wheels on a turning radius gauge and measure
steering angle.

Standard value:

Inner wheels

40’

Outer wheels <For reference>

10’

If the standard values are not met, toe-in is probably
incorrect. Adjust the toe-in, seeing GROUP 33A –
On-vehicle Service, and recheck the steering angle.

TIE ROD END BALL JOINT STARTING TORQUE
CHECK

Use the special tool to disconnect the tie rod and knuckle.

Caution
(1) In order not to damage the ball joint thread, the

tie rod end mounting nut must be only loosened
but not removed from the ball joint. Also, be sure
to use the special tool.

(2) Tie the special tool with a cord so as not to fall

off.

Cord

Ball joint

Nut

MB990635,
MB991113 or
MB991406

STEERING –

On-vehicle Service

37A-8

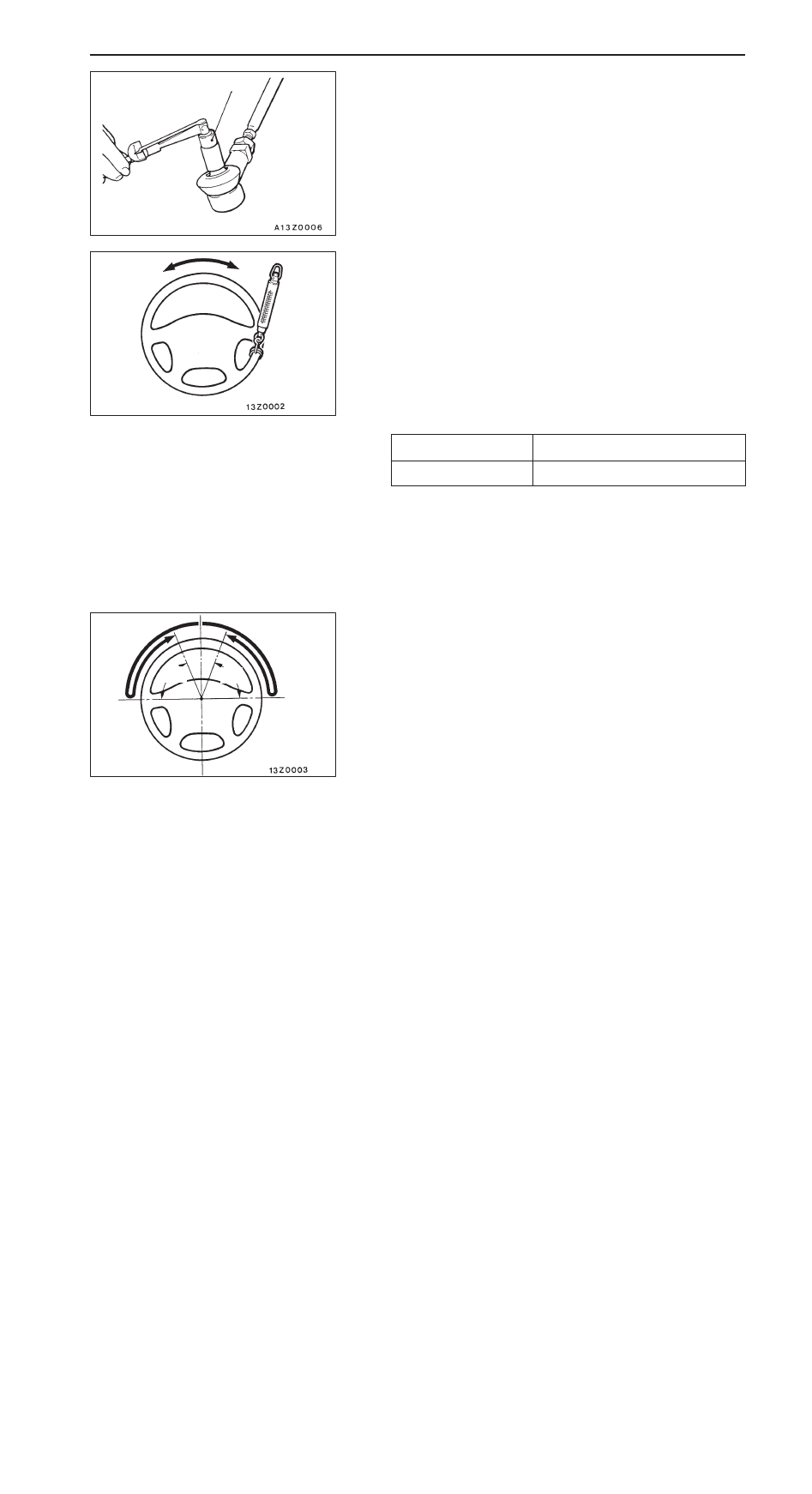

After swinging the ball joint stud several times, install the
nut on the stud. Then, measure ball joint turning torque
with the special tool.

Standard value: 0.5 – 2.5 Nm

When the torque is over the standard value, replace the
tie rod end.

When the torque is below the standard value, check the
ball joint for looseness or ratcheting. If none of these found,
the ball joint is still serviceable.

STATIONARY STEERING EFFORT CHECK

With the vehicle stopped on a flat, paved surface, put
the steering wheel in straight–ahead position.

Start the engine and keep it at 1,000

100 r/min.

Attach a spring balance to the steering wheel outer bar.
Measure steering effort required to turn the steering wheel
from the straight-ahead position to the left and right (within
a range of 1.5 turns). Also see that no significant fluctuation
is present in the steering effort.

Standard value:

Steering effort

27 N or less <Limit: 30 N or less>

Fluctuation

5.9 N or less

If the standard values are not met, check and adjust the
related parts.

STEERING WHEEL RETURNABILITY CHECK

Check returnability as follows on road test:
1.

Make both gradual and sudden turns and see by your
own feeling that the steering effort and returnability have
no difference between the left and right turns.

At a speed of about 35 km/h, turn the steering wheel
90

, keep it there for 1 to 2 seconds and release. When

the steering wheel returns more than 70

, it has a good

returnability.

NOTE
You may have momentary increase in effort when turning
the steering wheel quickly, which is normal. This happens
due to insufficient job of the oil pump when the engine
is running at low speed such as idling.

OIL PUMP BELT TENSION CHECK

Refer to GROUP 11A – On-vehicle Service.

MB990326
