NOTES

PARKING BRAKES

  –

General/Service Specifications/On-vehicle Service

36-1

G R O U P  3 6

PARKING BRAKE

S

GENERAL

OUTLINE OF CHANGE

The following service procedures have been established due to the adoption of rear drum brake. <1800-MPI>

D

Parking brake lever stroke check and adjustment

D

Parking brake cable removal and installation

SERVICE SPECIFICATIONS

Items

1800-MPI

Standard value

Limit

Parking brake lever stroke

5 – 7 notches

–

Rear brake lining thickness mm

4.9

1.0

Rear drum inside diameter mm

228.6

230.6

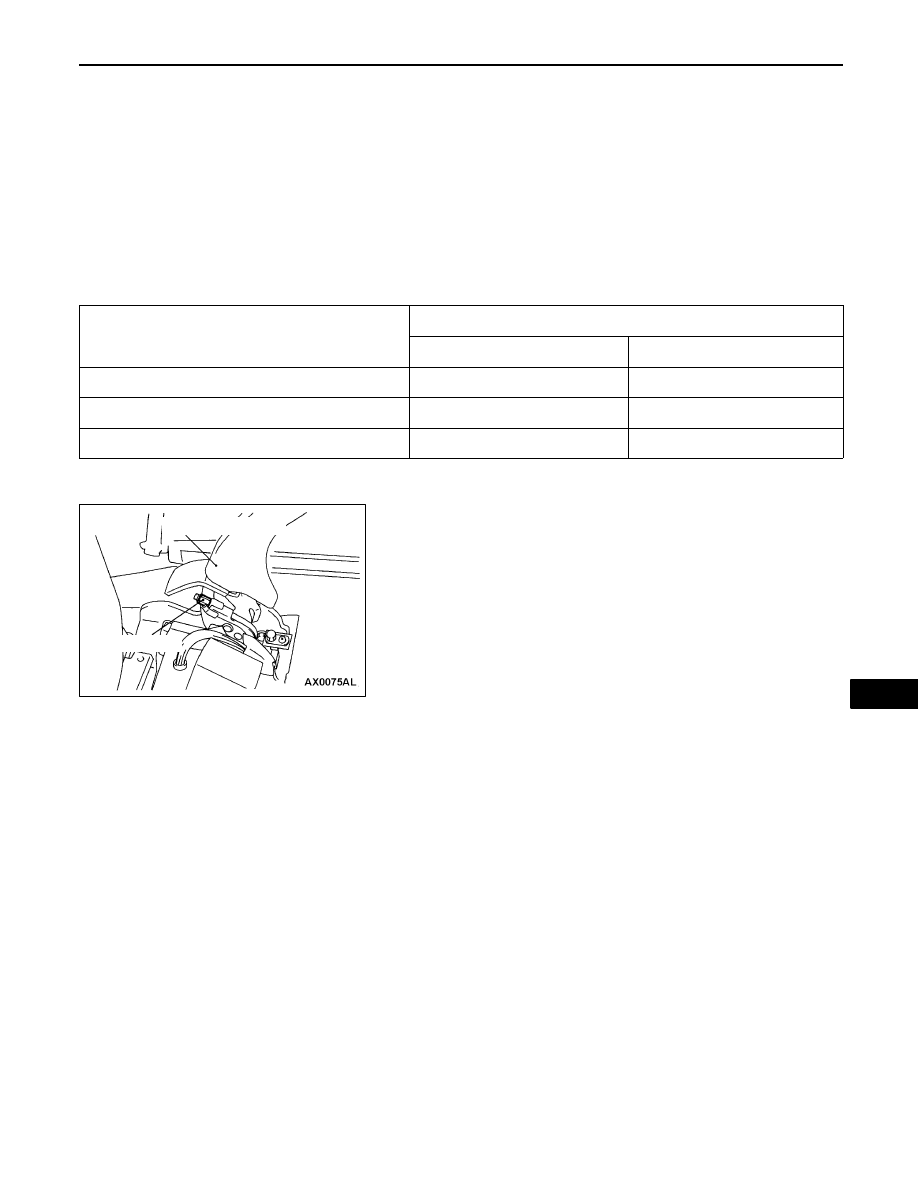

ON-VEHICLE SERVICE

PARKING BRAKE LEVER STROKE CHECK
AND ADJUSTMENT <1800-MPI>

LEVER STROKE CHECK (WITH FORCE OF 196 N
APPLIED)

Standard value: 5 – 7 notches

LEVER STROKE ADJUSTMENT

1.

Loosen the adjusting nut up to the cable end to free the
cable.

2.

Depress the brake pedal hard two or three times.

NOTE
Depressing the brake pedal allows the shoe clearance
to be adjusted correctly.

3.

Adjust the parking brake lever stroke. Then, jack up the
vehicle in its rear. Release the parking brake and rotate
the rear tyres to check that no drag exists.

Adjusting nut

Parking brake lever

PARKING BRAKES

  –

Parking Brake Cable <1800-MPI>

36-2

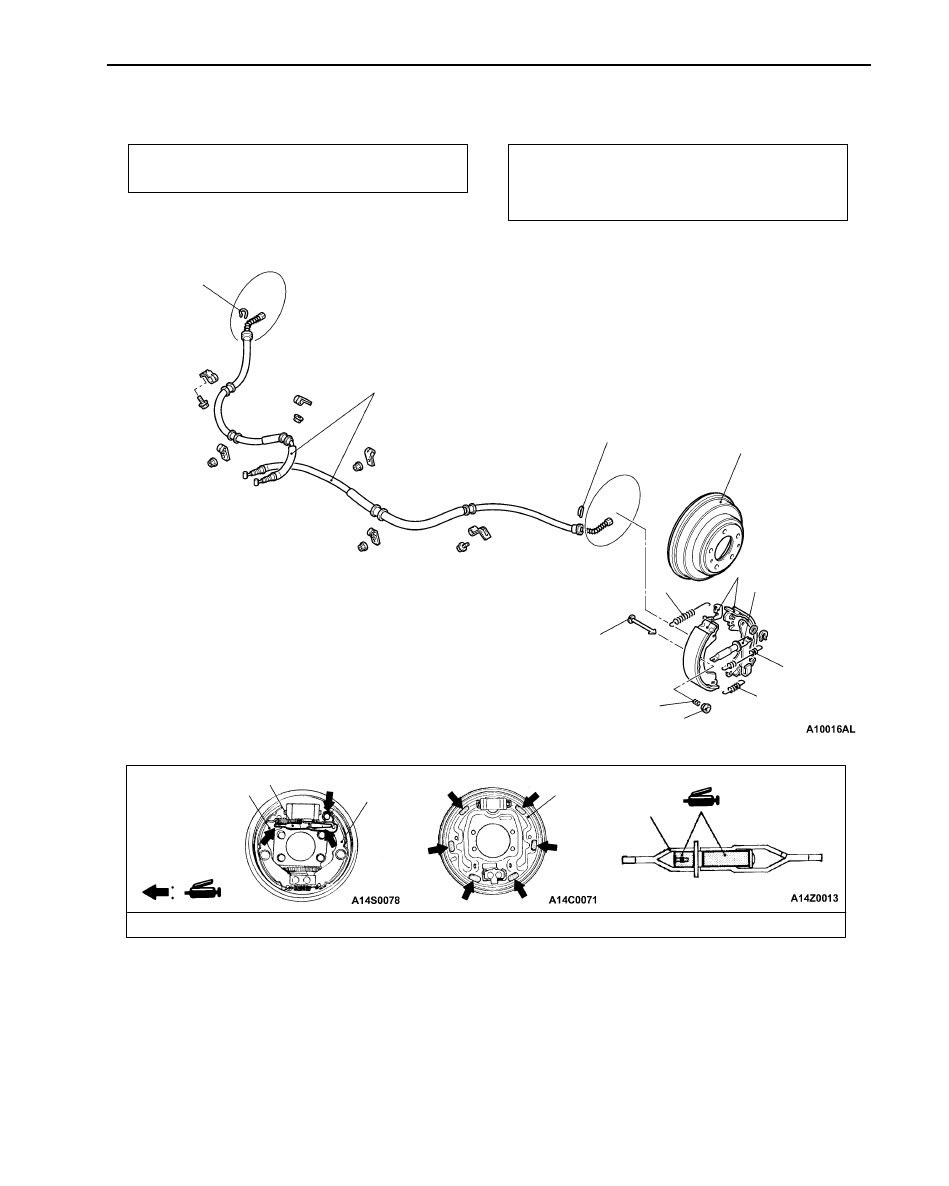

PARKING BRAKE CABLE <1800-MPI>

REMOVAL AND INSTALLATION

Pre-removal Operation
Rear Floor Console Removal

Post-installation Operation

D

Parking Brake Lever Stroke Check
(Refer to P.36-1.)

D

Rear Floor Console Installation

11

10

10

6

7

4

3

12

9

8

1

Brake grease: Multipurpose grease

9

3

5

2

3

9

Removal steps

1. Brake drum
2. Shoe-to-lever spring
3. Auto-adjuster assembly
4. Shoe-to-shoe spring
5. Retainer spring
6. Shoe hold-down cup

7. Shoe hold-down spring
8. Shoe hold-down pin
9. Shoe and lining assembly

10. Clip

11. Parking brake cable

12. Backing plate
