PARKING BRAKES –

Parking Brake Cable

36-6

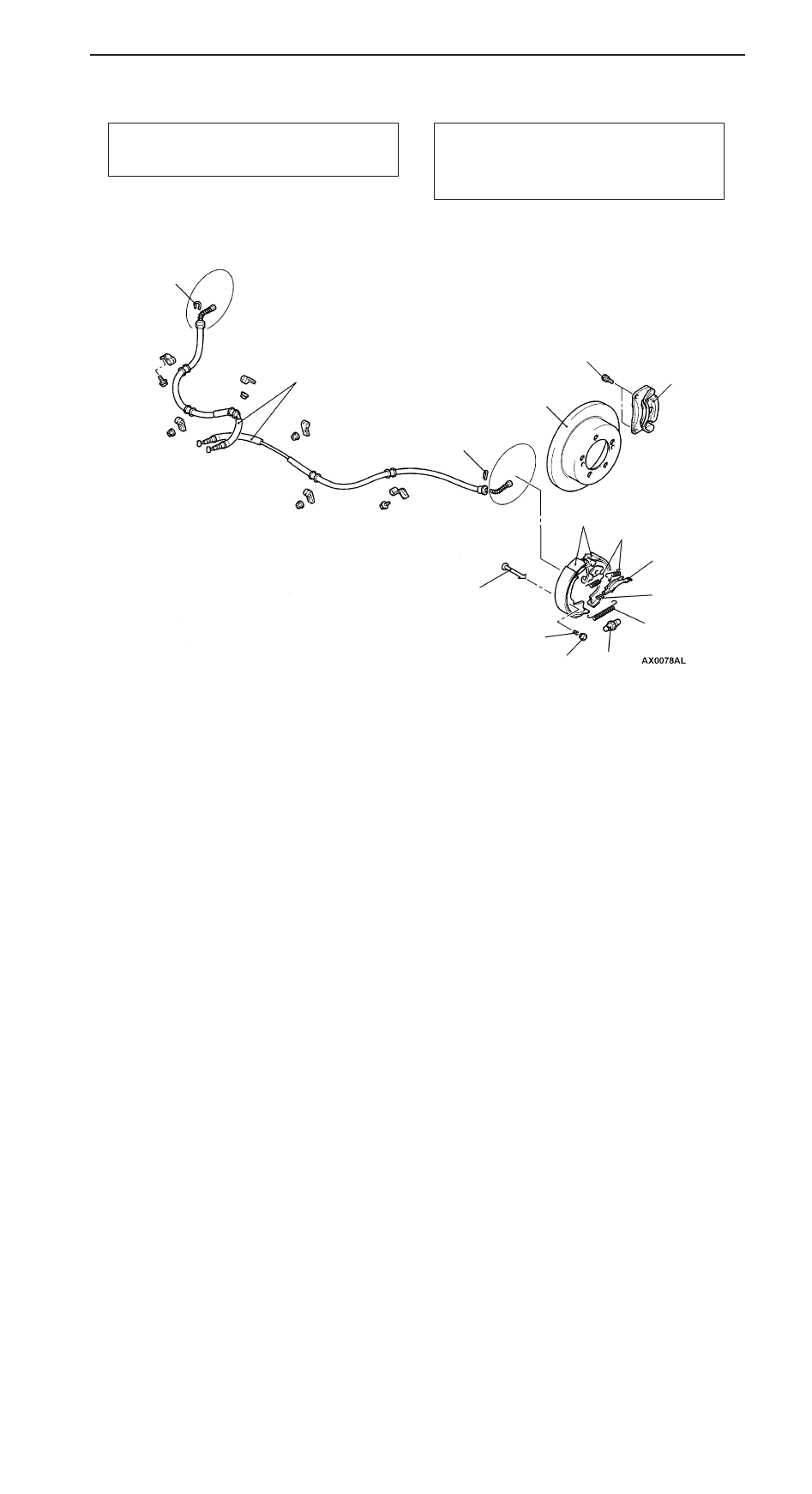

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

Pre-removal Operation
Rear Floor Console Removal
(Refer to GROUP 52A.)

Post-installation Operation

D

Parking Brake Lever Stroke Check and Adjustment
(Refer to P.36-3.)

D

Rear Floor Console Installation
(Refer to GROUP 52A.)

12

13

12

55 – 65 Nm

1

2

3

6

7

4

5

8

9

10

11

Removal steps

A

A

"

1. Rear brake caliper assembly
2. Rear brake disc

"

B

A

3. Shoe-to-anchor spring
4. Adjusting screw spring

"

A

A

5. Adjuster
6. Strut
7. Strut return spring

A

B

"

8. Shoe hold-down cup
9. Shoe hold-down spring

10. Shoe hold-down pin

11. Shoe and lining assembly

12. Clip
13. Parking brake cable

PARKING BRAKES –

Parking Brake Cable

36-7

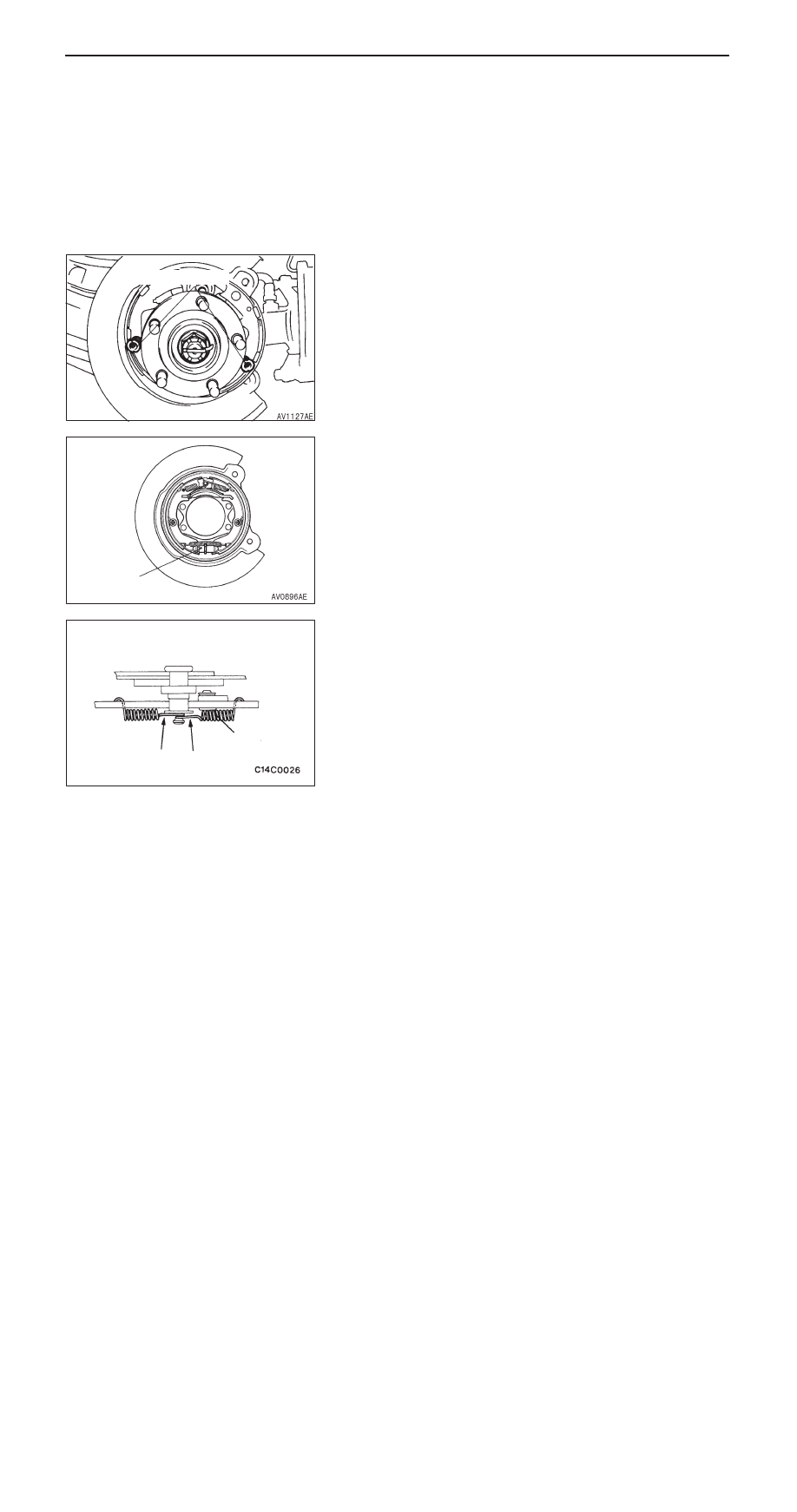

REMOVAL SERVICE POINTS

A

A

"

REAR BRAKE CALIPER ASSEMBLY REMOVAL

Remove the rear brake caliper assembly and support it with
wire or similar.

A

B

"

SHOE HOLD-DOWN CUP REMOVAL

Extend the shoe and lining assembly, and remove the shoe
hold-down cup.

INSTALLATION SERVICE POINTS

"

A

A

ADJUSTER INSTALLATION

Install the adjuster so that the shoe adjusting bolt of left hand
wheel is attached towards the front of the vehicle, and the
shoe adjusting bolt of right hand wheel is towards the rear
of the vehicle.

"

B

A

SHOE-TO-ANCHOR SPRING INSTALLATION

Install the shoe-to-anchor springs in the order shown in the
illustration.

Caution
The load on the respective shoe-to-anchor springs is
different, so the spring in the figure has been painted.

NOTE
The figure shows the left wheel; for the right wheel, the position
is symmetrical.

Shoe hold-down cup

Shoe adjusting
bolt

Rear

(Painted)

1

2

PARKING BRAKES –

Parking Brake Drum

36-8

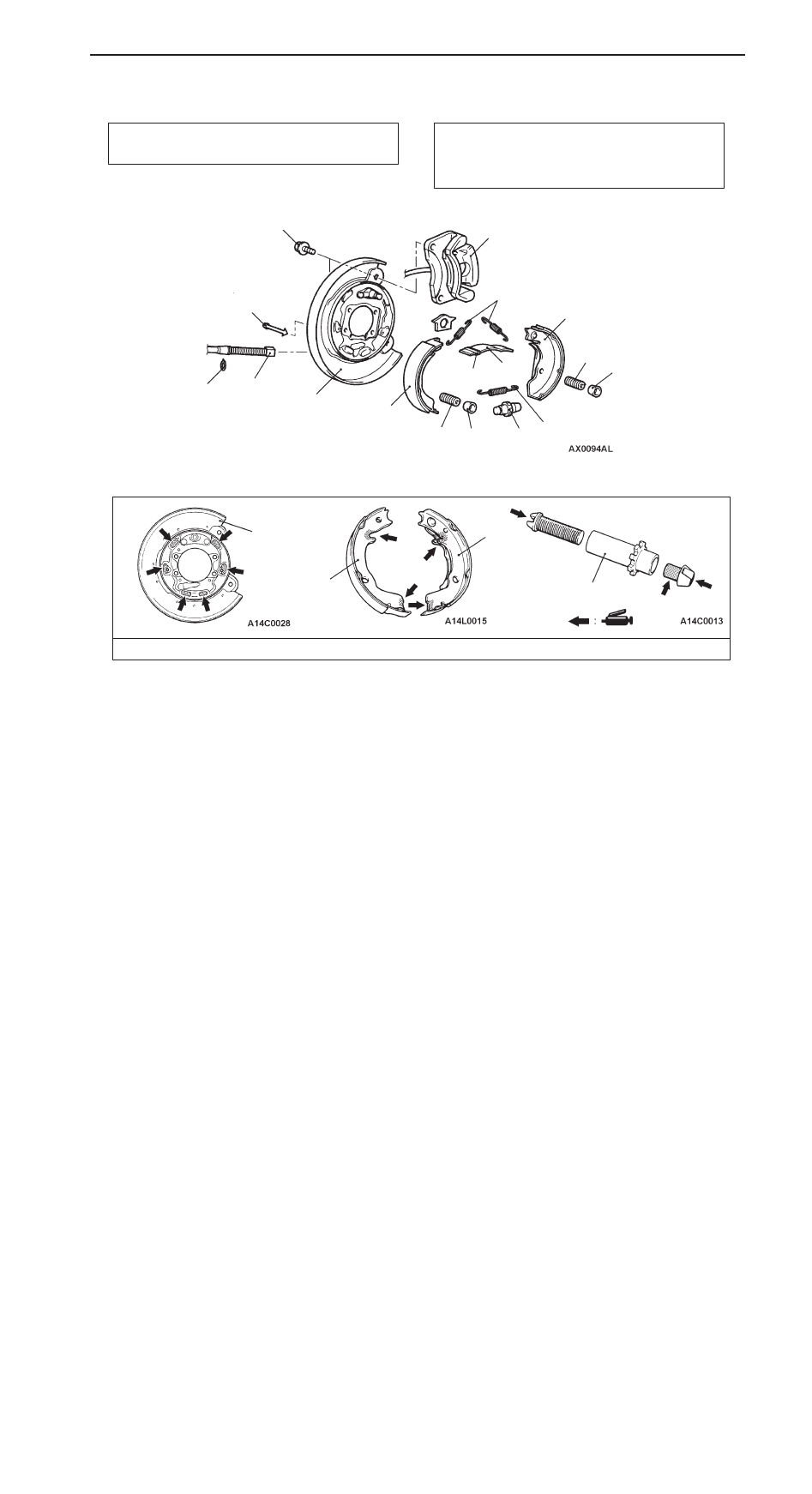

PARKING BRAKE DRUM

REMOVAL AND INSTALLATION

Pre-removal Operation
Drive Shaft Removal (Refer to GROUP 27B.)

Post-installation Operation

D

Drive Shaft Installation (Refer to GROUP 27B.)

D

Parking Brake Lever Stroke Check and Adjustment
(Refer to P.36-3.)

Brake grease: Multipurpose grease

12

10

10

13

8

5

2

4

3

7

6

11

10

4

10

9

55 – 65 Nm

1

7

8

13

Removal steps

1. Rear brake caliper assembly

(Refer to P.36-7)

2. Shoe-to-anchor spring

(Refer to P.36-7)

3. Adjusting screw spring
4. Adjuster (Refer to P.36-7)
5. Strut
6. Strut return spring

7. Shoe hold-down cup

(Refer to P.36-7)

8. Shoe hold-down spring
9. Shoe hold-down pin

10. Shoe and lining assembly

11. Clip

12. Parking brake cable
13. Backing plate

PARKING BRAKES –

Parking Brake Drum

36-9

INSPECTION

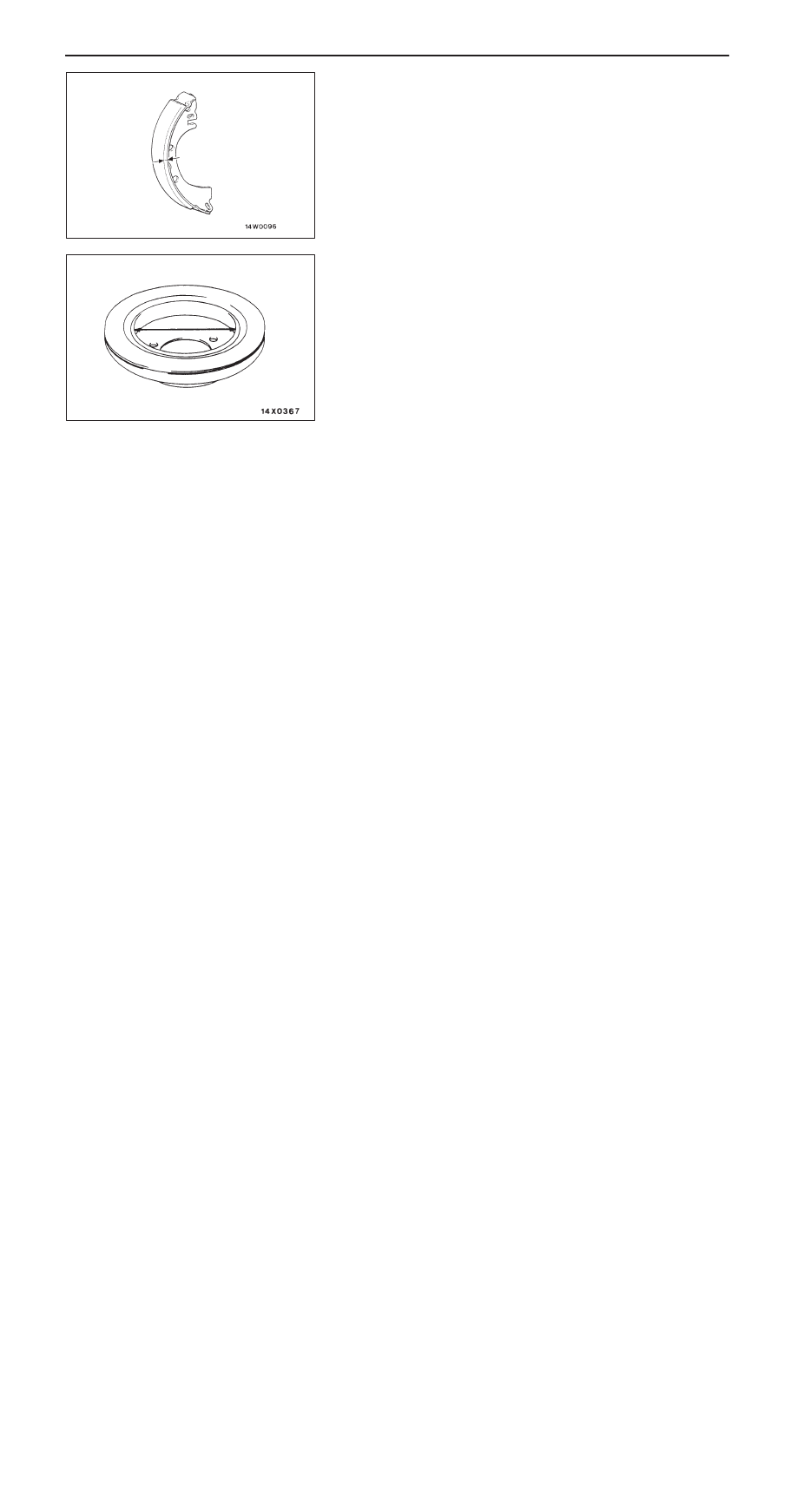

BRAKE LINING AND BRAKE DRUM CHECK

1.

Measure the thickness of the brake lining at several places.

Standard value: 2.8 mm

Limit: 1.0 mm

2.

If the thickness of the brake lining has worn down to the
limit value or more, replace the shoe and lining assemblies
on both sides of the vehicle.

3.

Measure the inside diameter of the brake disc in two places
or more.

Standard value: 168.0 mm

Limit: 169.0 mm

4.

If the inside of the brake disc has worn down to the limit
value or more, or if it is excessively worn on one side,
replace the brake disc.
