37A-1

STEERING

CONTENTS

GENERAL INFORMATION

2

. . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

4

. . . . . . . . . . . . . . . . .

LUBRICANTS

4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEALANT AND ADHESIVE

4

. . . . . . . . . . . . . . . . .

SPECIAL TOOLS

5

. . . . . . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

7

. . . . . . . . . . . . . . . . . . . . .

Steering Wheel Free Play Check

7

. . . . . . . . . . . . . . .

Steering Angle Check

7

. . . . . . . . . . . . . . . . . . . . . . . . .

Tie Rod End Ball Joint Starting Torque
Check

7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stationary Steering Effort Check

8

. . . . . . . . . . . . . . .

Steering Wheel Returnability Check

8

. . . . . . . . . . . .

Oil Pump Belt Tension Check

8

. . . . . . . . . . . . . . . . . .

Power Steering Fluid Level Check

9

. . . . . . . . . . . . .

Power Steering Fluid Replacement

9

. . . . . . . . . . . . .

Power Steering System Bleeding

9

. . . . . . . . . . . . . . .

Oil Pressure Test

10

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Steering Oil Pressure Switch Check

11

. . . .

Ball Joint Dust Cover Check

11

. . . . . . . . . . . . . . . . . .

STEERING WHEEL AND SHAFT*

12

. . . . . . . . . .

POWER STEERING GEAR BOX AND
LINKAGE

15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

POWER STEERING OIL PUMP

29

. . . . . . . . . . . .

POWER STEERING OIL HOSES

32

. . . . . . . . . . .

WARNINGS REGARDING SERVICING OF SUPPLEMENTAL RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLES

WARNING!

(1) Improper service or maintenance of any component of the SRS, or any SRS-related component, can lead to personal

injury or death to service personnel (from inadvertent firing of the air bag) or to the driver and passenger (from
rendering the SRS inoperative).

(2) Service or maintenance of any SRS component or SRS-related component must be performed only at an authorized

MITSUBISHI dealer.

(3) MITSUBISHI dealer personnel must thoroughly review this manual, and especially its GROUP 52B – Supplemental

Restraint System (SRS) before beginning any service or maintenance of any component of the SRS or any SRS-related
component.

NOTE
The SRS includes the following components: SRS-ECU, SRS warning lamp, air bag module, clock spring and interconnecting
wiring. Other SRS-related components (that may have to be removed/installed in connection with SRS service or maintenance)
are indicated in the table of contents by an asterisk (*).

STEERING –

General Information

37A-2

GENERAL INFORMATION

A 4-spoke type steering wheel has been mounted.
The power steering is an integral rack and pinion
type that combines the steering gear and linkage
into one light-weight and compact assembly.

The steering system uses a vane oil pump with
a fluid flow control system, so that steering effort
varies with engine speed.

Item

Specifications

Steering gear and linkage

Type

Integral type

Gear type

Rack and pinion

Oil pump

Type

Vane type

Oil pump

Type

Vane type

Displacement m

ȏ

/rev

7 2

Displacement m

ȏ

/rev.

7.2

Relief set pressure Mpa

8.3 – 9.0

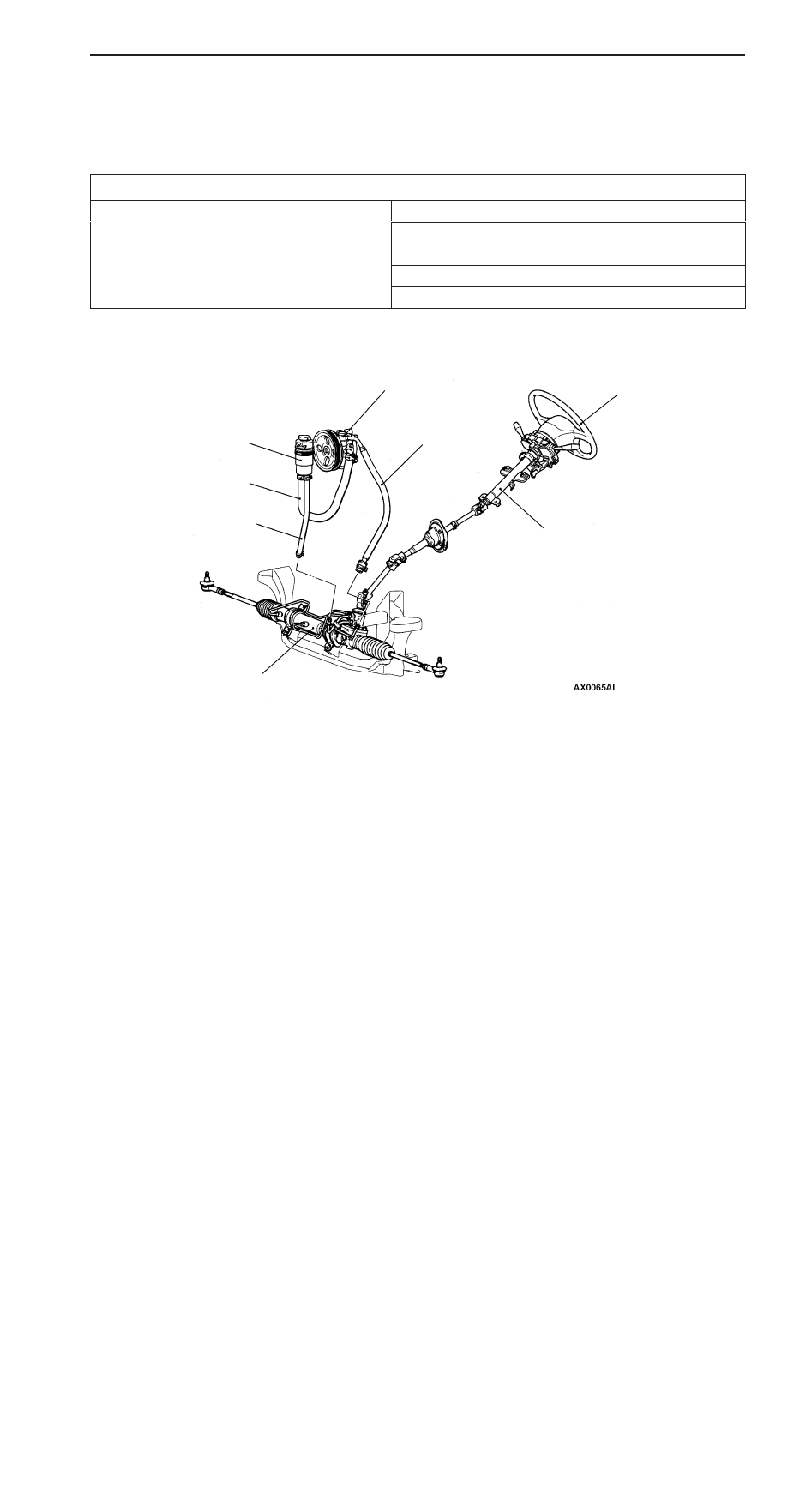

CONSTRUCTION DIAGRAM

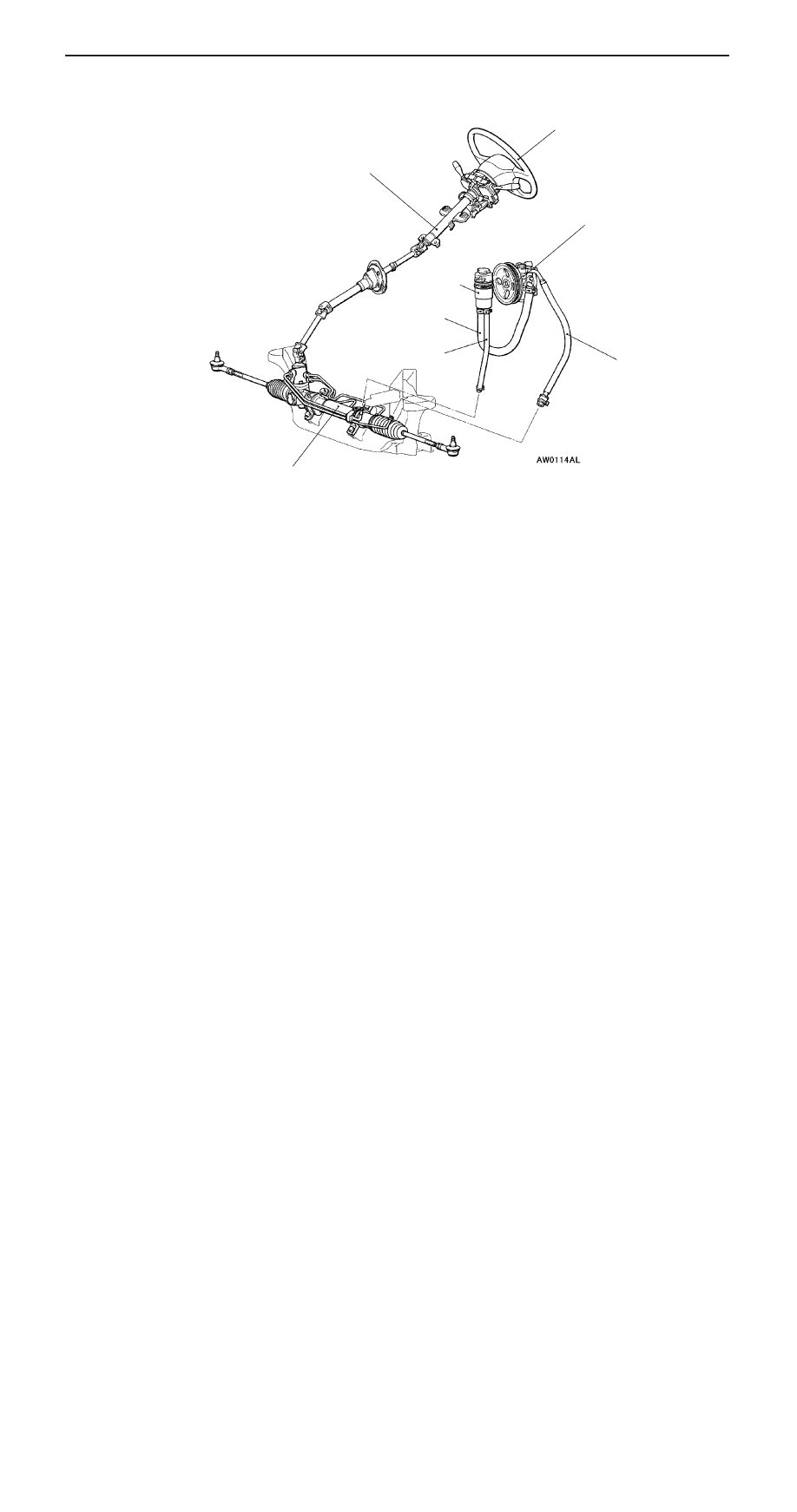

Oil reservoir

Steering gear box and linkage

Steering wheel

Steering column and shaft

Return hose

Suction hose

Pressure hose

<L.H.  drive vehicles>

Oil pump

STEERING –

General Information

37A-3

Oil reservoir

Steering gear box and linkage

Steering wheel

Steering column and shaft

Return hose

Suction hose

Pressure hose

<R.H. drive vehicles>

Oil pump

STEERING –

Service Specifications/Lubricants/Sealant and Adhesive

37A-4

SERVICE SPECIFICATIONS

Item

Standard value

Limit

Steering wheel free play mm

with engine running

–

30 or less

with engine stopped

0 – 10

–

Steering angle

Inner wheel

34

_

40’

±

2

_

–

Steering angle

Inner wheel

34

_

40’

±

 2

_

–

Outer wheel

32

_

10’

–

Outer wheel
<For   reference>

32 10

Ball joint turning torque   Nm

0.5 – 2.5

–

Stationary steering effort N

Steering effort

27 or less

30 or less

Fluctuation allowance

5.9 or less

–

Oil pump relief pressure MPa

8 8

–

Oil pump relief pressure  MPa

8.8

–

Pressure under no-load condition MPa

0.2 – 0.7

–

Steering gear retention hydraulic pressure MPa

8 8

–

Steering gear retention hydraulic pressure MPa

8.8

–

Oil pressure switch operating pressure MPa

OFF

→

ON

1.5 – 2.0

–

ON

→

OFF

0.7 – 2.0

–

Pinion total rotation torque Nm

Total rotation torque

0.6 – 1.5

–

Torque variation

0.5 or less

–

Tie rod joint swing resistance   N (Tie rod joint swing torque   Nm)

5 – 17 (1.5 – 4.9)

–

Special tool aperture dimension (MB991561) mm

2.9

–

Band crimped width mm

2.4 – 2.8

–

LUBRICANTS

Item

Specified lubricant

Quantity

Power steering

Automatic transmission fluid DEXRON or DEXRON

II

Approx. 0.6

ȏ

Tie rod bellows

Silicone grease

As required

Pinion and valve assembly

Repair kit grease

As required

Rack assembly

Repair kit grease

As required

SEALANT AND ADHESIVE

Item

Specified sealant

Remarks

R

k

t

d l

3M ATD P t N

8661

i

l

t

S

i d i

l

t

Rack support cover end plug

3M ATD Part No. 8661 or equivalent

Semi-drying sealant

Rack su

ort cover end  lug

3M ATD Part No. 8661 or equivalent

Semi-drying sealant

Gear housing mounting rubber

3M ATD Part No. 8155 or equivalent

Quick fix adhesive
