Mitsubishi Pajero Pinin. Manual - part 232





REAR SUSPENSION –

Rear Suspension Assembly

34-5

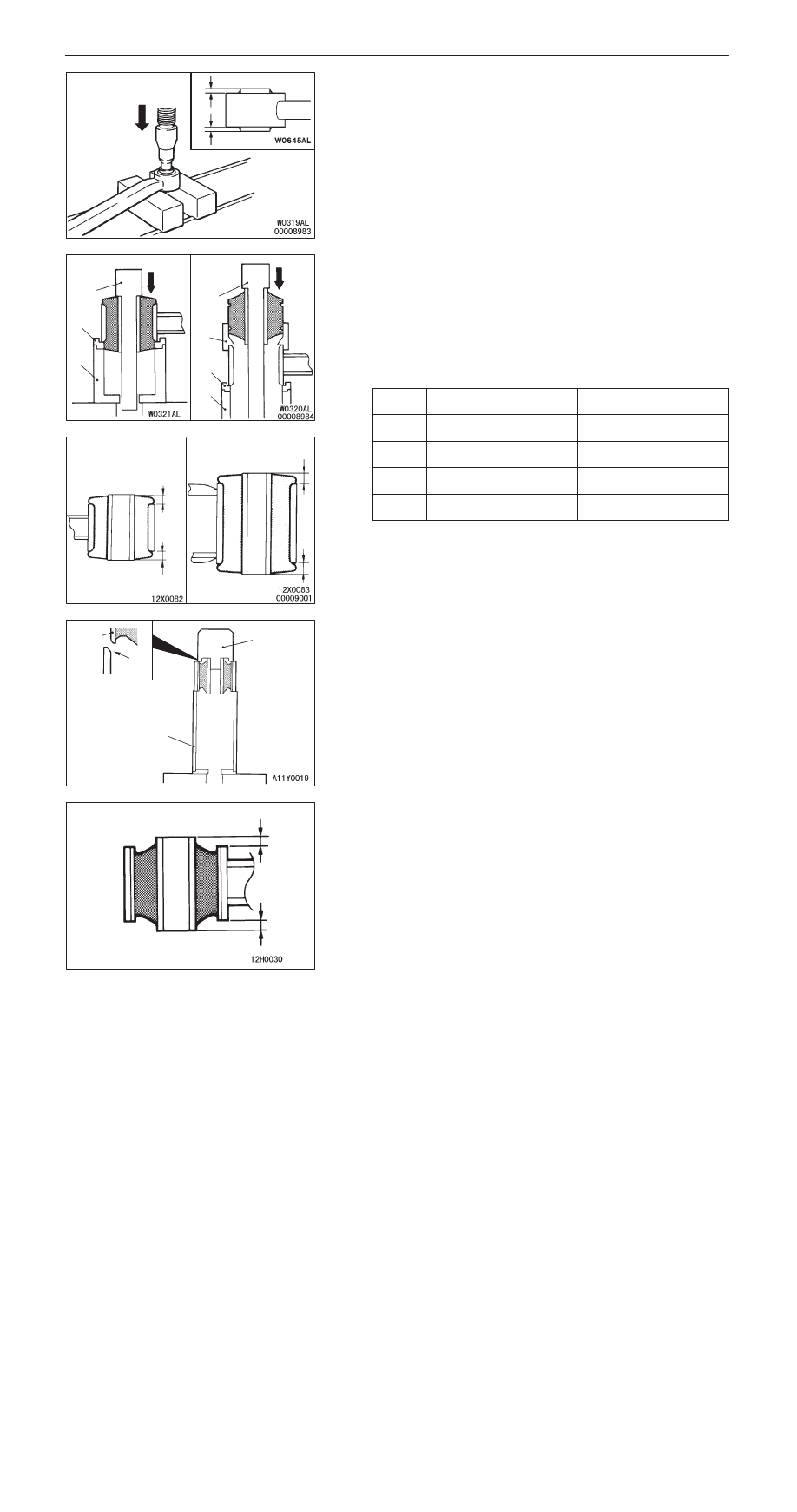

LATERAL ROD BUSHING REPLACEMENT

1.

Use a press to press in and out the bushing.

2.

Apply ample amount of soapy water to the outer surface
of the bushing and inner surface of the lateral rod pipe,
and then press-fit the bushing so that both ends protrude
evenly.

UPPER ARM BUSHING/LOWER ARM BUSHING
REPLACEMENT

UPPER ARM REAR BUSHING, LOWER ARM REAR
BUSHING

1.

Use the special tools and a press to press in and out
the bushing.

SPECIAL TOOL

Item

Upper arm rear bushing

Lower arm rear bushing

A

MB990947

MB990947

B

MB990832

MB990831

C

MB990847

MB990847

D

MB991154

MB991155

2.

Apply ample amount of soapy water to the outer surface
of bushing and inner surface of arm pipe, and then press-fit
the bushing so that both ends protrude evenly.

UPPER ARM FRONT BUSHING, LOWER ARM FRONT
BUSHING

1.

Use a press and the special tools to press in and out
the bushing.

NOTE
Press in the bushing from the chamfered side of the arm
pipe.

2.

Install the bushing so that both ends protrude evenly.

A

Driving out

Press-
fitting

B

C

A

D

B

C

Upper arm

Lower arm

MB990958

MB990983

Bushing

Cham-

fered

portion

NOTES

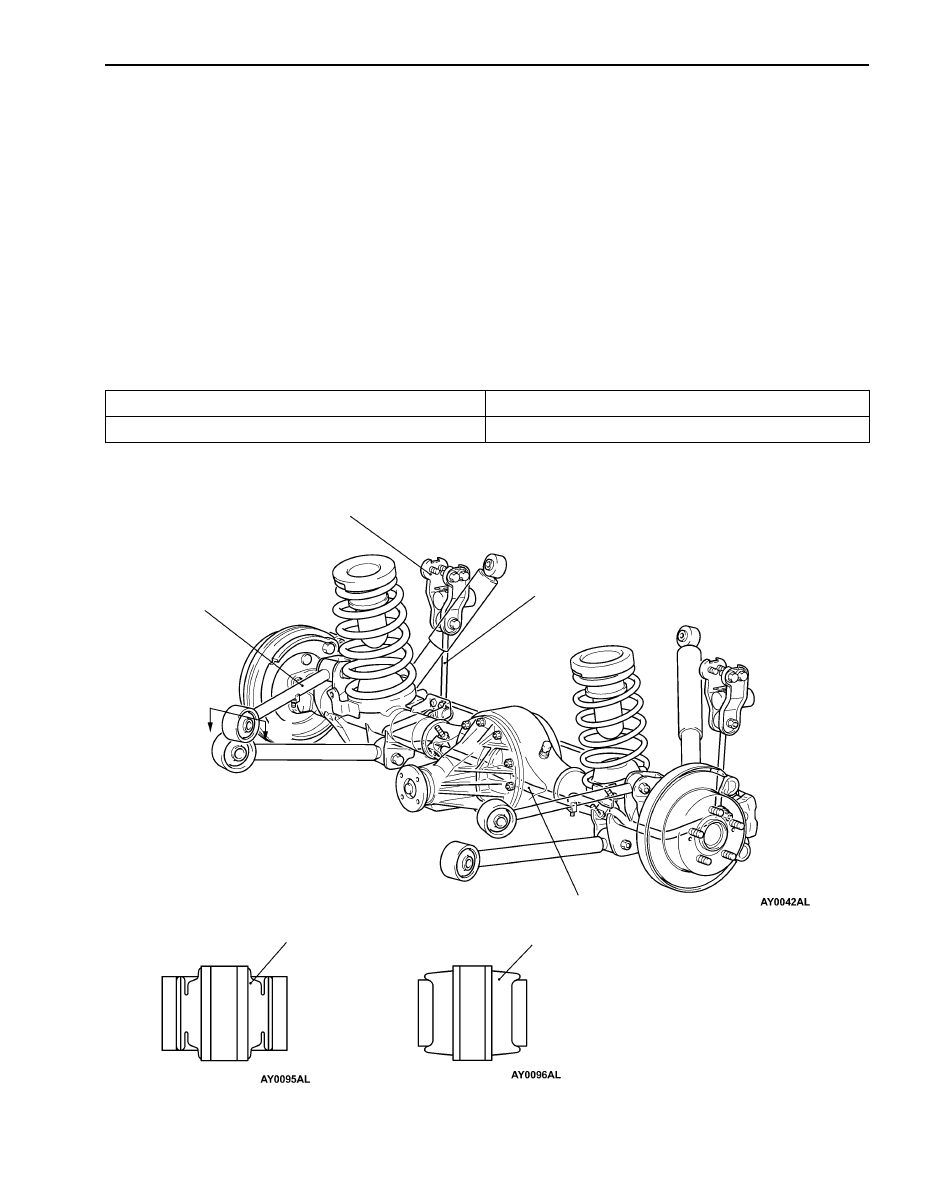

REAR SUSPENSION –

General/General Information

34-1

GROUP 34

REAR SUSPENSION

GENERAL

OUTLINE OF CHANGE



The coil spring specification has been added. <5-door models>



The service procedures have been added due to the introduction of the rear stabilizer. <5-door models>



The bushing of the upper control arm has been reshaped.

GENERAL INFORMATION

COIL SPRING<5-door models>

Items

Specification

Wire diameter



 average diameter



 free length mm

11



 131



 305

CONSTRUCTION DIAGRAM

Upper control arm

Stabilizer link bracket

A

A

Section A–A

New

Old

Stabilizer link

Stabilizer bar

Bushing

Bushing

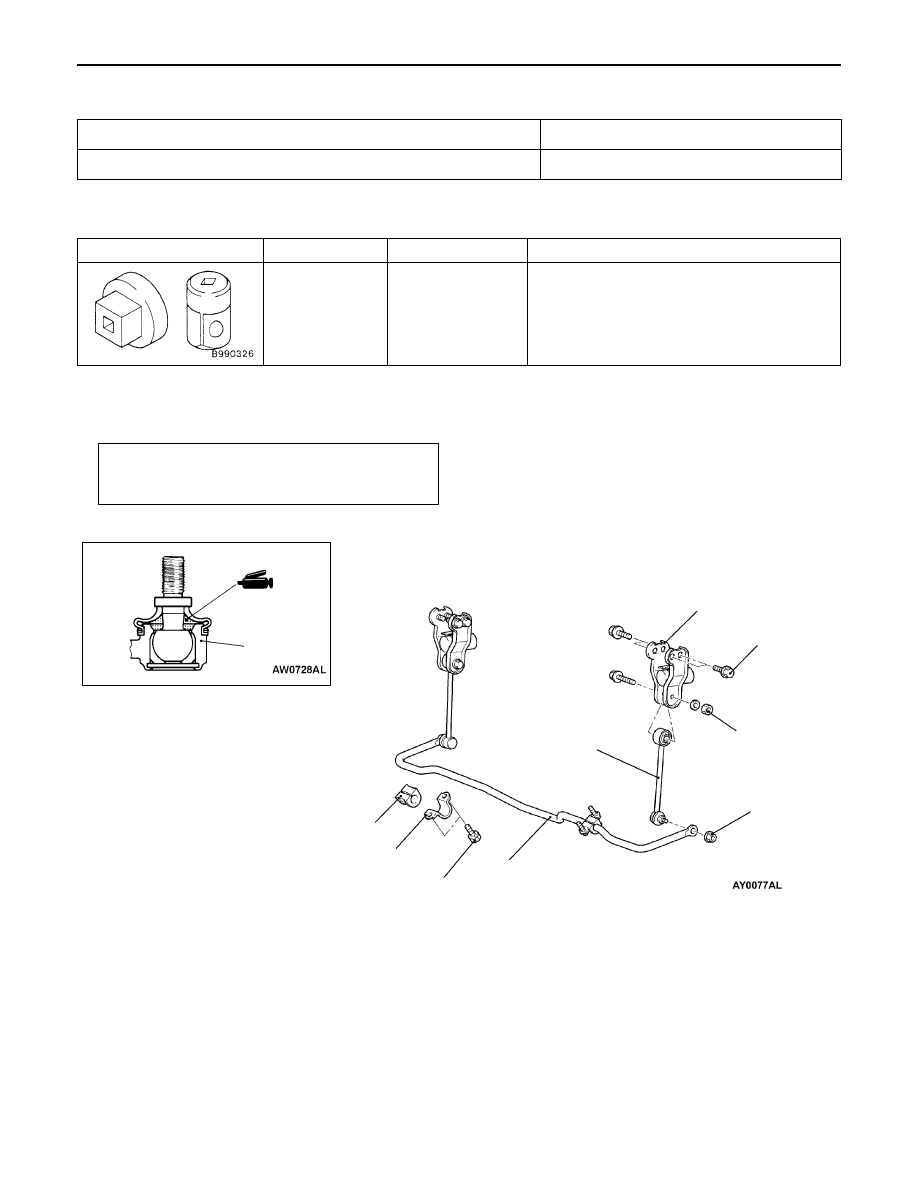

REAR SUSPENSION –

Service Specification/Special Tool/Stabilizer Bar

34-2

SERVICE SPECIFICATION

Items

Standard value

Stabilizer link ball joint turning torque Nm

1.7 – 3.1

SPECIAL TOOL

Tool

Number

Name

Use

MB990326

Preload socket

Stabilizer link ball joint turning torque measure-
ment

STABILIZER BAR

REMOVAL AND INSTALLATION

Post-installation Operations
Press the dust cover with your finger to check that
there are no cracks or damage in the dust cover.

4

1

2

1

3

5

49 Nm

44 Nm

44 Nm

83 Nm

Removal steps

1. Stabilizer link assembly
2. Stabilizer link bracket



A



3. Stabilizer bracket



A



4. Bushing



A



5. Stabilizer bar
