SERVICE BULLETIN

PUBLICATION GROUP, AFTER SALES SERVICE DEP.

MITSUBISHI MOTOR SALES EUROPE BV

SERVICE BULLETIN

No.: ESB-99E33-503

Date

:

 2000-04-15

<Model>

<M/Y>

Subject:

CORRECTION TO FRONT SUSPENSION
CAMBER VALUE

(EC) PAJERO
PININ (H6,H7)

99-10

Group:

FRONT SUSPENSION

CORRECTION

O. Kai - E.V.P. & G.M.

After Sales Service Dept.

1. Description:

This Service Bulletin informs you that the camber value of the front suspension has been
corrected.

2. Applicable Manuals:

Manual

Pub. No.

Language

Page(s)

’99 PAJERO PININ

CKRE00E1

(English) 33A-3, 5

Workshop Manual

CKRS00E1

(Spanish)

CKRF00E1

(French)

CKRG00E1

(German)

CKRD00E1

(Dutch)

CKRI00E1

(Italian)

3. Details:

2

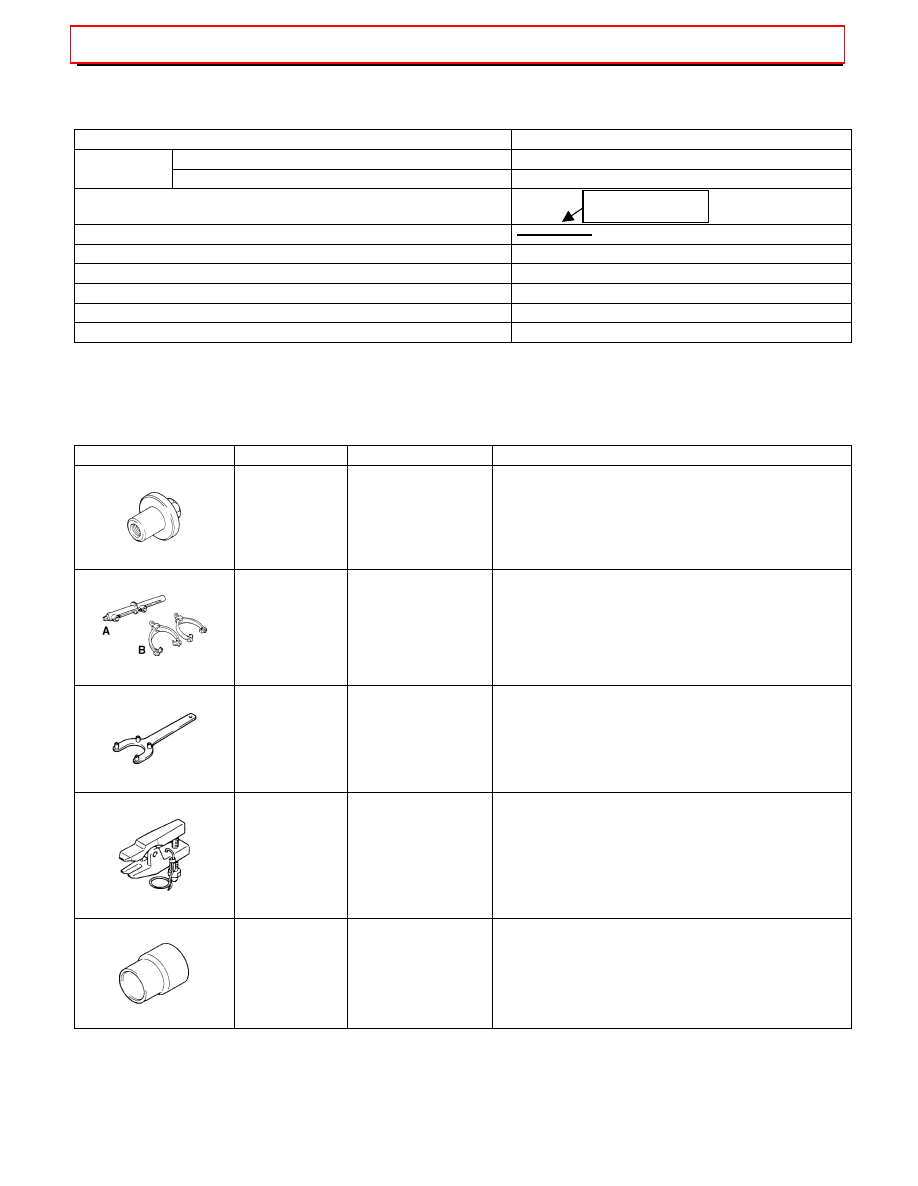

SERVICE SPECIFICATIONS

Items

Standard value

At the centre of tyre tread mm

3 ± 2

Toe-in

Toe-angle (per wheel)

0°07’ ± 05’

Toe-out angle on turns
(inner wheel when outer wheel at 20°)

21°04’

Camber

0°30’ ± 30’*

Caster

3°00’ ± 30’*

Side slip mm (per 1 m)

0 ± 3

Kingpin inclination

11°04’

Lower arm ball joint rotation starting torque Nm

1.0 – 5.9

Stabilizer link ball joint turning torque Nm

1.7 – 3.1

NOTE
*: difference between right and left wheels: less than 30’

SPECIAL TOOLS

Tools

Number

Name

Use

B991004

MB991004

Wheel alignment
gauge attachment

Wheel alignment measurement
<Vehicles with aluminium wheels>

00003796

A: MB991237

B: MB991238

A: Spring

compressor
body

B: Arm set

Coil spring compression

B991176

MB991176

Spring seat holder

Disassembly and assembly of the strut assembly

B991113

MB991406 or
MB991113

Steering linkage
puller

Tie rod end disconnection

B990799

MB990799

Ball joint remover &
installer

Lower arm bushing press-in and press-out

FRONT SUSPENSION – Service Specifications/Special Tools

33A-3

-0°30’ ± 30’*

<Correct>

<Incorrect>

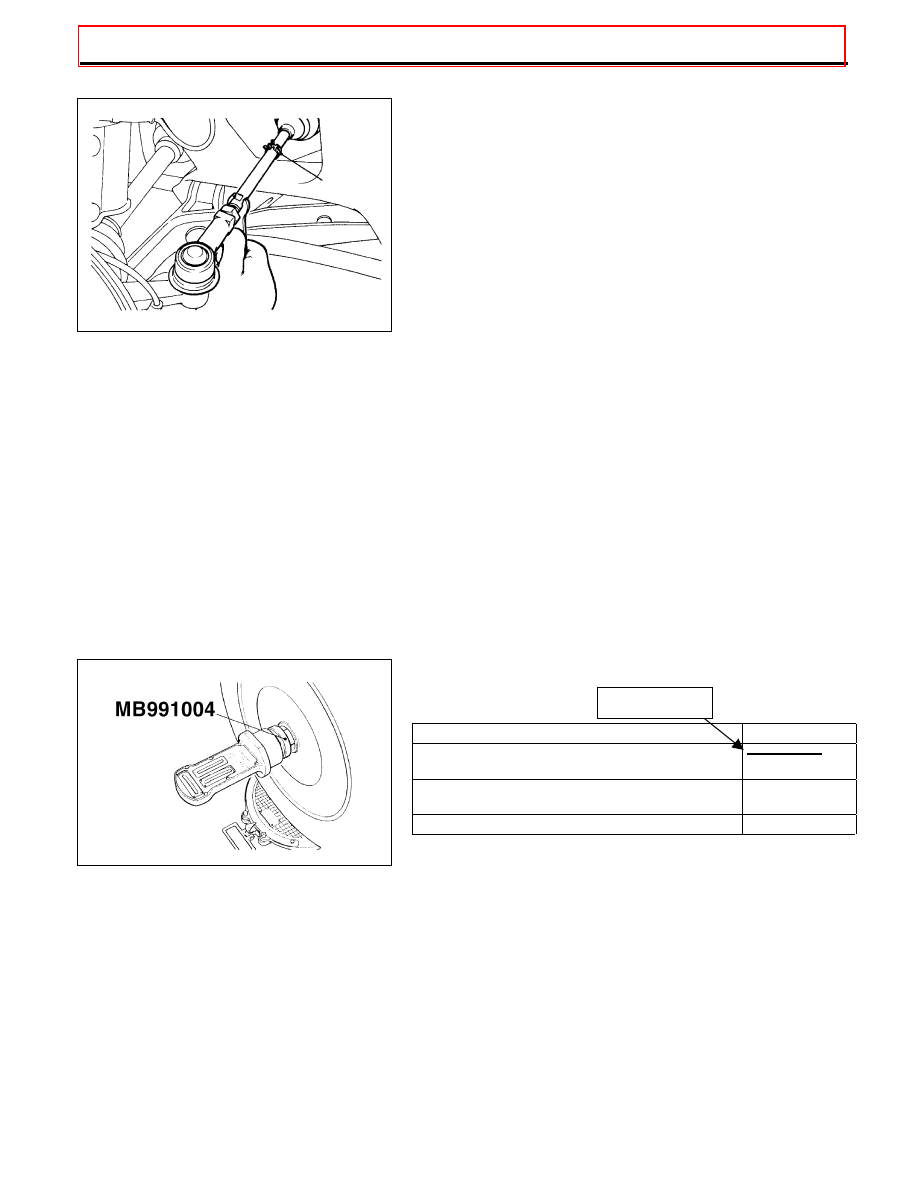

3

A12C0001

TOE-IN

Standard value:

At the centre of tyre tread 3 ± 2 mm
Toe angle (per wheel) 0°07’ ± 05’

1.

  If the toe-in is not within the standard value, adjust the toe-in

by undoing the clip and turning the left and right tie rod
turnbuckles by the same amount (in opposite directions).

NOTE
The toe will move out as the left turnbuckle is turned toward
the front of the vehicle and the right turnbuckle is turned toward
the rear of the vehicle.

2.

  Use a turning radius gauge to check that the steering angle is

at the standard value.
(Refer to GROUP 37A – On-vehicle Service.)

TOE-OUT ANGLE ON TURNS
To check the steering linkage, especially after the vehicle has been
involved in an accident or if an accident is presumed, it is advisable
to check the toe-out angle on turns in addition to the wheel
alignment.
Conduct this test on the left turn as well as on the right turn.

Standard value (Inner wheel when outer wheel at 20°): 21°04’

CAMBER, CASTER AND KINGPIN INCLINATION

Standard value:

Item

Specification

Camber (difference between right and left wheel:
less than 30’)

0°30’ ± 30’*

<Incorrect>

Caster (difference between right and left wheel:
less than 30’)

3°00’ ± 30’

Kingpin inclination

11°04’

A12S0057

NOTE
1.

  Camber and caster are preset at the factory and cannot be

adjusted.

2.

  If camber is not within the standard value, check and replace

bent or damaged parts.

3.

  For vehicles with aluminium type wheels, attach the

camber/caster/kingpin gauge to the drive shaft by using the
special tool. Tighten the special tool to the same torque
226 Nm as the drive shaft nut.

FRONT SUSPENSION – On-vehicle Service

33A-5

Clip

-0°30’ ± 30’

<Correct>

REAR

SUSPENSION
