34-1

REAR

SUSPENSION

CONTENTS

GENERAL INFORMATION

2

. . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

REAR SUSPENSION ASSEMBLY

4

. . . . . . . . . . .

REAR SUSPENSION –

General Information

34-2

GENERAL INFORMATION

The rear suspension is a 5-link coil spring type axle
suspension, which assures comfortable ride and
outstanding steering stability.

COIL SPRING

Items

Specification

Wire diameter

×

 outer diameter

×

 free length mm

11

×

 131

×

 306

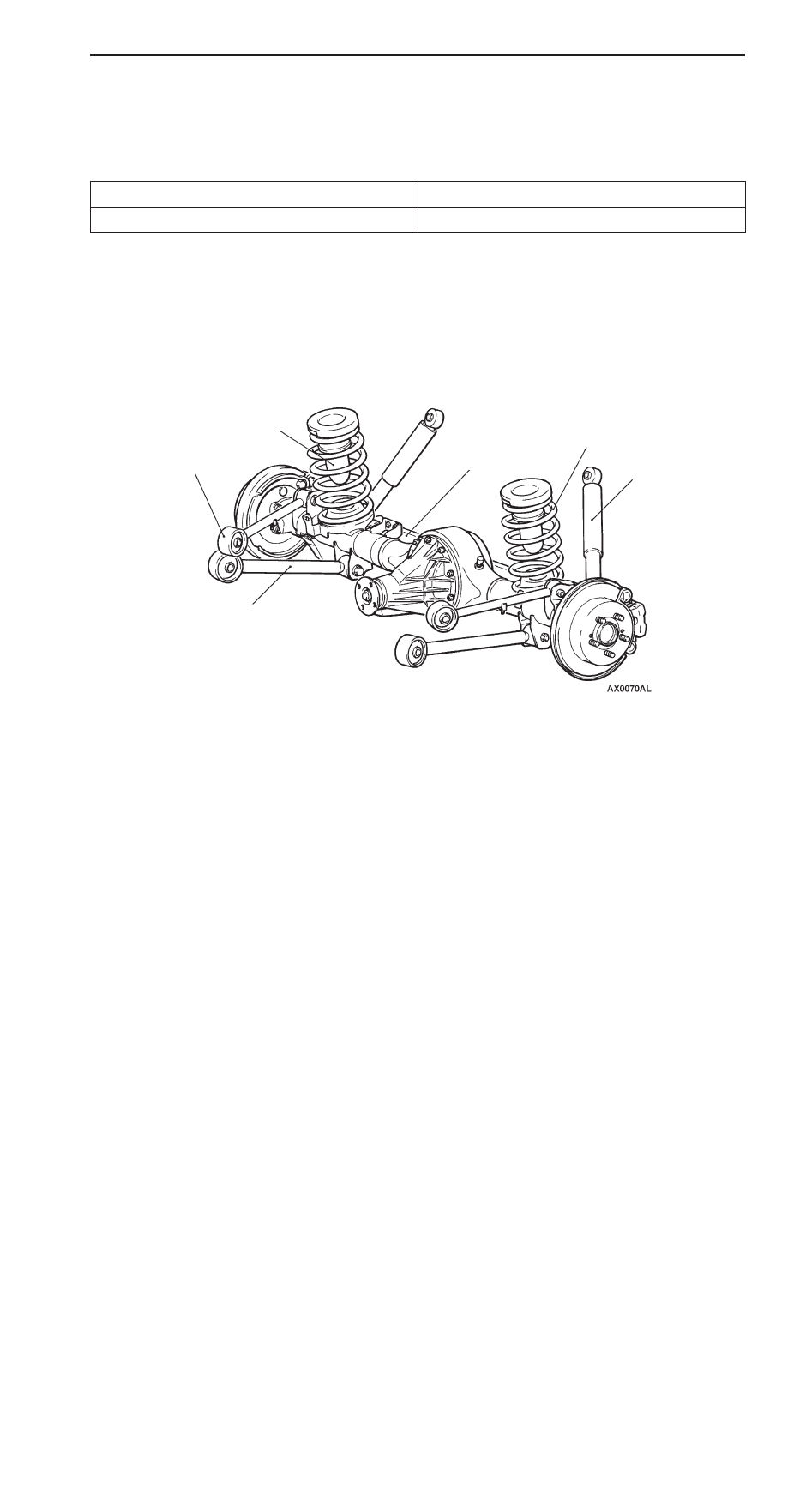

CONSTRUCTION DIAGRAM

Shock absorber

Upper control arm

Bump rubber

Lateral rod

Lower control arm

Coil spring

REAR SUSPENSION –

Special Tools

34-3

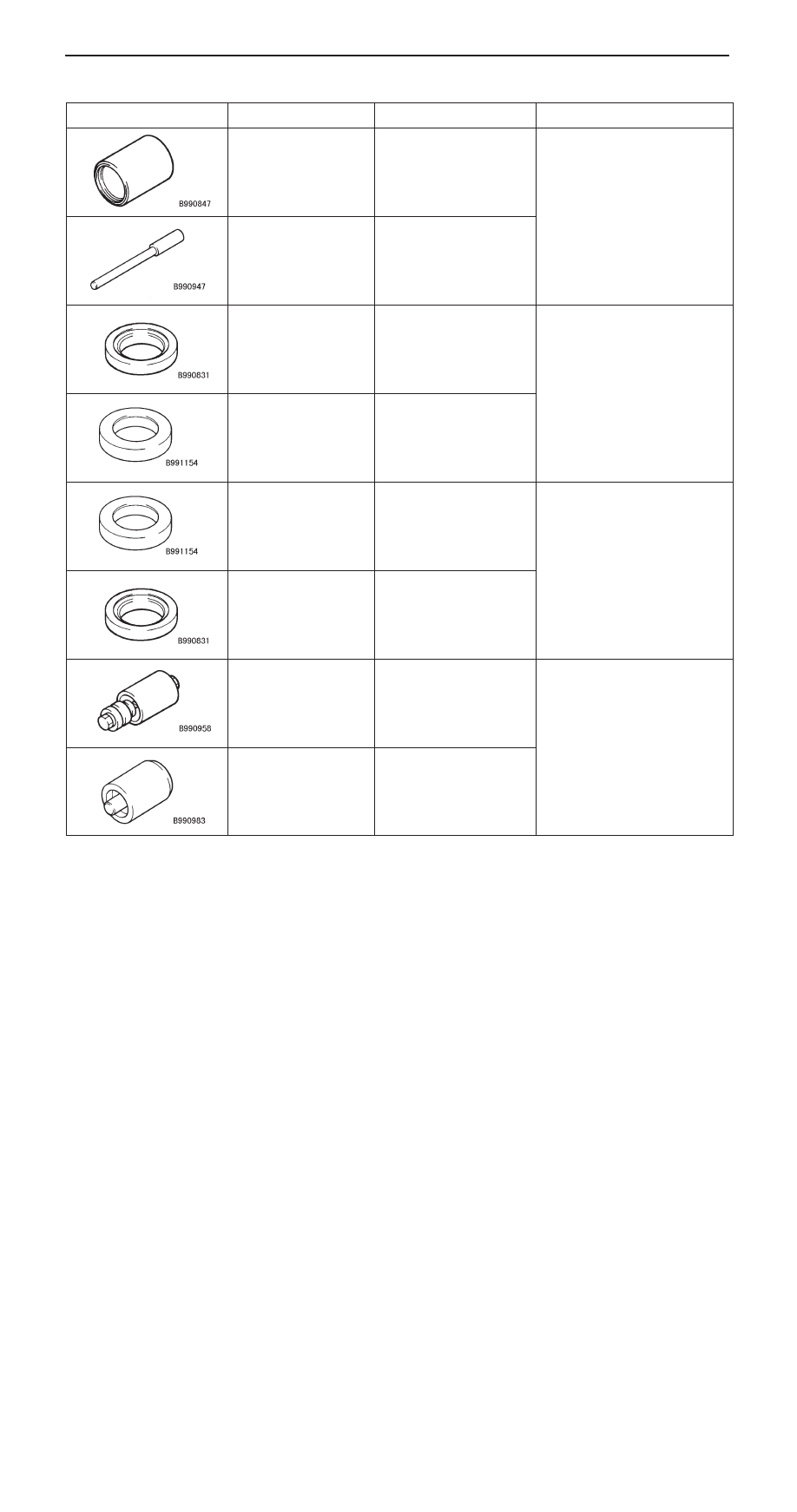

SPECIAL TOOLS

Tool

Number

Name

Use

MB990847

Rear suspension bushing
remover and installer base

D

Upper arm rear bushing
driving out and press-fitting

D

Lower arm rear bushing
driving out and press-fitting

MB990947

Lower arm bushing arbor

MB990832

Lower arm rear bushing
remover and installer ring

Upper arm rear bushing driving
out and press-fitting

MB991154

Upper arm bushing guide

MB991155

Lower arm bushing guide

Lower arm rear bushing driving
out and press-fitting

MB990831

Upper arm bushing
remover and installer ring

MB990958

Bushing remover and in-
staller

D

Upper arm front bushing
driving out and press-fitting

D

Lower arm front bushing
driving out and press-fitting

MB990983

Bushing remover and in-
staller arbor

REAR SUSPENSION –

Rear Suspension Assembly

34-4

REAR SUSPENSION ASSEMBLY

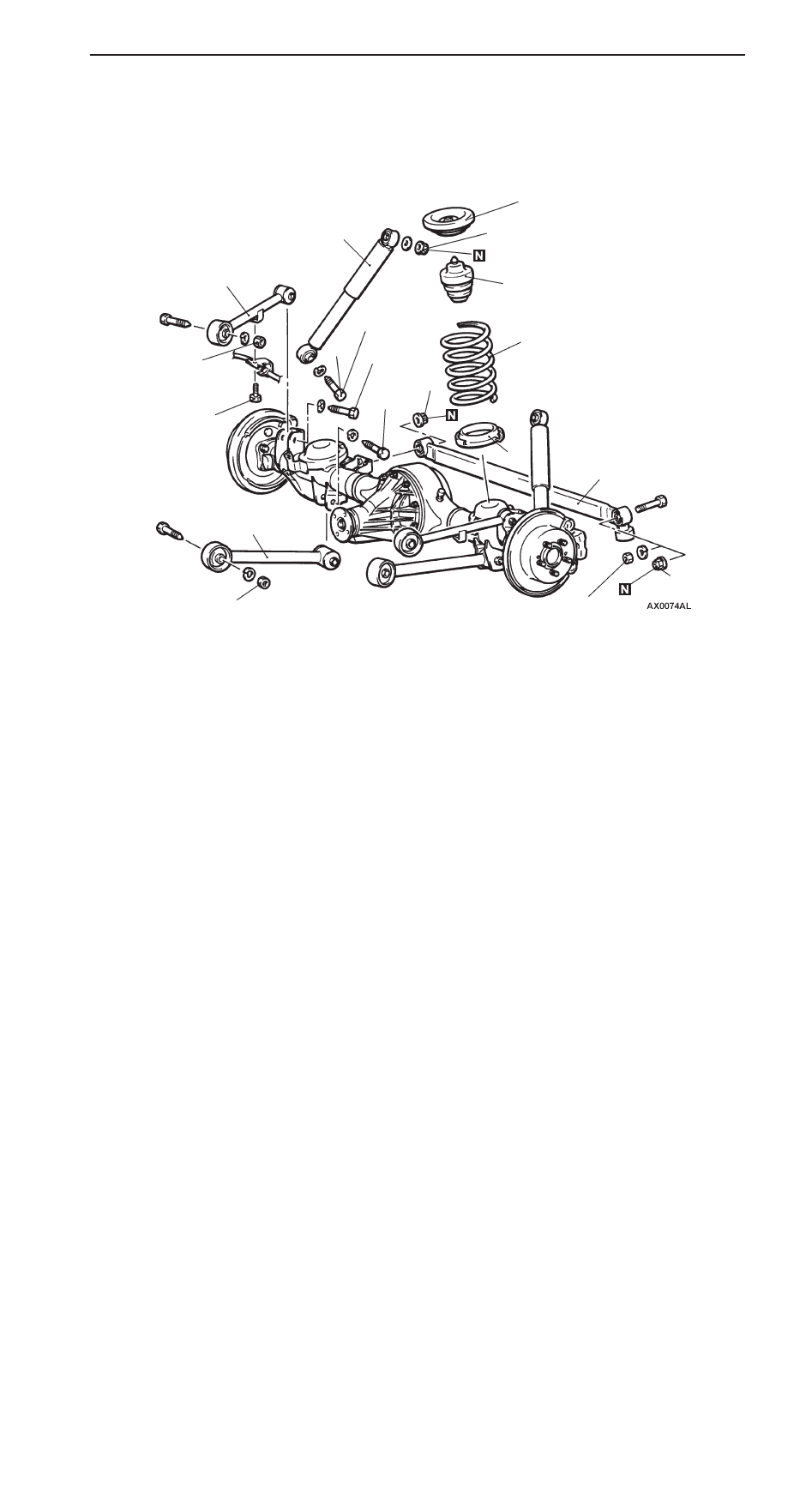

REMOVAL AND INSTALLATION

Caution
*:

To prevent bushings from breakage, the parts indicated by * should be temporarily tightened,
and then fully tightened with the vehicle on the ground in the unladen condition.

64 Nm*

1

7

8

5

6

10

2

4

3

9

81 Nm*

101 Nm*

96 Nm*

64 Nm*

96 Nm*

96 Nm*

96 Nm*

103 – 123 Nm*

1. Shock absorber
2. Lower arm
3. Lateral rod
4. Shock absorber installation bolt

Coil spring removal steps

4. Shock absorber installation bolt

"

A

A

5. Coil spring
6. Silencer sheet

7. Bump stopper
8. Lower spring pad

Upper arm removal steps

5. Coil spring
9. Rear wheel speed sensor installa-

tion bolt <Vehicles with ABS>

10. Upper arm

INSTALLATION SERVICE POINT

"

A

A

COIL SPRING INSTALLATION

Install the coil spring so that its end with identification colour
faces upward.
