REAR SUSPENSION –

Stabilizer Bar

34-3

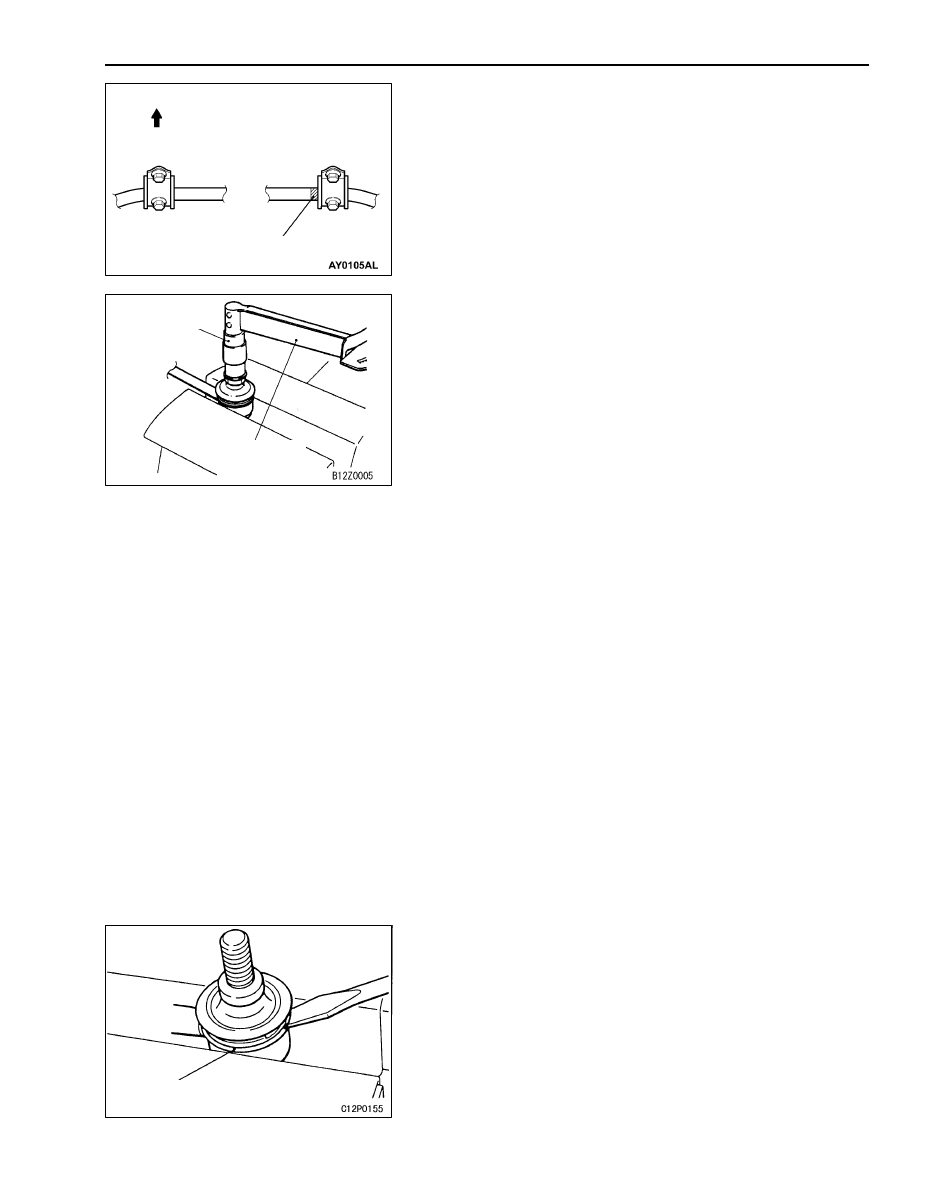

INSTALLATION SERVICE POINT



A



STABILIZER BAR/BUSHING/STABILIZER
BRACKET INSTALLATION

Align the identification mark of stabilizer bar with the left end
of the bushing, before tightening the mounting bolts.

INSPECTION

STABILIZER LINK BALL JOINT TURNING TORQUE
CHECK

1.

After shaking the ball joint stud several times, install the
nut to the stud and use the special tools to measure the
turning torque of the ball joint.

Standard value: 1.7 – 3.1 Nm

2.

When the measured value exceeds the standard value,
replace the stabilizer link.

3.

When the measured value is lower than the standard value,
check that the ball joint turns smoothly without excessive
play. If so, it is possible to reuse that ball joint.

STABILIZER LINK BALL JOINT DUST COVER CHECK

1.

Check the dust cover for cracks or damage by pushing
it with finger.

2.

If the dust cover is cracked or damaged, replace the
stabilizer link.

NOTE
Cracks or damage of the dust cover may cause damage
of the ball joint. When it is damaged during service work,
replace the dust cover.

STABILIZER LINK BALL JOINT DUST COVER
REPLACEMENT

Only when the dust cover is damaged accidentally during
service work, replace the dust cover as follows:
1.

Remove the clip ring and the dust cover.

2.

Apply multipurpose grease to the inside of the dust cover.

3.

Wrap plastic tape around the stabilizer link stud, and then
install the dust cover to the stabilizer link.

4.

Secure the dust cover by the clip ring.

5.

Check the dust cover for cracks or damage by pushing
it with finger.

Front of vehicle

Identification mark

MB990326

MB990968

Clip ring

BASIC  BRAKE

SYSTEM

Click on the applicable bookmark to selected the required model year

35A-2

BASIC  BRAKE

SYSTEM

CONTENTS

GENERAL INFORMATION

3

. . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

4

. . . . . . . . . . . . . . . . .

LUBRICANTS

5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEALANT

5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS

5

. . . . . . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

6

. . . . . . . . . . . . . . . . . . . . .

Brake Pedal Check and Adjustment

6

. . . . . . . . . . . .

Brake Booster Operating Test

7

. . . . . . . . . . . . . . . . . .

Check Valve Operation Check

8

. . . . . . . . . . . . . . . . .

Load Sensing Spring Length Check and
Adjustment 8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Load Sensing Proportioning Valve Function
Test 9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bleeding

10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Brake Fluid Level Sensor Check

10

. . . . . . . . . . . . .

Disc Brake Pad Check and Replacement

11

. . . . . .

Disc Brake Rotor Check

12

. . . . . . . . . . . . . . . . . . . . .

Brake Disc Thickness Check

12

. . . . . . . . . . . . . . . . .

Brake Disc Run-out Check and Correction

13

. . . .

BRAKE PEDAL

14

. . . . . . . . . . . . . . . . . . . . . . . . . . .

MASTER CYLINDER AND BRAKE
BOOSTER

15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Master Cylinder

19

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FRONT DISC BRAKE

20

. . . . . . . . . . . . . . . . . . . . .

REAR DISC BRAKE

25

. . . . . . . . . . . . . . . . . . . . . . .

LOAD SENSING PROPORTIONING
VALVE 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BASIC BRAKE SYSTEM –

General Information

35A-3

GENERAL INFORMATION

The brake system offers high dependability and durability along with improved braking performance and
brake sensitivity.

Items

Specifications

Master cylinder

Type

Tandem type

I.D. mm

22.2

Brake booster

Type

Vacuum type, single

Effective dia. of power cylinder mm

230

Boosting ratio

4.5

Load sensing proportioning
valve

Type

Dual type

valve

Decompression ratio

0.25

Front disc brakes

Type

Floating caliper, 1-piston, ventilated disc

Disc effective dia.

×

 thickness mm

236

×

 22

Wheel cylinder I.D. mm

57.2

Pad thickness mm

10.0

Clearance adjustment

Automatic

Rear disc brakes

Type

Floating caliper,1-piston, solid disc

Disc effective dia.

×

 thickness

222

×

 9.4

Wheel cylinder I.D. mm

34.93

Pad thickness mm

10.0

Clearance adjustment

Automatic

Brake fluid

DOT3 or DOT4

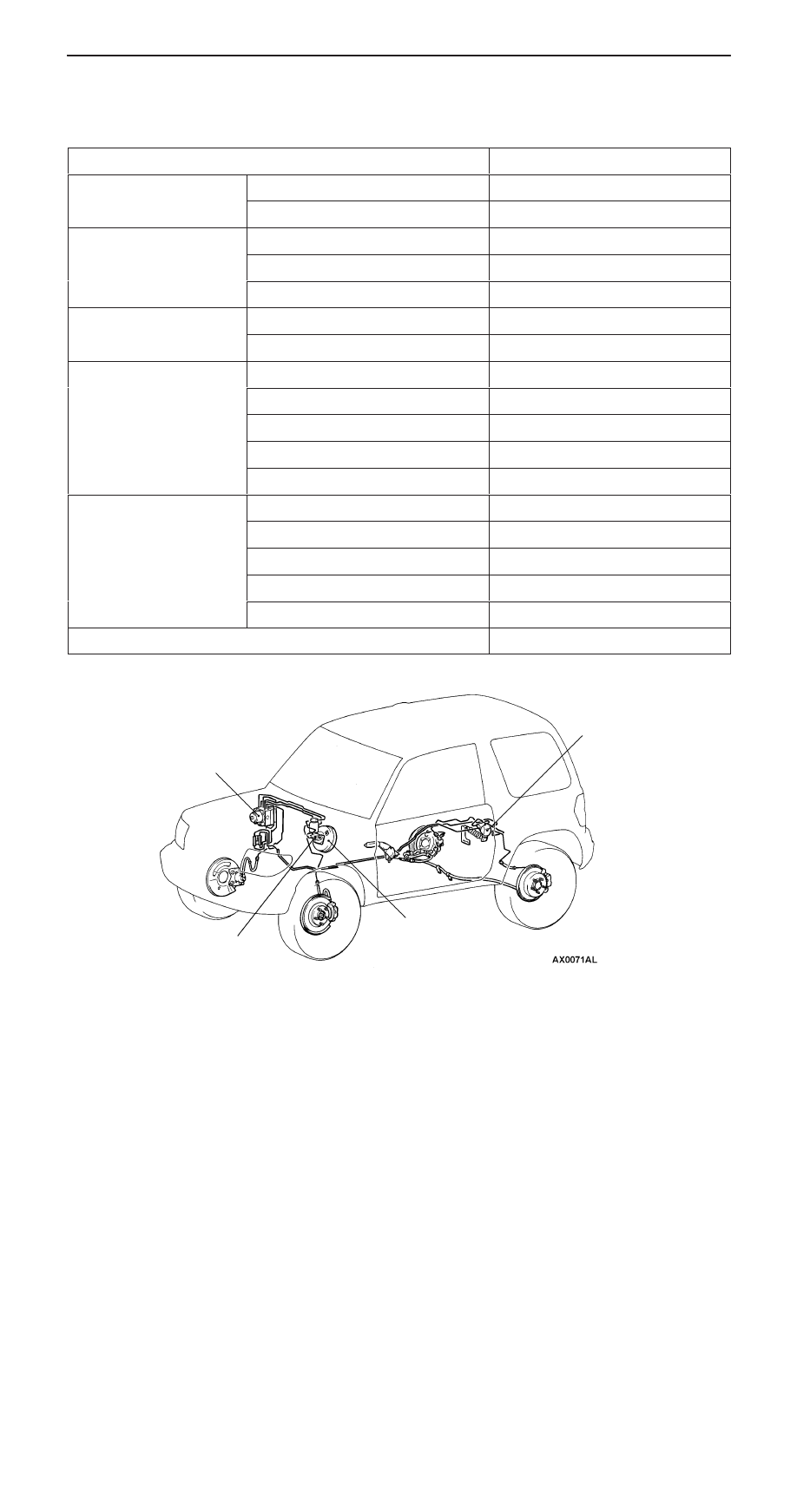

CONSTRUCTION DIAGRAM

Brake booster

Master cylinder

Load sensing
proportioning
valve

Hydraulic unit
