AUTOMATIC TRANSMISSION –
Troubleshooting <A/T>/On-vehicle Service
23-4
SERVICE DATA REFERENCE TABLE
Item
No.
Inspection item
Inspection conditions
Normal value
11
Accelerator pedal
position sensor
Engine: Idle
Selector lever position: N
Accelerator pedal: Fully released
0 – 5 %
position sensor
(Throttle opening
voltage)
Selector lever position: N
Accelerator pedal: Depressed
Gradually rises from
the adove value
Accelerator pedal: Fully depressed
(up to 2 seconds)
85 – 100 %
12
Accelerator pedal
position sensor
Ignition switch: ON
Engine: Stopped
Ignition switch: ON
Approx. 5
osition sensor
(Power supply
voltage)
Engine: Sto
ed
Ignition switch: OFF
0 V
ON-VEHICLE SERVICE

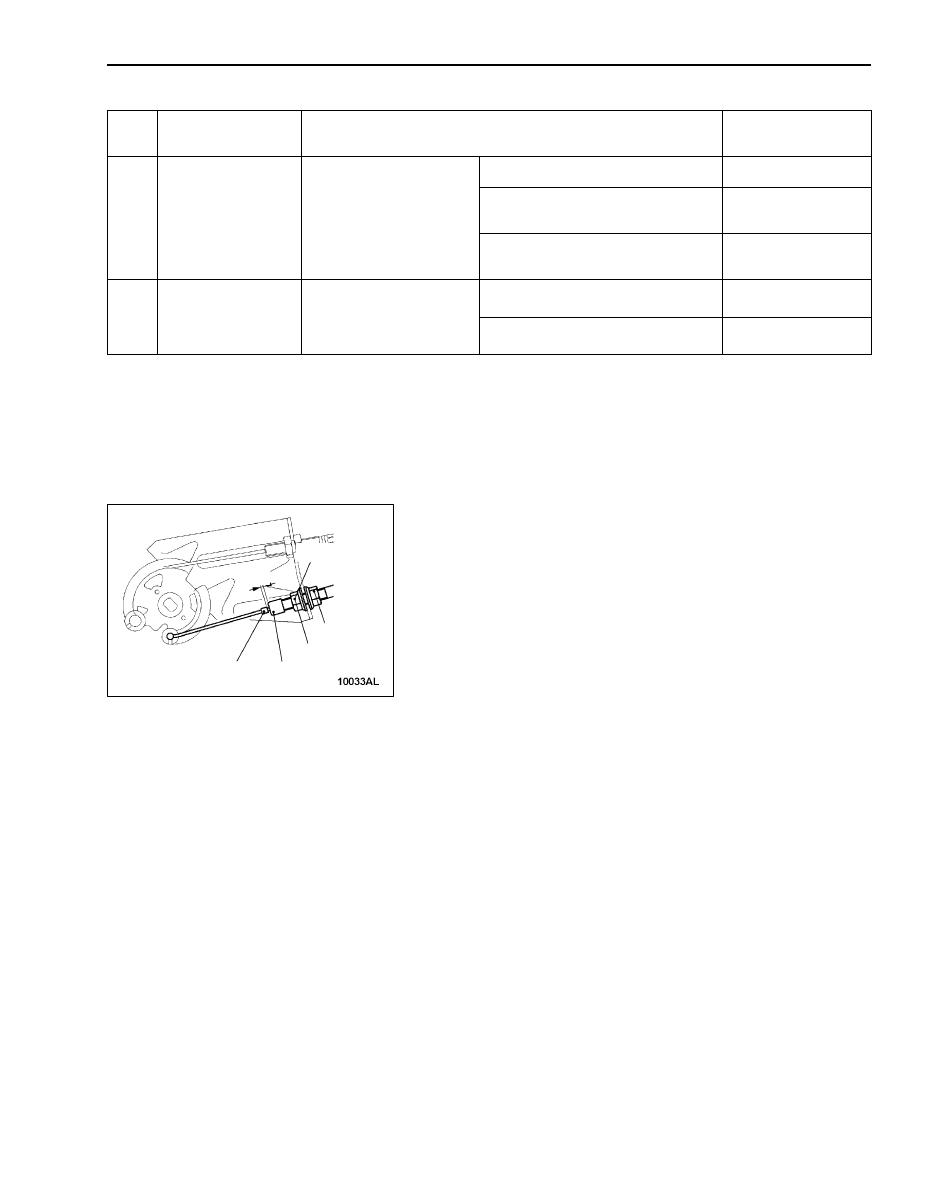

KICKDOWN CABLE CHECK AND ADJUSTMENT
1.
Release the accelerator pedal.
2.
Loosen the adjusting nut and locking nut. Move the outer
cable of the kickdown cable to adjust the clearance (A)
between the inner cable stopper and dust cover end to
the standard value, and then tighten the adjusting nut
to secure the kickdown cable.
3.
Tighten the locking nut to the specified torque.
Standard value: 0.8 – 1.5 mm
Caution
Adjust the accelerator cable assembly after the
kickdown cable adjustment.
Inner cable stopper
Dust cover
Adjusting nut
16
±
2
N
·
m
Locking nut
A
