Mitsubishi Pajero Pinin. Manual - part 191





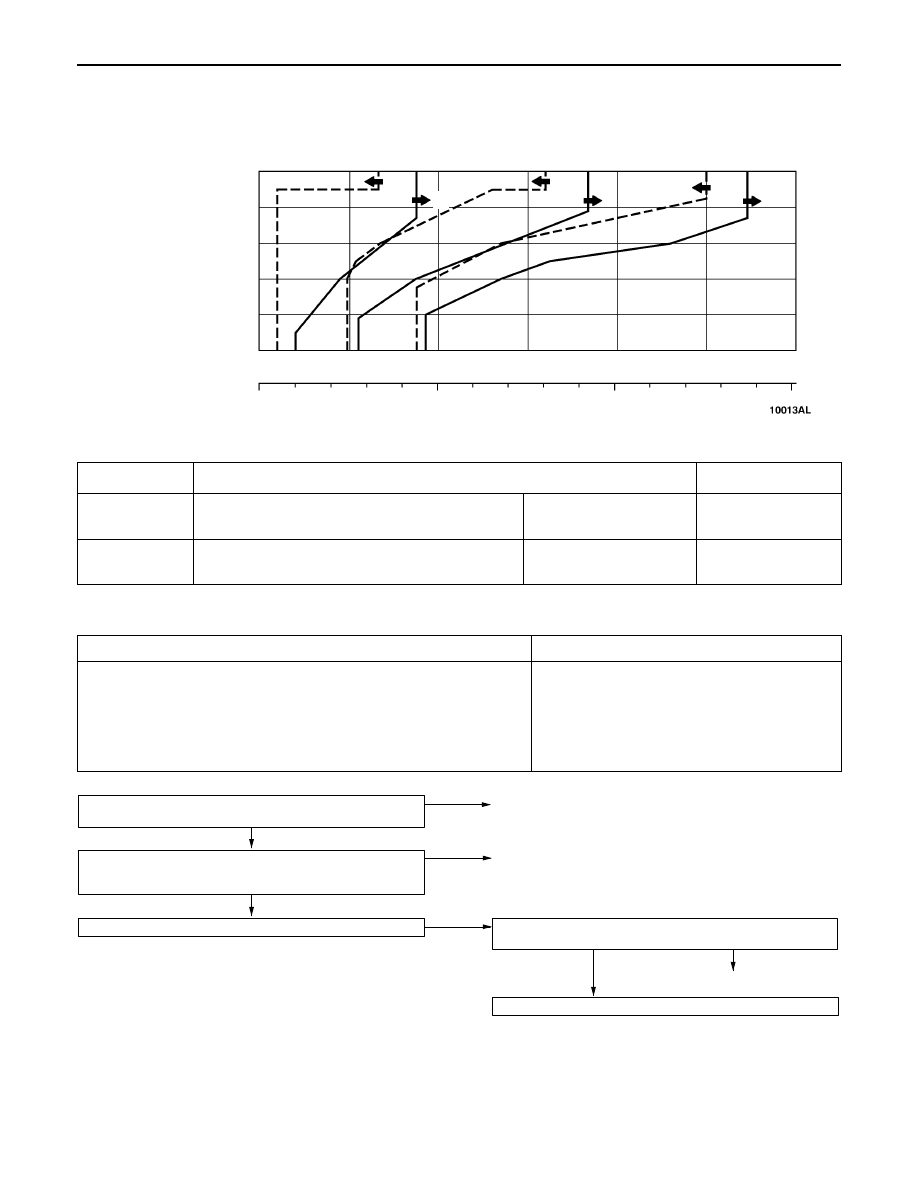

AUTOMATIC TRANSMISSION –

Troubleshooting <A/T>

23-14

Terminal
No.

Standard value

Inspection conditions

Inspection item

43

Accelerator pedal position
sensor (throttle opening

Accelerator pedal: Released

Approx. 1 V

sensor (throttle opening
voltage)

Accelerator pedal: Fully depressed

Approx. 4 V

44

Vehicle speed sensor

Vehicle: Slowly moving forward

Alternates between
0

↔

Approx. 5 V

47

Inhibitor switch 2

Selector lever position: 2

System voltage

Selector lever position: Other than 2

0 V

48

Inhibitor switch L

Selector lever position: L

System voltage

Selector lever position: Other than L

0 V

23-1

AUTOMATIC

TRANSMISSION

CONTENTS

GENERAL

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Outline of Changes

2

. . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING <A/T>

2

. . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

4

. . . . . . . . . . . . . . . . . . . . .

Kickdown Cable Check and Adjustment

4

. . . . . . . . .

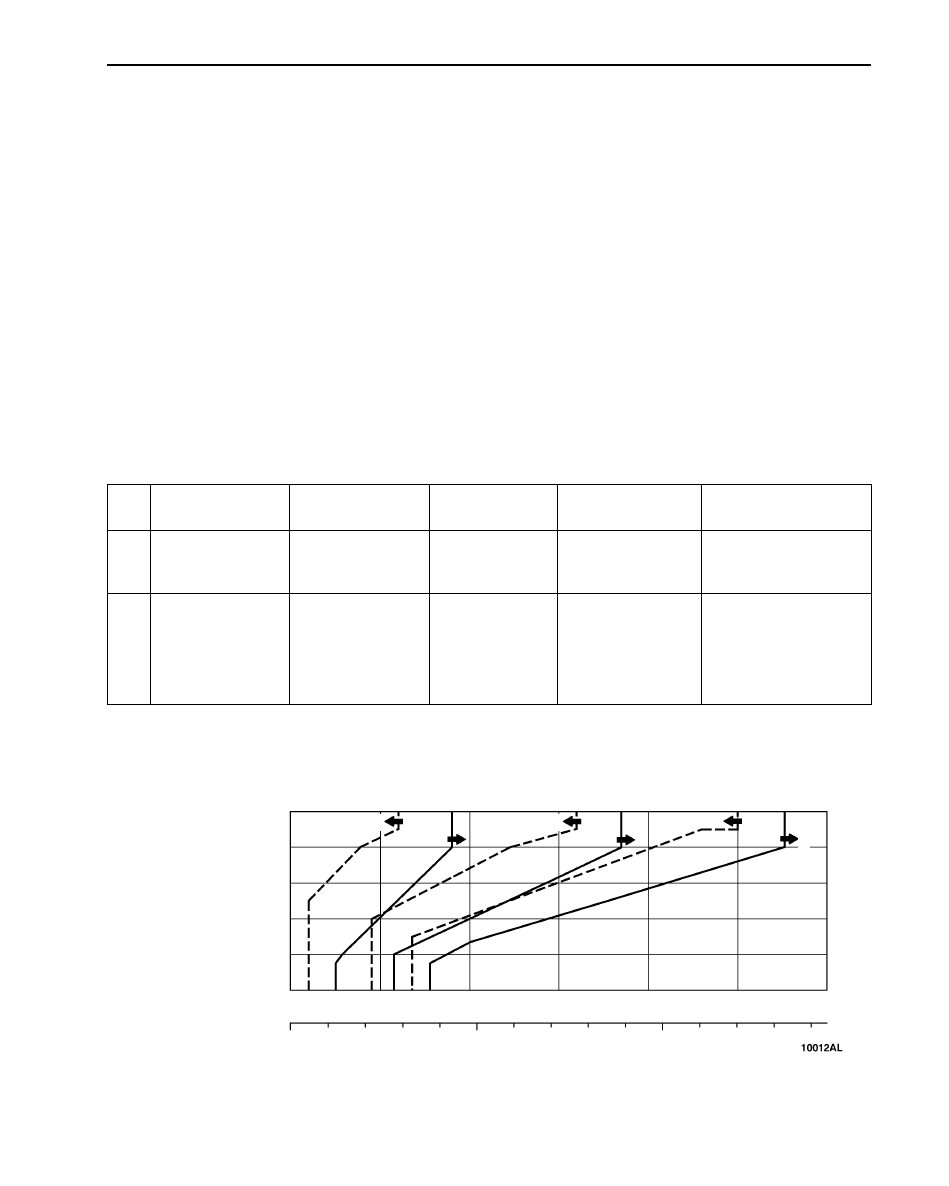

AUTOMATIC TRANSMISSION –

General/Troubleshooting <A/T>

23-2

GENERAL

OUTLINE OF CHANGES

Since the vehicles with the 4G93-MPI engine have been added, the V4AW4 type transmission has been
adopted. This transmission is basically the same as that of the vehicles with 4G94 engine.
Due to the changes shown below, some new service procedures have been added.

D

On the vehicles with 4G93-MPI engine, the APS has been used for the transmission control (input
signal of the throttle opening angle). Due to this, the road test, the inspection procedures for diagnosis
codes, and the service data have been reviewed.

D

On the vehicles with 4G93-MPI engine, the shift pattern has been established. On the vehicles with
4G94 engine, the shift pattern has been changed.

D

On the vehicles with 4G93-MPI engine, the kick-down cable adjustment procedure has been established.

D

A full-time 4WD model has been added to the vehicles with 4G93-MPI engine (Refer to GROUP 22
–  Manual Transmission).

D

Due to the addition of a full-time 4WD model, the transfer control lever and the 4WD indicator control
unit on the vehicles with 4G93-MPI engine have been discontinued.

D

On all models, the quantity of the transfer oil has been changed from 2.3 litre to 2.2 litre.

D

On all models, the wide open throttle switch has been discontinued.

TROUBLESHOOTING <A/T>

ROAD TEST

No.

State prior to test
and operation

Test and operation

Judgement value

Check item

Inspection item if there
is an abnormality

1

Ignition switch: ON
Engine: Stopped

Ignition switch

(1) ON
(2) OFF

Data list No.12

(1) Approx. 5V
(2) 0V

APS (Power supply
voltage)

Code No.11, 12
APS system (P.23-4)

4

Engine: Idling
Selector lever
position: N

Accelerator pedal

(1) Released
(2) Half depressed
(3) Fully depressed

(approx. 2
seconds)

Data list No.11

(1) 0 - 5 %
(2) Gradually

rises from (1)

(3) 85 - 100 %


APS (Throttle
opening angle)

Code No.11, 12
APS system (P.23-4)

SHIFT PATTERN

<4G93  –  MPI>

D range (Overdrive switch: ON)

Throttle opening (%)

100

60

0

1,000

2,000

3,000

4,000

5,000

6,000

Output shaft speed r/min

0

50

100

Vehicle speed km/h

2

2

3

3

4

20

40

80

1

1

2

2

3

4

3

AUTOMATIC TRANSMISSION –

Troubleshooting <A/T>

23-3

<4G94>

D range (Overdrive switch: ON)

DOWNSHIFT PATTERN

Throttle opening (%)

100

60

0

1,000

2,000

3,000

4,000

5,000

6,000

Output shaft speed r/min

0

50

100

Vehicle speed km/h

2

3

3

4

20

40

80

1

2

2

3

3

1

2

4

150

INSPECTION CHART FOR DIAGNOSIS CODE

Code

Diagnosis item

Reference page

11

Accelerator pedal position sensor system (APS)
(Throttle opening voltage)

Sensor malfunction/
open circuit/short circuit

23-3

12

Accelerator pedal position sensor system (APS)
(Throttle power supply voltage)

Open circuit/short circuit

23-3

INSPECTION PROCEDURES FOR DIAGNOSIS CODES

Code No.11, 12 Accelerator pedal position sensor (APS)

Probable cause

If the APS output voltage (APS opening voltage) is 4.8 V or higher when the engine
is idling, the output voltage is judged to be too high and diagnosis code No. 13
is output. If the APS output voltage (APS opening voltage) is 0.335 V or lower
when the engine is idling, the output voltage is judged to be too low and diagnosis
code No. 13 is output.
If the APS output voltage (APS power supply voltage) is 3.0 V or lower or if it
is 5.7 V or higher when the engine is idling, the APS is judged to be faulty and
diagnosis code No. 14 is output.

D

Malfunction of the accelerator pedal position sensor

D

Malfunction of harness or connector

D

Malfunction of the A/T-ECU

Accelerator pedal position sensor check
(Refer to GROUP 13C –  On-vehicle Service.)

NG

Replace

OK

Check the following connectors:
<L.H. drive vehicles> C-46, C-25, D-34, D-46
<R.H. drive vehicles> C-46, C-26, D-34, D-46

NG

Repair

OK

NG

Repair

OK

Check the trouble symptoms.

NG

Replace the A/T-ECU.

Harness check

D

Between accelerator pedal position sensor and A/T-ECU.
