NOTES

MANUAL

TRANSMISSION

Click on the applicable bookmark to selected the required model year

22-1

MANUAL

TRANSMISSION

CONTENTS

LUBRICANT

2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEALANTS AND ADHESIVES

2

. . . . . . . . . . . . . .

ON-VEHICLE SERVICE

2

. . . . . . . . . . . . . . . . . . . . .

Transmission Oil Check

2

. . . . . . . . . . . . . . . . . . . . . . .

Transmission Oil Change

2

. . . . . . . . . . . . . . . . . . . . . .

Transfer Oil Check

3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transfer Oil Change

3

. . . . . . . . . . . . . . . . . . . . . . . . .

TRANSMISSION CONTROL

4

. . . . . . . . . . . . . . . . .

TRANSMISSION AND TRANSFER
ASSEMBLY

8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4WD INDICATOR CONTROL UNIT

9

. . . . . . . . . .

MANUAL TRANSMISSION



–



Lubricant/Sealants and Adhesives/On-vehicle Service

22-2

LUBRICANT

Items

Specified lubricants

Quantity

ȏ

Transmission oil

Hypoid gear oil SAE 75W – 90 or 75W – 85W
conforming to API GL-4

2.4

Transfer oil

conforming to API GL-4

2.2

SEALANTS AND ADHESIVES

Items

Specified sealant

Remarks

Contact surface between transmission and
transmission control lever, thread (except
outer surface) of stopper bracket assembly
installation bolts and transfer control lever
gasket

3M ATD Part No.8660 or equivalent

Semi-drying sealant

Thread of stopper bracket assembly
installation bolts and thread of transfer
control lever assembly installation bolts

3M Stud Locking No.4170 or equivalent

Anaerobic sealant

ON-VEHICLE SERVICE

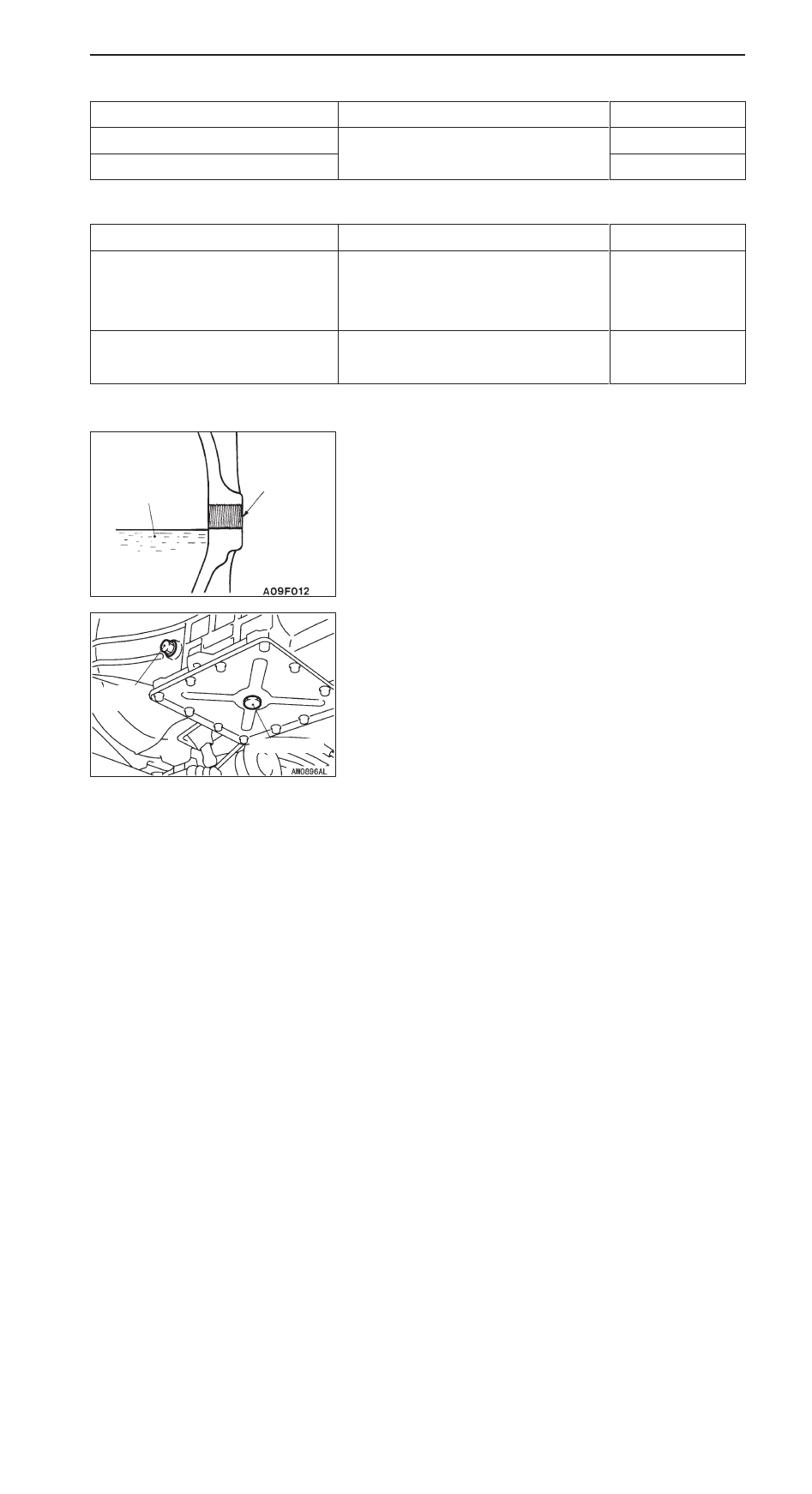

TRANSMISSION OIL CHECK

1.

Remove the oil filler plug.

2.

Oil level should be at the lower portion of the oil filler
plug hole.

3.

Check that the transmission oil is not noticeably dirty, and
that it has a suitable viscosity.

4.

Tighten the oil filler plug to the specified torque.

Tightening torque: 29 – 34 Nm

TRANSMISSION OIL CHANGE

1.

Remove the oil drain plug to drain oil.

2.

Tighten the oil drain plug to the specified torque.

Tightening torque: 39 Nm

3.

Remove the oil filler plug and fill with specified oil till the
level comes to the lower portion of oil filler plug hole.

Specified oil:

Hypoid gear oil SAE 75W – 90 or 75W – 85W
conforming to API GL-4

Quantity: 2.4

ȏ

4.

Tighten the oil filler plug to the specified torque.

Tightening torque: 29 – 34 Nm

Transmission oil

Oil filler
plug hole

Oil filler
plug

Oil drain plug
