INTAKE AND EXHAUST –

Exhaust Manifold

15-6

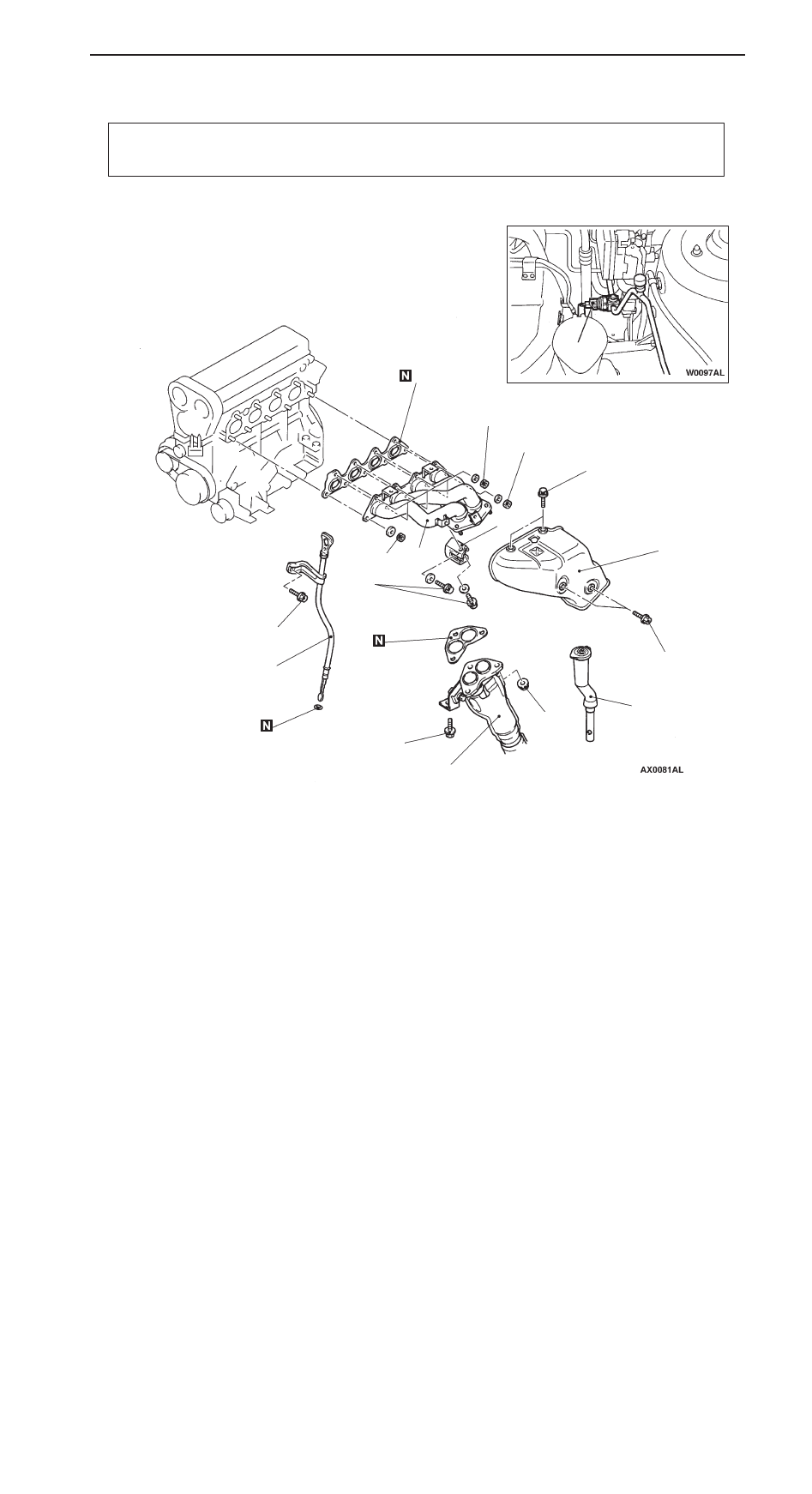

EXHAUST MANIFOLD

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation

Engine Cover and Under Cover Removal and
Installation

Air Cleaner Removal and Installation
(Refer to P.15-3.)

29 Nm

98 Nm

12 – 15
Nm

29 Nm

18 Nm

34 Nm

1

2

5

13 Nm

13 Nm

8

3

7

34 Nm

6

4

Removal steps

1. Front exhaust pipe connection
2. Exhaust manifold bracket
3. Engine oil level gauge guide
4. Washer tank filler tube
5. A/C pressure switch connector

connection

6. Exhaust manifold cover
7. Exhaust manifold
8. Exhaust manifold gasket

INTAKE AND EXHAUST –

Exhaust Pipe and Main Muffler

INTAKE AND EXHAUST –

Exhaust Pipe and Main Muffler

15-7

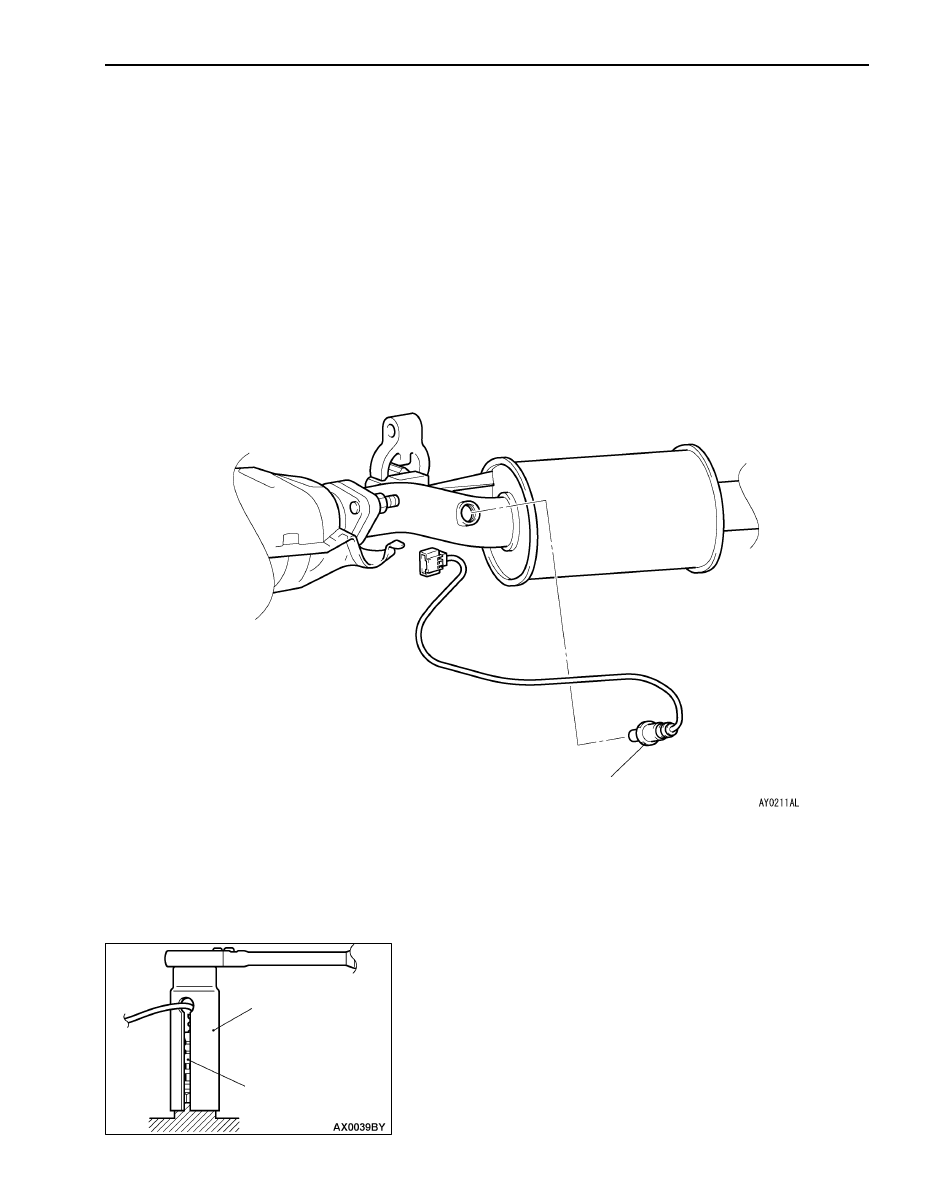

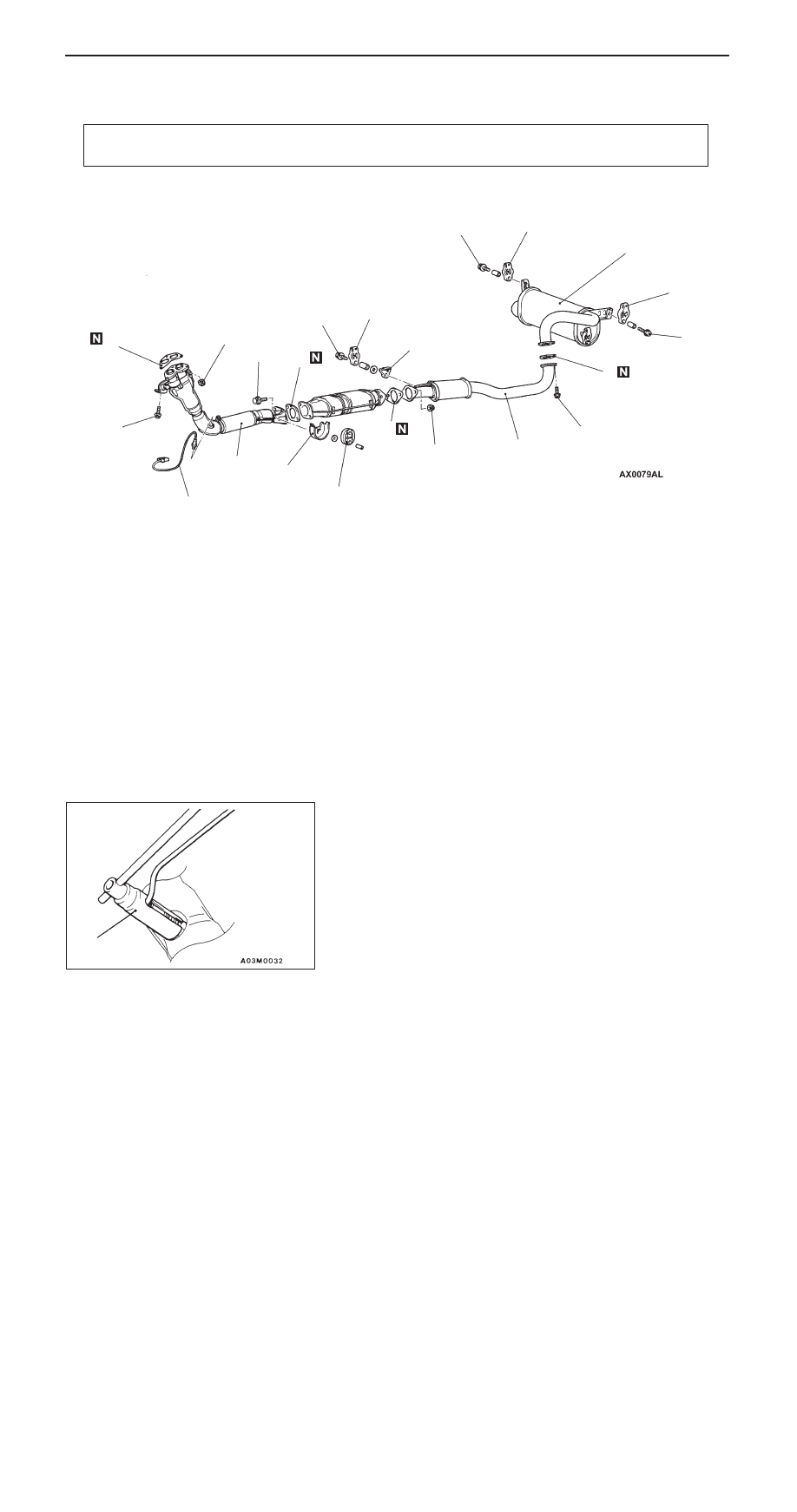

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL AND INSTALLATION

Pre-removal and Post-installation Operation
Engine Cover and Under Cover Removal and Installation

4

7

1

11

12

13

34 Nm

3

34 Nm

13 Nm

9

49 Nm

10

49 Nm

6

5

2

4

14

34 Nm

13 Nm

13 Nm

Main muffler removal steps

1. Main muffler
3. Gasket
4. Hanger

Center exhaust pipe removal steps

2. Center exhaust pipe
3. Gasket
5. Gasket
6. Protector
7. Hanger

Pre-muffler removal steps

8. Pre-muffler

11. Gasket

Center exhaust pipe removal steps

A

A

9. Oxygen sensor

10. Front exhaust pipe

11. Gasket

12. Gasket
13. Heat protector
14. Hanger

REMOVAL SERVICE POINT

A

OXYGEN SENSOR REMOVAL

INSTALLATION SERVICE POINT

A

OXYGEN SENSOR INSTALLATION

MD998770

NOTES

INTAKE AND EXHAUST –

General/Exhaust Pipe and Main Muffler

15-1

GROUP 15

INTAKE AND EXHAUST

GENERAL

OUTLINE OF CHANGE

Due to the introduction of the oxygen sensor (rear), the following service procedure has been added.
The other service procedures are the same as before.

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL AND INSTALLATION

1

Removal step



A



1. Oxygen sensor (rear)

REMOVAL SERVICE POINT



A



OXYGEN SENSOR (REAR) REMOVAL

MD998770

Oxygen sensor (rear)
