ENGINE COOLING –

Radiator

14-3

INSPECTION

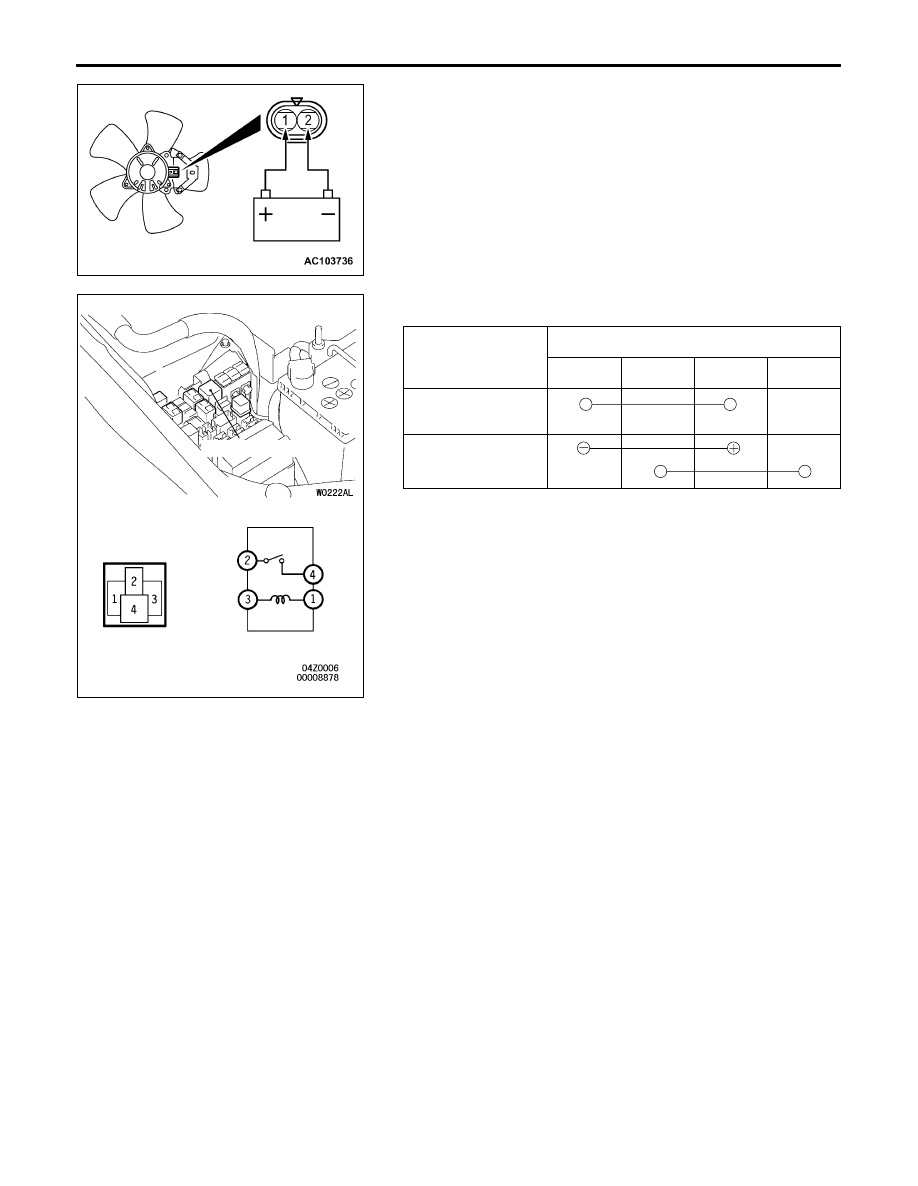

RADIATOR FAN MOTOR CHECK

1.

Check to be sure that the radiator fan rotates when battery
voltage is applied between terminals (as shown in the
figure).

2.

Check to see that abnormal noises are not produced,
while motor is turning.

RADIATOR FAN RELAY CONTINUITY CHECK

Battery voltage

Terminal No.

1

2

3

4

When current is not
supplied

When current is
supplied

Radiator fan relay

NOTES

INTAKE AND

EXHAUST
