13A-2

GASOLINE DIRECT

INJECTION  (GDI)

CONTENTS

GENERAL

3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Outline of Changes

3

. . . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL INFORMATION

3

. . . . . . . . . . . . . . . . . .

SERVICE SPECIFICATIONS

5

. . . . . . . . . . . . . . . . .

TROUBLESHOOTING

6

. . . . . . . . . . . . . . . . . . . . . . .

ON-VEHICLE SERVICE

108

. . . . . . . . . . . . . . . . . . .

Fuel Pressure Test

108

. . . . . . . . . . . . . . . . . . . . . . . . .

Component Location

112

. . . . . . . . . . . . . . . . . . . . . . .

Oxygen Sensor Check

112

. . . . . . . . . . . . . . . . . . . . .

FUEL PUMP (HIGH PRESSURE)

114

. . . . . . . . . .

INJECTOR 117

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

THROTTLE BODY

121

. . . . . . . . . . . . . . . . . . . . . . . .

GDI  –

General/General Information

13A-3

GENERAL

OUTLINE OF CHANGES

Due to the changes shown below, the service procedures regarding the different description from the
previous version have been established.



On-board Diagnostics System has been adopted to expand the diagnostic items and to change diagnosis
code numbering system.



Fuel pressure regulator (high-pressure) incorporate fuel pump (high-pressure) has been adopted.



An oxygen sensor (rear) has been added.



A ignition failure sensor has been added.

GENERAL INFORMATION

SELF-DIAGNOSIS FUNCTION

Following functions have been added.



The engine-ECU records the engine operating condition when the diagnosis code is set.
This data is called “freeze frame” data.
This data can be read by using the MUT-

II

, are can then be used in simulation tests for troubleshooting.

GENERAL SPECIFICATION

Items

Specification

Engine-ECU

Identification No.

E2T71582

GDI  –

General Information

13A-4

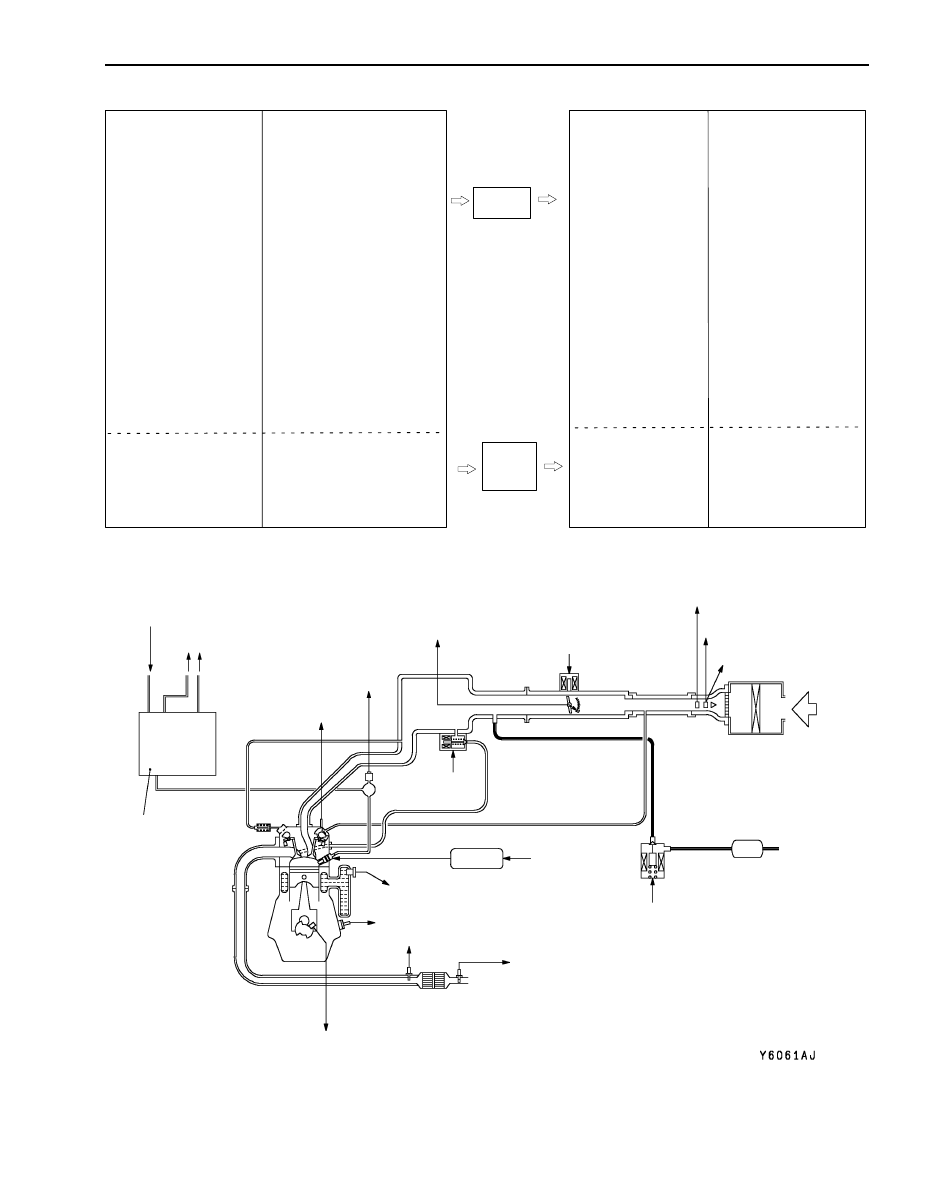

GASOLINE DIRECT INJECTION SYSTEM DIAGRAM



Engine-ECU



1 Oxygen sensor

(front)



2 Oxygen sensor

(rear)



3 Air flow sensor



4 Intake air tempera-

ture sensor



5 Throttle position

sensor (2nd chan-
nel)



6 Camshaft position

sensor



7 Crank angle sensor



8 Barometric pres-

sure sensor



9 Engine coolant  tem-

perature sensor



10 Detonation sensor



11 Fuel pressure  sen-

sor



1 Injector driver

(injector)



2 EGR valve

(stepper motor)



3 Purge control

solenoid valve



Power supply



Ignition switch-IG



Ignition switch-ST



Accelerator pedal position
sensor (1st channel)



Accelerator pedal position
switch



Vehicle speed sensor



A/C switch 1



Inhibitor switch <A/T>



Power steering fluid
pressure switch



Alternator FR signal



Stop lamp switch



Small lamp switch



Brake vacuum sensor



Injector open circuit check
signal



Throttle valve controller



A/C thermo sensor



Engine control relay



Fuel pump relay



Injector driver relay



Throttle control
servo relay



A/C relay



Ignition coil



Fan controller



Engine warning
lamp



GDI ECO indicator
lamp



Diagnosis output



Alternator G termi-
nal



Throttle valve
controller



Oxygen sensor
heater

Engine-
ECU



Power supply



Ignition switch-IG



Accelerator pedal position
sensor (2nd channel)



Engine-ECU

Throttle
valve
controller



4 Throttle valve

control servo



12 Throttle position

sensor (1st channel)

Fuel pump
(high-pressure)

To fuel tank



6 Camshaft

position sensor



2 Oxygen sensor (rear)



9 Engine coolant temperature sensor



1 Injector

driver



3 Purge control

solenoid valve



4 Intake air temperature sensor



8 Barometric pressure

sensor



3 Air flow sensor

Injec-
tor

Canister

From fuel pump
(low-pressure)



5 Throttle position sensor (2nd channel)



12 Throttle position sensor (1st channel)



4 Throttle control servo



7 Crank angle sensor



2 EGR valve



1 Oxygen sensor (front)



11 Fuel pressure sensor



10 Detonation sensor
