Service Specifications

13A-5

SERVICE SPECIFICATIONS

Items

Standard value

Fuel pressure

High-pressure side   MPa

4 – 6.9

Low-pressure side   kPa

Approximately 324

Oxygen sensor output voltage (during revving)   V

0.6 – 1.0

Oxygen sensor heater resistance (at 20



C)

Ω

Front

4.5 – 8.0

Rear

11 – 18

GDI  –

Troubleshooting

13A-6

TROUBLESHOOTING

DIAGNOSIS FUNCTION

ENGINE WARNING LAMP (CHECK ENGINE LAMP)

If an abnormality occurs in any of the following items related
to the GDI system, the engine warning lamp will illuminate
or flash. If the lamp remains illuminated or if the lamp illuminates
while the engine is running, check the diagnosis code output.
However, the warning lamp will illuminate as bulb check for
five seconds whenever the ignition switch is turned to the
ON position.

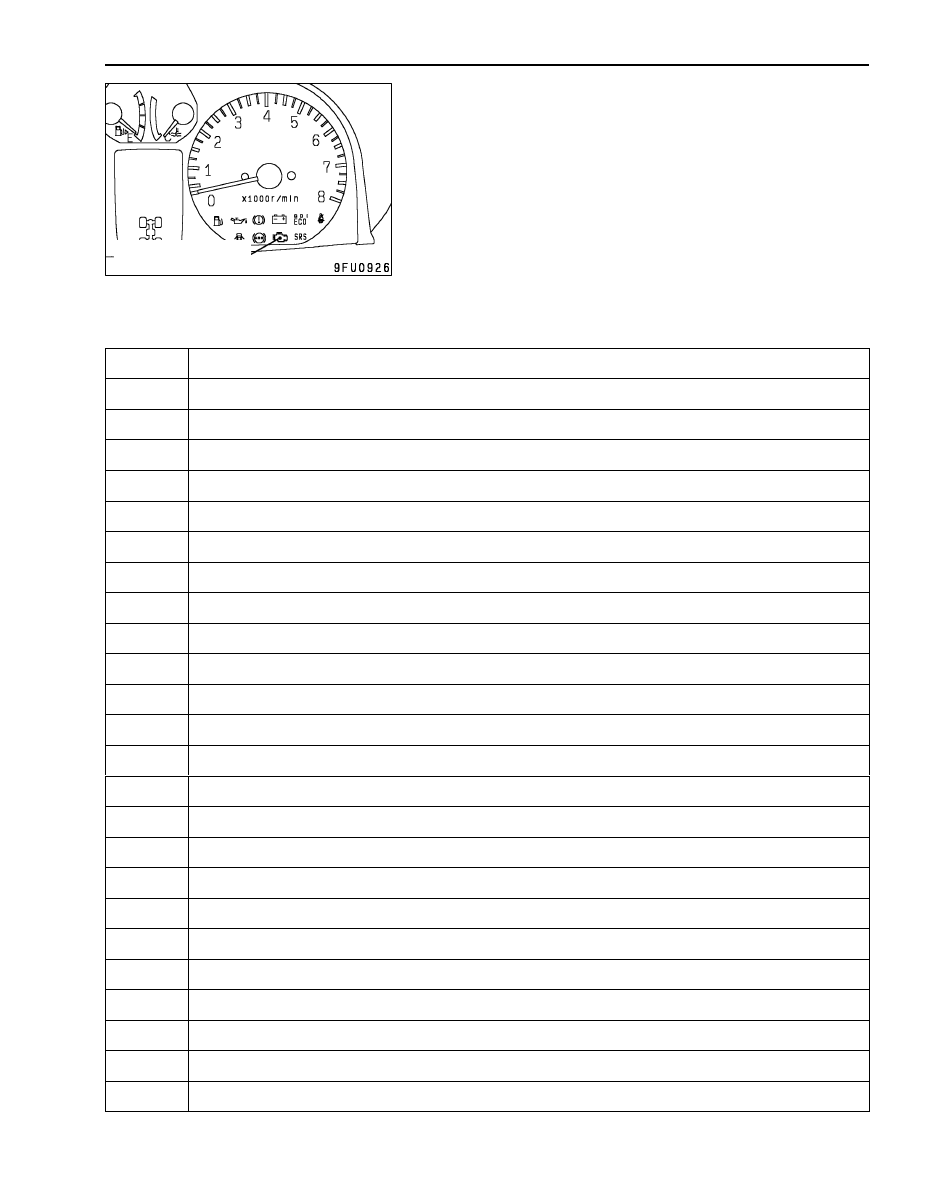

Engine warning lamp inspection items

Code No.

Diagnosis item

–

Engine-ECU

P0100

Air flow sensor system

P0105

Barometric pressure sensor system

P0110

Intake air temperature sensor system

P0115

Engine coolant temperature sensor system

P0120



Throttle position sensor (1st channel) system

P0125

Feedback system

P0130

Oxygen sensor (front) system <sensor 1>

P0135

Oxygen sensor heater (front) system <sensor 1>

P0136

Oxygen sensor (rear) system <sensor 2>

P0141

Oxygen sensor heater (rear) system <sensor 2>

P0170

Abnormal fuel system

P0190



Abnormal fuel pressure

P0201

No. 1 injector system

P0202

No. 2 injector system

P0203

No. 3 injector system

P0204

No. 4 injector system

P0220



Accelerator pedal position sensor (1st channel) system

P0225



Throttle position sensor (2nd channel) system

P0300



Ignition coil (power transistor) system

P0301

No. 1 cylinder misfire detected

P0302

No. 2 cylinder misfire detected

P0303

No. 3 cylinder misfire detected

P0304

No. 4 cylinder misfire detected

Engine warning lamp
(check engine lamp)

GDI  –

Troubleshooting

13A-7

Code No.

Diagnosis item

P0335

Crank angle sensor system

P0340

Camshaft position sensor system

P0403

EGR valve system

P0420

Catalyst malfunction

P0443

Purge control solenoid valve system

P1200

Injector driver system

P1220



Electronic-controlled throttle valve system

P1221



Throttle valve position feedback system

P1223



Communication line with throttle valve controller

P1224



Throttle valve control servo motor (motor 1st phase malfunction) system

P1225



Accelerator pedal position sensor (2nd channel) system

P1228



Throttle valve control servo motor (motor 2nd phase malfunction) system

P1515

Brake vacuum sensor system

NOTE
1.

If the engine warning lamp illuminates because of a malfunction of the engine-ECU, communication
between MUT-

II

 and the engine-ECU is impossible. In this case, the diagnosis code cannot be read.

2.

After the engine-ECU has detected a malfunction, the engine warning lamp illuminates when the engine
is next turned on and the same malfunction is re-detected. However, for items marked with a “



”

in the diagnosis code number column, the engine warning lamp illuminates only on the first detection
of the malfunction.
As for P1220, P1221, P1223, P1224, and P1228, the engine warning lamp flashes. If malfunctions
are detected at the throttle position sensor (1st channel) and the throttle position sensor (2nd channel)
at the same time, or malfunctions are detected at the accelerator pedal position sensor (1st channel)
and the accelerator pedal position sensor (2nd channel) at the same time, the engine warning lamp
will flash.

3.

After the engine warning lamp illuminates, it will be switched off under the following conditions.
(1) When the engine-ECU monitored the power train malfunction three times* and met set condition

requirements, it detected no malfunction.
*:

In this case, “one time” indicates from engine start to stop.

(2) For misfiring malfunction, when driving conditions (engine speed, engine coolant temperature, etc.)

are similar to those when the malfunction was first recorded.

4.

Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates
the sensor mounted at the position second closest to the engine.

GDI  –

Troubleshooting

13A-8

METHOD OF READING AND ERASING DIAGNOSIS
CODES

Refer to GROUP 00 – How to Use Troubleshooting/Inspection
Service Points.

DIAGNOSIS USING DIAGNOSIS 2 MODE

1.

Switch the diagnosis mode of the engine control unit to
DIAGNOSIS 2 mode using the MUT-

II

.

2.

Carry out a road test.

3.

Take a reading of the diagnosis code and repair the problem
location.

4.

Turn the ignition switch to OFF and then back to ON again.

NOTE
By turning the ignition switch to OFF, the engine-ECU
will switch the diagnosis mode from DIAGNOSIS 2 mode
to DIAGNOSIS 1 mode.

5.

Erase the diagnosis codes.

INSPECTION USING MUT-

II

 DATA LIST AND

ACTUATOR TESTING

1.

Carry out inspection by means of the data list and the
actuator test function. If there is an abnormality, check
and repair the chassis harnesses and components.

2.

After repairing, re-check using the MUT-

II

 and check that

the abnormal input and output have returned to normal
as a result of the repairs.

3.

Erase the diagnosis code memory.

4.

Remove the MUT-

II

, and then start the engine again and

carry out a road test to confirm that the problem has
disappeared.
