Mitsubishi Lancer. Manual - part 246

DOOR MIRROR

EXTERIOR

51-46

DIAGNOSIS PROCEDURE

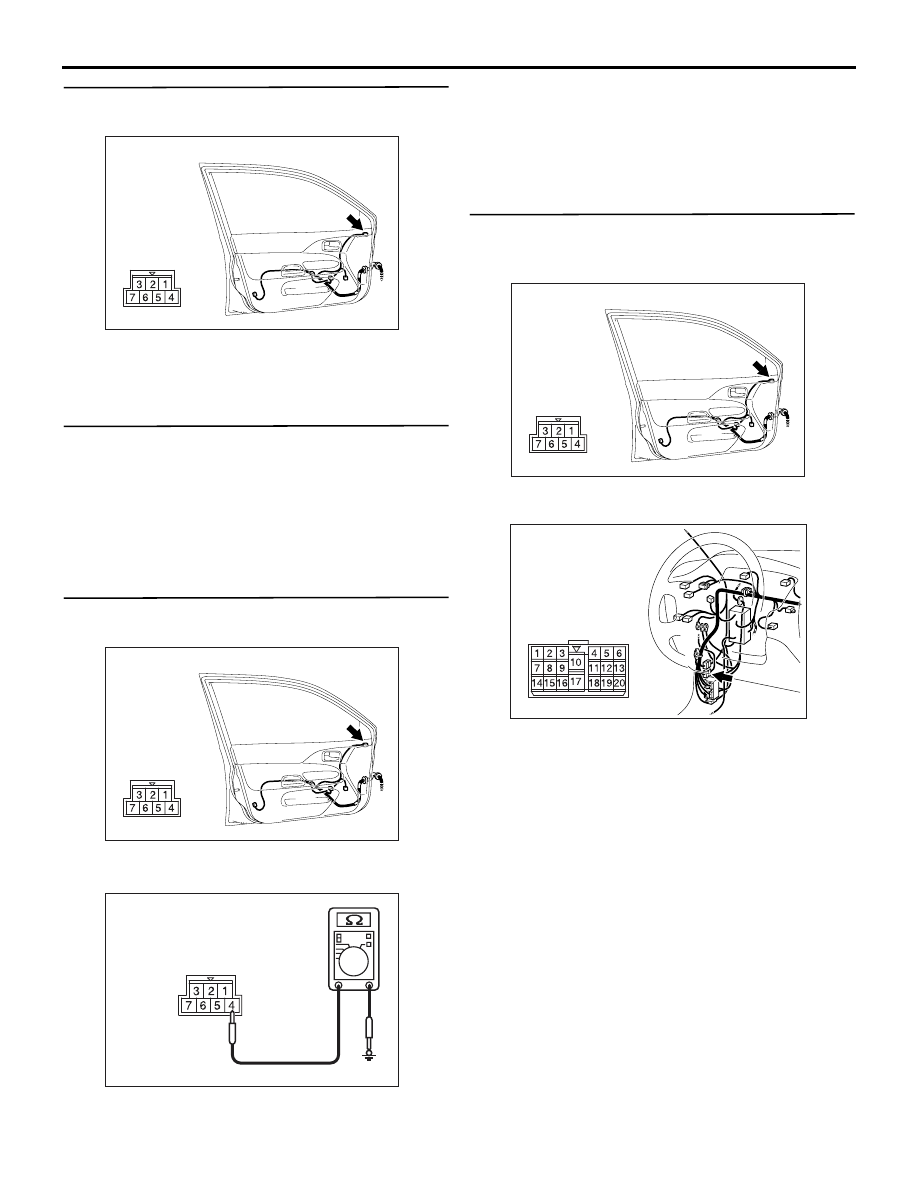

STEP 1. Verify the operation of each heated door
mirror.

Q: Which door mirror does not heat?

Door mirror (RH) :

Go to Step 2.

Door mirror (LH) :

Go to Step 9.

STEP 2. Connector check: E-11 door mirror
assembly (RH) connector

AC304817

Connector: E-11

Harness side

AB

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the defective connector.

STEP 3. Check the door mirror assembly (RH).
Check that the heater element of the door mirror
assembly (RH) is in good condition (Refer to

P.51-51

).

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Replace the door mirror assembly (RH).

STEP 4. Resistance measurement at the E-11
door mirror assembly (RH) connector.

AC304817

Connector: E-11

Harness side

AB

(1) Disconnect the connector, and measure at the

wiring harness side.

AC304821

Connector E-11

(harness side)

AB

(2) Resistance between E-11 door mirror assembly

connector terminal No.4 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

STEP 5. Check the wiring harness between E-11
door mirror assembly (RH) connector terminal
No.4 and body earth.

AC304817

Connector: E-11

Harness side

AB

• Check the earth wires for open circuit.

NOTE:

AC304819

Connector: C-112

AB

Prior to the wiring harness inspection, check interme-
diate connector C-112 <LHD>, C-30 <RHD> and
repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.

DOOR MIRROR

EXTERIOR

51-47

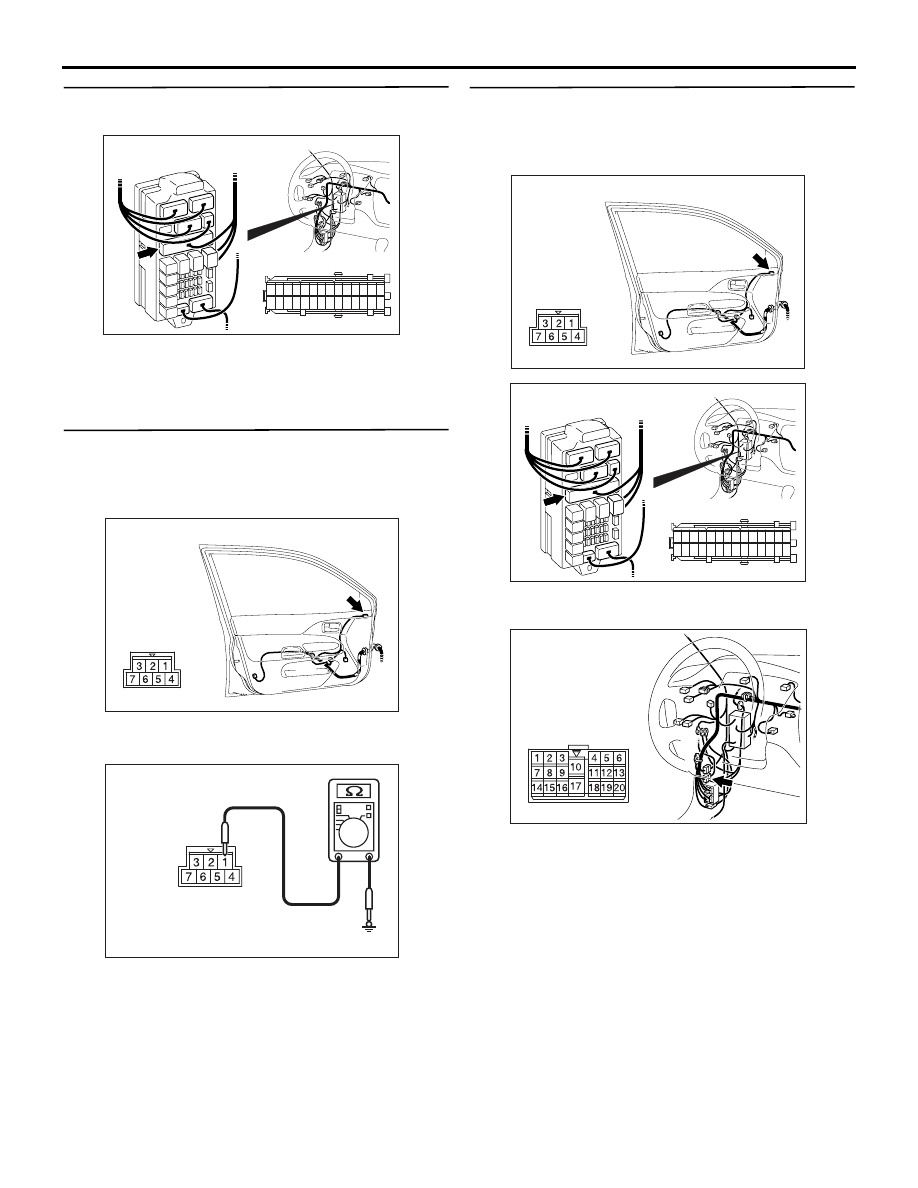

STEP 6. Voltage measurement at the E-11 door
mirror assembly (RH) connector.
(1) Turn the ignition switch to the ON position.
(2) Rear window defogger switch: ON

AC304817

Connector: E-11

Harness side

AB

(3) Disconnect the connector, and measure at the

wiring harness side.

AC304826

Connector E-11

(harness side)

AB

(4) Voltage between E-11 door mirror assembly

connector terminal No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Go to Step 7.

STEP 7. Connector check: C-212 junction block
connector

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-212

Harness side

AB

Junction block (Front view)

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the defective connector.

STEP 8. Check the wiring harness between E-11
door mirror assembly (RH) connector terminal
No.1 and C-212 junction block connector
terminal No.3.

AC304817

Connector: E-11

Harness side

AB

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-212

Harness side

AB

Junction block (Front view)

• Check the power supply line for open circuit.

NOTE:

AC304819

Connector: C-112

AB

Prior to the wiring harness inspection, check interme-
diate connector C-112 <LHD>, C-30 <RHD> and
repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.

DOOR MIRROR

EXTERIOR

51-48

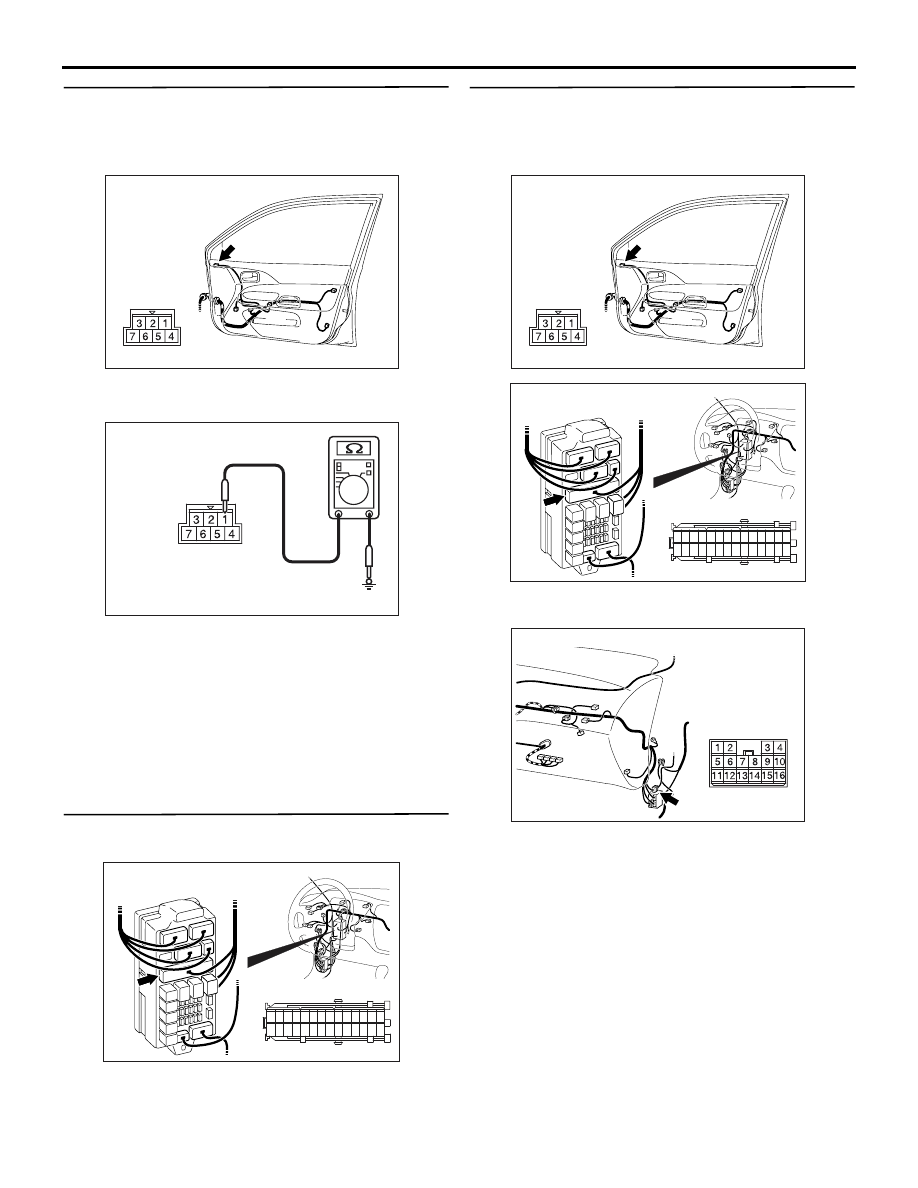

STEP 9. Connector check: E-02 door mirror
assembly (LH) connector

AC304818

Connector: E-02

Harness side

AB

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the defective connector.

STEP 10. Check the door mirror assembly (LH).
Check that the heater element of the door mirror
assembly (LH) is in good condition (Refer to

P.51-51

).

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Replace the door mirror assembly (LH).

STEP 11. Resistance measurement at the E-02
door mirror assembly (LH) connector.

AC304818

Connector: E-02

Harness side

AB

(1) Disconnect the connector, and measure at the

wiring harness side.

AC304827

Connector E-02

(harness side)

AB

(2) Resistance between E-02 door mirror assembly

connector terminal No.4 and body earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Go to Step 12.

STEP 12. Check the wiring harness between E-02
door mirror assembly (LH) connector terminal
No.4 and body earth.

AC304818

Connector: E-02

Harness side

AB

• Check the earth wires for open circuit.

NOTE:

AC304820

Connector: C-29

AB

Prior to the wiring harness inspection, check interme-
diate connector C-29 <LHD>, C-113 <RHD> and
repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.

DOOR MIRROR

EXTERIOR

51-49

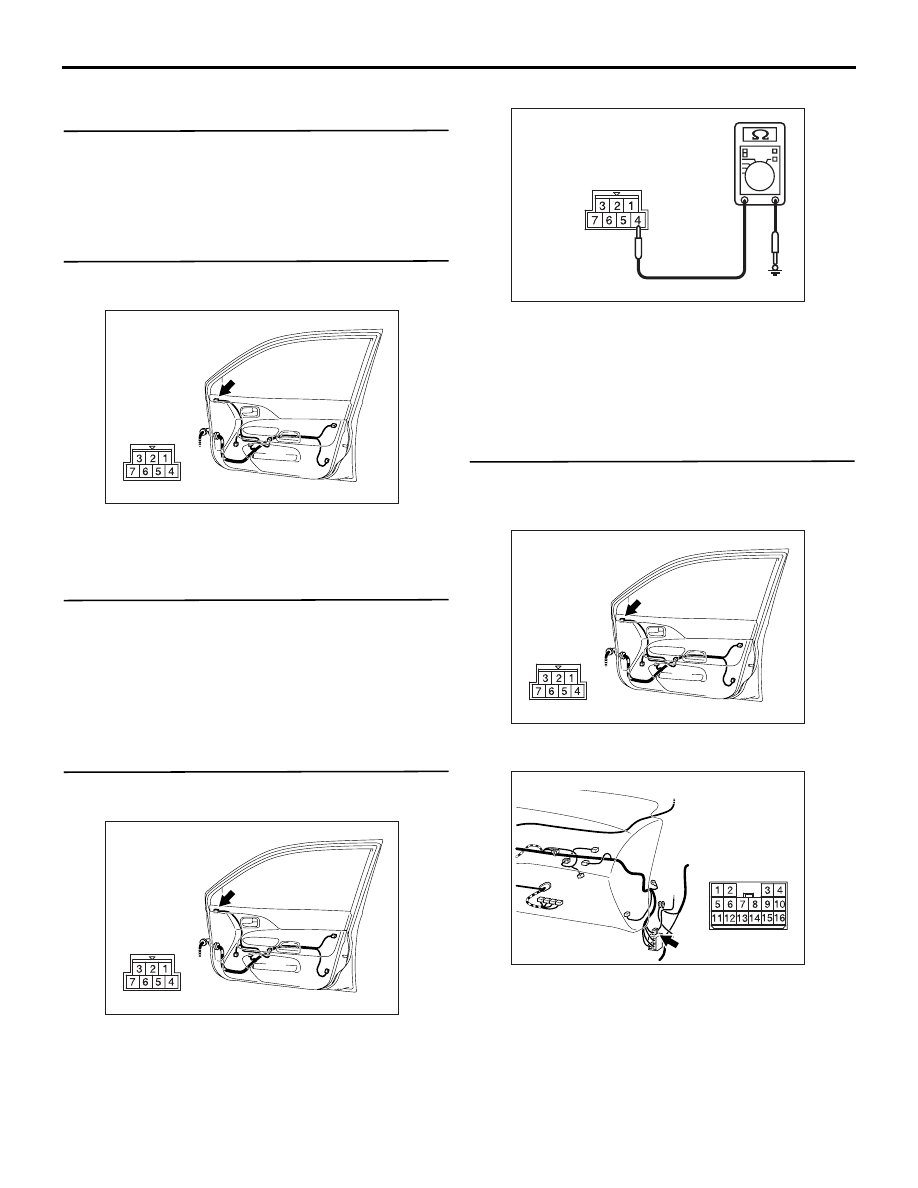

STEP 13. Connector check: C-212 junction block
connector

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-212

Harness side

AB

Junction block (Front view)

Q: Is the check result normal?

YES :

Go to Step 14.

NO :

Repair the defective connector.

STEP 14. Measure the voltage at the E-02 door
mirror assembly (LH) connector.
(1) Turn the ignition switch to the ON position.
(2) Rear window defogger switch: ON

AC304818

Connector: E-02

Harness side

AB

(3) Disconnect the connector, and measure at the

wiring harness side.

AC304828

Connector E-02

(harness side)

AB

(4) Voltage between E-02 door mirror assembly

connector terminal No.1 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Go to Step 15.

STEP 15. Check the wiring harness between E-02
door mirror assembly (LH) connector terminal
No.1 and C-212 junction block connector
terminal No.3.

AC304818

Connector: E-02

Harness side

AB

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-212

Harness side

AB

Junction block (Front view)

• Check the power supply line for open circuit.

NOTE:

AC304820

Connector: C-29

AB

Prior to the wiring harness inspection, check interme-
diate connector C-29 <LHD>, C-113 <RHD> and
repair if necessary.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the wiring harness.
