Mitsubishi Lancer. Manual - part 245





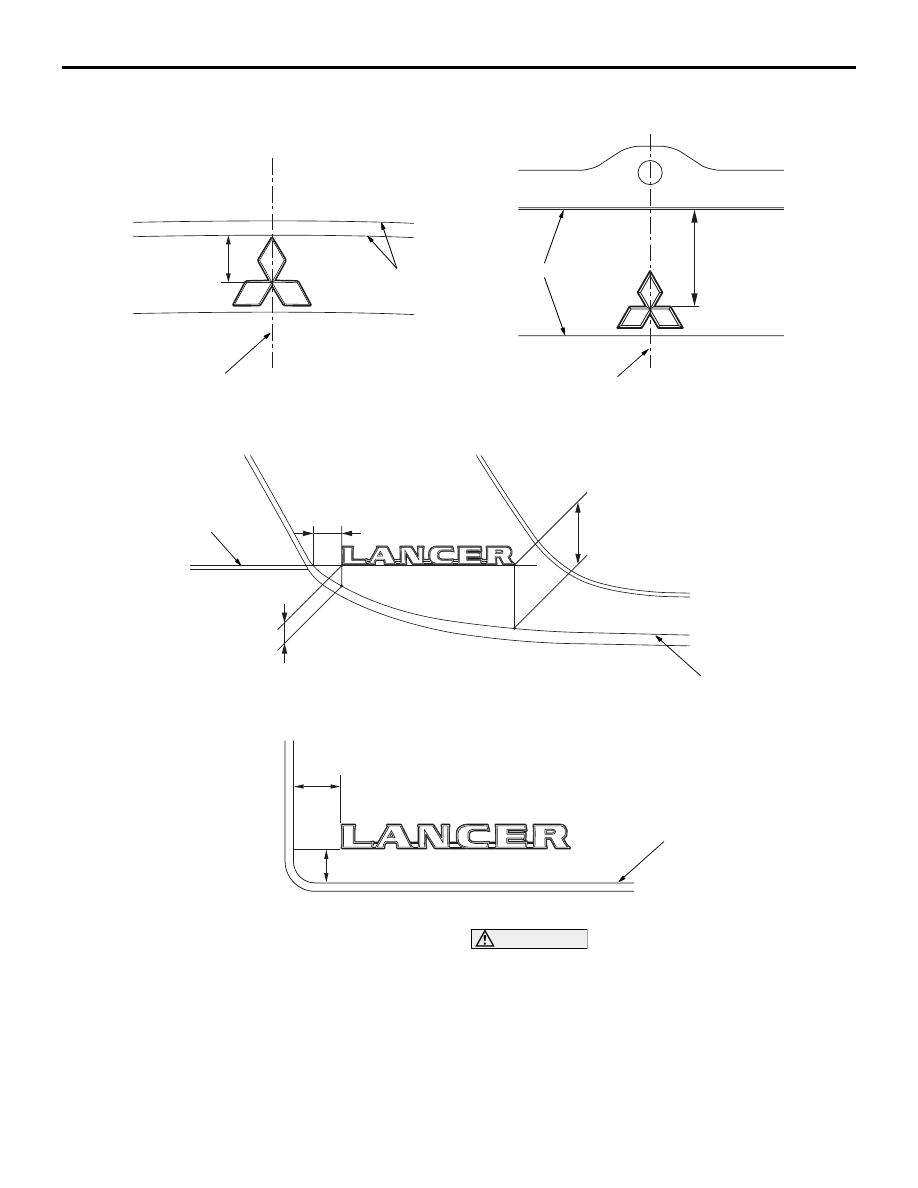

AC304163

<Sedan>

2. Three-diamond mark

<Wagon>

Centre line

of vehicle

Centre line

of vehicle

Trunk lid

press line

Press line

112 mm

53 ± 1 mm

AC

AC304164

<Sedan>

3. Lancer mark

Rear combination

lamp terminal

Trunk lid terminal

Tailgate terminal

33 mm

24 mm

45 ± 1 mm

13 ± 1 mm

19 ± 1 mm

<Wagon>

AB

MARK

EXTERIOR

51-42

2. Installation procedure

(1) Use 3M ATD Part number 8906 or equivalent

to clean the mark installation surfaces on the
body.

CAUTION

When attaching the marks, the ambient tempera-
ture should be 20

 38° C and the air should be

completely free of dust. If the ambient tempera-
ture is lower than 20

° C, the marks and the places

on the vehicle body where the marks are to be
attached should be heated to 20

 38° C.

(2) Peel off the protection sheet on the back of the

marks to paste it on the installation position.

DOOR MIRROR

EXTERIOR

51-43

DOOR MIRROR

GENERAL INFORMATION

M1511000100536

DOOR MIRROR OPERATION

Remote Controlled Mirror Operation

• The mirror on the door mirror moves up/down

and left/right by operating the remote controlled
door mirror switch when the ignition switch is in
the "ON" or "ACC" position.

Heated Door Mirror operation

• The defogger relay switch is activated (ON) by

turning on the A/C-ECU built-in defogger switch
when the ignition switch is in the "ON" position.
When the defogger relay is turned ON, power is
supplied to the defogger and door mirror, and the
heater of the door mirror (heated door mirror)
starts operations. The defogger comes with a
timer function and will automatically turn OFF the
switch approximately 11 minutes after the defog-
ger switch is turned ON. The heated door mirror
operations are also terminated along with the
defogger, at this time.

SERVICE SPECIFICATION

M1511000300347

Item

Standard value

Heated door mirror operation current

5.9

− 7.8

SPECIAL TOOL

M1511000601103

Tool

Number

Name

Use

MB990784

MB990784

Ornament remover

Removal of remote controlled
mirror switch

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1511014600169

Refer to GROUP 00

− How to Use Troubleshoot-

ing/Inspection Service Points

P.00-5

.

TROUBLE SYMPTOM CHART

M1511015000160

Symptom

Inspection
procedure

Reference
page

All heated door mirrors do not operate

1

P.51-44

The right or left heated door mirror does not operate

2

P.51-45

DOOR MIRROR

EXTERIOR

51-44

SYMPTOM PROCEDURES

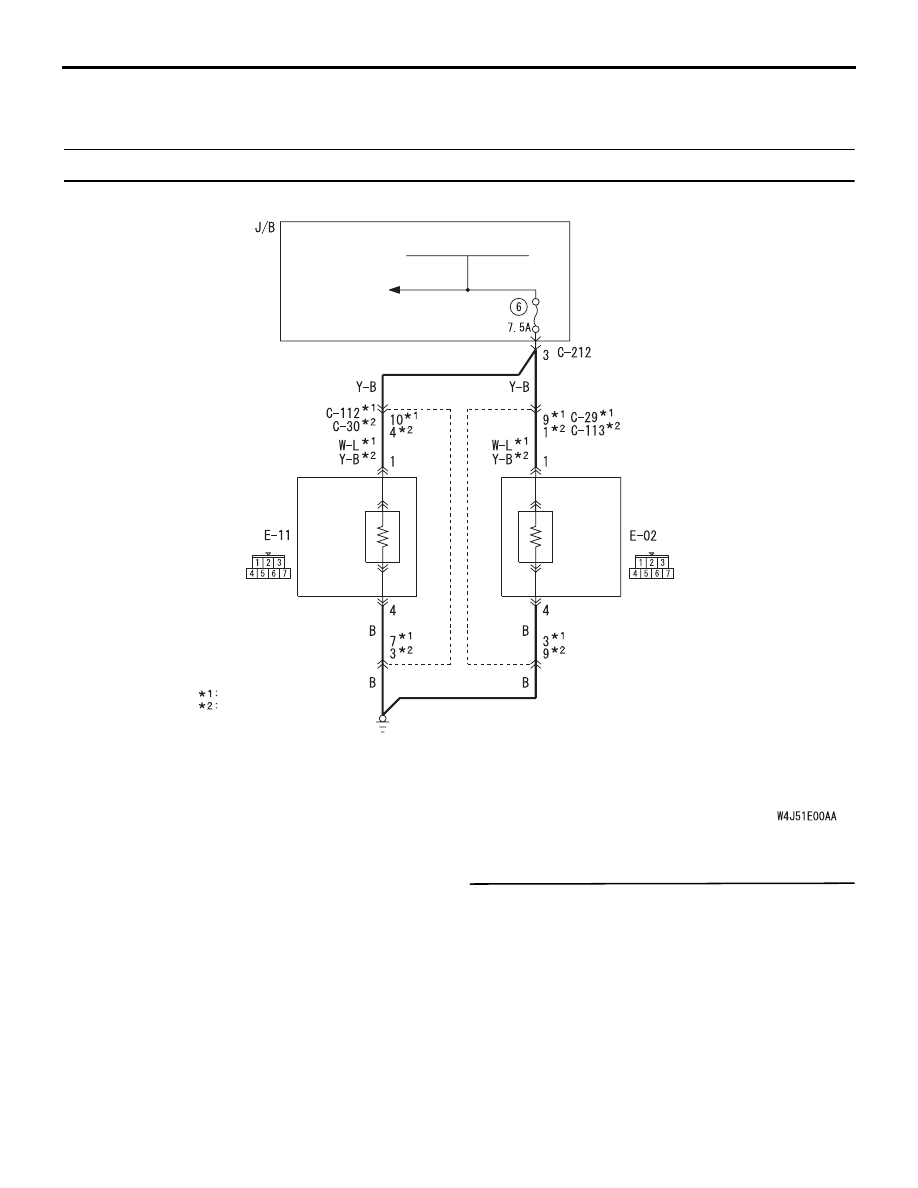

Inspection Procedure 1: All Heated Door Mirrors do not Operate

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

REAR WINDOW
DEFOGGER RELAY

REAR WINDOW
DEFOGGER

REMOTE
CONTROLLED
MIRROR (LH)

REMOTE
CONTROLLED
MIRROR (RH)

MIRROR
HEATER

MIRROR
HEATER

NOTE

LH drive vehicles
RH drive vehicles

COMMENTS ON TROUBLE SYMPTOM

The heated door mirrors should works for approxi-
mately 11 minutes when the rear defogger switch is
turned on. If the mirror heater does not work for the
specified period, the defogger relay circuit (heated
door mirror power supply circuit) may be defective.

PROBABLE CAUSE

• Damaged harness wire and connector

DIAGNOSIS PROCEDURE

STEP 1. Check the rear window defogger.
Check that the rear window defogger system should
work normally.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Troubleshoot the rear window defogger
(Refer to GROUP 55,
Troubleshooting

P.55B-54

).

DOOR MIRROR

EXTERIOR

51-45

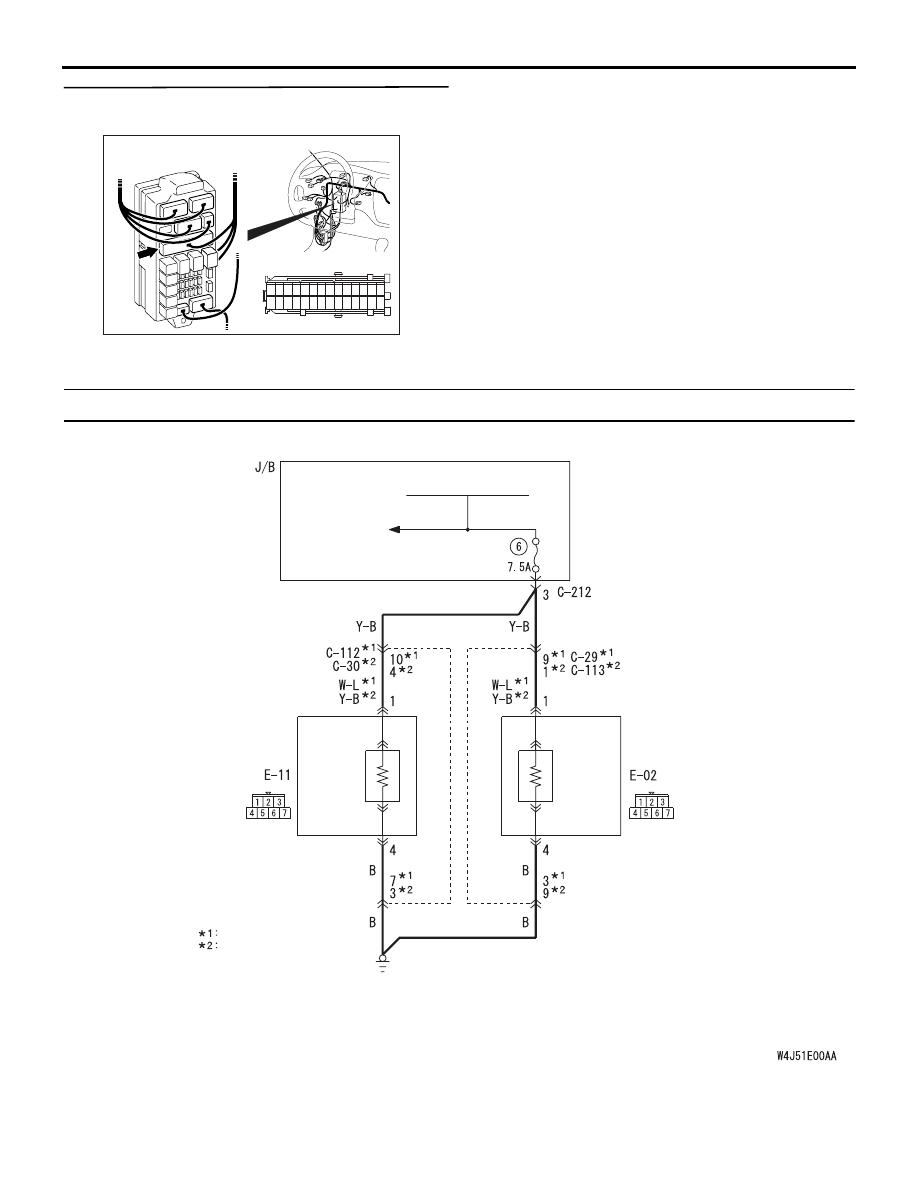

STEP 2. Connector check: C-212 junction block
connector

AC304913

21

7

16 15

17

18

20 19

1

2

3

4

5

6

23 22

24

25

28

26

27

9

8

10

11

14

12

13

Connector: C-212

Harness side

AB

Junction block (Front view)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Cope with Intermittent

Malfunction

P.00-5

).

NO :

Repair the defective connector.

Inspection Procedure 2: Right or Left Heated Door Mirror does not Operate

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

REAR WINDOW
DEFOGGER RELAY

REAR WINDOW
DEFOGGER

REMOTE
CONTROLLED
MIRROR (LH)

REMOTE
CONTROLLED
MIRROR (RH)

MIRROR
HEATER

MIRROR
HEATER

NOTE

LH drive vehicles
RH drive vehicles

COMMENTS ON TROUBLE SYMPTOM

If either of the heated door mirrors does not work, the
door mirror assembly may be defective.

PROBABLE CAUSES

• Malfunction of the door mirror assembly

• Damaged harness wires and connectors
