Windshield washer

nozzle perpendicular

Windshield washer

nozzle perpendicular

Windshield washer nozzle

<Right>

<Left>

Ceramic line terminal

UNITS: mm

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-34

WINDSHIELD WIPER AND WINDSHIELD
WASHER SWITCH CHECK

1

6

8

11

10

9

7

5

4

3

2

AC000417

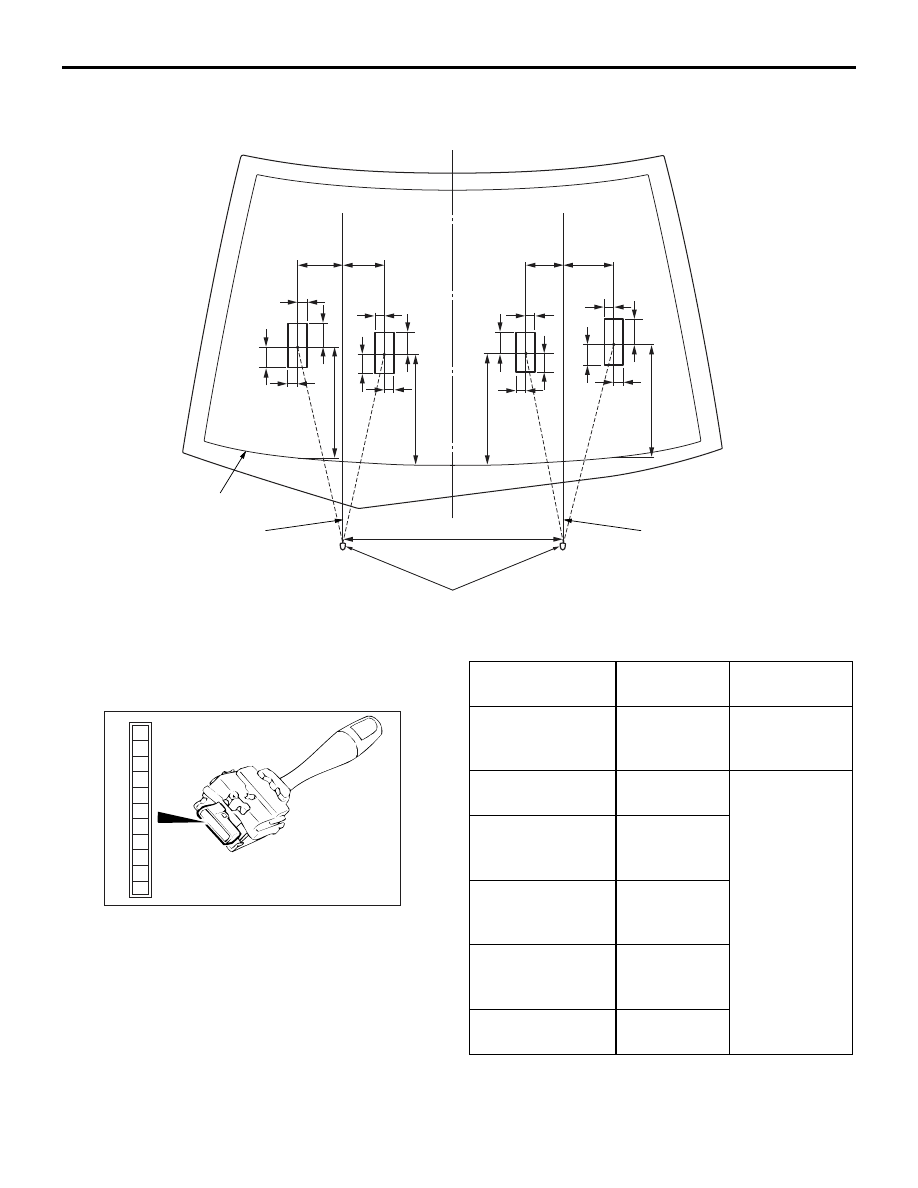

Check continuity between the switch terminals.

Switch position

Tester
connection

Specified
condition

OFF

6

− 11, 6 − 10,

6

− 9, 6 − 8, 6 −

7

Open circuit

Windshield mist
wiper switch

6

− 11

Less than 2
ohms

Windshield
intermittent wiper
switch

6

− 10

Windshield
low-speed wiper
switch

6

− 9

Windshield
high-speed wiper
switch

6

− 8

Windshield
washer switch

6

− 7

REAR WIPER AND WASHER <Wagon>

EXTERIOR

51-35

WINDSHIELD INTERMITTENT WIPER
VOLUME CHECK

1

6

8

11

10

9

7

5

4

3

2

AC201004

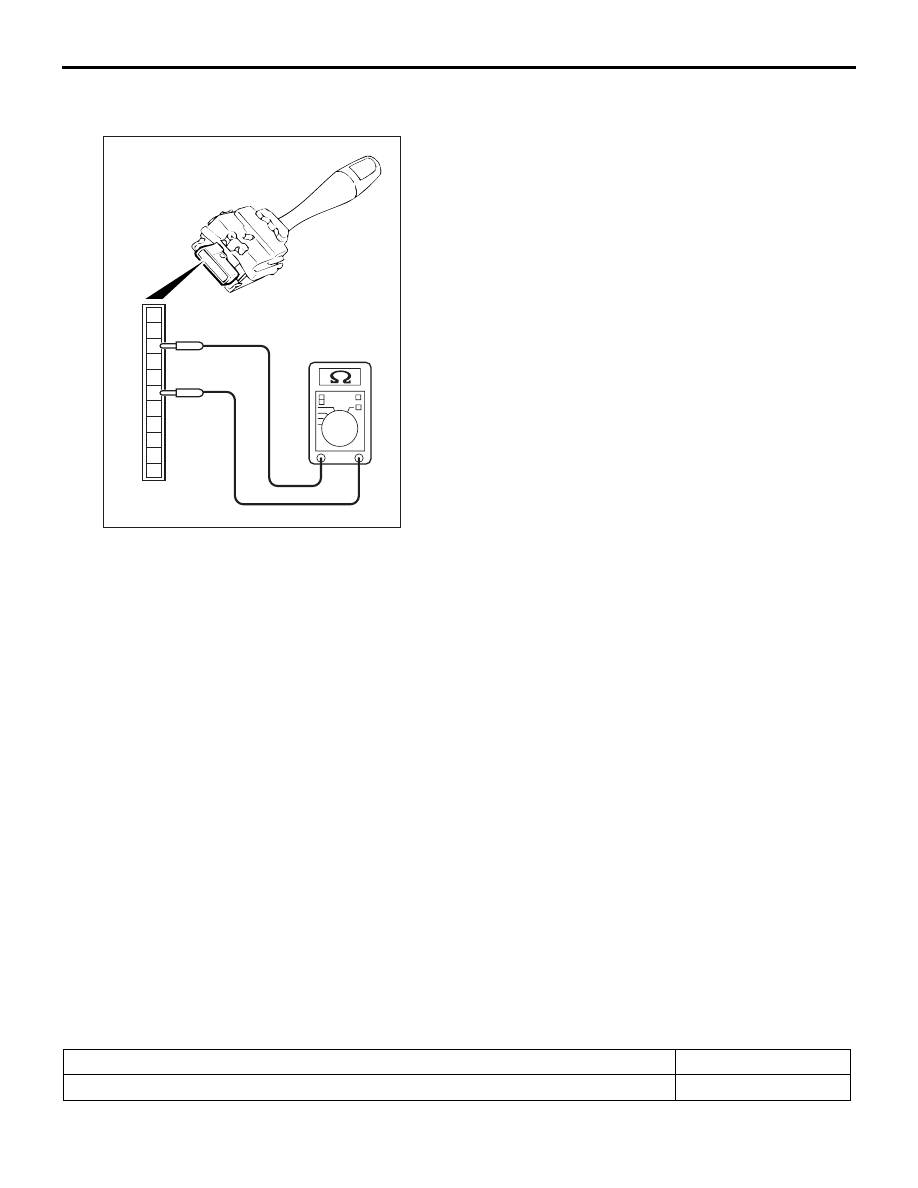

Check that the resistance varies between 0 and 1 k

Ω

when the windshield intermittent volume is turned
from FAST to SLOW by after measuring resistance
between connector terminals 3 and 6 at the column
switch.

REAR WIPER AND WASHER <Wagon>

GENERAL INFORMATION

M1511000100525

REAR WIPER AND WASHER OPERATION
Rear Wiper Operation

• If the rear wiper and washer switch is turned to

"INT" position with the ignition switch at "ACC" or
"ON" position, the ETACS-ECU turns ON the rear
wiper drive signal for three seconds (approxi-
mately two cycles), then 7.4 seconds later the
intermittent motion operates every eight seconds.
If the selector lever is moved to the "R" position
when the rear wiper and washer switch is turned
to the "INT" position and the ignition switch is at
the "ACC" or "ON" position, the inhibitor switch

"R" turns ON. One second later, the ETACS-ECU
turns ON the rear wiper drive signal for three sec-
onds (approximately two cycles). Then, 7.4 sec-
onds later, the intermittent motion of eight
seconds' cycle is restored.

Rear Washer Operation

• If the rear wiper and washer switch is turned to

the ON (washer) position with the ignition switch
at the "ACC" or "ON" position, the rear washer
ON signal is sent to the ETACS-ECU, causing the
rear wiper signal to turn on after 0.3 second. After
the rear washer switch signal turns off, the rear
wiper signal turns off in three seconds. If the rear
washer switch is turned to the ON position while
the rear wiper is in intermittent mode, the rear
washer works for that period when the washer
switch remains on. Then the rear wipers return to
the intermittent mode.

SERVICE SPECIFICATION

M1511000300336

Item

Standard value

Rear wiper blade park position mm

42

± 5

REAR WIPER AND WASHER <Wagon>

EXTERIOR

51-36

TROUBLESHOOTING

M1511000700334

The rear wiper and washer are controlled by the
Smart Wiring System (SWS). For troubleshooting,
refer to GROUP 54B, Troubleshooting

P.54B-15

 or

GROUP 54C, Troubleshooting

P.54C-4

.

ON-VEHICLE SERVICE

M1511000800472

CHECK OF REAR WIPER OPERATION
WHEN SELECTOR LEVER IS AT THE "R"
POSITION

1. When the selector lever is moved to the "R"

position with the rear wiper switch at the "INT"
position, the wiper should operate twice or three
times at low speed after approximately one
second.

2. If not, carry out the troubleshooting (Refer to

GROUP 54B, Troubleshooting

P.54B-15

 or

GROUP 54C, Troubleshooting

P.54C-4

).

REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

M1511008500345

AC304515

2.5 ± 0.4 N·m

9.8 ± 2.0 N·m

7.4 ± 1.4 N·m

3

2

1

4

5

AB

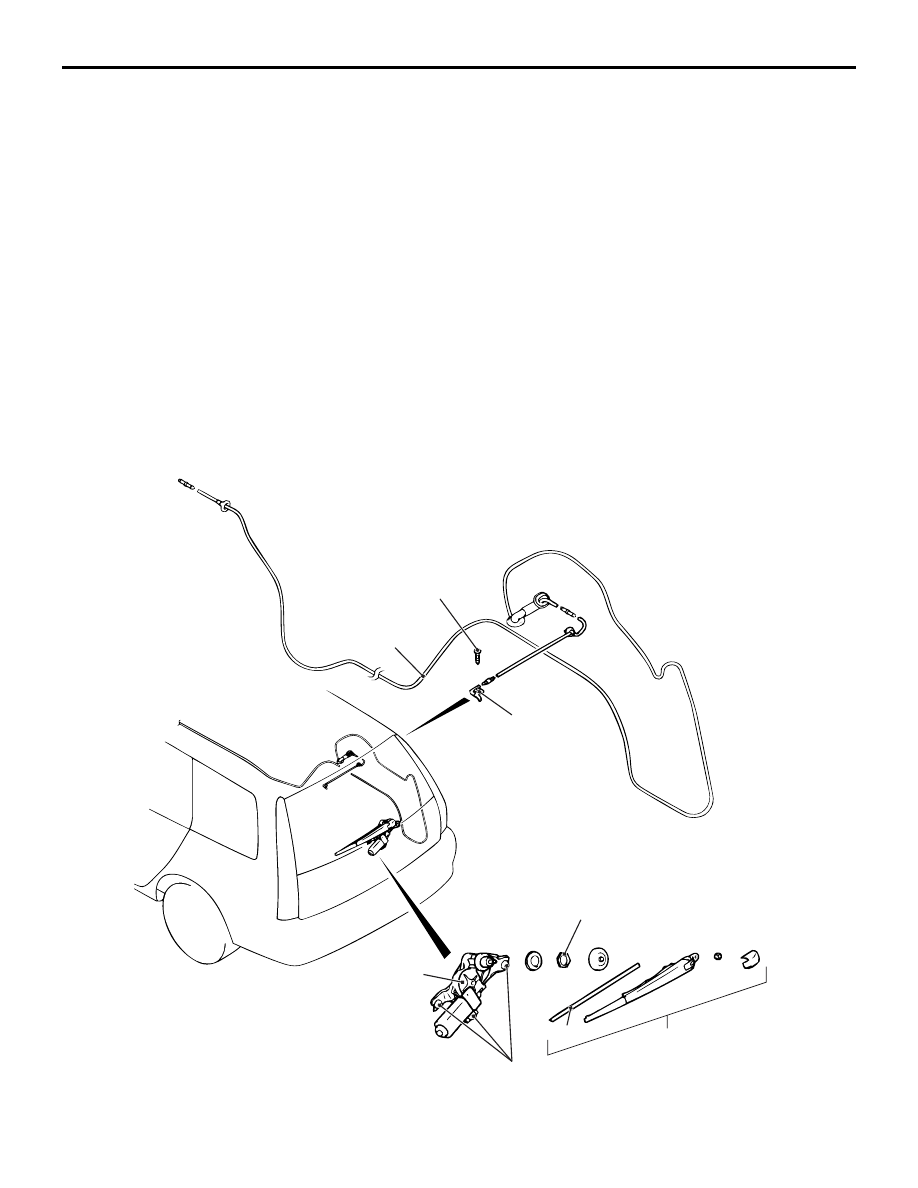

Wiper blade assembly removal steps

>>

A

<< 1. Wiper arm and blade assembly

>>

B

<< 2. Wiper blade

Rear wiper motor removal steps
• Tailgate trim lower (Refer to GROUP

52A, Tailgate trim

P.52A-21

.)

• Tailgate waterproof film (Refer to

GROUP 42, Tailgate

P.42-48

.)

3. Rear wiper motor assembly
Rear washer nozzle removal steps
• High-mounted stop lamp assembly

(Refer to GROUP 54A, High-mounted
stop lamp

P.54A-84

.)

4. Rear washer nozzle
Washer hose removal steps
• Front scuff plate, rear scuff plate, cowl

side trim and quarter trim (Refer to
GROUP 52A, Trims

P.52A-13

.)

• Tailgate lower trim, tailgate proof film

(Refer to GROUP 52A, Tailgate trim

P.52A-21

.)

• High-mounted stop lamp assembly

(Refer to GROUP 54A, High-mounted
stop lamp

P.54A-84

.)

5. Rear washer hose

REAR WIPER AND WASHER <Wagon>

EXTERIOR

51-37

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-89

.

INSTALLATION SERVICE POINTS

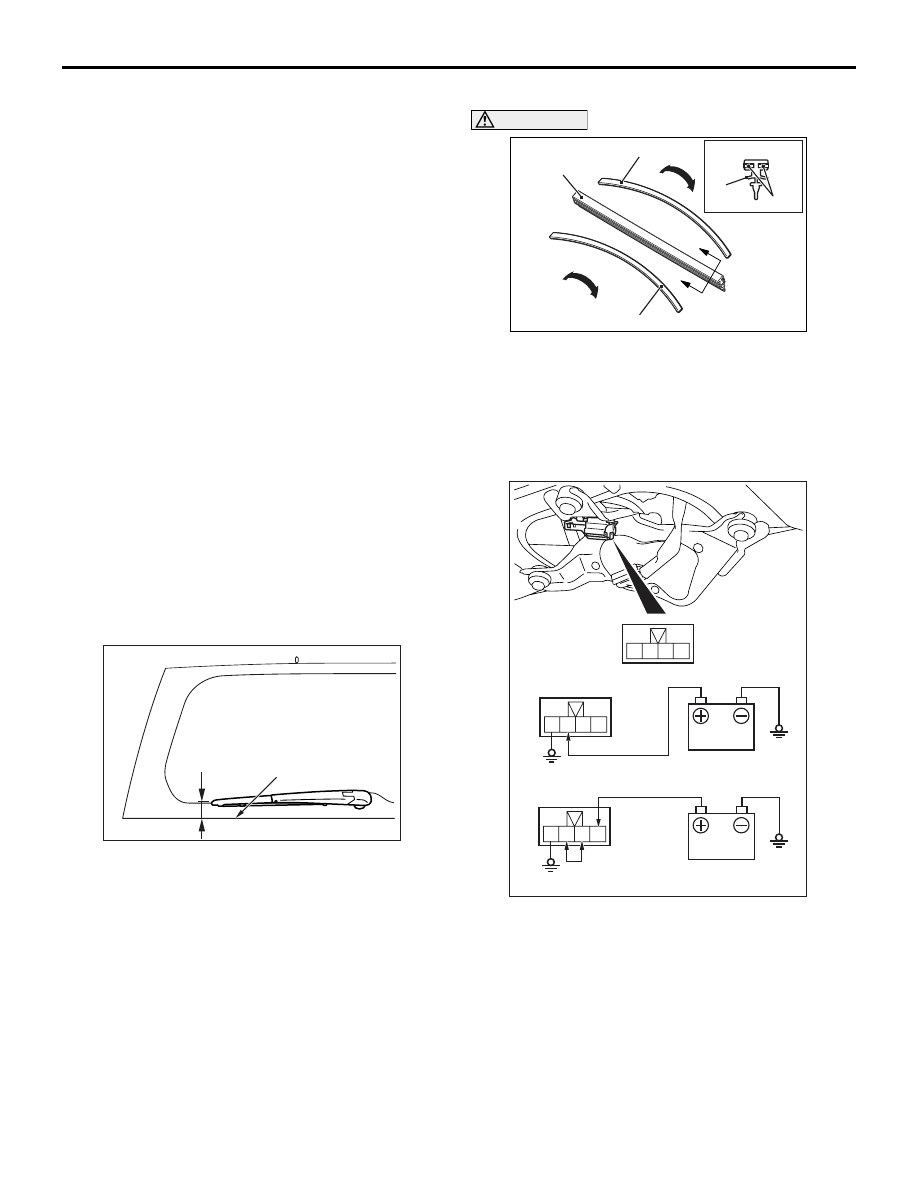

>>A<< REAR WIPER ARM AND BLADE
ASSEMBLY INSTALLATION

AC304536

A

AC

End of tailgate glass

Before installing the rear wiper arm and blade
assembly, operate the rear wiper motor so that the
motor stops at the predetermined park position.
Install the rear wipe arm and blade assembly and
adjust the rear wiper blade position so that the blade
end stops at the predetermined position (standard
position).

Standard value (A): 42

± 5 mm

>>B<< WIPER BLADE INSTALLATION

AC101090

AD

Wiper blade

Backing

Backing

A

A

Section A – A

Wiper
blade

Backing

CAUTION

Use a curved backing like that shown for the
backing of a wiper blade to ensure sustained
wiper wiping performance.

INSPECTION

M1511008600193

REAR WIPER MOTOR CHECK

AB304538

1 2 3 4

1 2 3 4

1 2 3 4

AB

(A) Operation check

(B) Stop position check

Inspect the rear wiper motor is conducted by remov-
ing the harness connector with the motor attached to
the vehicle.

Wiper Motor Operation

Connect the battery to the rear wiper motor as shown
in the illustration (A) and check the motor operation.

Wiper Motor at Stop Position Operation

1. Connect the battery to the rear wiper motor as

shown in the illustration (A).
