MB991529

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-30

TROUBLESHOOTING

M1511000700323

The windshield wiper and washer are controlled by
the Smart Wiring System (SWS). For troubleshoot-
ing, refer to GROUP 54B, Troubleshooting

P.54B-15



or GROUP 54C, Troubleshooting

P.54C-4

.

NOTE: Even when the ETACS-ECU has failed, the
windshield wiper can work at low speed as fail-safe
mode. (Normally, the windshield wiper operates
when the ignition switch is at the "ACC" position. But,
if it enters the fail-safe mode, the wiper can operate
only when the ignition switch is at the "ON" position.)

ON-VEHICLE SERVICE

M1511000800461

WINDSHIELD INTERMITTENT WIPER
INSPECTION

1. If the windshield intermittent wiper interval

adjusting knob is operated, the wiper interval
should change.

2. Holding the windshield intermittent wiper interval

adjusting knob, input the simulated vehicle speed
with M.U.T.-II / III and check that the wiper interval
changes as the vehicle speed changes.

3. If not, carry out the troubleshooting (Refer to

GROUP 54B, Troubleshooting

P.54B-15

 or

GROUP 54C, Troubleshooting

P.54C-4

).

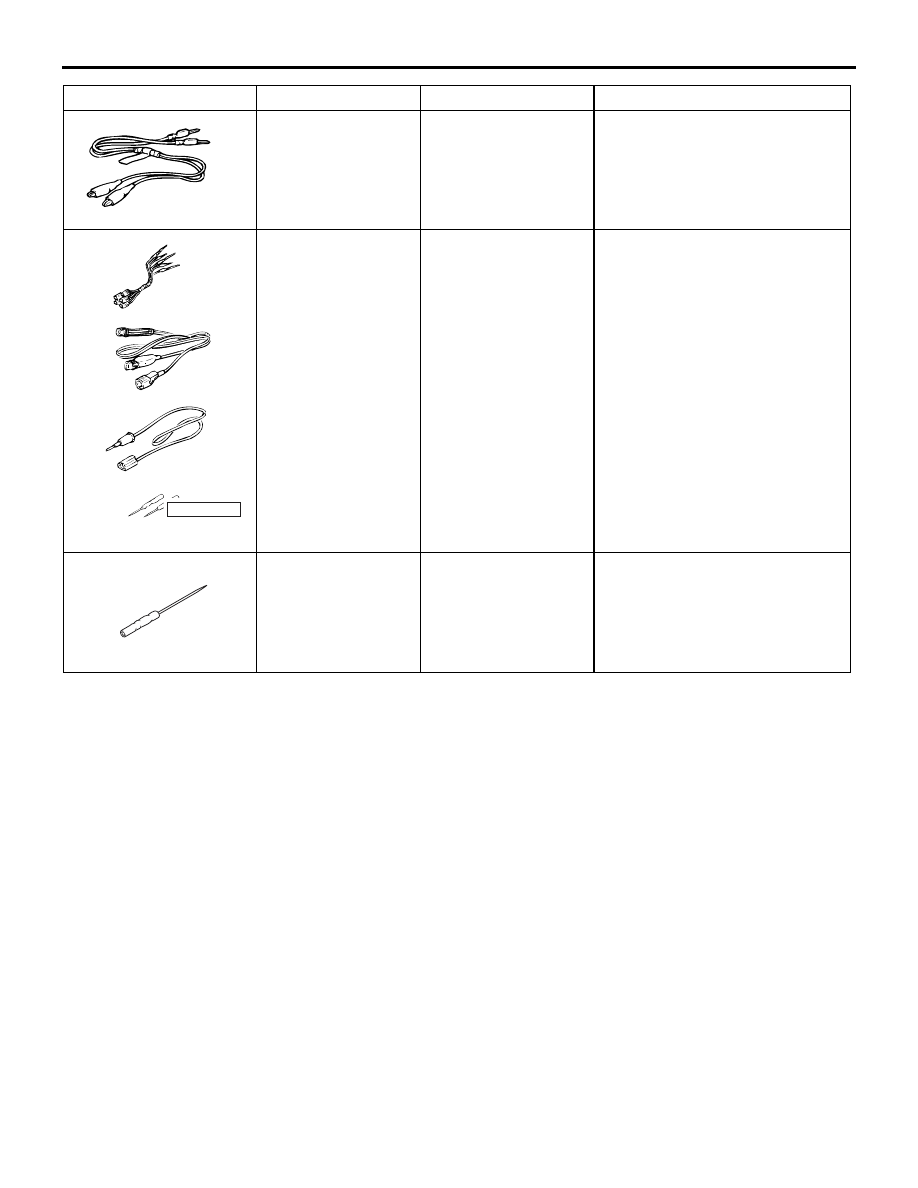

MB991529

Diagnosis code check
harness

Input signal check by using a
voltmeter

MB991223

a

d

c

b

DO NOT USE

BA

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Check harness
b. LED harness
c. LED harness

adapter

d. Probe

Continuity check and voltage
measurement at harness wire or
connector

a. For checking connector pin

contact pressure

b. For checking power supply

circuit

c. For checking power supply

circuit

d. For connecting a locally

sourced tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

Number

Name

Use

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-31

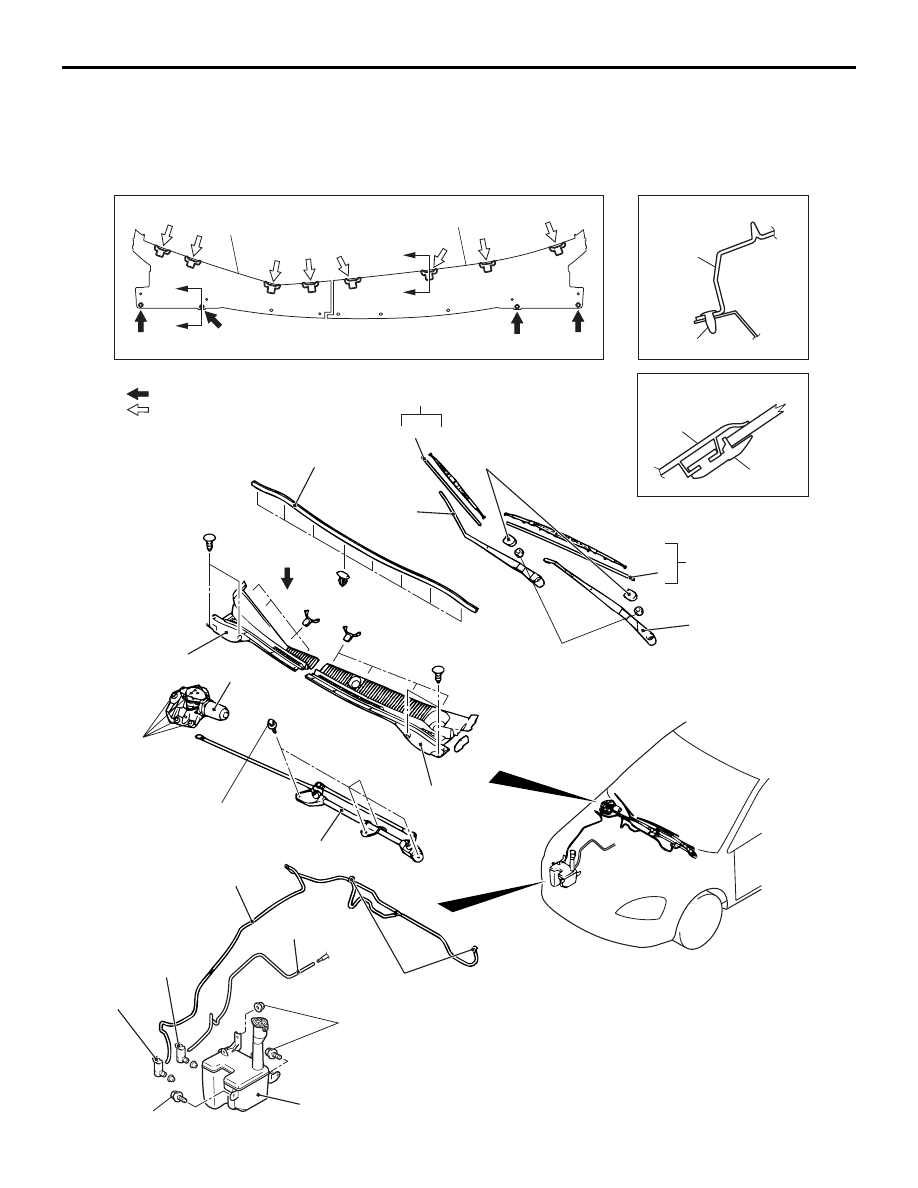

WINDSHIELD WIPER AND WASHER

REMOVAL AND INSTALLATION

M1511007600350

Y0597AU

Y0616AU

Y0599AU

AC304408 AB

Section B – B

Section A – A

View A

A

A

A

B

B

Clip A

Clip B

6, 7

6, 7

6

7

3

2

5

6

7

8

9

10

11

11

12

13

14

27 ± 3 N·m

8.9 ± 1.9 N·m

11 ± 2 N·m

Note
         : Clip A positions
         : Clip B positions

11 ± 2 N·m

7.4 ± 1.4 N·m

2

1

1

4

4

Wiper blade assembly removal steps

>>

B

<< 1. Wiper blade assembly

>>

A

<< 2. Wiper blade

Windshield wiper motor and link
assembly removal steps
3. Cover
4. Wiper arm
5. Hood weather strip
6. Front deck garnish (passenger's side)
7. Front deck garnish (driver's side)

<<

A

>>

8. Windshield wiper motor assembly
9. Link assembly
Washer hose removal steps
• Front splash shield (Refer to GROUP

42, Fender

P.42-6

)

10. Rear washer hose <Wagon>
11. Front washer hose
Windshield washer nozzle removal
steps
• Connection of front washer hose

11. Washer nozzle
Washer tank and washer motor
removal steps
• Side undercover (RH)
• Front splash shield (Refer to GROUP

42, Fender

P.42-6

)

• Connection of front washer hose and

rear washer hose

12. Washer tank assembly
13. Front washer motor
14. Rear washer motor <Wagon>

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-32

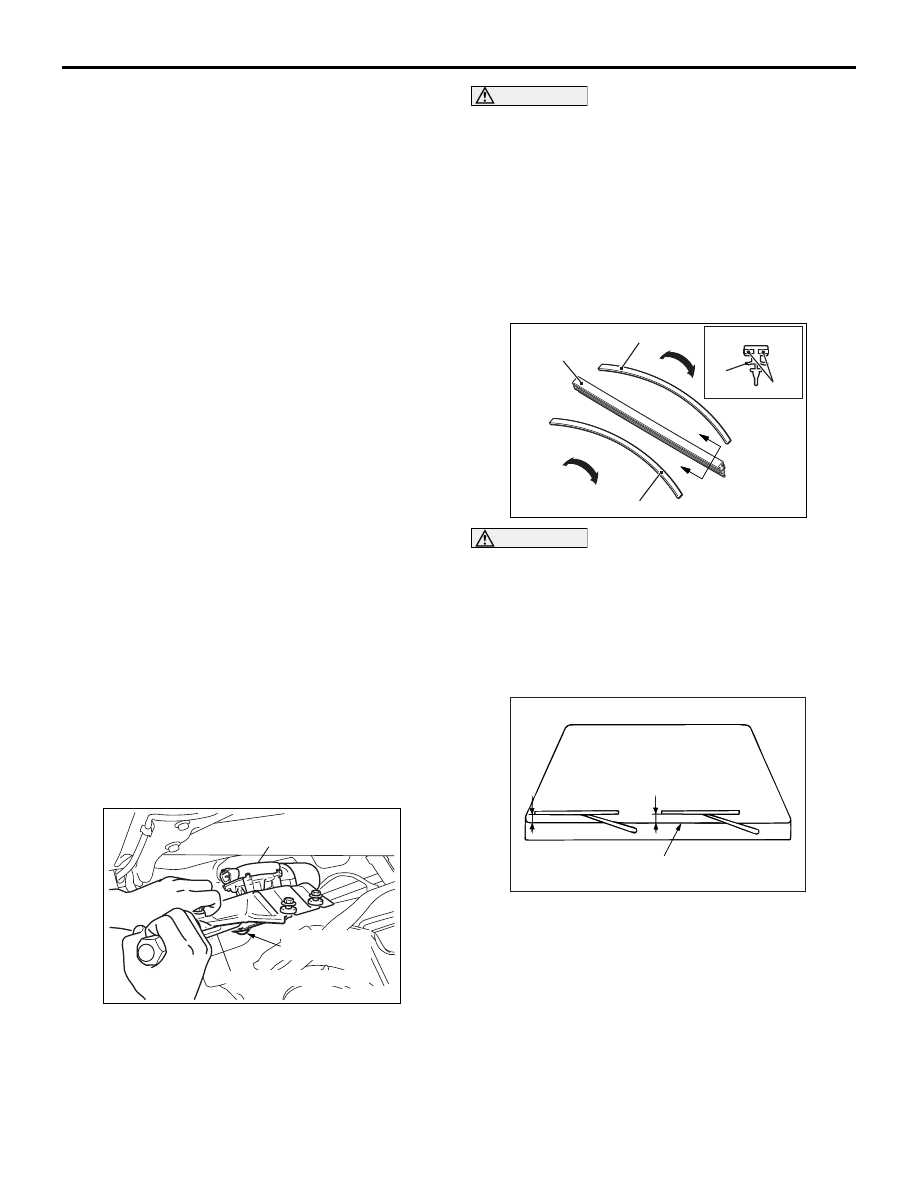

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-89

.

REMOVAL SERVICE POINT
<<A>> WINDSHIELD WIPER MOTOR
ASSEMBLY REMOVAL

AC304411 AB

Windshield wiper
motor assembly

Link assembly
connection

Flat-tipped screwdriver

1. Remove the windshield wiper motor assembly

mounting bolt.

CAUTION

Be careful not to damage the windshield glass
when the windshield wiper motor assembly is
removed.
2. Use the flat-tipped screwdriver to disengage the

link between the windshield wiper motor assembly
and the link assembly to remove the windshield
wiper motor assembly.

INSTALLATION SERVICE POINTS
>>A<< WIPER BLADE INSTALLATION

AC101090

AD

Wiper blade

Backing

Backing

A

A

Section A – A

Wiper
blade

Backing

CAUTION

The driver's side wiper blade is not warped.
When installing the passenger's wiper blade, check
that the backing inside the wiper blade is warped
toward the wiper arm.

>>B<< WIPER BLADE ASSEMBLY
INSTALLATION

AC000427

A

A

Front deck garnish terminal

AD

Install the wiper blade at the specified position
(standard value).

Standard value (A): 34

± 5 mm

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-33

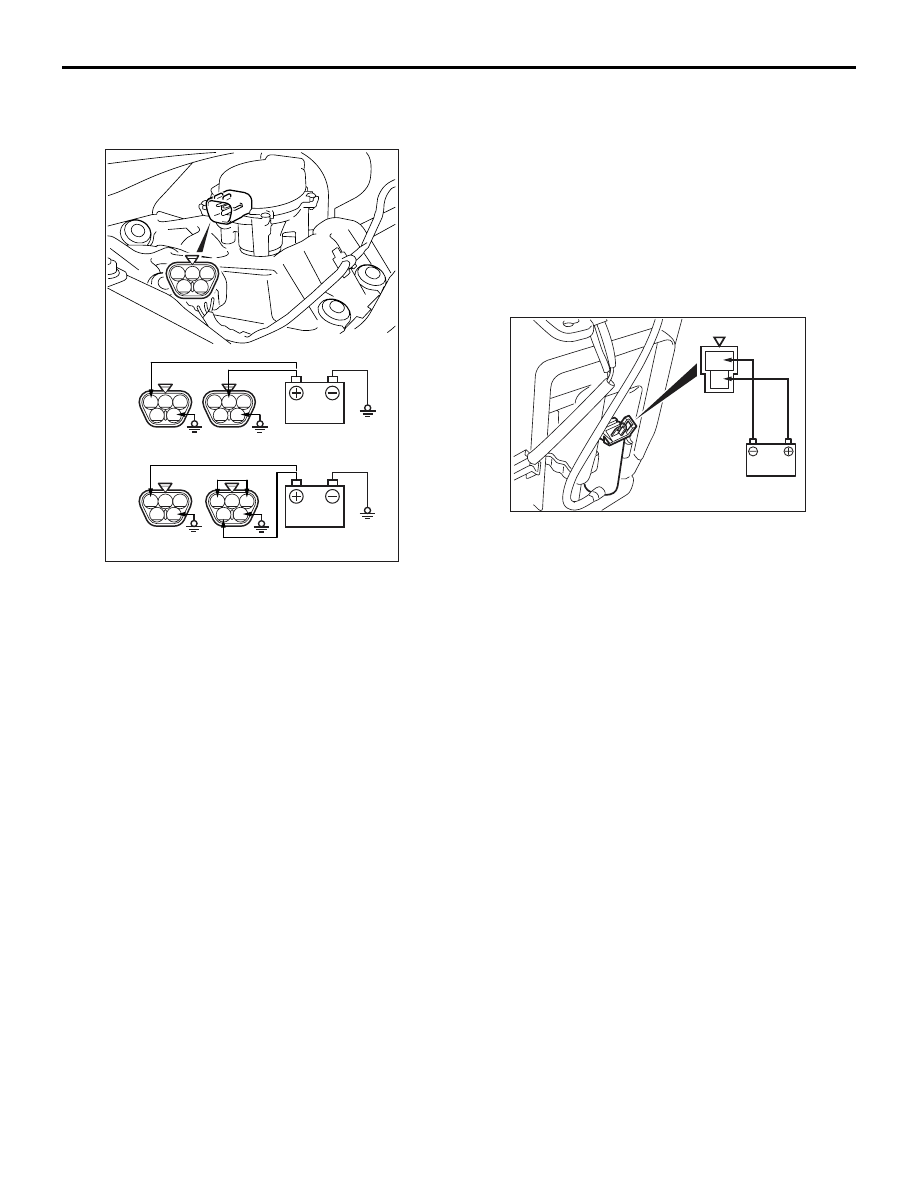

INSPECTION

M1511007700313

FRONT WIPER MOTOR CHECK

1

4

2

3

5

1

4

2

3

5

1

4

2

3

5

1

4

2

3

5

AC305201

1

4

2

3

5

Check operation

Low speed

High speed

(A) Low speed

(B) Automatical stop

Stop position check

AB

Inspect the windshield wiper motor by removing the
harness connector with the motor attached to the
vehicle.

Wiper Motor at Low-Speed and
High-Speed Operation

Connect the battery to the windshield wiper motor to
inspect the operation of motor rotation in low or high
speed.

Wiper Motor at Stop Position Operation

1. Connect the battery to the windshield wiper motor

to rotate the motor in a low speed as shown in the
illustration (A) and disconnect the battery during
rotation to stop the motor.

2. Connect between the terminals and the battery as

shown in the illustration (B) and confirm whether
the motor stops at the automatic stop position
after rotating in a low speed.

FRONT WASHER MOTOR CHECK

1

2

AC005891

1. Remove the washer tank assembly with the

washer hose attached. Then fill the washer tank
with water.

2. Check to see that the water is vigorously spray is

when connecting the positive battery terminal to
terminal number 2 and terminal number 1 to the
negative battery terminal.

WINDSHIELD WASHER FLUID EJECTION
CHECK

Move the nozzle to adjust the position so that the
spray is in area shown in the area shown in the illus-
tration.
