Mitsubishi Lancer. Manual - part 241





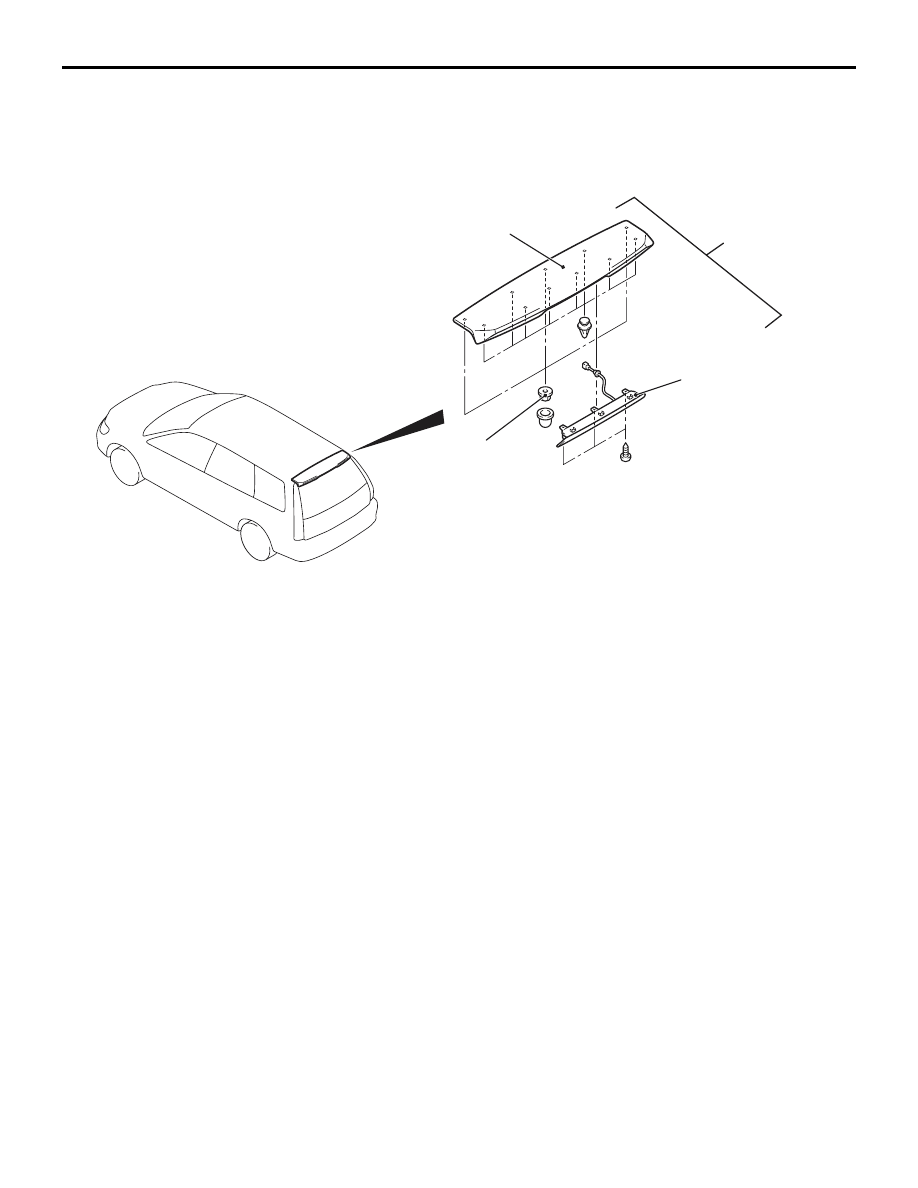

TAILGATE SPOILER <Wagon>

EXTERIOR

51-26

TAILGATE SPOILER <Wagon>

REMOVAL AND INSTALLATION

M1511019900068

AC303721

1

2

3

AB

5.2 ± 1.0 N·m

Tailgate spoiler removal steps
• Tailgate trim upper (Refer to GROUP

52A, Tailgate trim

P.52A-21

.)

• High-mounted stop lamp connector

connection

• Rear washer hose connection

1. Tailgate spoiler assembly
2. High-mounted stop lamp assembly
3. Tailgate spoiler

Tailgate spoiler removal steps

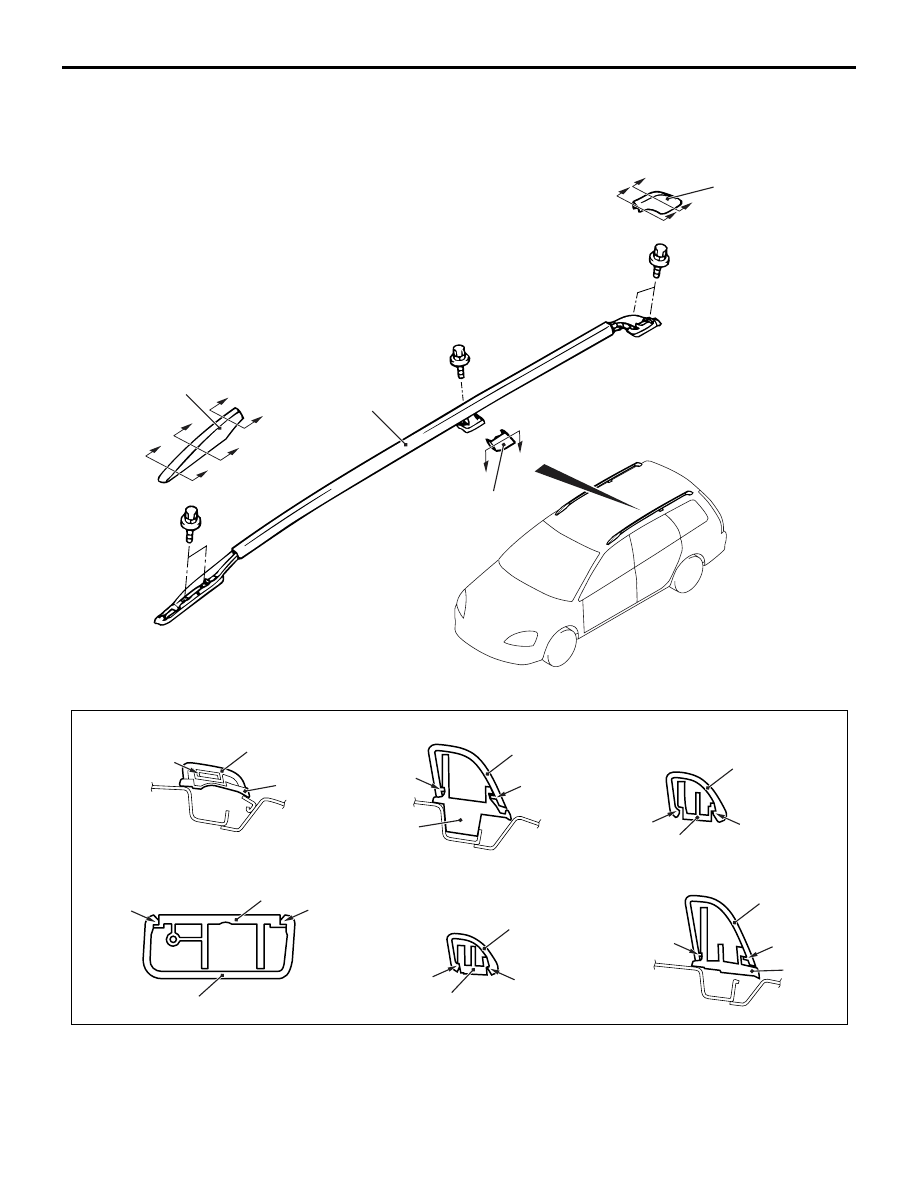

ROOF RAIL <Wagon>

EXTERIOR

51-27

ROOF RAIL <Wagon>

REMOVAL AND INSTALLATION

M1511016600187

AC303725

1

4

2

3

AB

A

A

A

B

C

C

B

D

D

E

F

E

F

AC303828

Section A – A

Section B – B

Section C – C

Section D – D

Section E – E

Section F – F

1

4

4

1

1

4

3

3

4

4

2

4

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Claw

Claw

AB

Removal steps
1. Front roof rail cover
2. Centre roof rail cover

3. Rear roof rail cover
4. Roof rail

Removal steps (Continued)

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-28

WINDSHIELD WIPER AND WASHER

GENERAL INFORMATION

M1511000100514

WINDSHIELD WIPER AND WASHER
OPERATION
Windshield Low-speed (and High-speed)
Wiper Operation

• If the windshield low-speed wiper switch is turned

to the ON position with the ignition switch at the
"ACC" or "ON" position, the column switch sends
a low-speed wiper ON and high-speed wiper OFF
signals to the front-ECU. This turns the wiper sig-
nal on and the wiper speed control relay off
(low-speed), causing the wipers to operate at
low-speed.

• If the windshield high-speed wiper switch is

turned to the ON position, the column switch
sends a low-speed wiper OFF and high-speed
wiper ON signals to the front-ECU. This turns
both the wiper signal and the wiper speed control
relay on (high-speed), causing the wipers to
operate at high-speed.

NOTE: The windshield wiper speed is switchable
with the built-in wiper speed control relay.
High-speed operations take place when the wiper
speed control relay is set to "ON" and low-speed
operations take place when the wiper speed control
relay is set to "OFF".

Windshield Intermittent Wiper Operation

The ETACS-ECU calculates the wiper operation
interval according to the voltage signal sent from the
column switch. Then the ETACS-ECU sends a signal
to the front-ECU. The front-ECU determines the
wiper operation interval and turns on the wiper relay
signal relay. This causes the wiper auto stop relay to
turn on. Then the wiper auto stop relay will turn off
after the wipers reach the park position. This causes
the wiper signal relay and then the wipers to turn off.
If the wiper signal relay remains off for the wiper
operation interval, the relay turns on again, causing
the wipers to operate in intermittent mode.

Windshield Mist Wiper Operation

• If the windshield mist wiper switch is turned to the

ON position with the ignition switch at the "ACC"
or "ON" position, the mist wiper high-speed oper-
ation signal is sent to the front-ECU. This signal
turns on the wiper speed control relay, causing
the wipers to work at high-speed while the mist
switch is on.

• While the windshield mist wiper switch remains

turned on when the intermittent mode is still work-
ing, the wipers work as the mist wiper. However,
the wipers return to the intermittent mode again
when the switch is changed back to "INT" posi-
tion.

• To prevent the windshield mist wiper from operat-

ing when the windshield wiper switch is turned
OFF, the windshield mist wiper does not work for
0.5 second after the windshield intermittent wiper
switch, the windshield low-speed wiper switch
and the windshield high-speed wiper switch are
turned OFF.

Windshield Washer Operation

• If the windshield washer switch is turned to ON

position with the ignition switch at "ACC" or "ON"
position, the windshield washer ON signal is sent
to the front-ECU. After 0.3 second, the windshield
wiper signal turns on. After the windshield washer
switch signal turns off, the windshield wiper signal
turns off in three seconds.

• If the windshield washer switch is turned on while

the windshield wiper is at intermittent mode,
when the windshield washer switch is turned OFF
within 0.2 second, the wiper works only once to
perform mist operation by the windshield washer
switch. When the ON condition of the windshield
washer switch continues more than 0.2 second,
the wiper performs the same movement as nor-
mal condition from the time when 0.2 second has
elapsed and then returns to the intermittent
motion.

SERVICE SPECIFICATION

M1511000300325

Item

Standard value

Windshield wiper blade park position mm

34

± 5

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-29

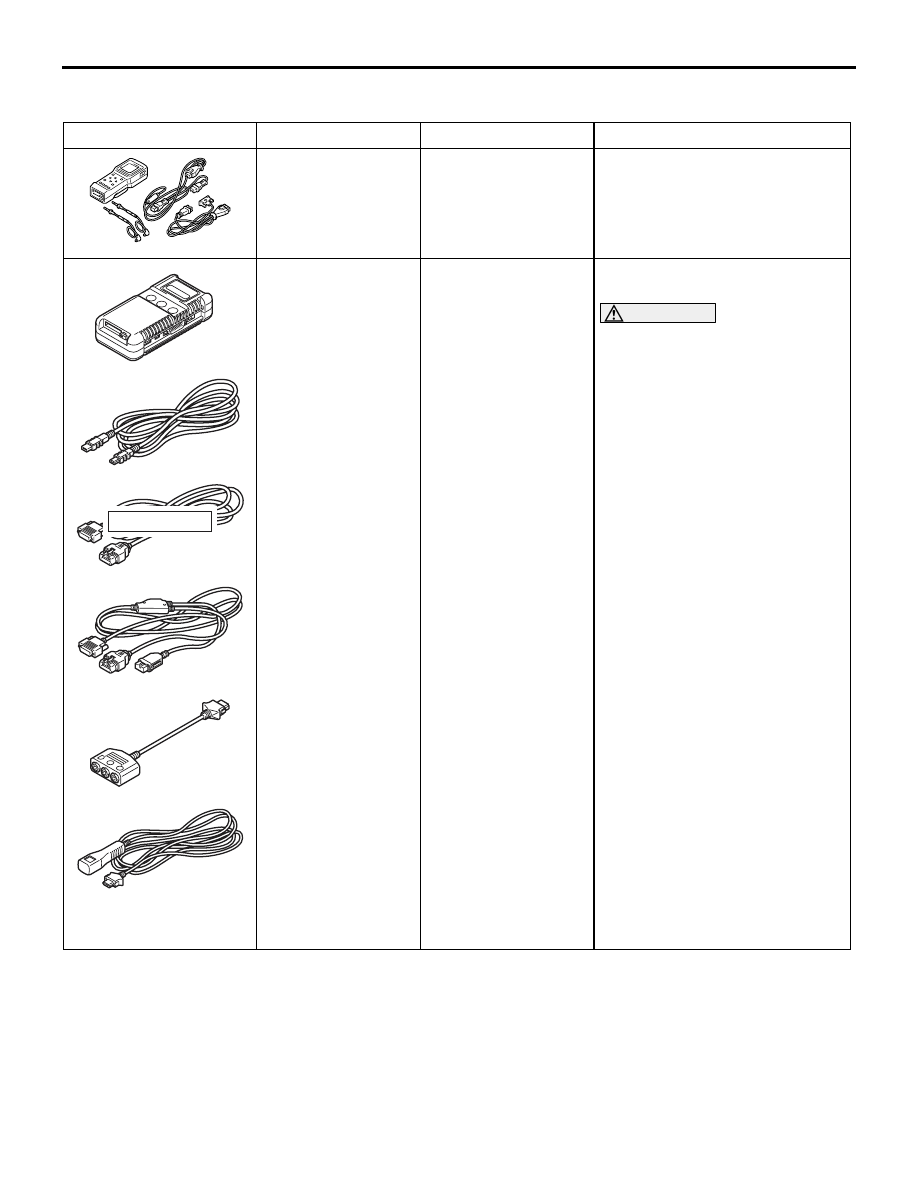

SPECIAL TOOLS

M1511000601783

Tool

Number

Name

Use

B991502

MB991502

M.U.T.-II sub
assembly

Check the windshield intermittent
wiper interval

MB991910

MB991826

MB991955

MB991911

MB991824

MB991827

MB991825

A

B

C

D

E

F

DO NOT USE

MB991955

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991825
F: MB991826

M.U.T.-III
sub-assembly

A: Vehicle

Communication
Interface (V. C. I.)

B: M.U.T.-III USB

cable

C: M.U.T.-III main

harness A
(Vehicles with CAN
communication
system)

D: M.U.T.-III main

harness B
(Vehicles without
CAN
communication
system)

E: M.U.T.-III

measurement
adapter

F: M.U.T.-III trigger

harness

Check the windshield intermittent
wiper interval

CAUTION

M.U.T.-III main harness B
(MB991911) should be used.
M.U.T.-III main harness A
should not be used for this
vehicle.
