DOOR SASH TAPE

EXTERIOR

51-18

INSTALLATION SERVICE POINT
>>A<< DOOR SASH TAPES INSTALLA-
TION

CAUTION

• The ambient temperature should be 20 to

30

° C. Ensure that the working area is clean.

Ideally, the tape application should be done at
ambient temperature of 25

° C.

• If ambient temperature is less than 15° C, heat

the tape and application surface to a tempera-
ture of 20 to 30

° C. If ambient temperature is

35

° C or higher, cool down them. The adhe-

sive property of the tape is deteriorated at low
temperature, so the tape may come adrift eas-
ily. Meanwhile, it gets softened at hot temper-
ature.

• When beginning to apply the tape, pay partic-

ular attention. If the end of the tape cannot be
applied to the specified position with an accu-
racy of less than 1 mm, it may cause the poor
appearance or adhesion.

•

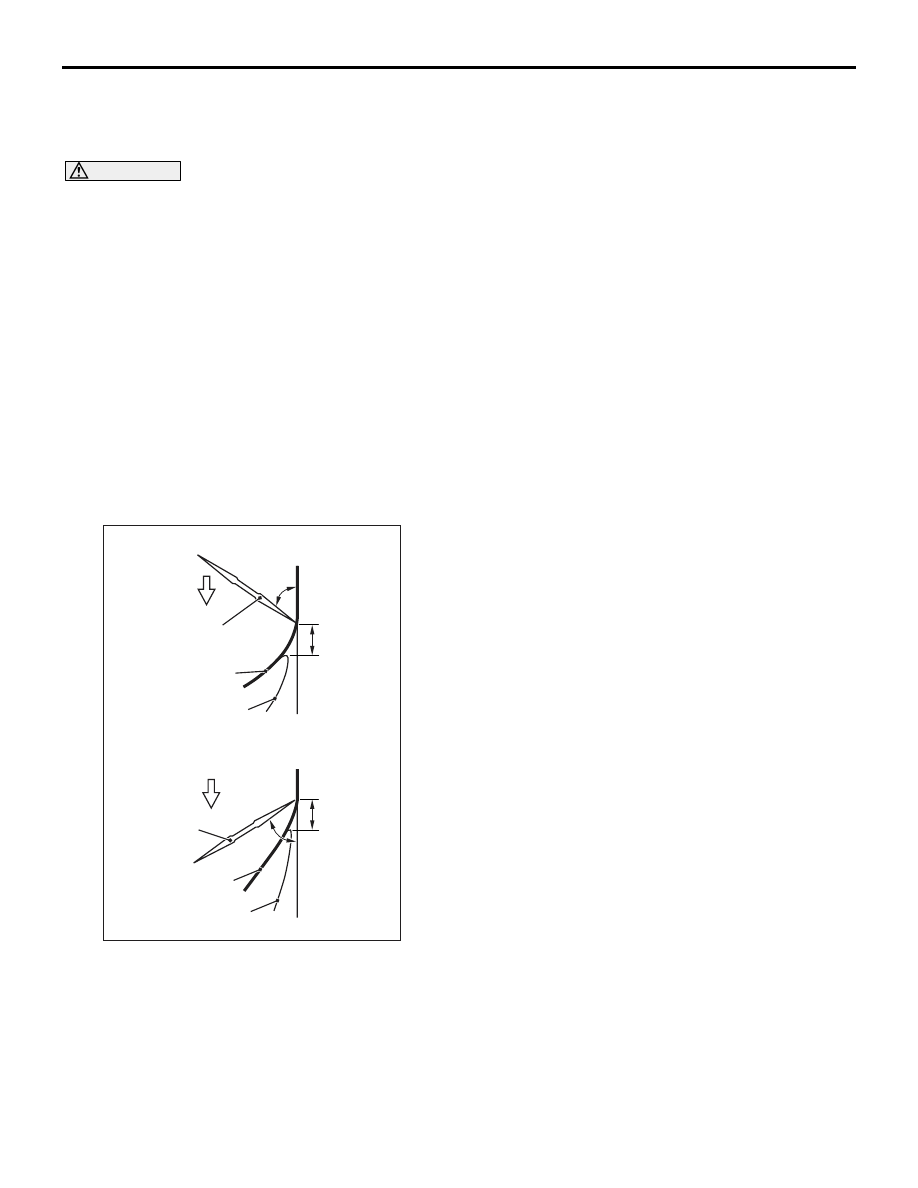

AC303428

40 to 50˚

30 to 45˚

10 to 20 mm

10 to 20 mm

AB

MB990528

MB990528

Door sash tape

Door sash tape

Backing paper

Backing paper

<Pushing direction>

<Pulling direction>

3 to 7 cm/sec.

3 to 7 cm/sec.

Use the special tool stripe tape spatula

(MB990528) to apply the tape with a steady
pace and pressure. If you do not apply the
tape with a steady pace or pressure, or abort
the application, a shallow groove (lateral
groove called as "Shock line") may be
present on the tape surface. Meanwhile, if you
apply it too quickly, air bubbles may be
formed under the tape.

1. Wrap a soft cloth (synthetic fibre) around the tip of

the special tool.

2. Use isopropyl alcohol to degrease the tape

application surface.

3. Wipe away dirt from the tape.

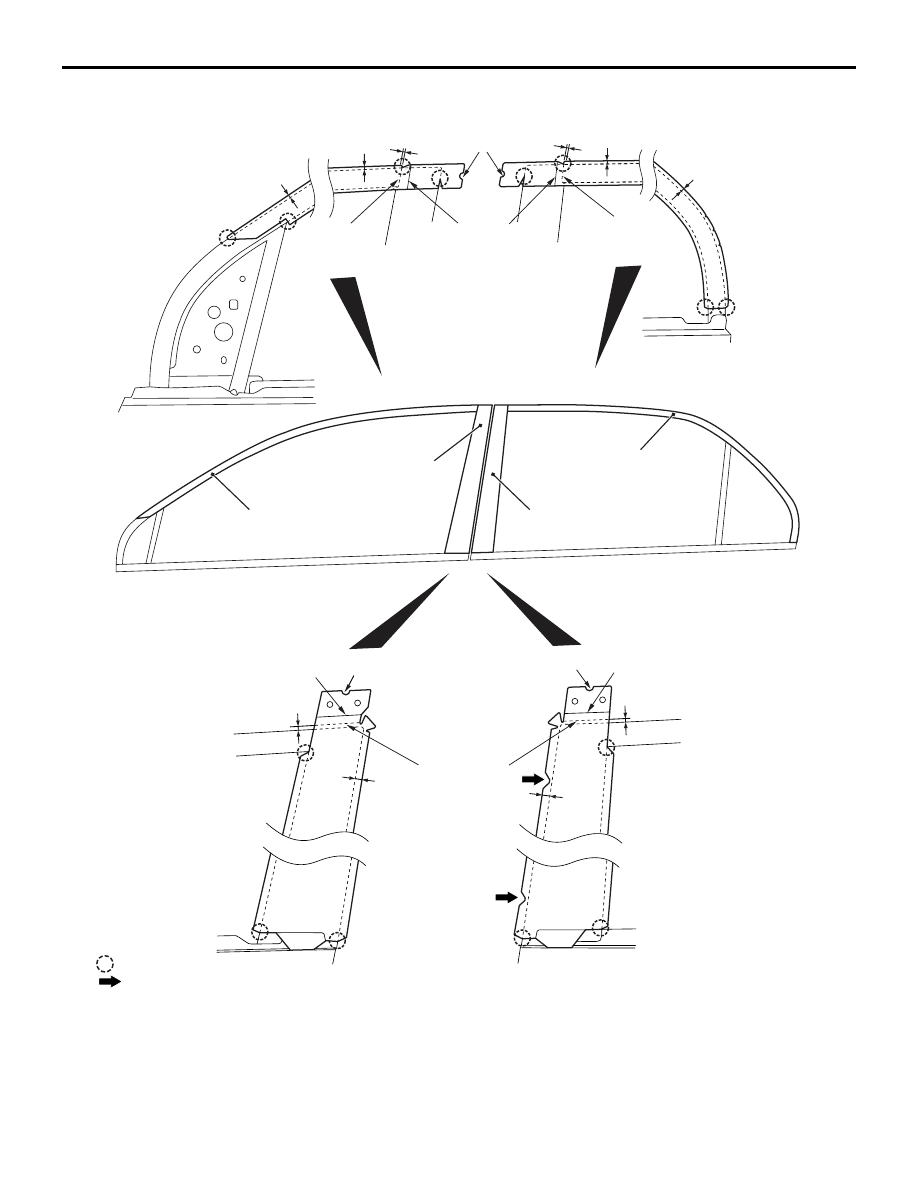

AC403580AD

3.5 mm

3.5 mm

5.0
mm

7.0
mm

3.5 mm

3.5 mm

3.5 mm

Tape overlap:
3.0 mm

Tape overlap:
3.0 mm

3.5 mm

RH only

RH only

RH only

Backing paper
cut-line

Tape perforate-
line

Tape perforate-
line

Backing paper
cut-line

Backing paper
cut-line

: Tape locating points

: T-stud for door opening weatherstrip attaching locations (5 pieces in all).

Tape perforate-
line

Front door sash
tape upper

Rear door sash
tape front

Rear door sash
tape upper

Front door sash
tape rear

DOOR SASH TAPE

EXTERIOR

51-19

4. Apply the door sash tapes according to the

procedures shown below.
(1) Align a tape with specified application position.

If necessary, use a magnet to secure it.

NOTE:

.

•

Align the front door sash tape upper at the
rear end.

•

Align the rear door sash tape upper at the
front end.

•

Align the front door sash tape rear/rear
door sash tape front at the upper end.

DOOR SASH TAPE

EXTERIOR

51-20

(2) As for the front/rear door sash tape upper, peel

off the backing paper under the tape by the
backing paper cut-line and apply the tape
temporarily.

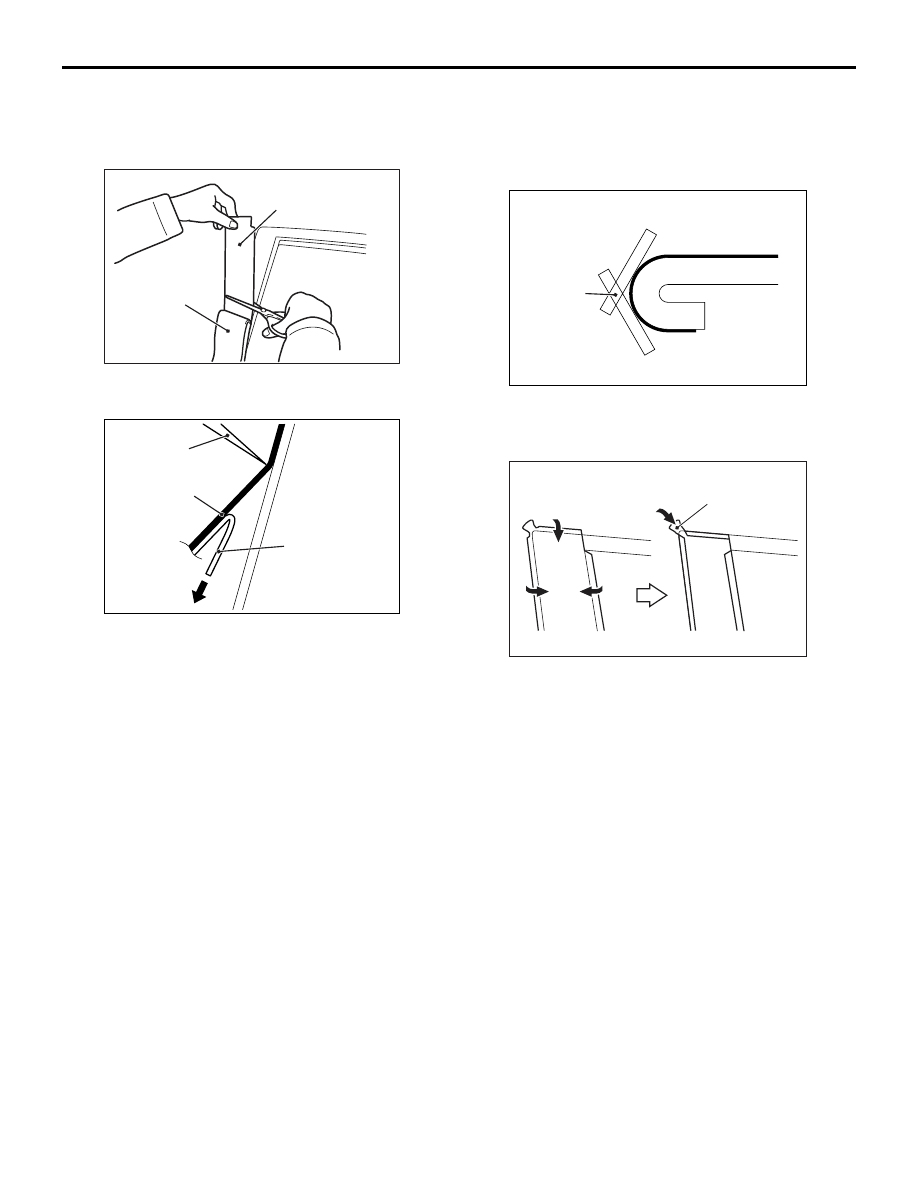

AC303110AB

Backing paper

Door sash tape

(3) Peel off the backing paper and cut it as

necessary.

AC402197

AD

MB990528

Backing paper

Door sash
tape

(4) While peeling off the remaining backing paper,

press the tape by a special tool (MB990528).

NOTE:

.

•

Apply the front door sash tape upper from
rear to front.

•

Apply the rear door sash tape upper from
front to rear.

•

Apply the front door sash tape rear/rear
door sash tape front from top to bottom.

(5) As for the front door sash tape rear/rear door

sash tape front, peel off the application tape in
the direction of 180

°  from bottom to top.

(6) Remove unnecessary part of the tape at tape

perforate-line.

AC303415

AB

MB990528

120˚

60˚

Hemming part

(7) Press the folded area of the tape at 3 steps

securely(60

° , 120°  and holding), rolling in

toward the vehicle inside direction.

AC303443AE

A section

Tape pasting onto corner
(viewed from inside)

(8) As for the front door sash tape rear/rear door

sash tape front, roll in the A section of the tape
upper corner toward the vehicle inside with
your palm securely.

DOOR SASH TAPE

EXTERIOR

51-21

REMOVAL AND INSTALLATION <Wagon>

M1511024100303

Pre-removal and Post-installation Operation
• Door Trim Assembly Removal and Installation (Refer to

GROUP 52A

P.52A-17

).

• Door Beltline Weatherstrip Inner Removal and Installation

(Refer to GROUP 42

P.42-39

).

• Door Opening Weatherstrip Outer Removal and Installa-

tion (Refer to GROUP 42

P.42-39

).

• Door Window Glass Runchannel Removal and Installation

(Refer to GROUP 42

P.42-39

).

• Door Beltline Moulding Removal and Installation (Refer to

GROUP 42

P.42-39

).

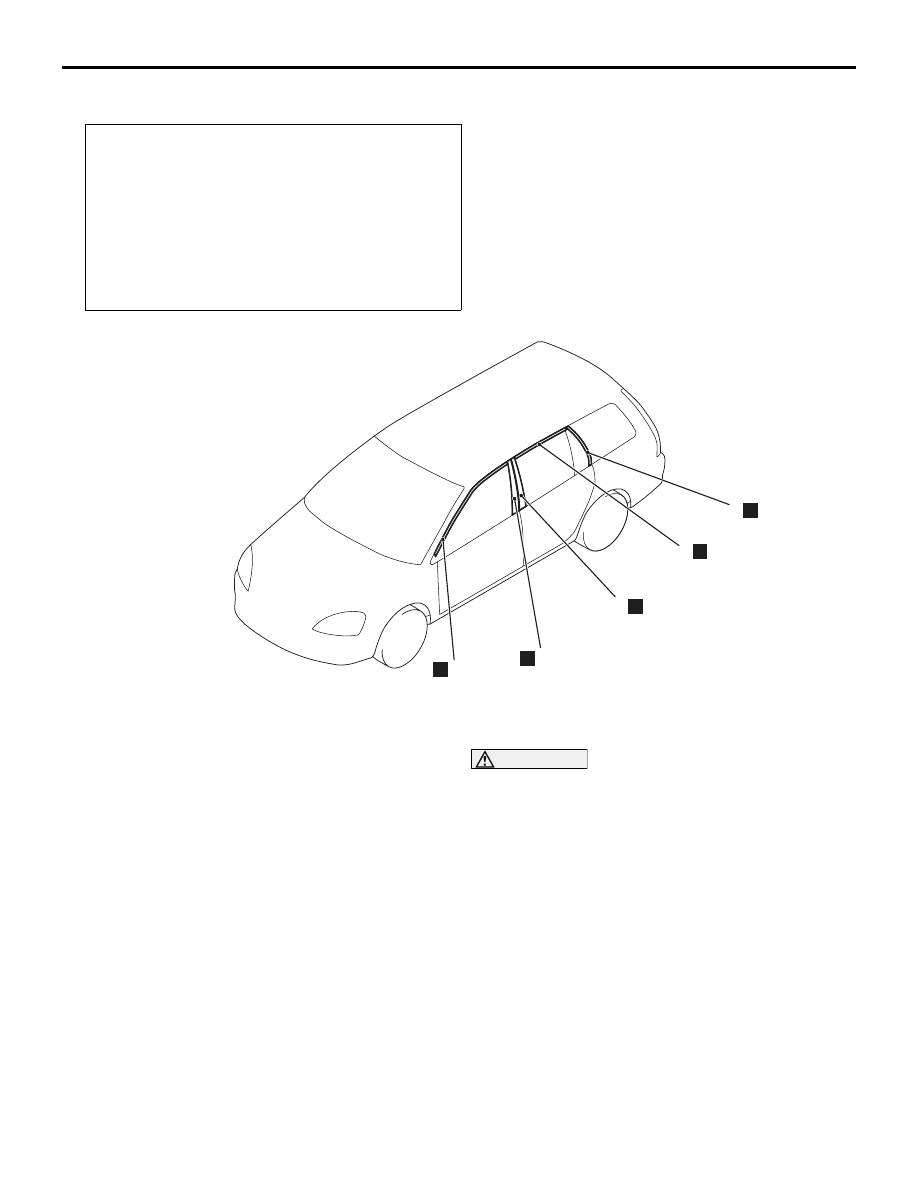

AC403532

1

2

4

3

N

N

N

N

5

N

AB

Removal steps

<<

A

>>

>>

A

<<

1.

Front door sash tape upper

<<

A

>>

>>

A

<<

2.

Front door sash tape rear

<<

A

>>

>>A<< 3.

Rear door sash tape upper

<<

A

>>

>>

A

<<

4.

Rear door sash tape front

<<

A

>>

>>

A

<<

5.

Rear door sash tape rear

REMOVAL SERVICE POINT
<<A>> DOOR SASH TAPES REMOVAL

CAUTION

Pay attention to keep from getting burned by hot
door panel or tapes.
1. Use a hair drier to warm the tape.
2. Peel the tip of the tape with your finger, and then

peel off the tape parallel to the application
surface.
