Mitsubishi Lancer. Manual - part 103

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-58

ENGINE CONTROL SYSTEM <4G1-M/T (RHD)>  (CONTINUED)

CHARGING
SYSTEM

·MANUAL AIR
 CONDITIONER

·MANUAL AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

·COOLING
 SYSTEM

THROTTLE
BODY
IDLE SPEED
CONTROL
SERVO

ENGINE-ECU

ENGINE CONTROL
DETONATION
SENSOR

IMMOBILIZER
SYSTEM

IGNITION
SYSTEM

FRONT
SIDE

FRONT
SIDE

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-59

ENGINE-
ECU

(FUSE     )

2

(FUSE     )

15

DIAGNOSIS
CONNECTOR

DIAGNOSIS
CONNECTOR

POWER
STEERING
FLUID PRESSURE
SWITCH

ENGINE
SPEED
DETECTION
CONNECTOR

VEHICLE
SPEED
SENSOR

METER AND
GAUGE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-60

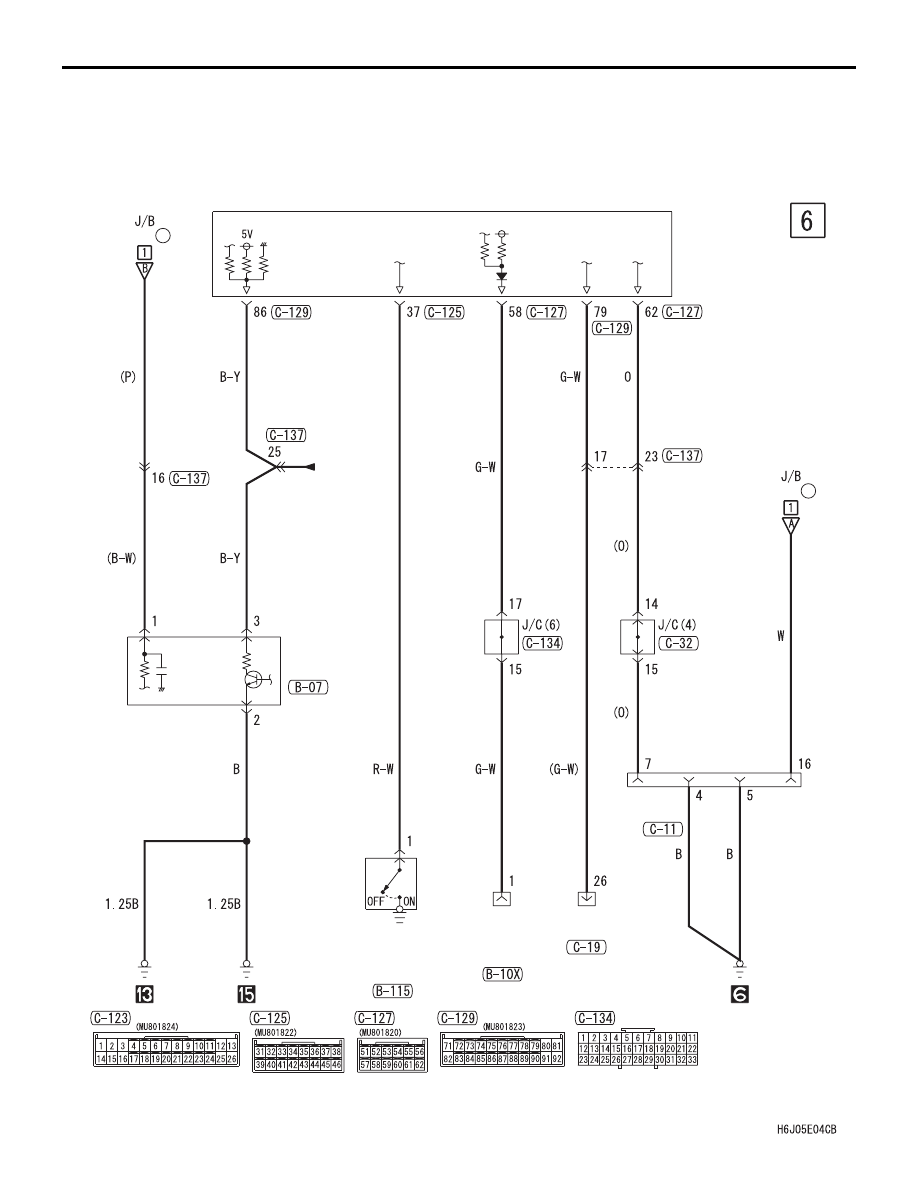

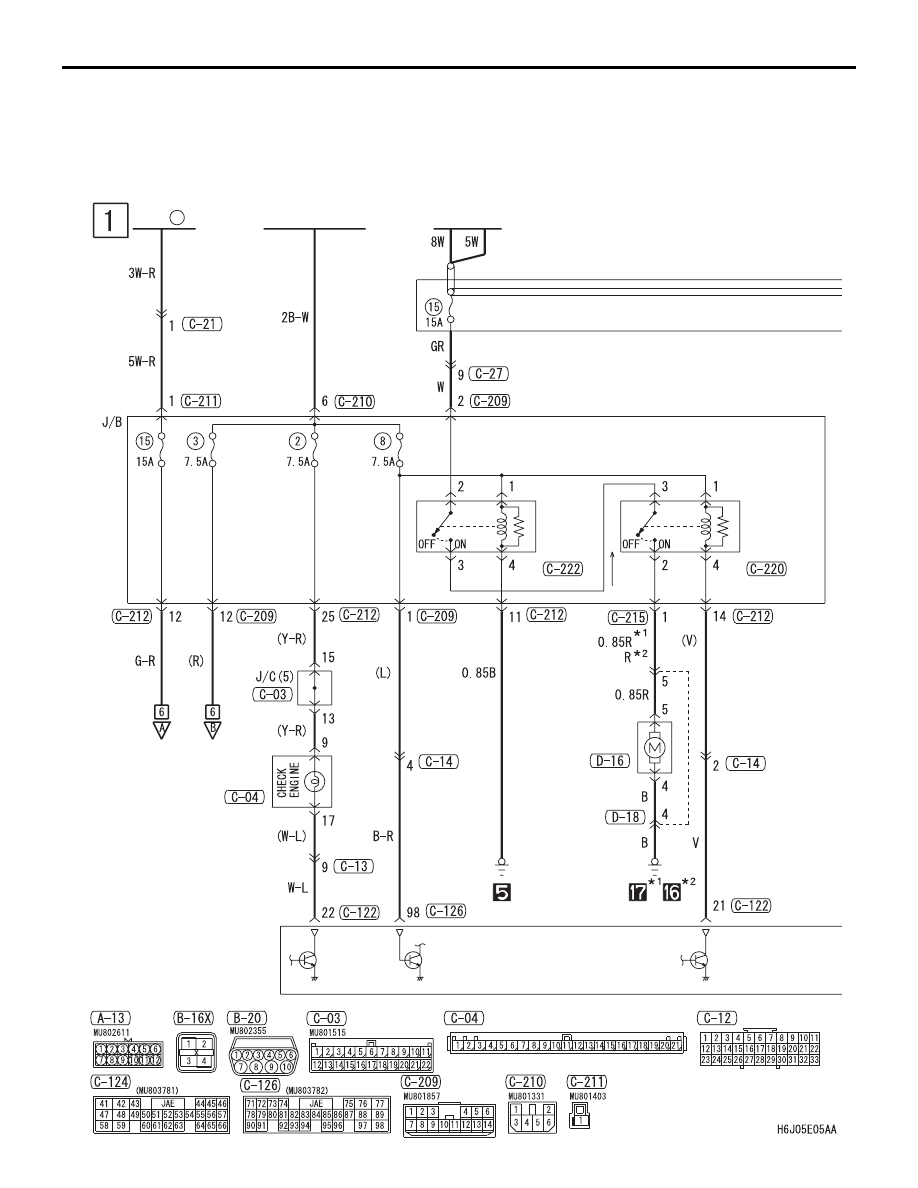

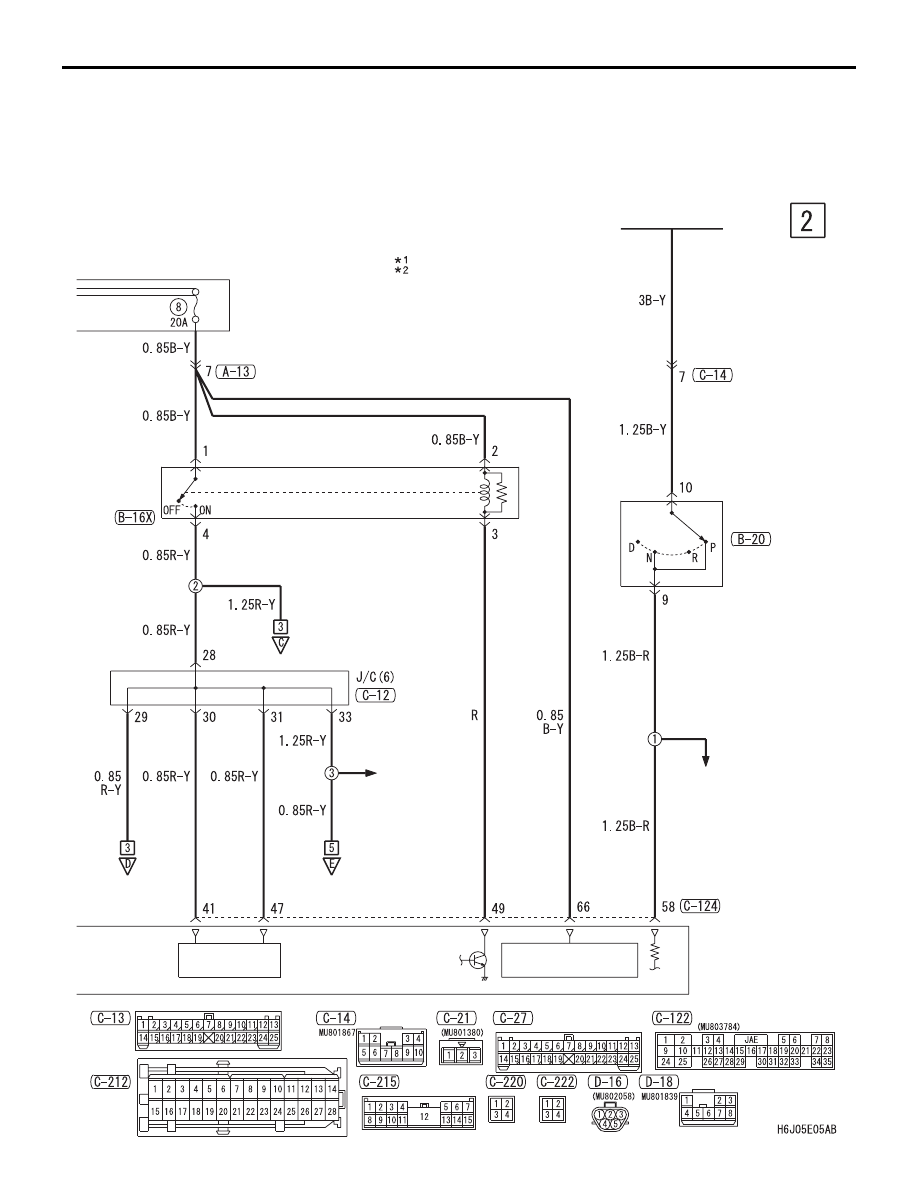

ENGINE CONTROL SYSTEM <4G1-A/T
(LHD)>

M1901000804299

IGNITION
SWITCH (IG1)

ENGINE-
A/T-ECU

FUEL
PUMP
RELAY

(1)

FUEL
PUMP
RELAY

(2)

COMBINATION
METER

BATTERY

FUSIBLE
LINK

1

RELAY
BOX

FUEL TANK
PUMP

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-61

NOTE

: SEDAN
: WAGON

IGNITION
SWITCH (ST)

STARTING
SYSTEM

·COOLING
 SYSTEM
·MANUAL AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

ENGINE
CONTROL
RELAY

POWER
SOURCE

BACK-UP
POWER SOURCE

INHIBITOR
SWITCH
