Mitsubishi Lancer. Manual - part 104

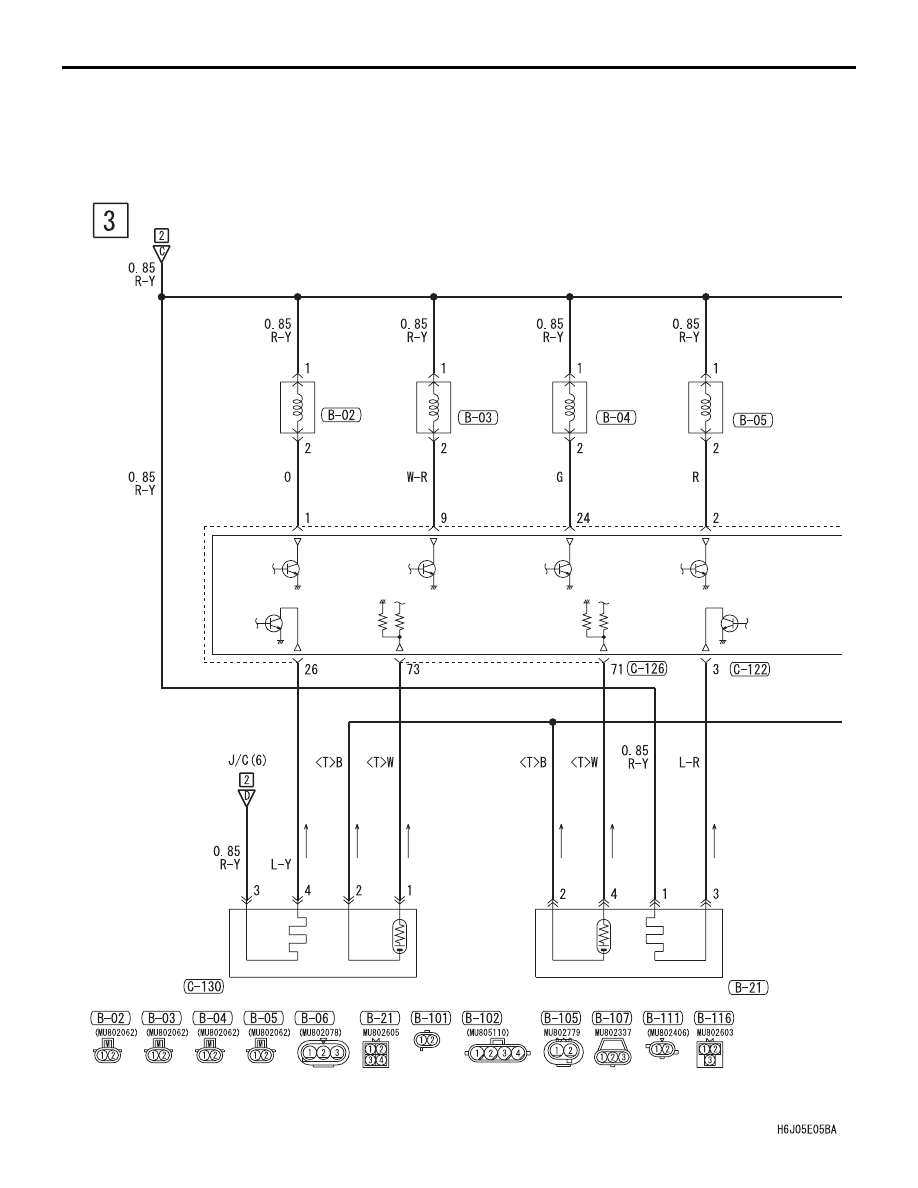

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-62

ENGINE CONTROL SYSTEM <4G1-A/T (LHD)> (CONTINUED)

ENGINE CONTROL
RELAY

ENGINE-
A/T-ECU

ENGINE
CONTROL
OXYGEN
SENSOR
(REAR)

FUEL
INJECTOR 1

FUEL
INJECTOR 2

FUEL
INJECTOR 3

FUEL
INJECTOR 4

ENGINE
CONTROL
OXYGEN
SENSOR
(FRONT)

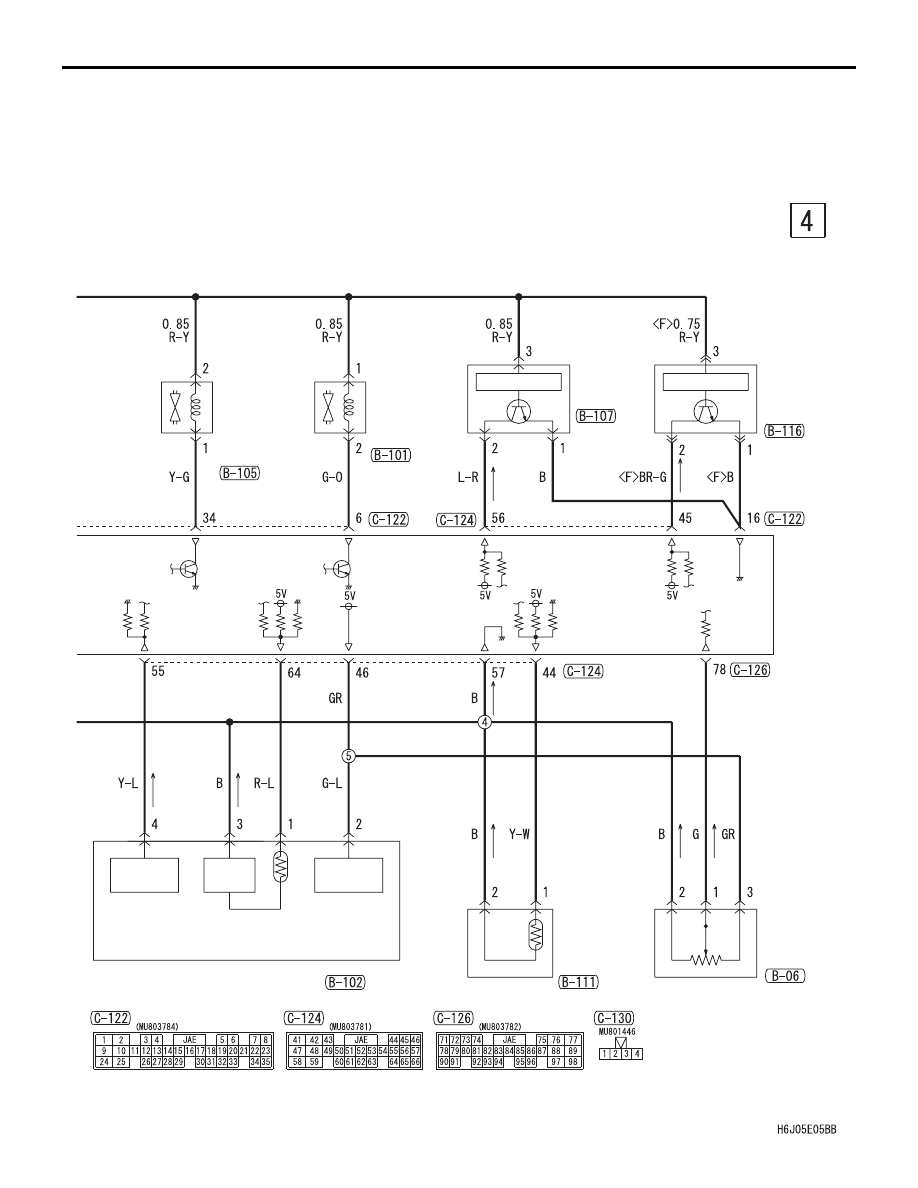

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-63

OUTPUT

GND

POWER
SOURCE

INTAKE AIR
TEMPERATURE
SENSOR

CAMSHAFT
POSITION
SENSOR

EMISSION
SOLENOID
VALVE
(PURGE
 CONTROL
 SYSTEM)

EMISSION
SOLENOID
VALVE
(EGR
 SYSTEM)

ENGINE
CRANK
ANGLE
SENSOR

WATER
TEMPERA-
TURE
SENSOR
UNIT

THROTTLE
BODY
THROTTLE
SENSOR

INLET MANIFOLD
ABSOLUTE PRESSURE SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

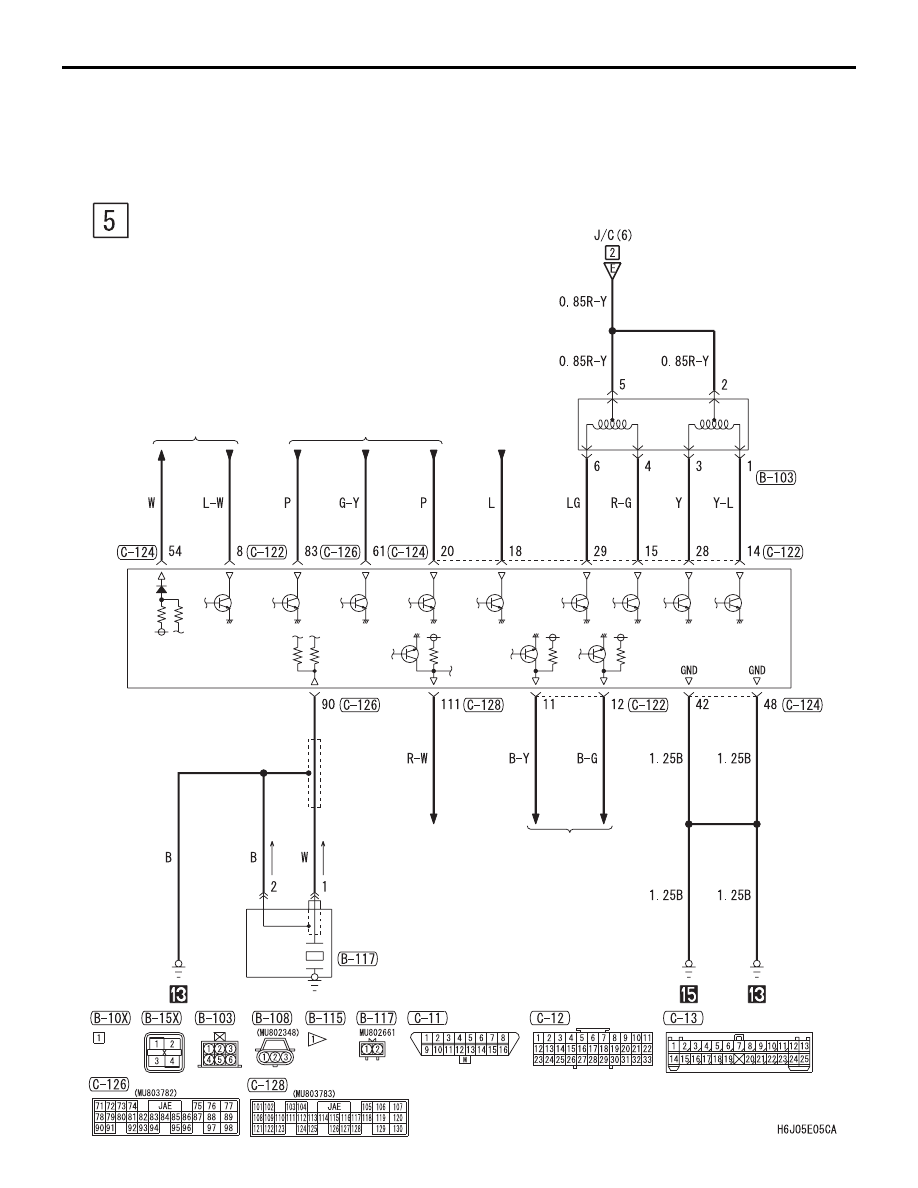

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-64

ENGINE CONTROL SYSTEM <4G1-A/T (LHD)>  (CONTINUED)

CHARGING
SYSTEM

·MANUAL AIR
 CONDITIONER

·MANUAL AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

·COOLING
 SYSTEM

THROTTLE
BODY IDLE
SPEED
CONTROL
SERVO

ENGINE-A/T-ECU

ENGINE CONTROL
DETONATION
SENSOR

IMMOBILIZER
SYSTEM

IGNITION
SYSTEM

FRONT
SIDE

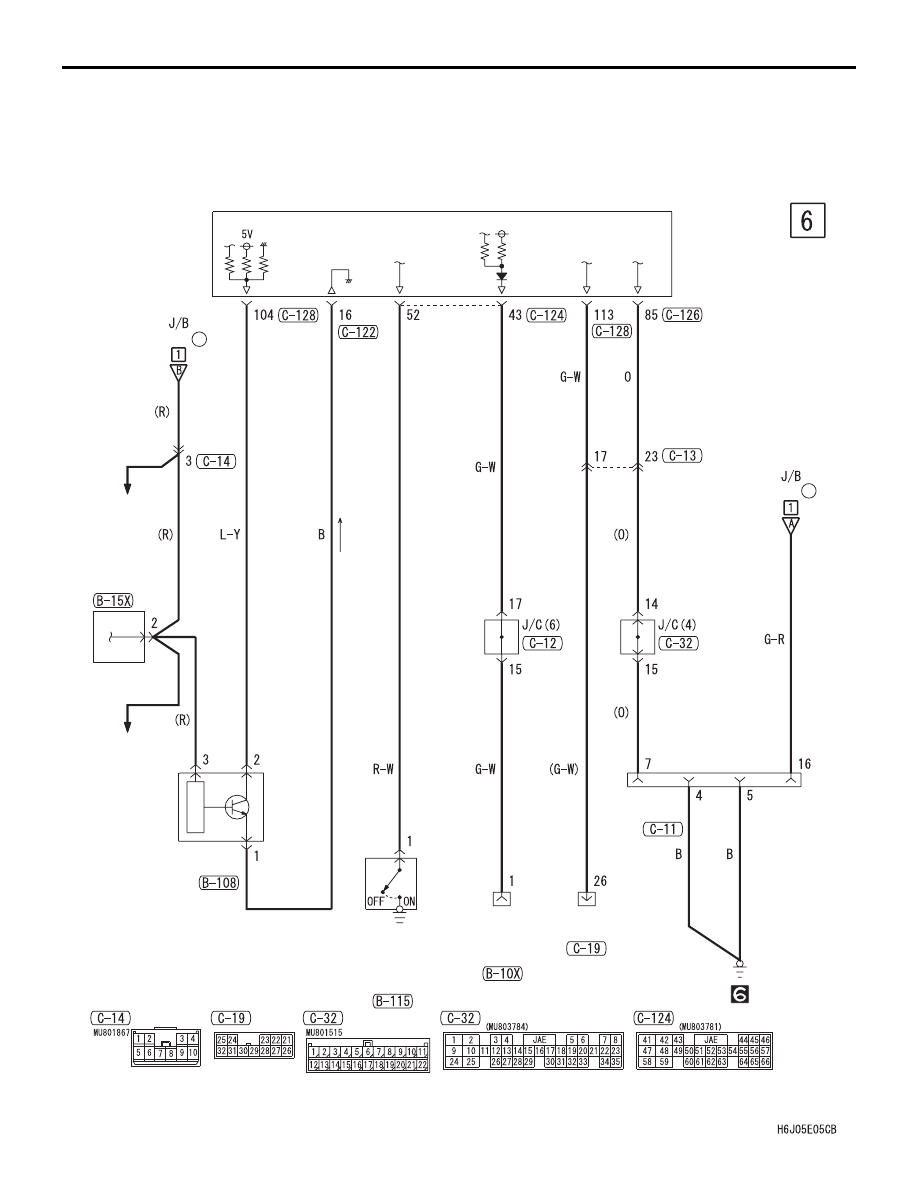

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-65

FRONT
SIDE

ENGINE-A/T-
ECU

(FUSE     )

3

(FUSE     )

15

DIAGNOSIS
CONNECTOR

DIAGNOSIS
CONNECTOR

ENGINE
SPEED
DETECTION
CONNECTOR

OUTPUT SHAFT
SPEED SENSOR

A/T
CONTROL
RELAY

INVECS-II
4A/T

INVECS-II
4A/T

POWER
STEERING
FLUID
PRESSURE
SWITCH

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
