Mitsubishi Lancer. Manual - part 101

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-50

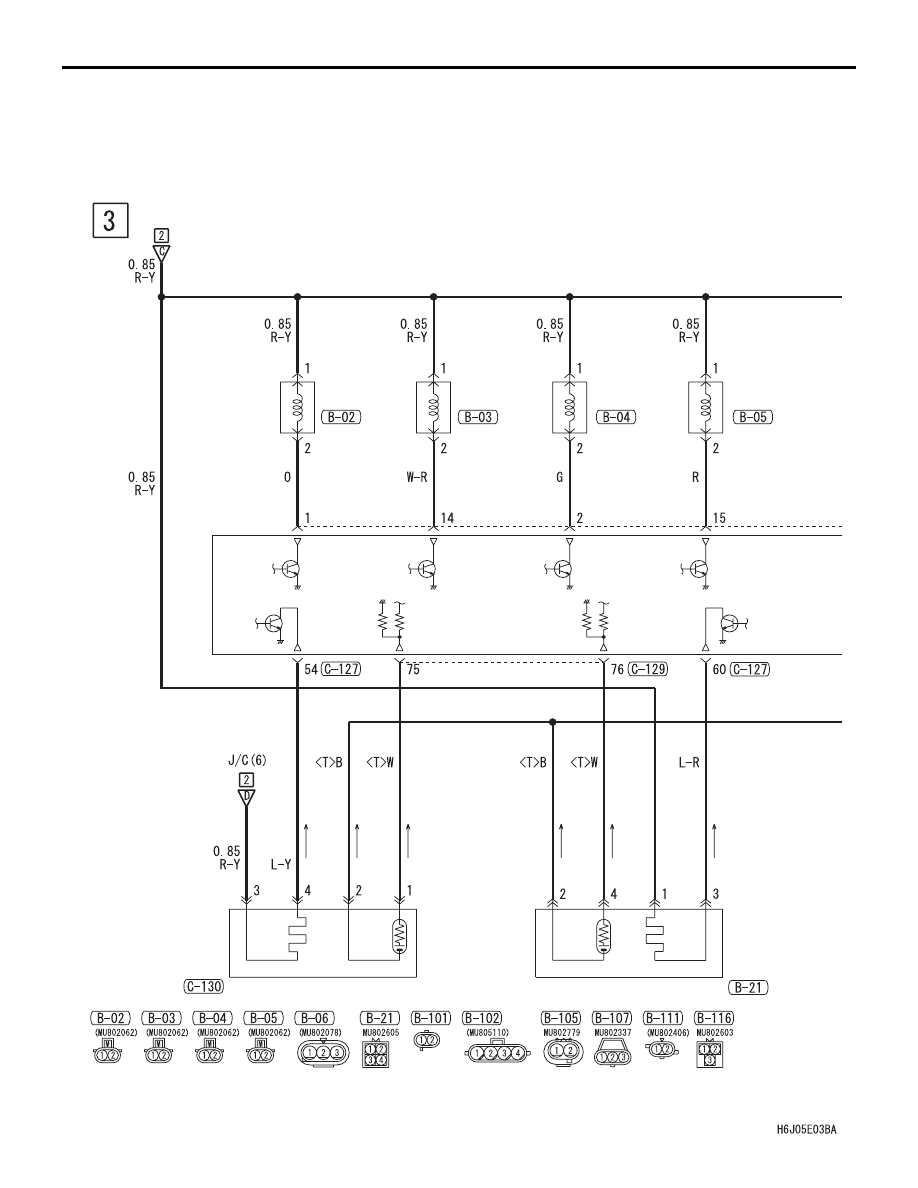

ENGINE CONTROL SYSTEM <4G1-M/T (LHD)> (CONTINUED)

ENGINE CONTROL
RELAY

FUEL
INJECTOR 1

FUEL
INJECTOR 2

FUEL
INJECTOR 3

FUEL
INJECTOR 4

ENGINE-
ECU

ENGINE
CONTROL
OXYGEN
SENSOR
(REAR)

ENGINE
CONTROL
OXYGEN
SENSOR
(FRONT)

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-51

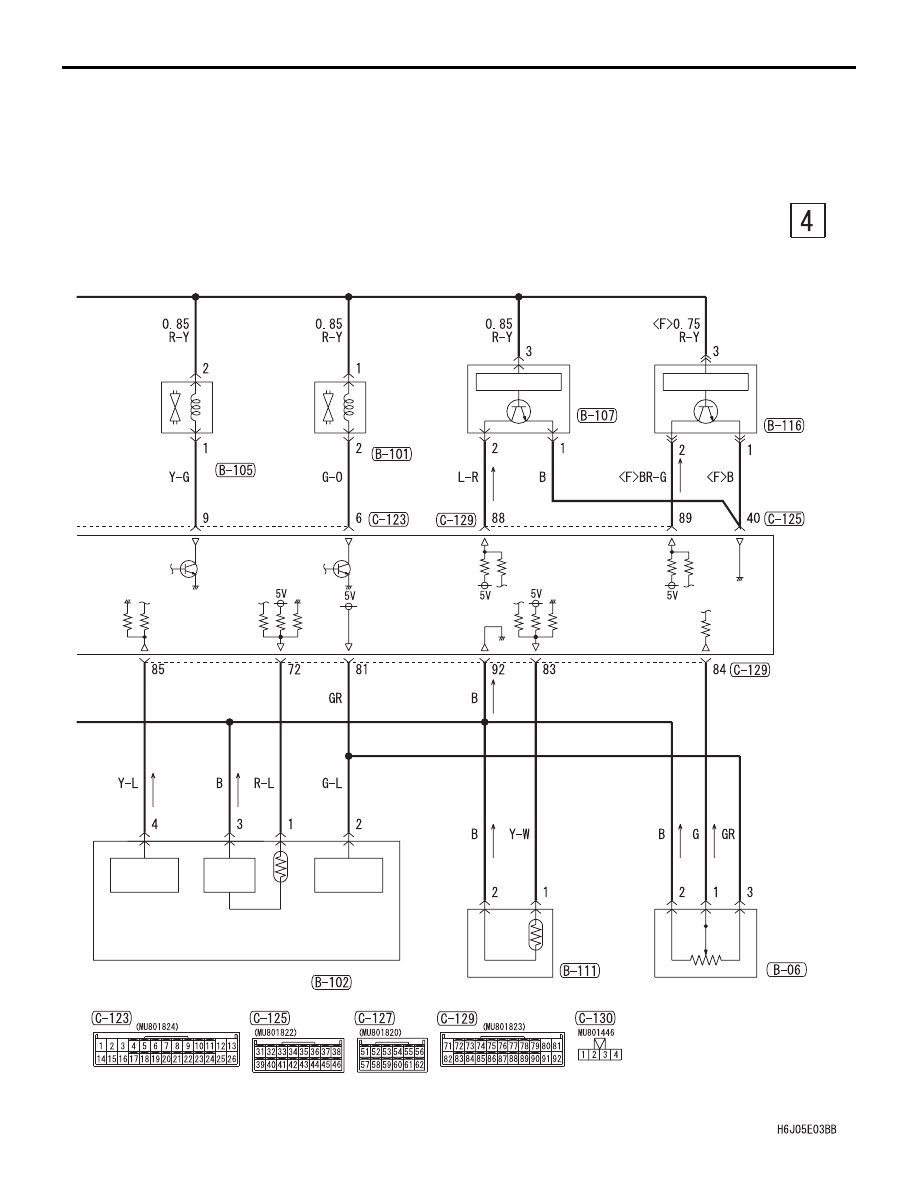

INLET MANIFOLD
ABSOLUTE PRESSURE SENSOR

WATER
TEMPERA-
TURE
SENSOR UNIT

THROTTLE
BODY
THROTTLE
SENSOR

EMISSION
SOLENOID
VALVE
(PURGE
 CONTROL
 SYSTEM)

EMISSION
SOLENOID
VALVE
(EGR
 SYSTEM)

CAMSHAFT
POSITION
SENSOR

ENGINE
CRANK
ANGLE
SENSOR

OUTPUT

GND

POWER
SOURCE

INTAKE AIR
TEMPERATURE
SENSOR

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-52

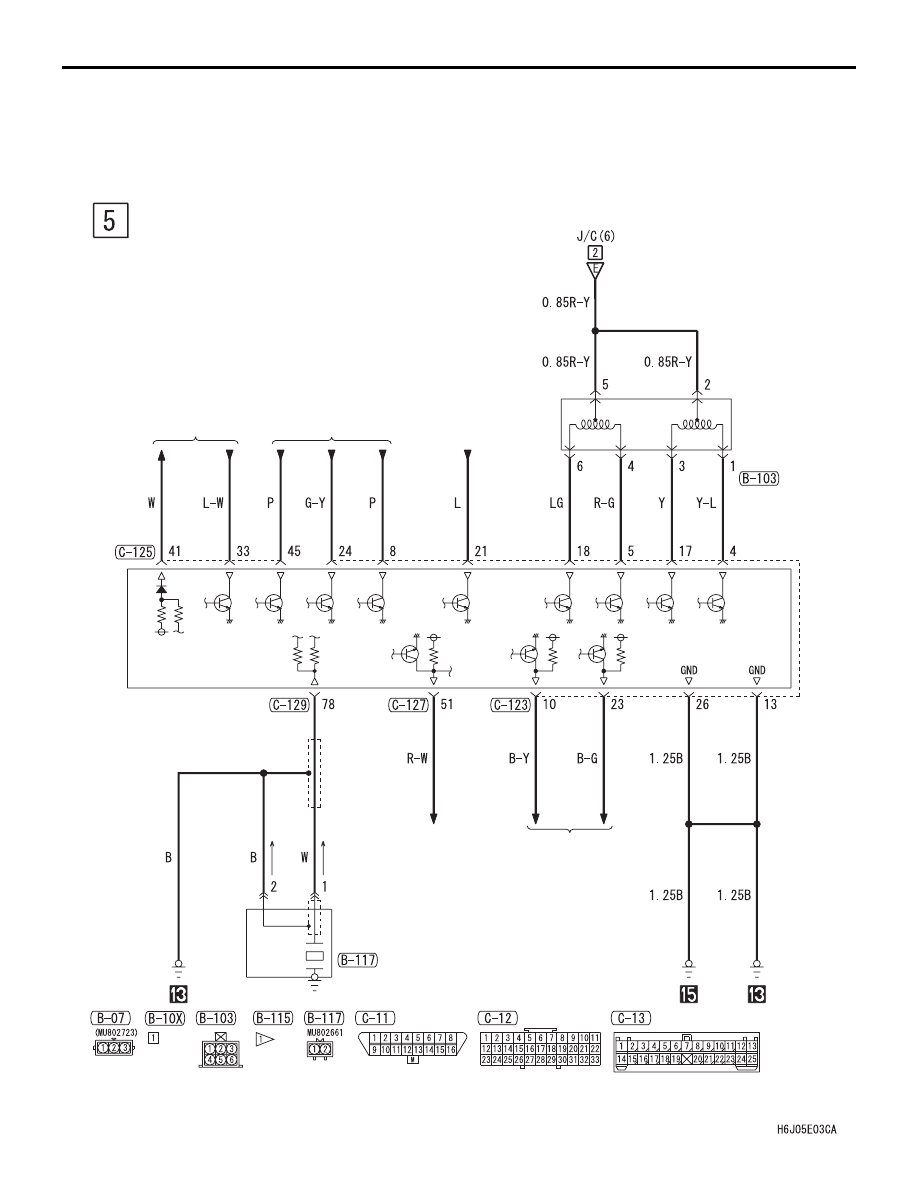

ENGINE CONTROL SYSTEM <4G1-M/T (LHD)> (CONTINUED)

CHARGING
SYSTEM

·MANUAL AIR
 CONDITIONER

·MANUAL AIR
 CONDITIONER

·COOLING
 SYSTEM

THROTTLE
BODY
IDLE SPEED
CONTROL
SERVO

ENGINE-ECU

ENGINE CONTROL
DETONATION
SENSOR

IMMOBILIZER
SYSTEM

IGNITION
SYSTEM

FRONT
SIDE

·AUTOMATIC AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-53

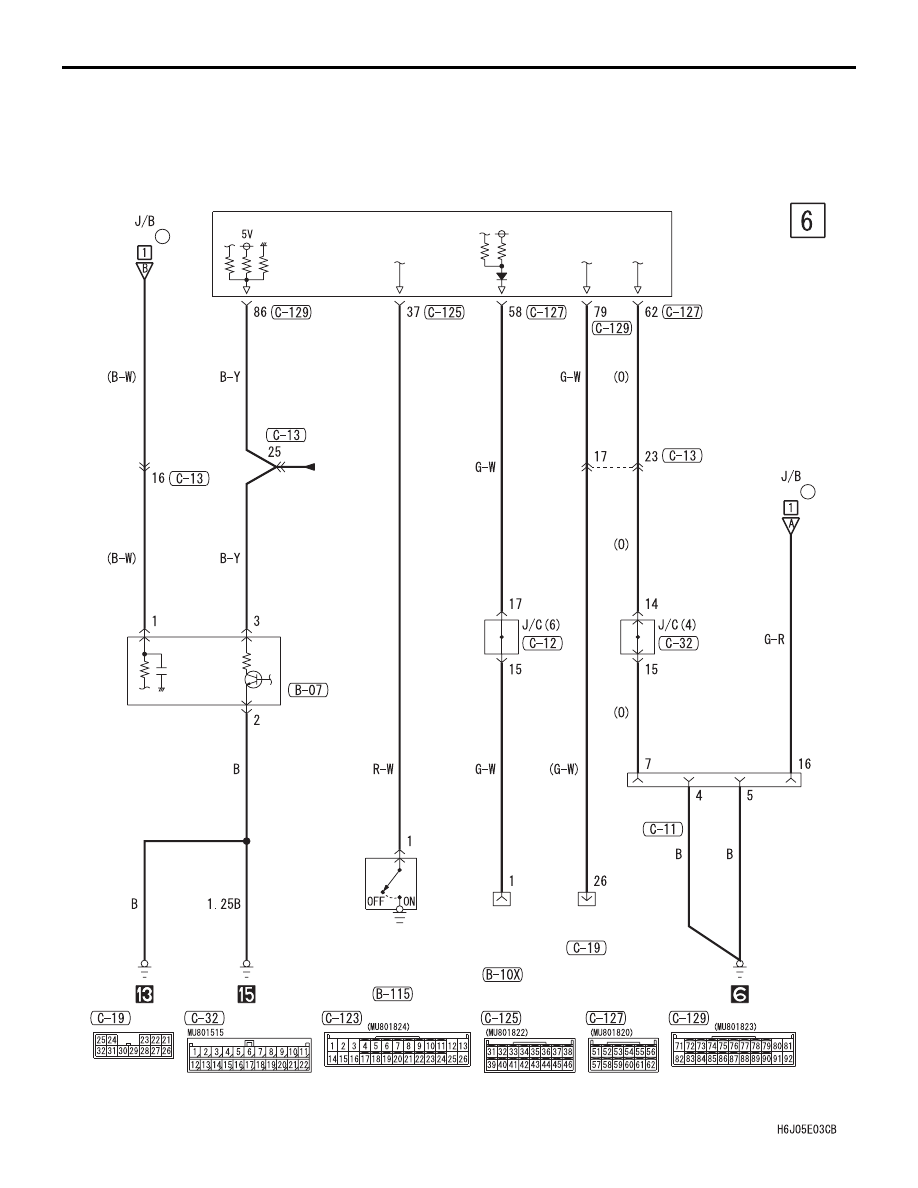

ENGINE-
ECU

(FUSE     )

2

(FUSE     )

15

DIAGNOSIS
CONNECTOR

DIAGNOSIS
CONNECTOR

POWER
STEERING
FLUID PRESSURE
SWITCH

ENGINE
SPEED
DETECTION
CONNECTOR

VEHICLE
SPEED
SENSOR

METER AND
GAUGE

FRONT
SIDE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple
