CHARGING SYSTEM

CIRCUIT DIAGRAMS

90-46

CHARGING SYSTEM

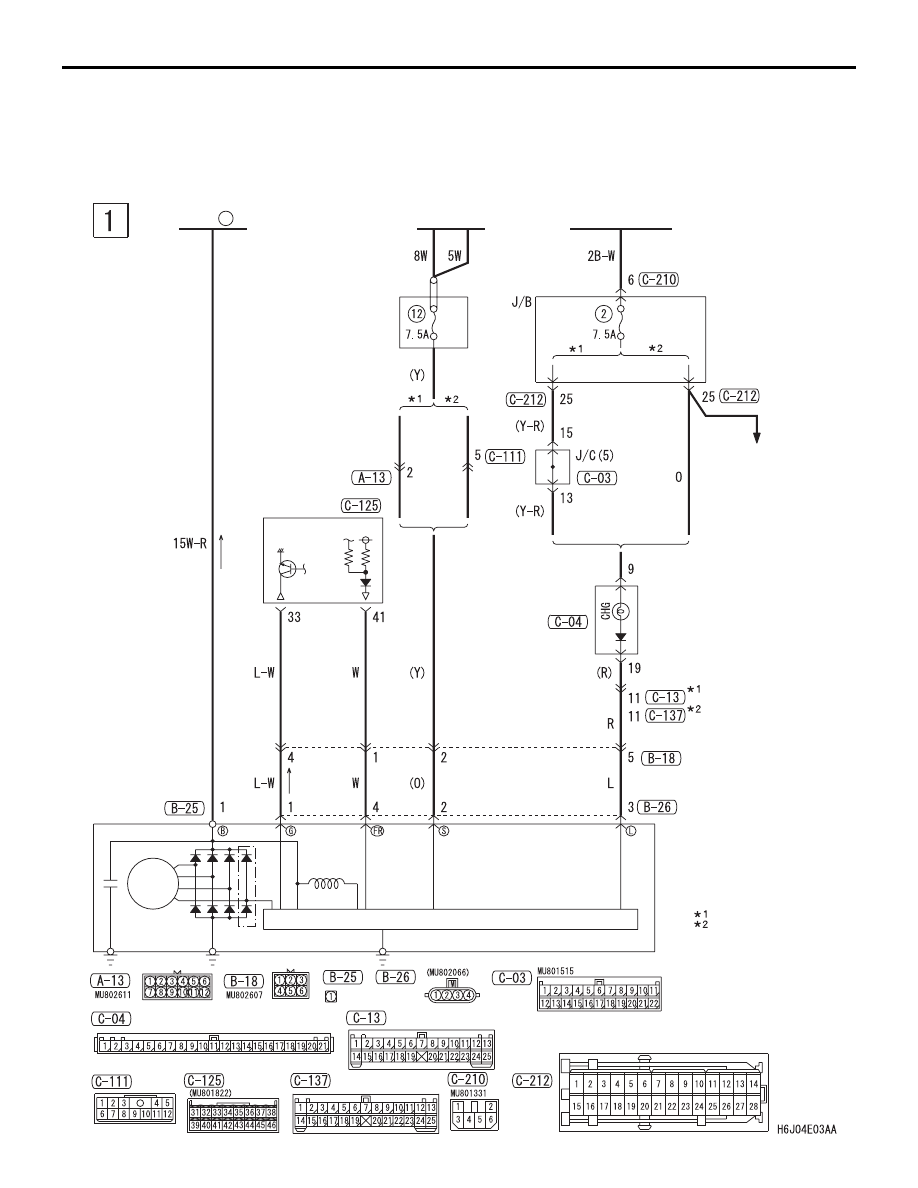

CHARGING SYSTEM <M/T>

M1901000702230

IGNITION
SWITCH (IG1)

BATTERY

ENGINE-
ECU

COMBINATION
METER

ALTERNATOR

STATOR
COIL

FIELD
COIL

IC VOLTAGE REGULATOR

NOTE

: LHD
: RHD

RELAY BOX

·FRONT FOG
 LAMP

·REAR FOG
 LAMP

·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD
 WIPER AND
 WASHER

·HEADLAMP

·REAR WIPER
 AND WASHER

<4G1>

FUSIBLE
LINK

26

CHARGING SYSTEM

CIRCUIT DIAGRAMS

90-47

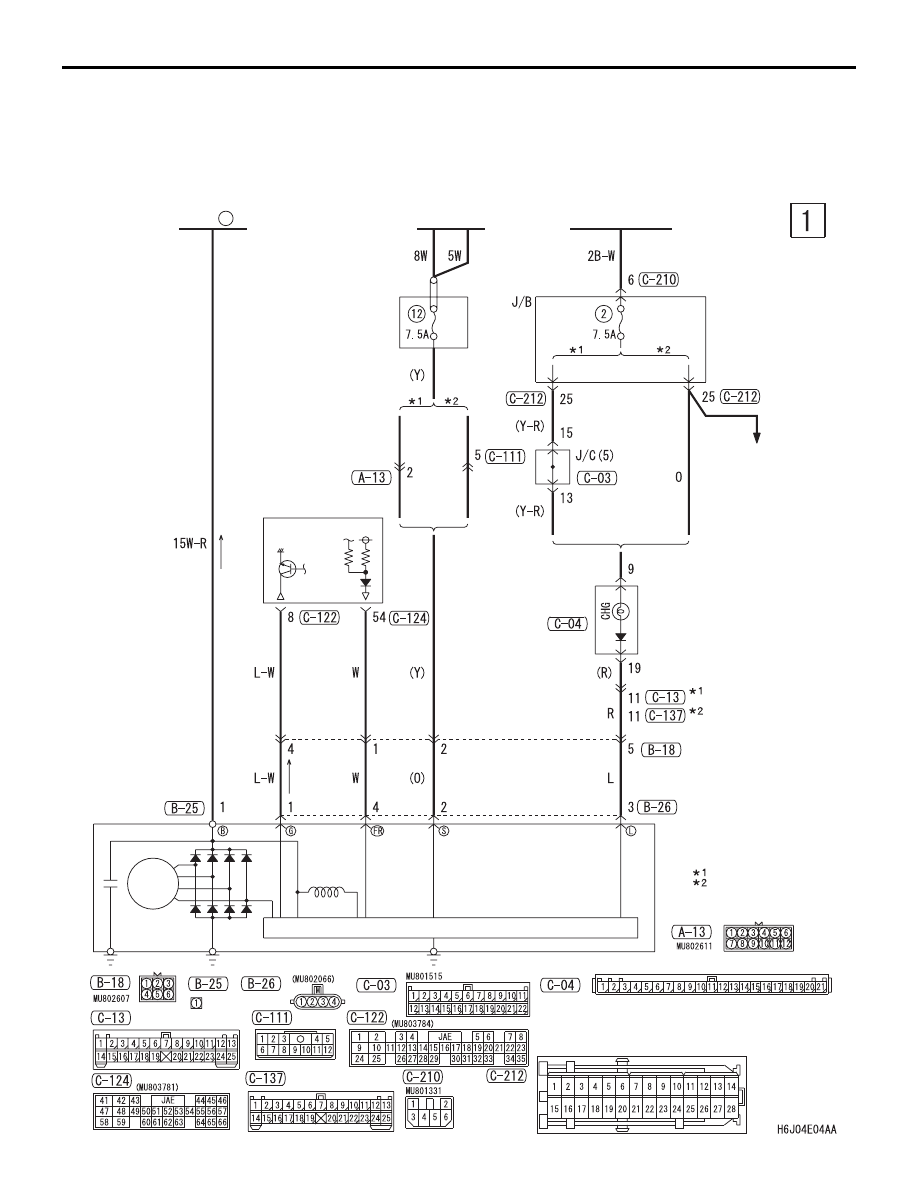

CHARGING SYSTEM <A/T>

M1901000702241

IGNITION
SWITCH (IG1)

BATTERY

ENGINE-A/T-ECU

COMBINATION
METER

ALTERNATOR

STATOR
COIL

FIELD
COIL

IC VOLTAGE REGULATOR

NOTE

: LHD
: RHD

RELAY BOX

·FRONT FOG
 LAMP

·REAR FOG
 LAMP

·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND LIGHTING
 MONITOR BUZZER
·TURN-SIGNAL LAMP
 AND HAZARD
 WARNING LAMP
·WINDSHIELD
 WIPER AND
 WASHER

·HEADLAMP

·REAR WIPER
 AND WASHER

FUSIBLE
LINK

26

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

90-48

ENGINE CONTROL SYSTEM

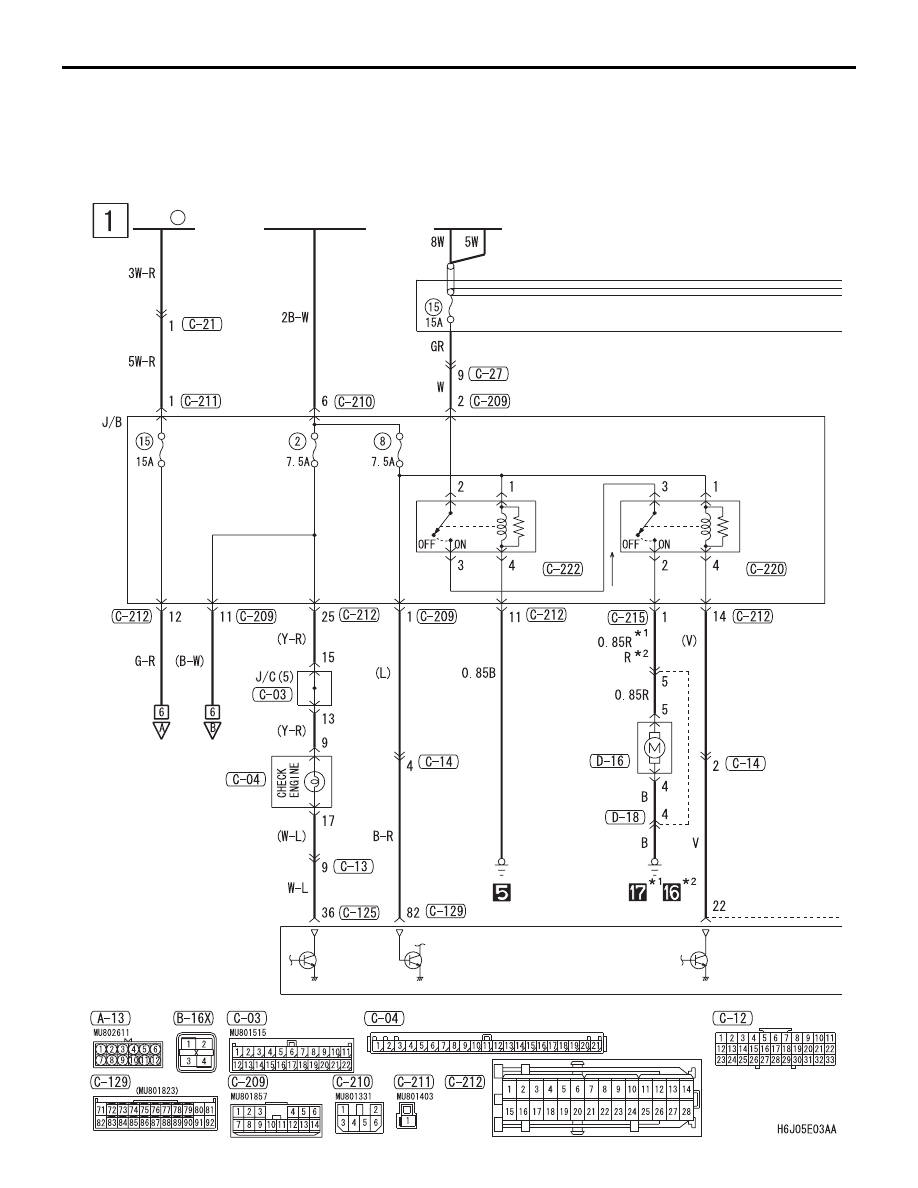

ENGINE CONTROL SYSTEM <4G1-M/T
(LHD)>

M1901000804277

IGNITION
SWITCH (IG1)

ENGINE-ECU

FUEL
PUMP
RELAY

(1)

FUEL
PUMP
RELAY

(2)

COMBINATION
METER

BATTERY

FUSIBLE
LINK

1

RELAY
BOX

FUEL TANK
PUMP

ENGINE CONTROL SYSTEM

CIRCUIT DIAGRAMS

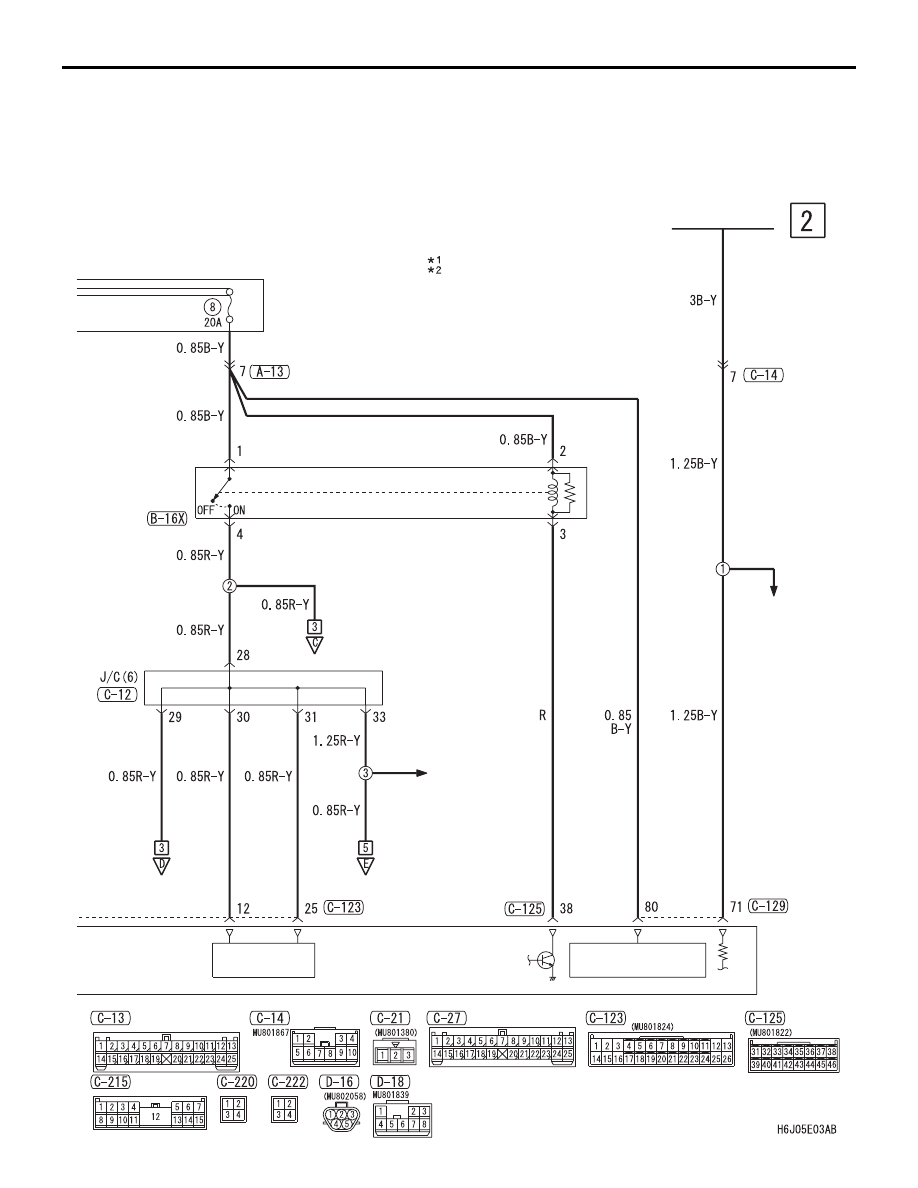

90-49

NOTE

: SEDAN
: WAGON

IGNITION
SWITCH (ST)

STARTING
SYSTEM

·COOLING
 SYSTEM
·MANUAL AIR
 CONDITIONER

·AUTOMATIC AIR
 CONDITIONER

ENGINE
CONTROL
RELAY

BACK-UP
POWER SOURCE

POWER
SOURCE

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple
