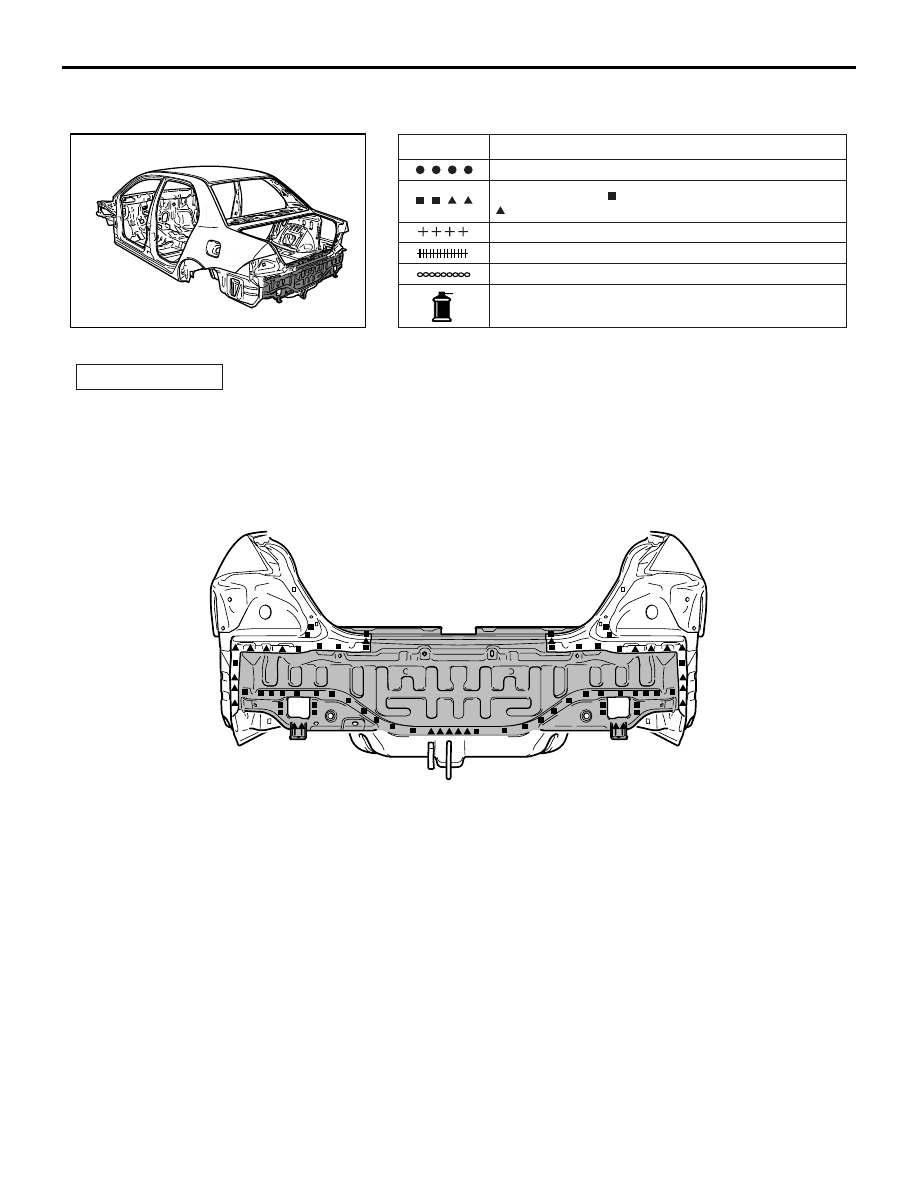

REAR END PANEL <SEDAN>

WELDED PANEL REPLACEMENT

3-38

REAR END PANEL <SEDAN>

M4030009000089

AB300822

SYMBOL

OPERATION DESCRIPTION

Spot welding

MIG plug welding (   : indicates two panels to be welded
   : indicates three panels to be welded)

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

AB

AB300760

AB

REPAIR WELDS

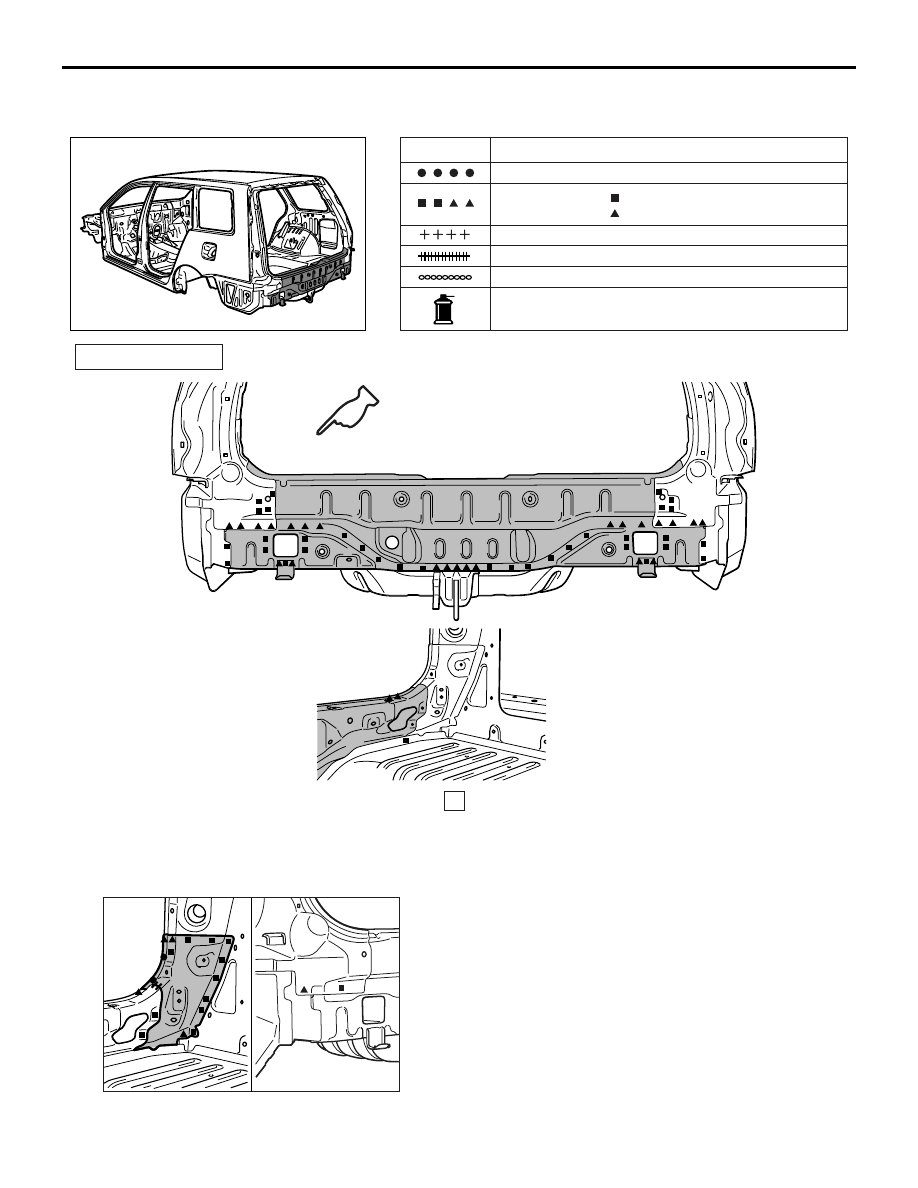

REAR END CROSSMEMBER <WAGON>

WELDED PANEL REPLACEMENT

3-39

REAR END CROSSMEMBER <WAGON>

M4030015000130

NOTE ON REPAIR WORK
REMOVAL

1. Cut the welding points of the rear end

crossmember. Then remove the quarter inner
extension lower as it will interfere with the rear
end crossmember removal.

2. Pull out the rear end crossmember.

AB300823

SYMBOL

OPERATION DESCRIPTION

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB

AB301002

A

REPAIR WELDS

AB

A

AB301002 AB

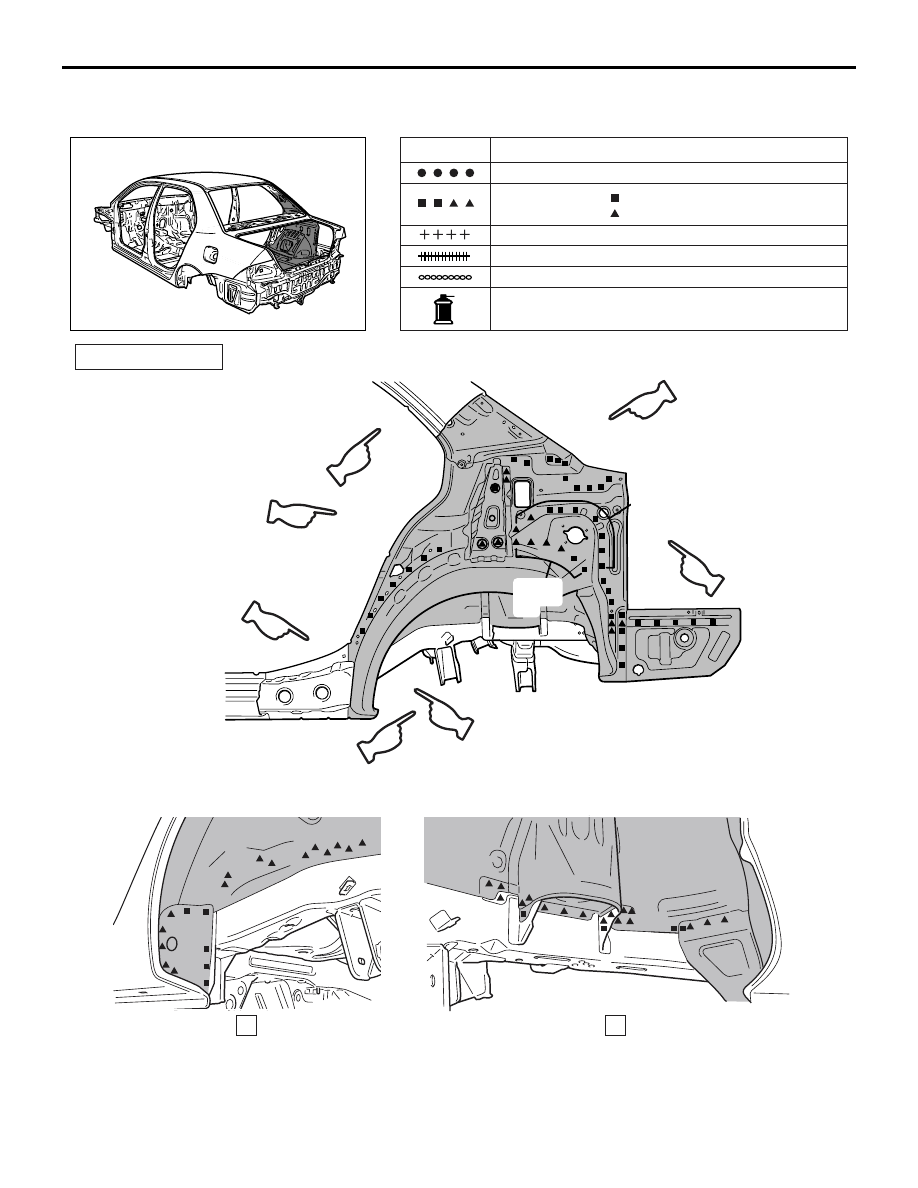

QUARTER, INNER <SEDAN>

WELDED PANEL REPLACEMENT

3-40

QUARTER, INNER <SEDAN>

M4030012000164

NOTE: Refer to the Quarter, Outer <SEDAN> section on

P.3-24

 for the welding points with the quarter outer.

AB300826

SYMBOL

OPERATION DESCRIPTION

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB

AB301015

REPAIR WELDS

D

E

G

AB

(With the quarter outer removed)

9 points
on left side

6 points
on right
side

A

B

F

B

C

A

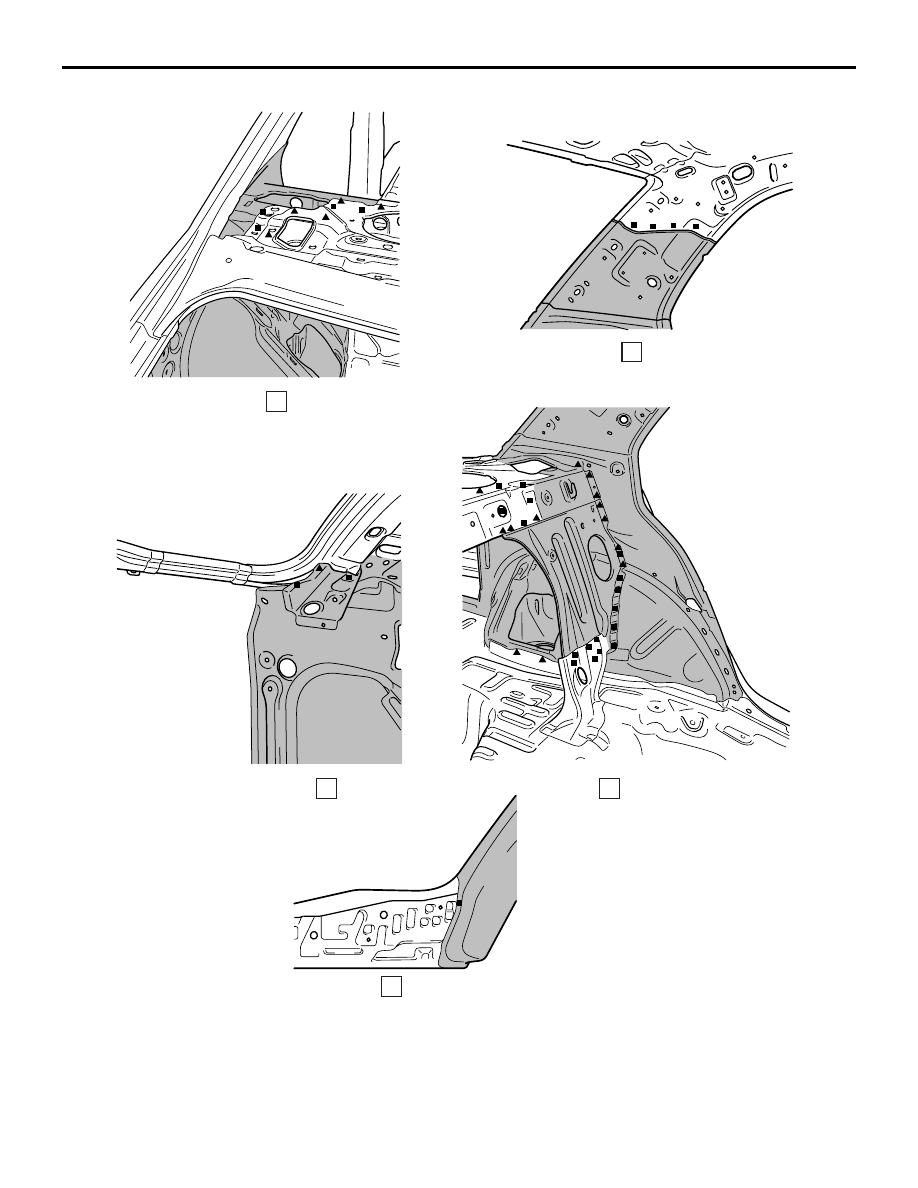

QUARTER, INNER <SEDAN>

WELDED PANEL REPLACEMENT

3-41

AB301016AB

E

G

F

D

(With the sill outer reinforcement rear removed)

C
