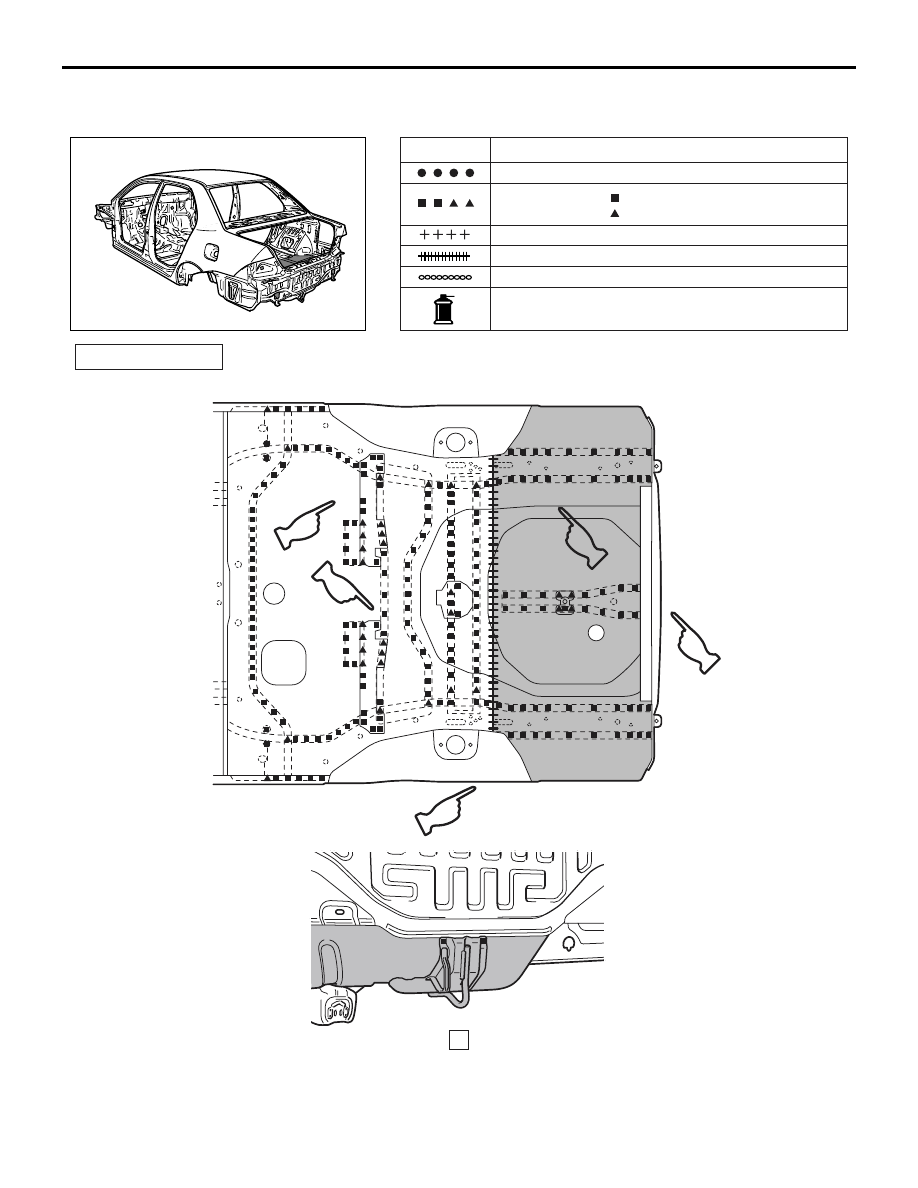

REAR FLOOR <SEDAN>

WELDED PANEL REPLACEMENT

3-34

REAR FLOOR <SEDAN>

M4030010000168

NOTE: Refer to the Rear End Panel <SEDAN> section on

P.3-38

 for the welding points with the rear end

panel.

AB300824

SYMBOL

OPERATION DESCRIPTION

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB

AB301005

REPAIR WELDS

D

B

AB

A

C

A

E

REAR FLOOR <SEDAN>

WELDED PANEL REPLACEMENT

3-35

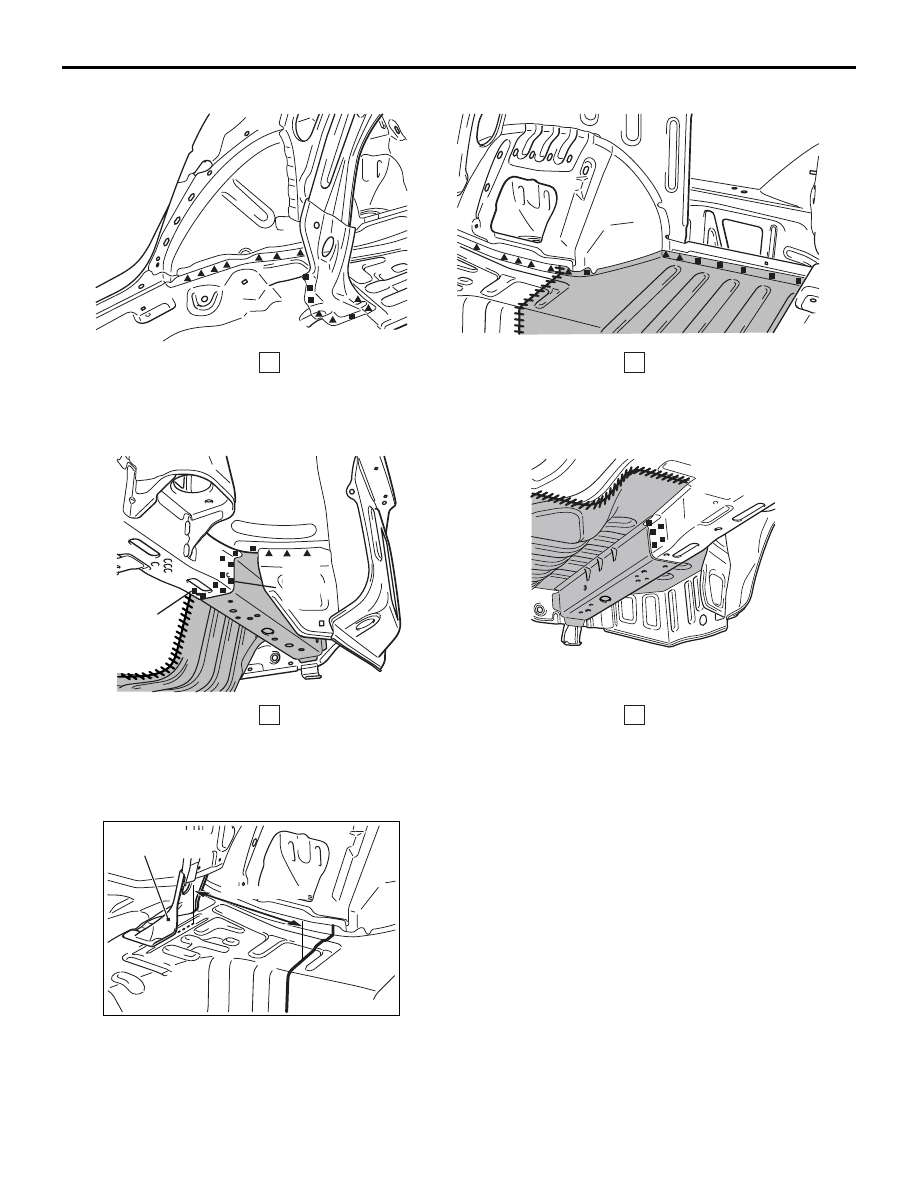

NOTE ON REPAIR WORK
REMOVAL

When cutting the rear floor pan, cut it from 320

± 10

mm behind the back of the rear seat back reinforce-
ment.

AB100144

AB301008

B

C

D

E

AB

Right
side
only

Right
side
only

AB301009AB

320 ± 10 mm

Rear seat back
reinforcement

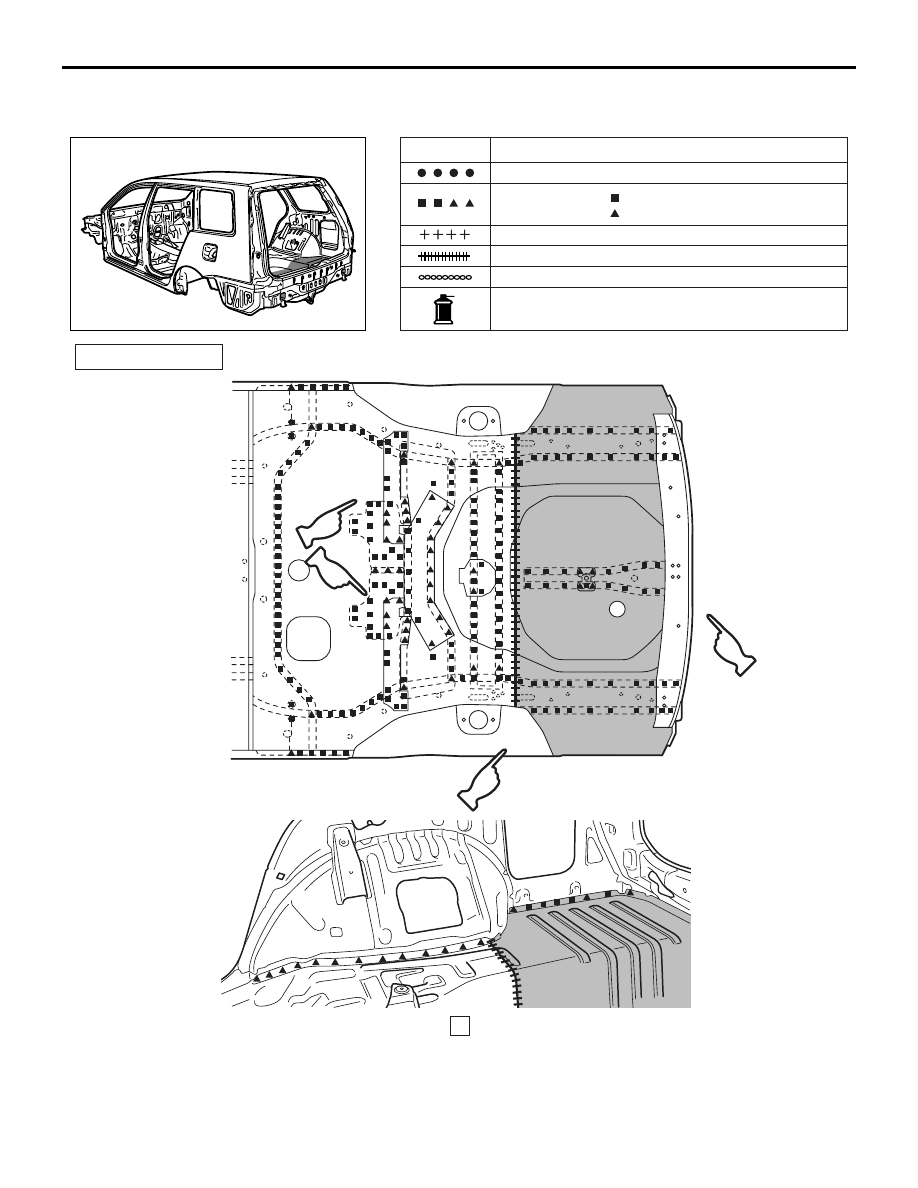

REAR FLOOR <WAGON>

WELDED PANEL REPLACEMENT

3-36

REAR FLOOR <WAGON>

M4030010000179

NOTE: Refer to the Rear End Crossmember <WAGON> section on

P.3-39

 for the welding points with the

rear end crossmember.

AB300749

AB300825

SYMBOL

OPERATION DESCRIPTION

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

AB

AB301013AB

REPAIR WELDS

A

A

D

C

B

REAR FLOOR <WAGON>

WELDED PANEL REPLACEMENT

3-37

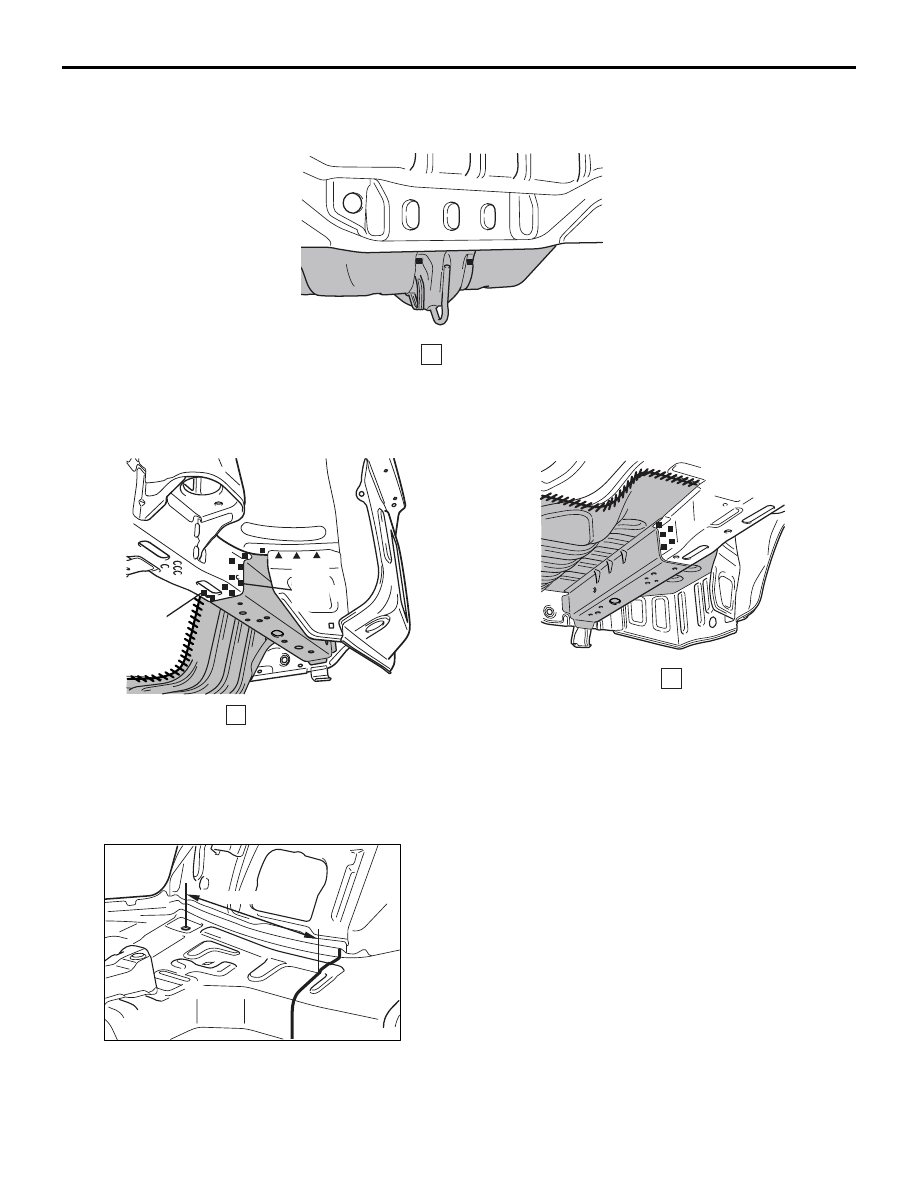

NOTE ON REPAIR WORK
REMOVAL

When cutting the rear floor pan, cut it from 400

± 10

mm behind the rear seat back assembling hole.

AB100144

AB301008AB

D

B

C

Right
side
only

Right
side
only

AB300907AB

400 ± 10 mm
