HEADLAMP SUPPORT

WELDED PANEL REPLACEMENT

3-2

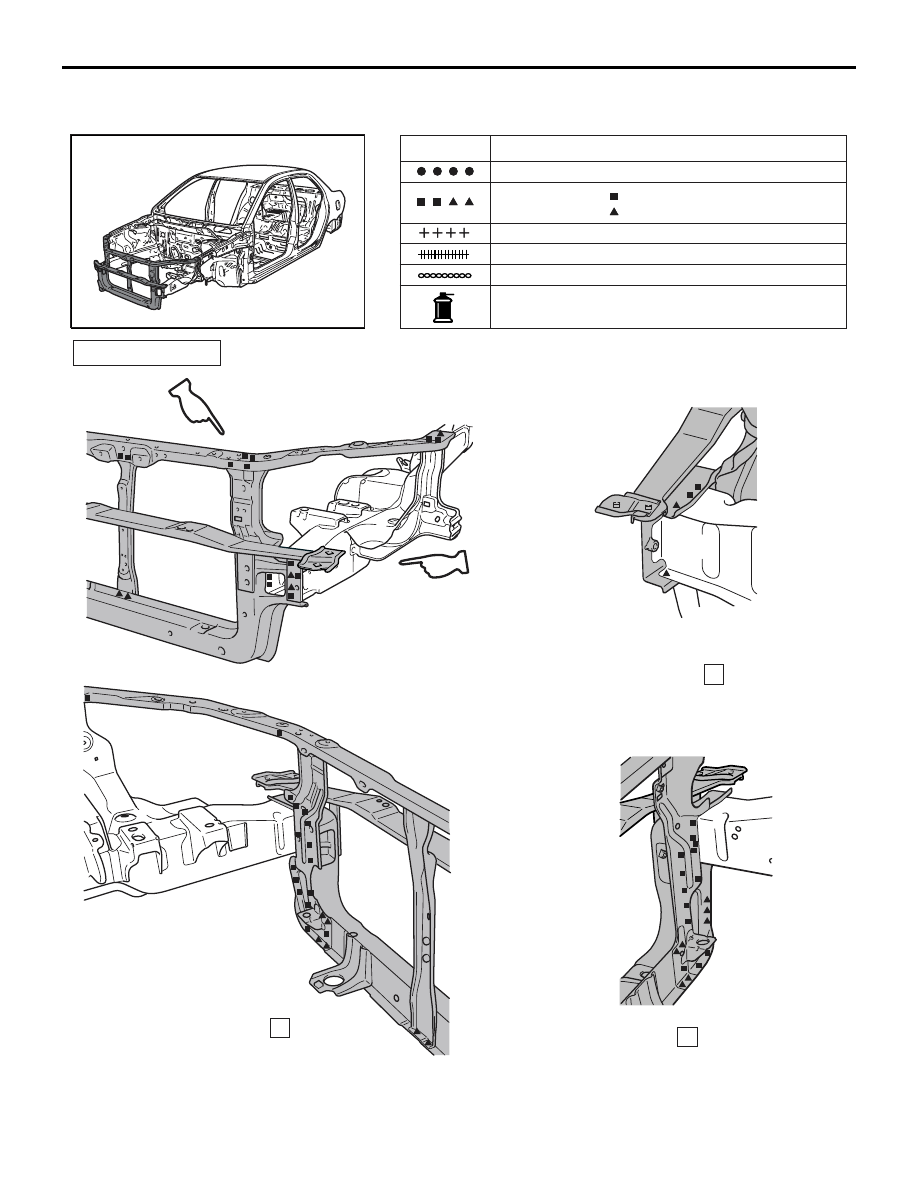

HEADLAMP SUPPORT

M4030003000188

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

AB300990AB

AB301035AB

A

A

B

B

REPAIR WELDS

(Right side)

B

HEADLAMP SUPPORT

WELDED PANEL REPLACEMENT

3-3

NOTES

FENDER SHIELD

WELDED PANEL REPLACEMENT

3-4

FENDER SHIELD

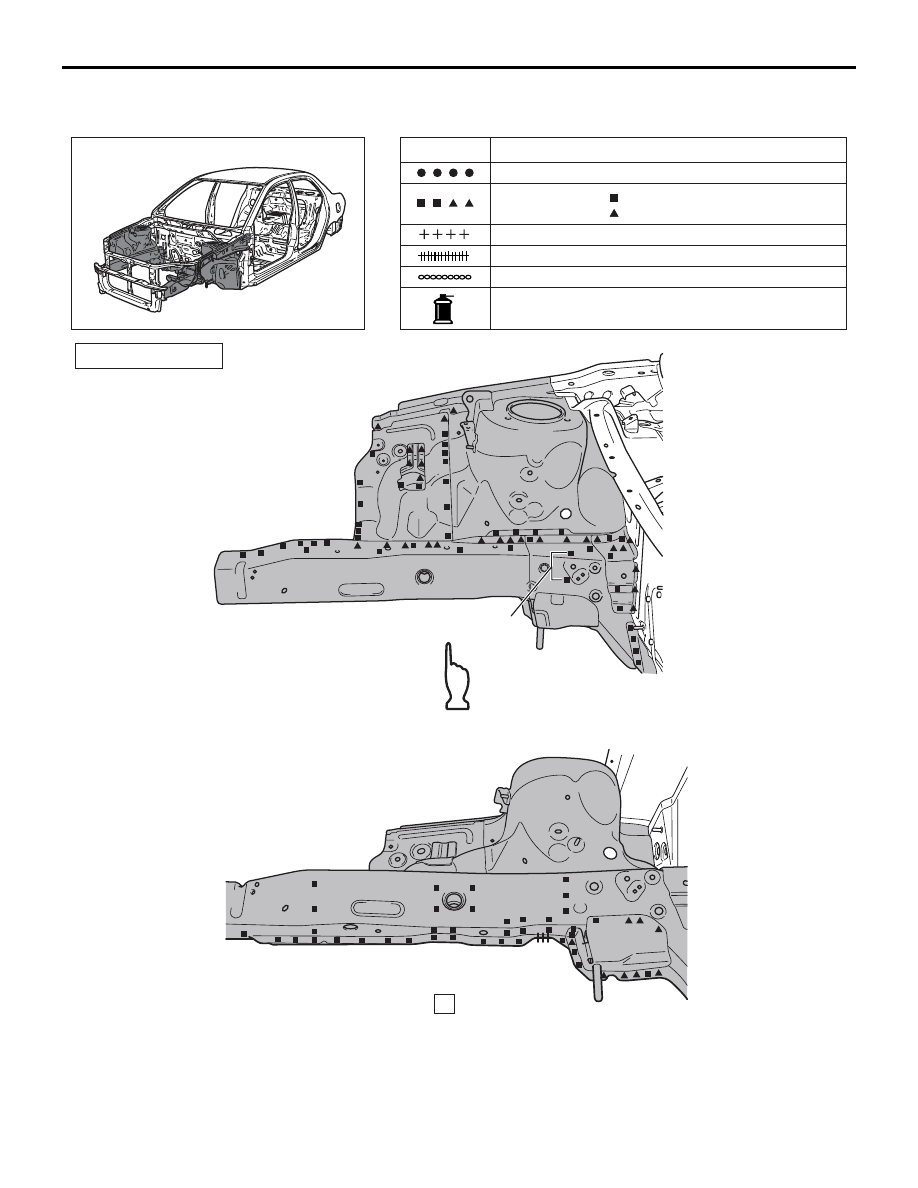

M4030004000170

NOTE: Refer to the Headlamp Support section on

P.3-2

 for the welding points with headlamp support.

Spot welding

MIG plug welding      : indicates two panels to be welded
                                  : indicates three panels to be welded

MIG spot welding

MIG arc welding (continuous)

Braze welding

Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

(                                                               )

Symbol

Operation description

(                                                               )

AB300991AB

AB301036

REPAIR WELDS

A

A

2 points, RHD only

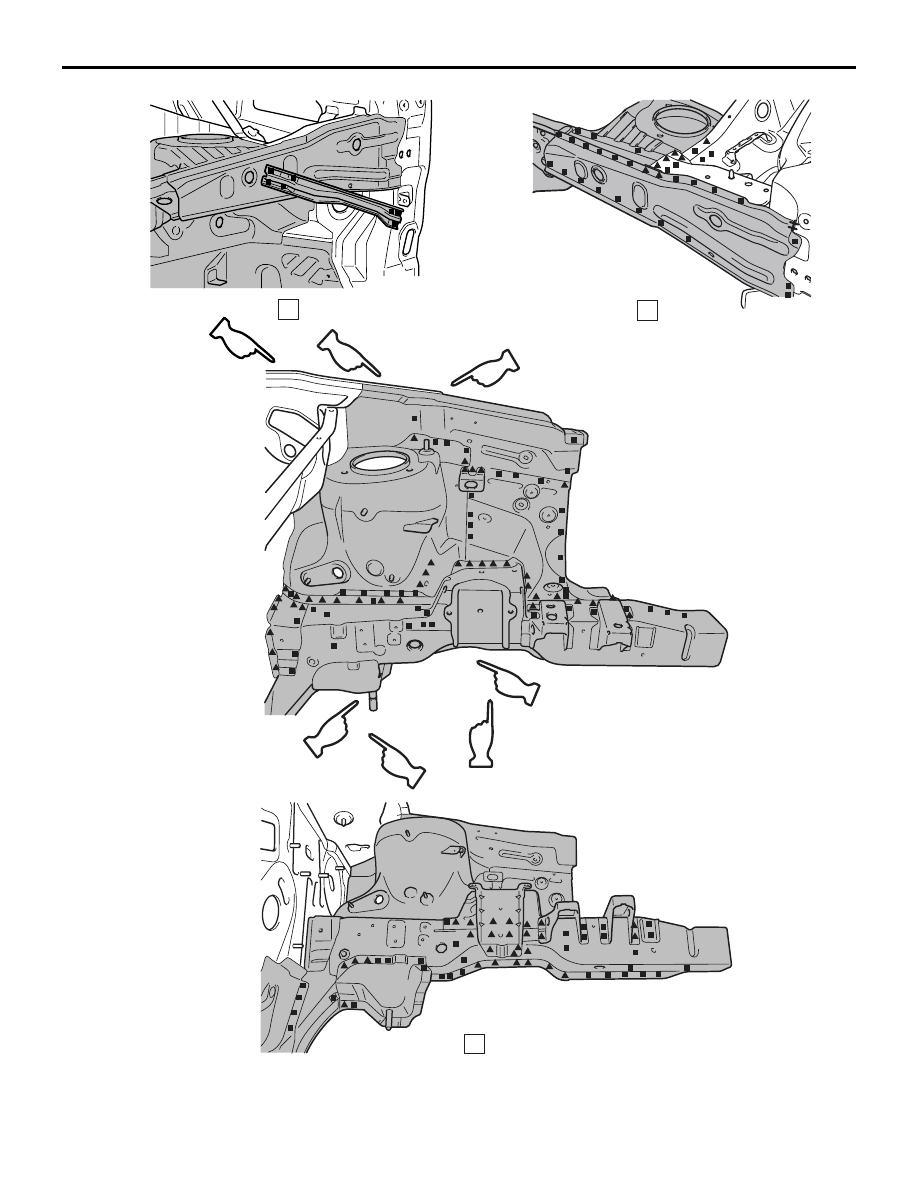

FENDER SHIELD

WELDED PANEL REPLACEMENT

3-5

AB301037

C

B

C

D

H

D

AB

(With the upper frame to
front pillar brace removed)

B

G

F

E
