FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-233

STEP 2. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

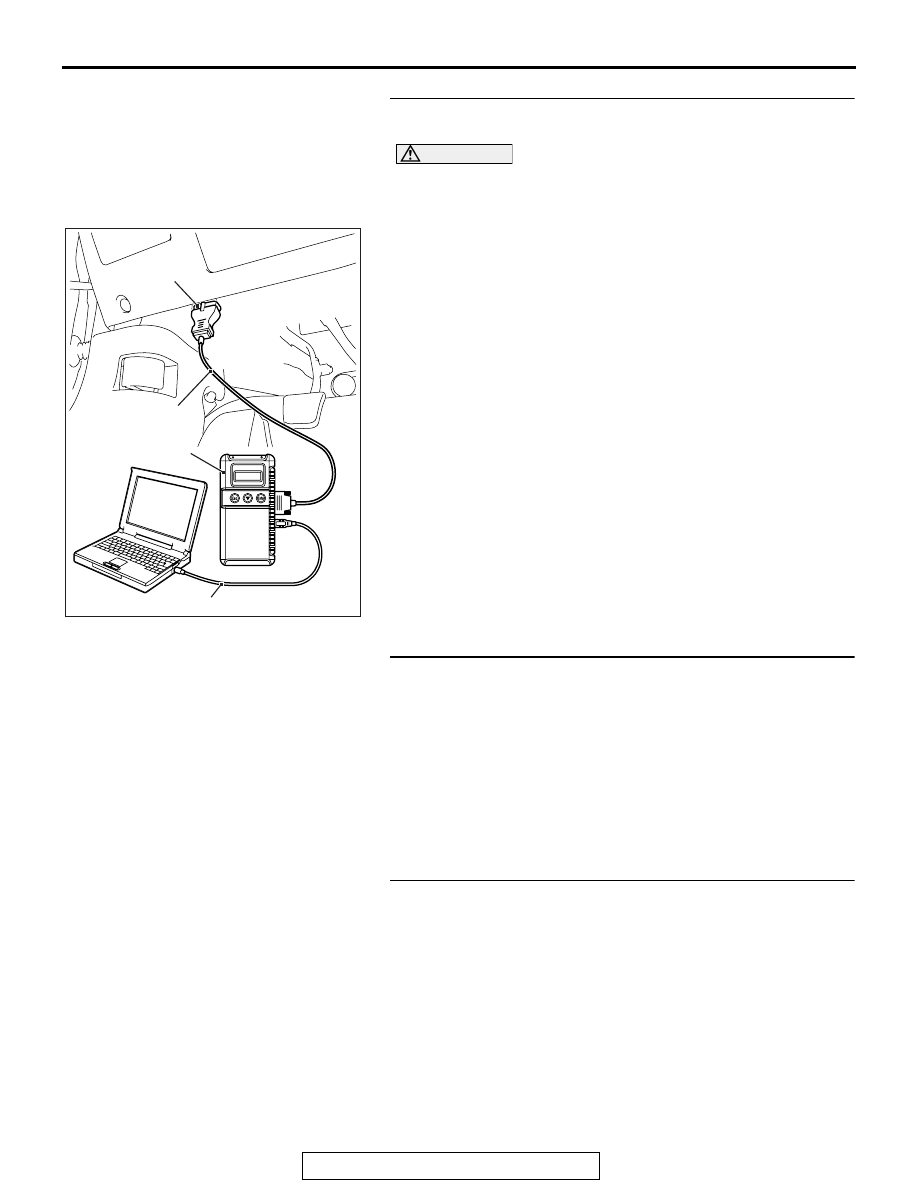

(1) Connect scan tool MB991958. Refer to "How to connect

scan tool (M.U.T.-III)

P.54A-219

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 3.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 3. Using scan tool MB991958, read the combination
meter diagnostic trouble code.
(1) Check whether a combination meter-related DTC is set.
(2) Turn the ignition switch to the "ON" position.

Check whether the combination meter-related DTC is set.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the combination meter (Refer to

combination meter, Diagnosis

P.54A-28

).

NO :  Go to Step 4.

STEP 4. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Perform the actuator test for the combination meter, and

check that the fog light indicator illuminates (Refer to
combination meter, Diagnosis

P.54A-59

).

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result normal?

YES : Replace the ETACS-ECU.
NO :  Replace the combination meter.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-234

ON-VEHICLE SERVICE

FRONT FOG LIGHT AIMING

M1540400300282

PRE-AIMING INSTRUCTIONS

1. Inspect for rusted or faulty front fog light assemblies.
2. These conditions must be corrected before a satisfactory

adjustment can be made.

3. Inspect tire inflation, and adjust if necessary.
4. If the fuel tank is not full, place a weight in the trunk of the

vehicle to simulate weight of a full tank [3 kg (6.5 pounds)
per gallon].

5. There should be no other load in the vehicle other than

driver or substituted weight of approximately 68 kg (150
pounds) placed in driver's position.

6. Thoroughly clean the front fog light lenses.
7. Place the vehicle on a level floor, perpendicular to a flat

screen 7.62 meters (25.0 ft) away from the bulb
center-marks on the fog light lens.

8. Rock the vehicle sideways to allow the vehicle to assume its

normal position.

9. Bounce the front suspension through three (3) oscillations

by applying the body weight to the hood or bumper.

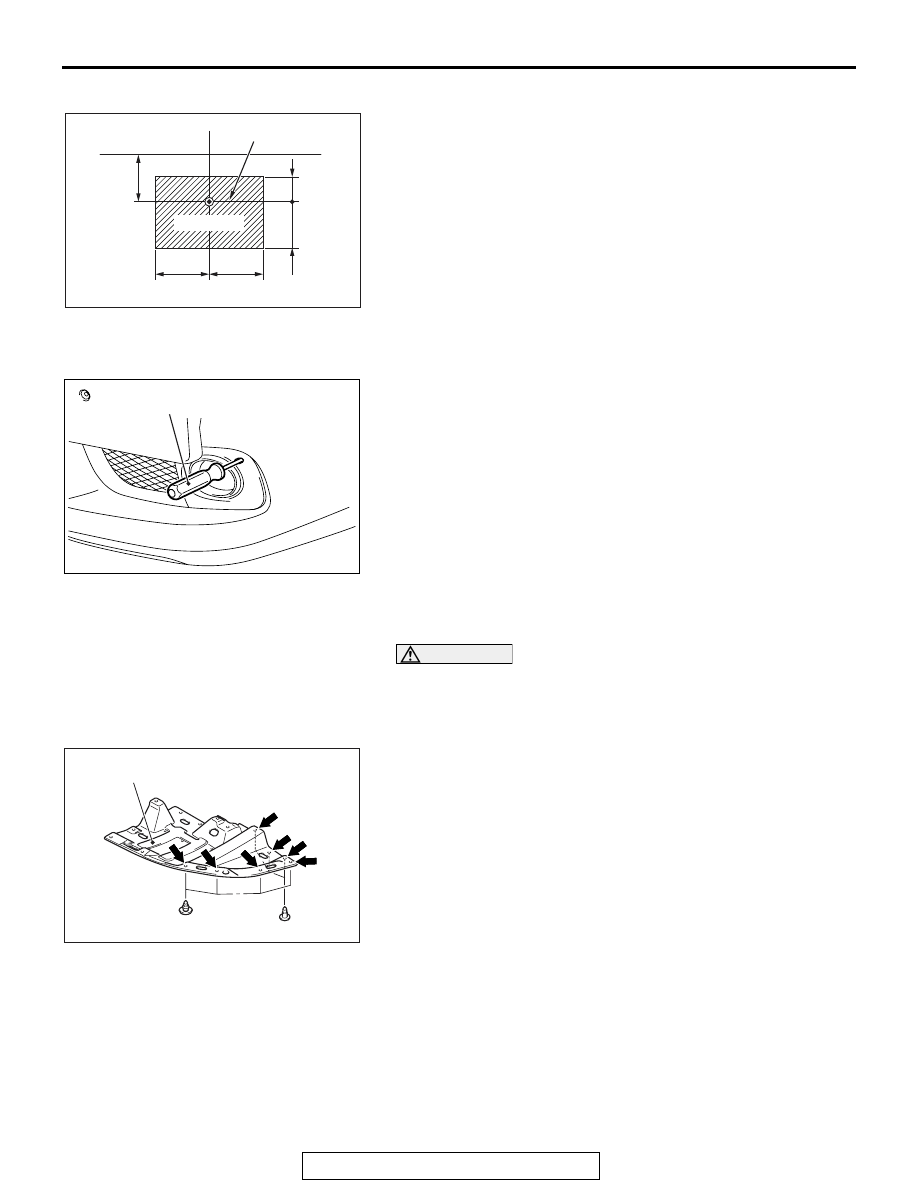

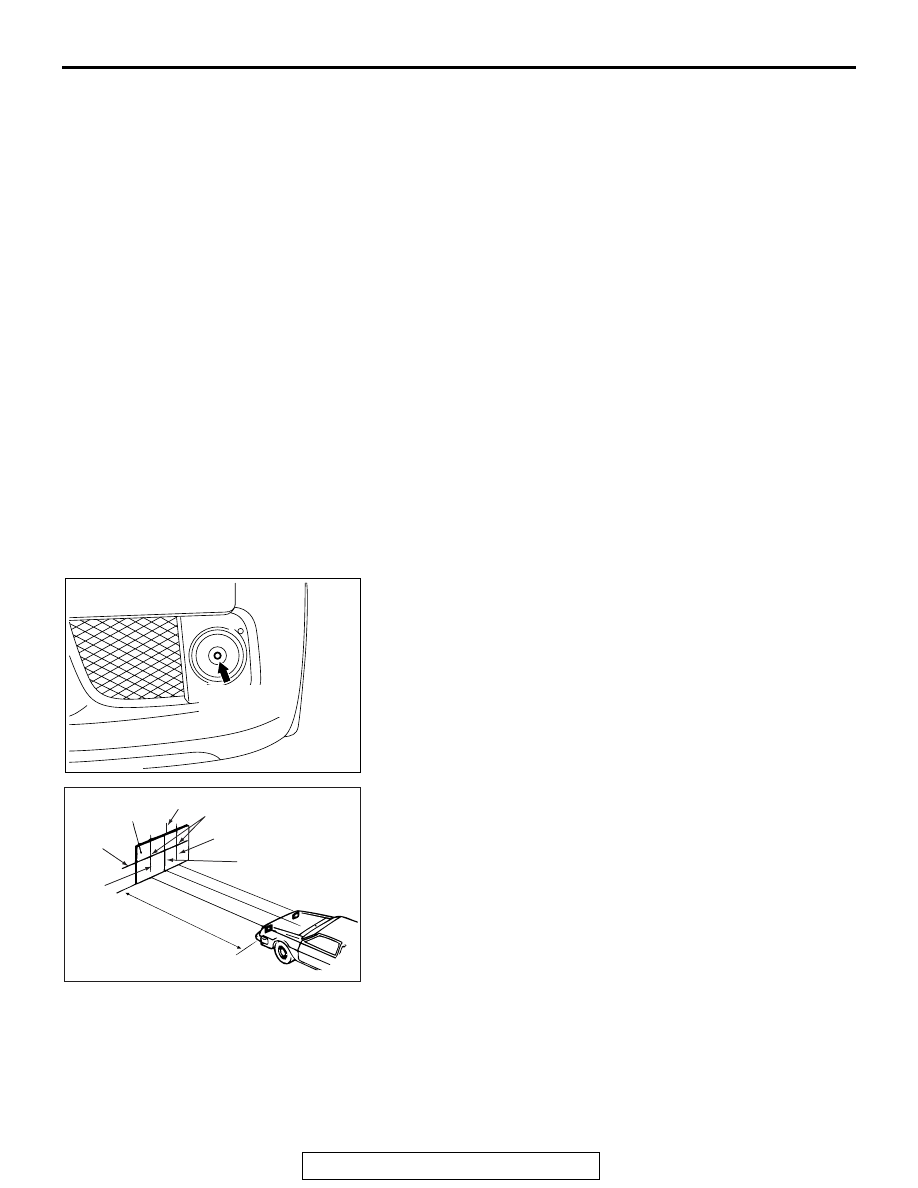

10.Measure the center of the front fog lights as shown in the

illustration.

11.Four lines of adhesive tape (or equivalent markings) are

required on screen or wall:

(1) Position a vertical tape or mark so that it is aligned with

the vehicle center line.

(2) Measure the distance from the center of the front fog light

lens to the floor. Transfer the measurement to the screen.
Horizontal tape or mark on the screen is for reference of
vertical adjustment.

(3) Measure the distance from the center line of the vehicle

to the center of each front fog light. Transfer the
measurement to the screen. Vertical tape or mark on the
screen is for reference to the center line of each front fog
light.

AC706274

AC

Front fog light
center

AC307983AD

(1)

(2)

(3)

Front fog light center

Vehicle center line

(3)

7.62 m (25.0 ft)

Screen

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-235

FOG LIGHT ADJUSTMENT

1. Check if the beam shining onto the screen is at the standard

value.

Standard value:

(Cutoff line direction): The horizontal line 153.0 mm

(6.02 inches) (1.15 degrees angle) below the hori-
zontal line (H)

Limit:

(Vertical direction): Area from 53.2 mm (2.09 inches)

(0.4 degrees angle) above the cutoff line to 99.8
mm (3.93 inches) (0.75 degrees angle) below the
cutoff line

(Horizontal direction): Vertical line (V)

± 599.7 mm (±

23.6 inches) (

± 4.5 degrees angle)

2. If it is not within the standard value range, adjust by turning

the adjusting screw.

NOTE: The horizontal direction is non-adjustable. If deviation of
the light beam axis exceeds the standard value, check that the
mounting location or some other points are not faulty.

FRONT FOG LIGHT BULB REPLACEMENT

M1540400400289

CAUTION

Don't touch the bulb surface with bare hands or dirty
gloves. If the bulb surface (glass part) gets dirty, clean it
with alcohol or thinner immediately and dry well, and then
install it.
1. Remove the assembling clip of engine room under cover

front A shown in the figure, and turn up the engine room
under cover front A.

AC407086

Cutoff line

(H)

(V)

Hot zone

mm (in)

53.2 (2.09)

99.8 (3.93)

153.0

(6.02)

599.7 (23.6) 599.7 (23.6)

AC

AC706275

Phillips screwdriver
(Vertical direction adjustment)

AC

AC706695AC

Engine room under cover front A

FOG LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-236

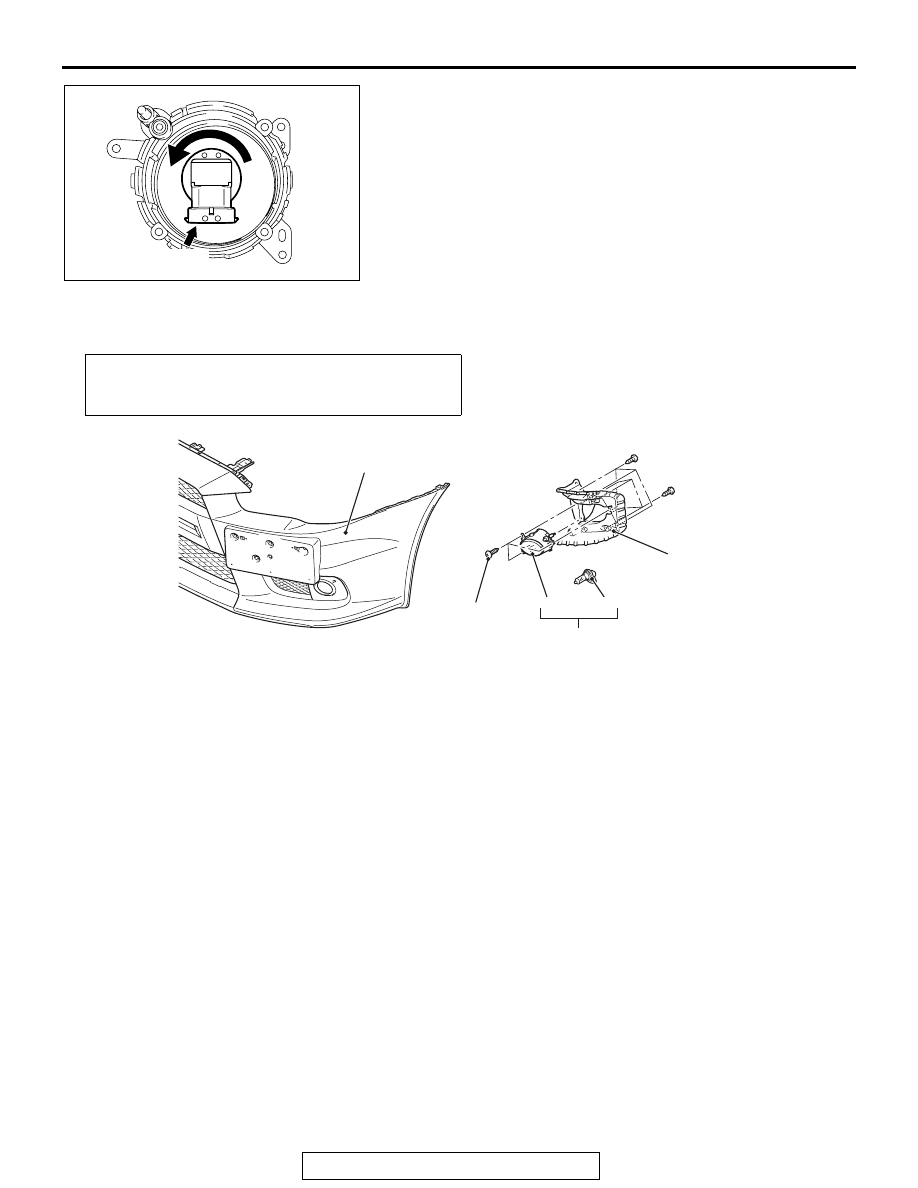

2. Disconnect the connector and withdraw the bulb.

REMOVAL AND INSTALLATION

M1540400500123

AC609657

AB

Front fog light bulb

Post-installation operation
Check the beam direction of the front fog light (Refer to Front
Fog light Aiming

P.54A-234

).

AC706707AC

1

2

4

5

3

1.2 ± 0.7 N·m
11 ± 6 in-lb

Removal steps

1.

Front bumper and radiator grille
assembly (Refer to GROUP 51

−

Front Bumper Assembly and
Radiator Grille

P.51-3

2.

Front fog light bracket

3.

Fog light assembly

4.

Bulb

5.

Fog light unit

Removal steps (Continued)
