SIDE TURN-SIGNAL LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-237

INSPECTION

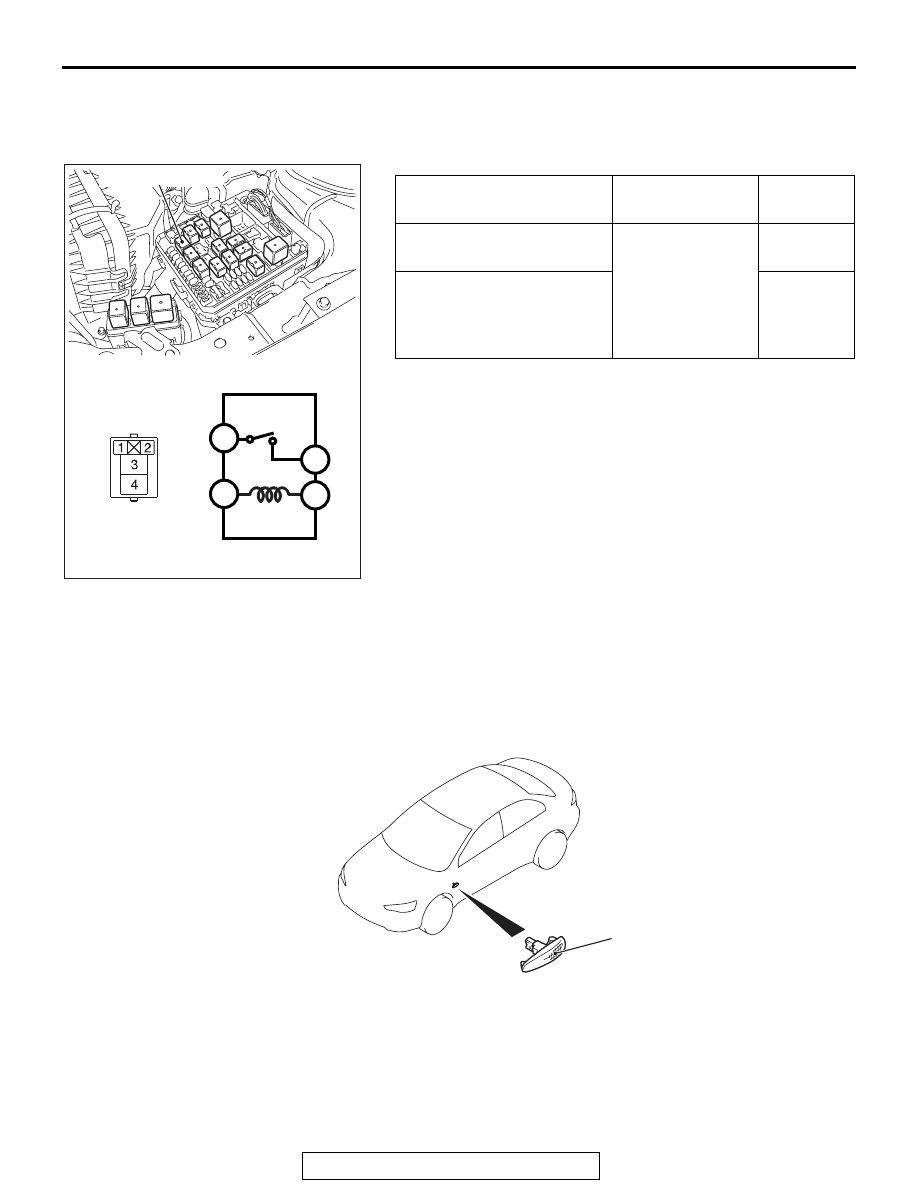

FRONT FOG LIGHT RELAY CHECK

M1540400700105

SIDE TURN-SIGNAL LIGHT

REMOVAL AND INSTALLATION

M1541800200286

Battery voltage

Terminal number Normal

conditions

Not energized

3

− 4

No
continuity

With current supply
[terminal 1 (+), terminal 2 (

−)]

Continuity
exists



(2 ohms or
less)

AC708971

2

3

4

1

AF

Front fog light relay

AC609819

1

AB

Removal step

<<

A

>>

>>

A

<<

1.

Side turn-signal light assembly

SIDE TURN-SIGNAL LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-238

REMOVAL SERVICE POINT

.

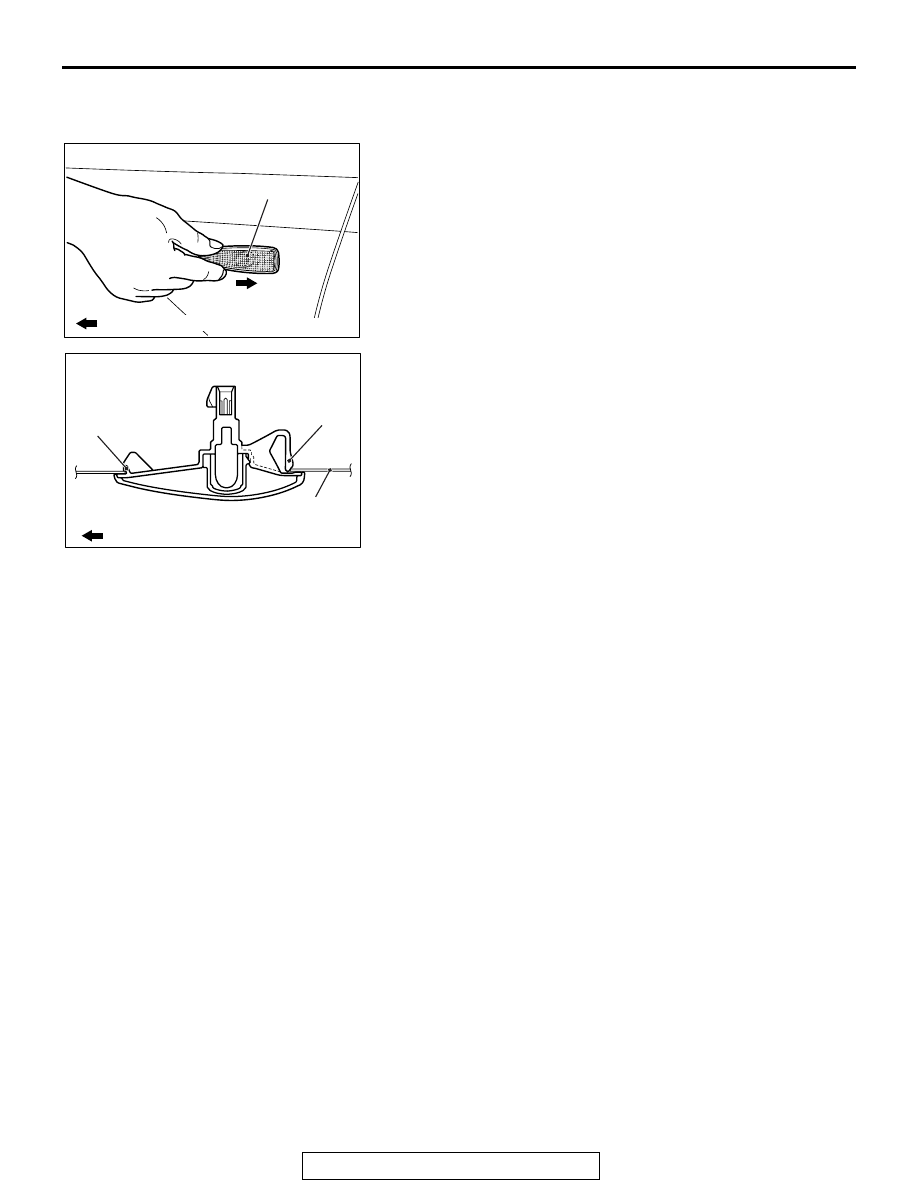

<<A>> SIDE TURN-SIGNAL LIGHT REMOVAL

Push the side turn-signal light toward the vehicle rear to bend
the hook, and then remove by disengaging the tab from the
fender panel.

INSTALLATION SERVICE POINT

.

>>A<< SIDE TURN-SIGNAL LIGHT INSTALLATION

Engage the claw to the fender panel to install the side turn sig-
nal light.

AC506856

Side turn-signal light

AC

Push

Forward of vehicle

AC506857

Hook

Claw

Fender
panel

AC

Forward of vehicle

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-239

DOME LIGHT

GENERAL INFORMATION

M1542000100435

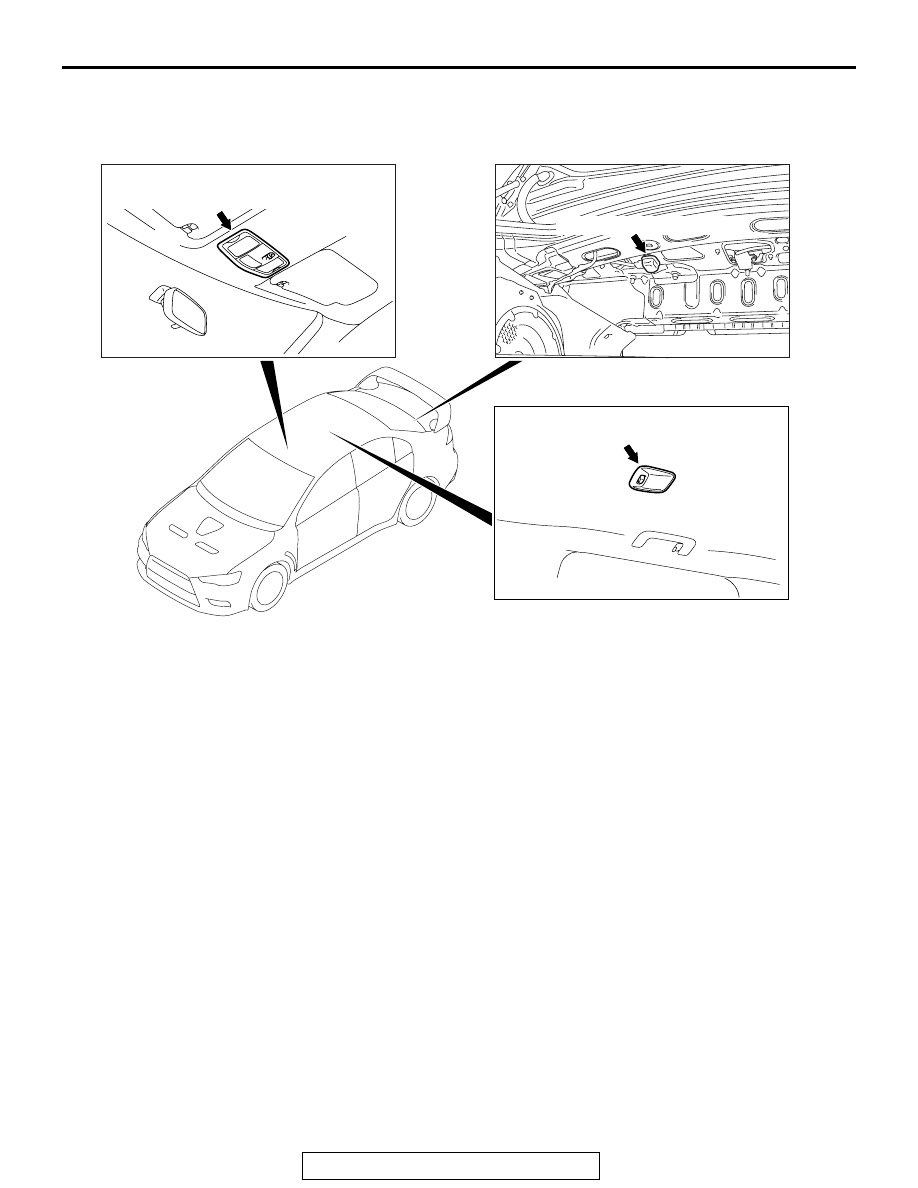

• A front dome light, installed to the front part of the

roof, has been equipped with the lens-push type
front dome light / reading light which can be oper-
ated easily from the driver's and front passen-
ger's seat, offering excellent operability for
turning on and off the light.

• The rear dome light, which illuminates the rear

passenger's seat, is installed above the rear seat.
<Vehicle without sunroof>

• The luggage compartment light is installed to the

upper part of the luggage compartment.

AC709153

AB

Rear dome light

Front dome light
(Front dome light / reading lights)

Luggage compartment light

DOME LIGHT

TSB Revision

CHASSIS ELECTRICAL

54A-240

SPECIAL TOOLS

M1541301600088

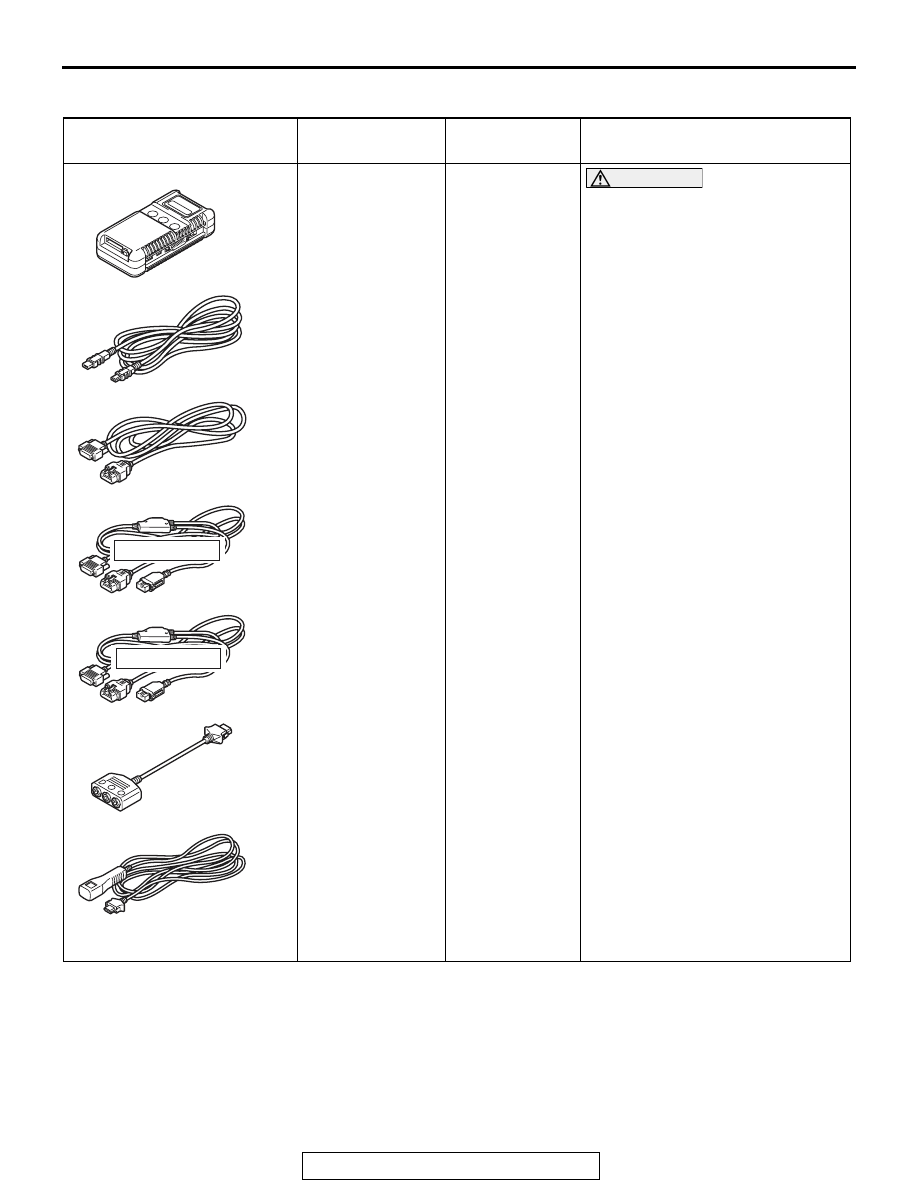

Tool

Tool number and
name

Supersession

Application

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III
sub-assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB

cable

c. M.U.T.-III main

harness A
(Vehicles with
CAN
communication
system)

d. M.U.T.-III main

harness B
(Vehicles
without CAN
communication
system)

e. M.U.T.-III main

harness C (for
Daimler
Chrysler
models only)

f. M.U.T.-III

measurement
adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: G:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
DTC, data list and actuator test
check.

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

DO NOT USE

a

b

c
