TRUNK LID

TSB Revision

BODY

42A-143

2. Remove backing paper from the protector film, and apply

the film to the specified position.

3. Remove the application film from the protector film surface.

TRUNK LID

SPECIFICATION(S)

SEALANT

M1421000500378

TRUNK LID DIAGNOSIS

INTRODUCTION TO TRUNK LID DIAGNOSIS

M1421005800459

Difficult locking and unlocking, uneven clearance and
height, and wind noise from the trunk lid may be
caused by improper adjustment of the trunk lid.

TRUNK LID DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1421005900401

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
trunk lid fault.
1. Gather information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

TROUBLE SYMPTOM CHART

M1421006000478

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Difficult Locking and Unlocking

DIAGNOSIS

STEP 1. Check the release cable routing
condition.

Q: Is the release cable routing condition good?

YES :

Go to Step 3.

NO :

Repair the release cable routing, then go to

Step 2.

Item

Specified sealant

Remark

Trunk lid hinge

3M

™ AAD Part No. 8531 Heavy drip check sealer,

3M

™ AAD Part No. 8646 Automotive joint and

seam sealer or equivalent

Body sealer

Symptom

Inspection
procedure

Reference page

Difficult locking and unlocking

1

P.42A-143

Uneven body clearance

2

P.42A-144

Uneven height

3

P.42A-144

TRUNK LID

TSB Revision

BODY

42A-144

STEP 2. Check the engagement of the trunk lid
latch and trunk lid striker.

Q: Are the trunk lid latch and trunk lid striker engaged

correctly?
YES :

 Then go to Step 3.

NO :

Adjust the trunk lid striker. Refer to

P.42A-146

.

STEP 3. Retest the system.

Q: Does the trunk lid lock operate easily?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 2: Uneven Body Clearance

DIAGNOSIS

STEP 1. Check the clearance around the trunk
lid..

Q: Are the apertures between the trunk lid and the

adjacent body panels aligned correctly?
YES :

Then go to Step 2.

NO :

Adjust the trunk lid panel assembly. Refer to

P.42A-145

.

STEP 2. Retest the system.

Q: Are the clearances between the body panels even?

YES :

The procedure is complete.

NO :

Return to Step 1.

INSPECTION PROCEDURE 3: Uneven Height

DIAGNOSIS

STEP 1. Check the trunk lid height.

Q: Is the trunk lid hinge height proper?

YES :

Then go to Step 2.

NO :

Adjust the trunk lid hinge.   Refer to

P.42A-146

.

STEP 2. Retest the system.

Q: Are the trunk lid and body height even?

YES :

The procedure is complete.

NO :

Return to Step 1.

TRUNK LID

TSB Revision

BODY

42A-145

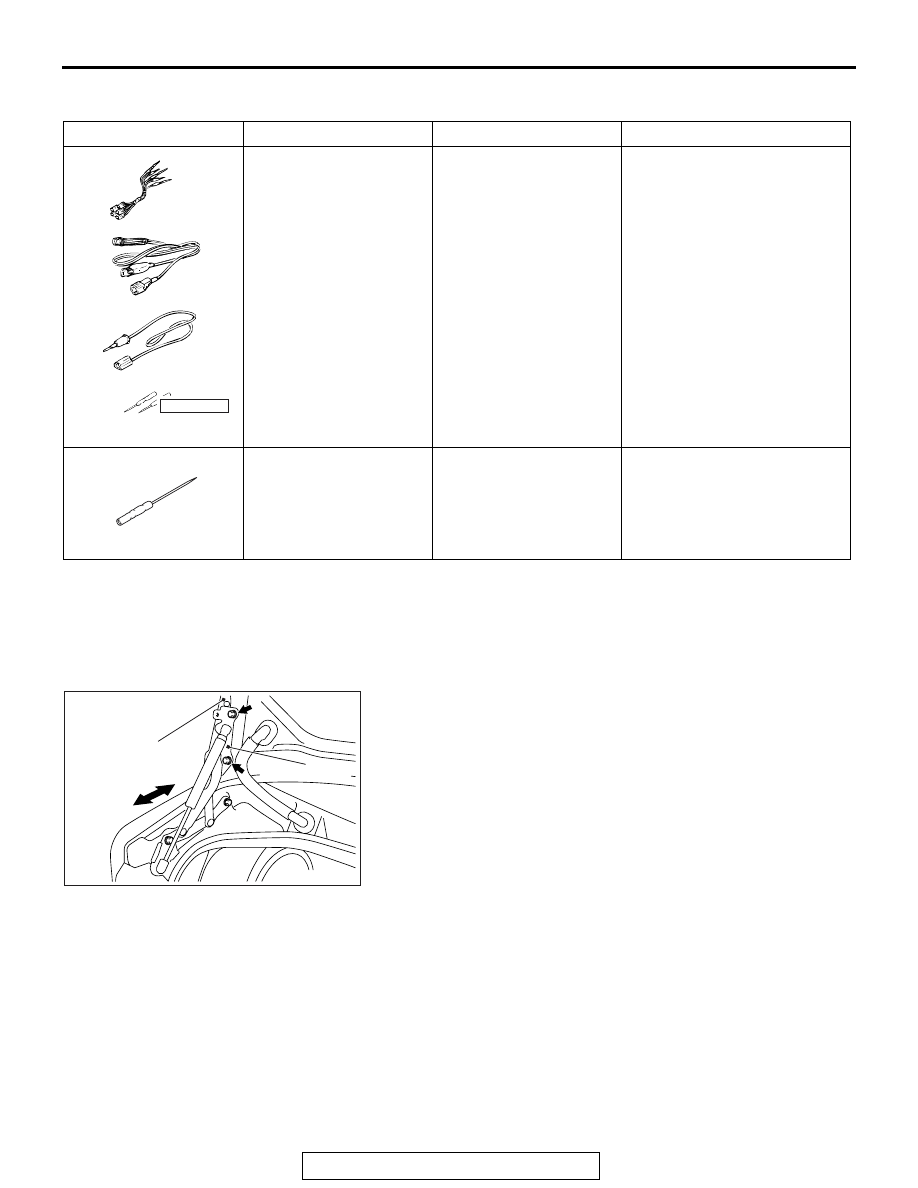

SPECIAL TOOLS

M1421000600546

ON-VEHICLE SERVICE

ADJUSTMENT OF CLEARANCE AROUND TRUNK
LID

M1421008100062

Loosen the trunk lid panel assembly mounting bolts and move
the trunk lid panel assembly to make the clearance around the
trunk lid uniform.

Tool

Tool number and name Supersession

Application

MB991223 Harness set

a: MB991219 Test

harness

b: MB991220 LED

harness

c: MB991221 LED

harness adapter

d: MB991222 Probe

General service tools

Making voltage and
resistance measurement
during troubleshooting

a: Connector pin contact

pressure inspection

b: Power circuit inspection
c: Power circuit inspection
d: Commercial tester

connection

MB992006
Extra fine probe

Making voltage and
resistance measurement
during troubleshooting

MB991223

a

d

c

b

DO NOT USE

BF

MB992006

AB

AC608558

AC609209

AB

Trunk lid hinge

Trunk lid panel
assembly

TRUNK LID

TSB Revision

BODY

42A-146

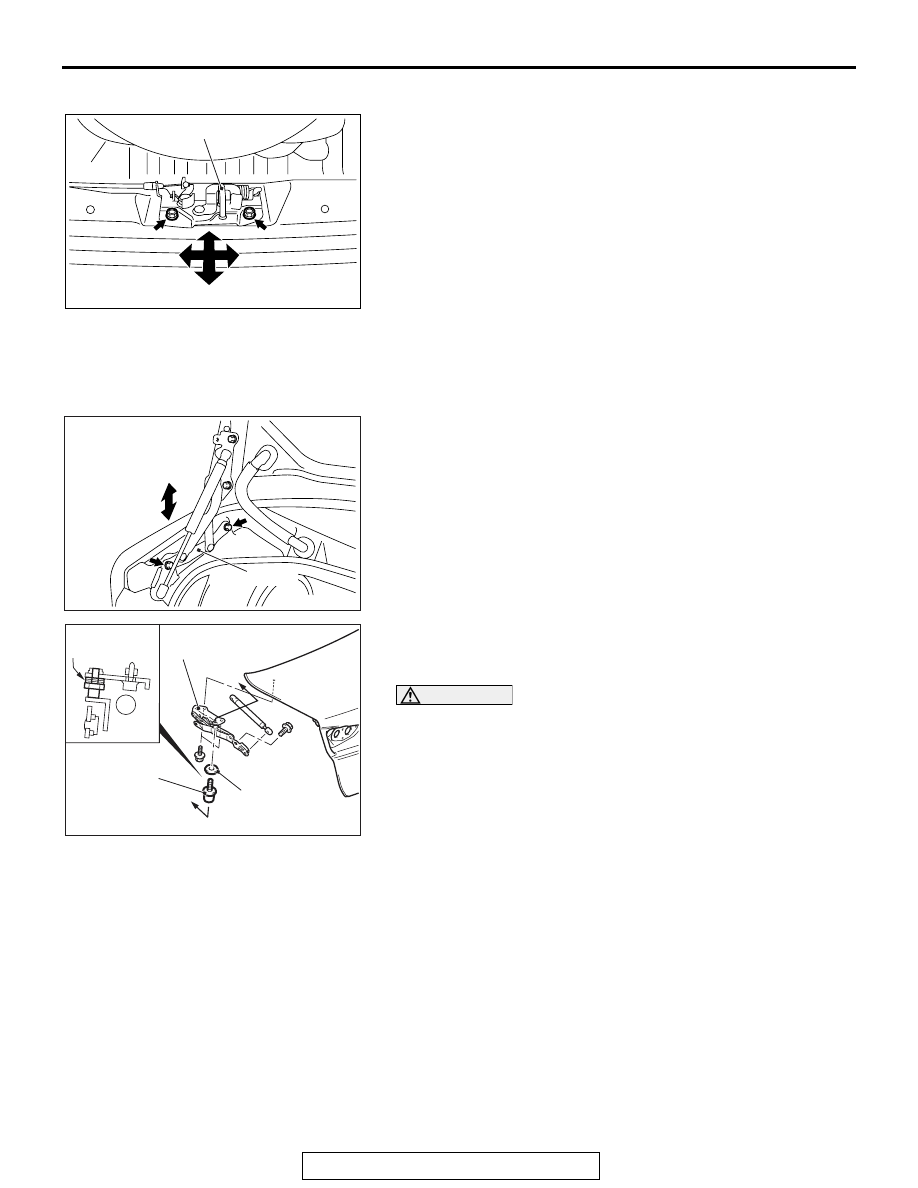

TRUNK LID STRIKER ADJUSTMENT

M1421008200058

After checking the trunk lid release cable for proper routing,
loosen the trunk lid striker mounting bolts. Change the position
of the trunk lid striker relative to the trunk lid latch assembly so
that trunk lid locking and unlocking effort is correct.

TRUNK LID HEIGHT ADJUSTMENT

M1421008300129

.

ADJUSTMENT AT BODY-SIDE

If the height between the trunk lid and the body is uneven,
adjust the height in the following manner.
1. Loosen the body-side trunk lid hinge mounting bolts.
2. Adjust the height.
3. Tighten the hinge mounting bolts

Specified torque: 23

± 6 N⋅ m (17 ± 4 ft-lb)

.

ADJUSTMENT AT TRUNK LID HINGE-SIDE

If the height between the trunk lid and the body is uneven,
adjust the height in the following manner.
1. Remove the trunk lid damper on the trunk lid hinge.

CAUTION

Up to maximum 3 washers can be used.
2. Increase or decrease the number of washers until the even

height between the trunk lid and the body can be obtained.

3. Tighten the trunk lid damper.

Specified torque: 5.0

± 1.0 N⋅ m (44 ± 9 in-lb)

AC608480

AB

Trunk lid striker

AC608558

AC609210

AB

Trunk lid hinge

AC700651

A

A

Section A – A

Washer

Washer

Trunk lid hinge

Trunk lid
damper

AC
