DOOR

TSB Revision

BODY

42A-135

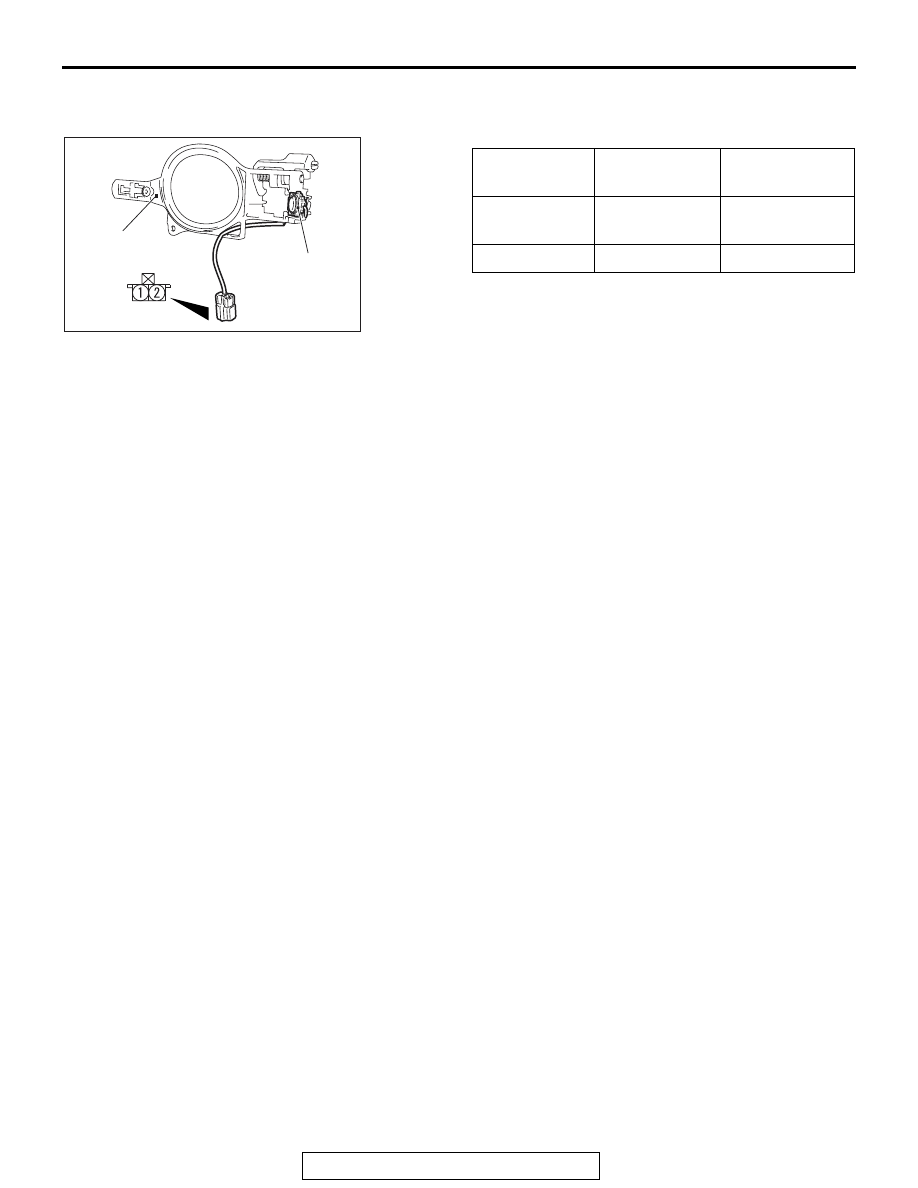

LOCK SWITCH CHECK <VEHICLE WITH
KEYLESS OPERATION SYSTEM (KOS)>

Switch
position

Tester
connection

Specified
condition

ON

1

− 2

Continuity exists
(2

Ω or less)

OFF

1

− 2

Open circuit

AC609545

ZC600097

AB

Lock switch

Door outside

handle base

DOOR

TSB Revision

BODY

42A-136

WINDOW GLASS RUNCHANNEL AND DOOR OPENING WEATHERSTRIP

REMOVAL AND INSTALLATION

M1423003101163

AC609546

AC607395

AC608530

AC609637

AC609636

1

1

7

2

8

10

3

5

AC

6

4

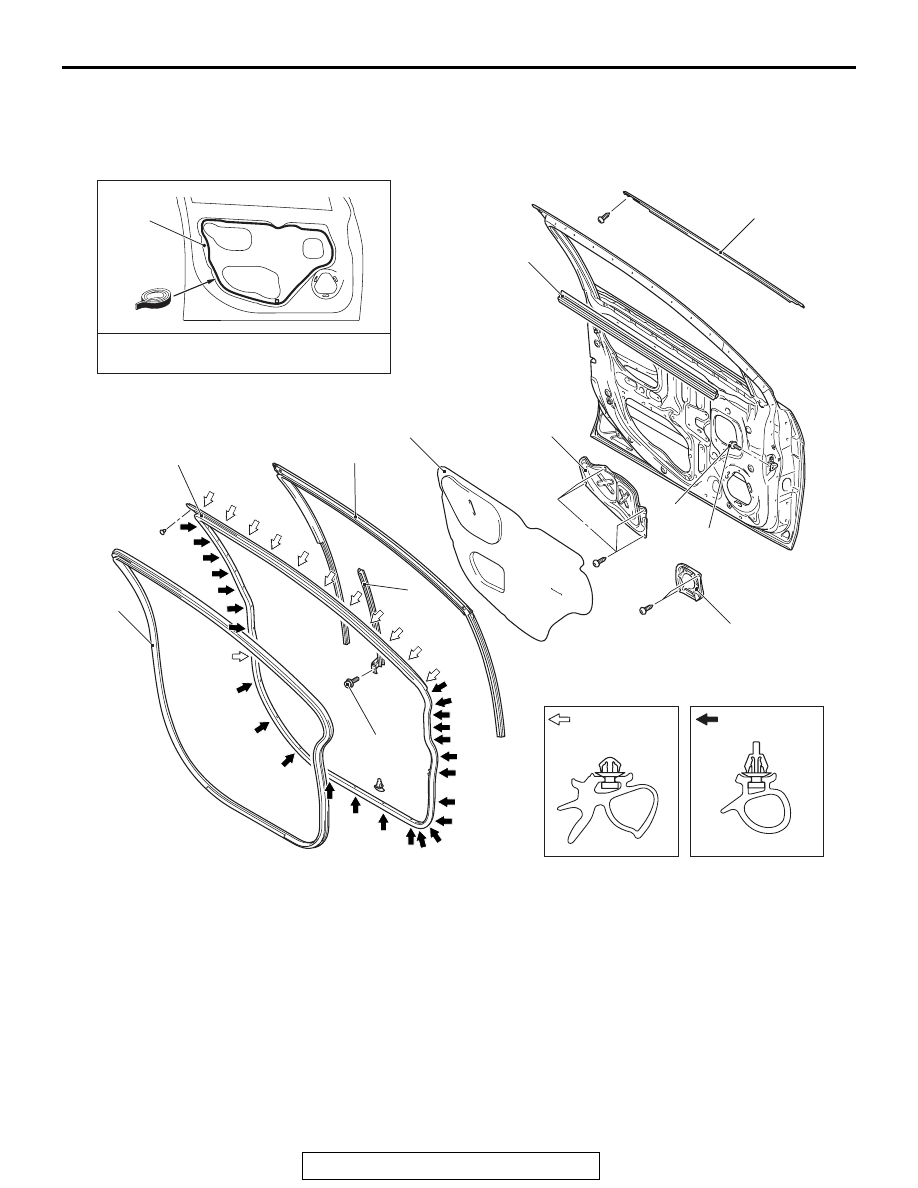

<Front door>

Sealant: 3M™ AAD Part No.8633
or equivalent

:Sectional view
 of clip position

:Sectional view
 of clip position

5.0 ± 1.0 N·m
44 ± 9 in-lb

9

25 ± 4 N·m
19 ± 3 ft-lb

Waterproof film removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

1.

Waterproof film
Door window glass run channel
removal

>>

C

<<

2.

Door window glass run channel
Door beltline weatherstrip inner
removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

3.

Door beltline weatherstrip inner

Door speaker cover removal
steps <Vehicles with rockford
fosgate premium sound
system>

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

1.

Waterproof film

4.

Door speaker cover
Door beltline molding removal
steps <GSR>

•

Door mirror assembly (Refer to
GROUP 51, Door Mirror

P.51-79

.)

5.

Door beltline molding

DOOR

TSB Revision

BODY

42A-137

Door beltline molding removal
steps <MR>

•

Door mirror assembly (Refer to
GROUP 51, Door Mirror

P.51-79

.)

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

1.

Waterproof film

4.

Door speaker cover <Vehicles with
rockford fosgate premium sound
system>

<<

A

>>

5.

Door beltline molding
Speaker bracket removal steps
<Vehicles with rockford fosgate
premium sound system>

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

1.

Waterproof film

6.

Door speaker bracket
Rear lower sash removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

1.

Waterproof film

6.

Door speaker bracket <Vehicles
with rockford fosgate premium
sound system>

7.

Rear lower sash
Door opening weatherstrip inner
removal steps

•

Cowl side trim and front scuff plate
(Refer to GROUP 52A, Trim

P.52A-11

.)

8.

Door opening weatherstrip inner
Door opening weatherstrip outer
removal steps

9.

Door check connecting bolt (Refer
to

P.42A-121

.)

<<

B

>>

>>

A

<<

10. Door opening weatherstrip outer

DOOR

TSB Revision

BODY

42A-138

AC609547

AC607396

AC608530

AC609636

AC609637

3

1

7

9

2

5

AC

4

6

3

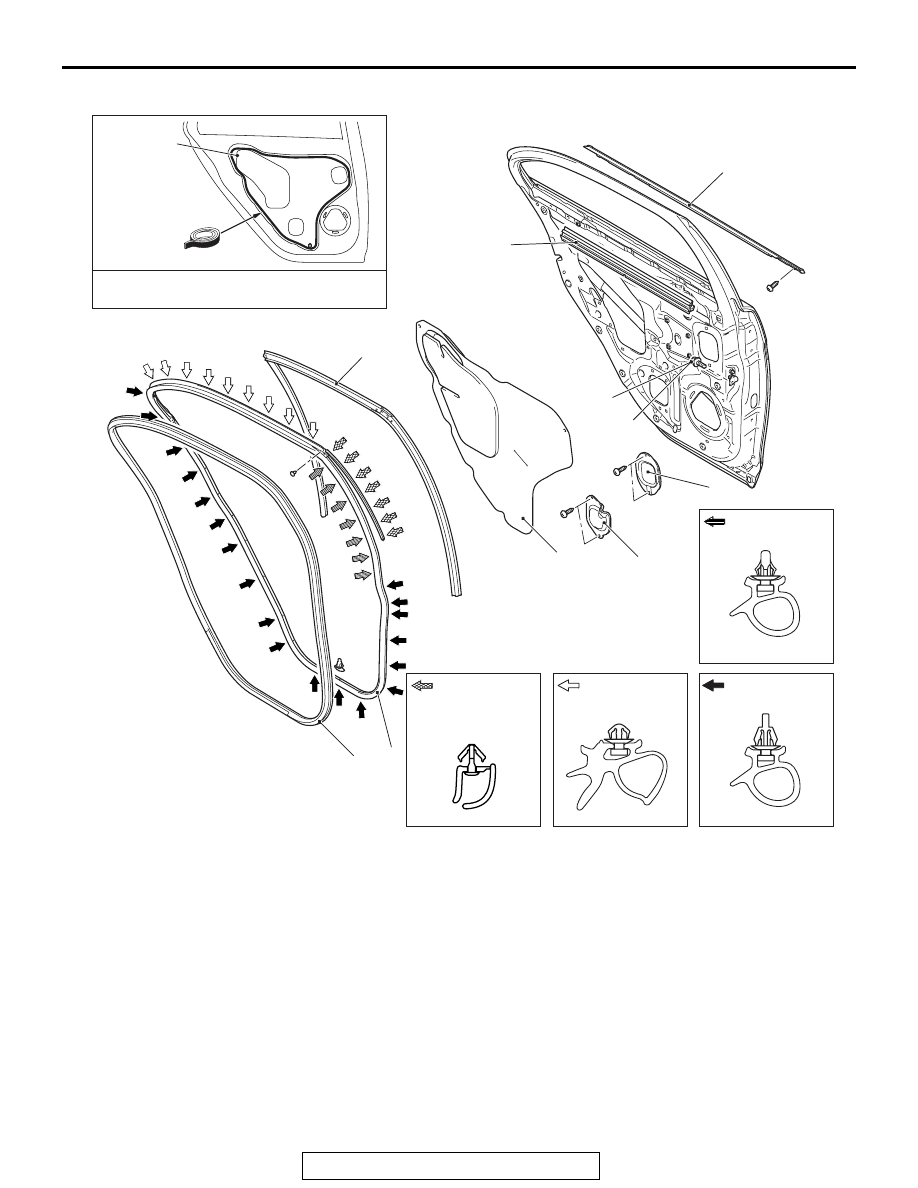

<Rear door>

:Sectional view
 of clip position

:Sectional view
 of clip position

:Sectional view
 of clip position

:Sectional view
 of clip position

Sealant: 3M™ AAD Part No.8633
or equivalent

8

25 ± 4 N·m
19 ± 3 ft-lb

Door window glass run channel
removal

>>

C

<<

1.

Door window glass run channel
Door beltline weatherstrip inner
removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

2.

Door beltline weatherstrip inner
Waterproof film removal steps

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

3.

Waterproof film

Door speaker cover removal
steps <Vehicles with rockford
fosgate premium sound
system>

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

3.

Waterproof film

4.

Door speaker cover
Door beltline molding removal
<GSR>

5.

Door beltline molding
Door beltline molding removal
steps <MR>

•

Door trim assembly (Refer to
GROUP 52A, Door Trim

P.52A-15

.)

>>

B

<<

1.

Waterproof film
