Mitsubishi Evolution X. Manual - part 506





DOOR

TSB Revision

BODY

42A-127

REMOVAL SERVICE POINTS

.

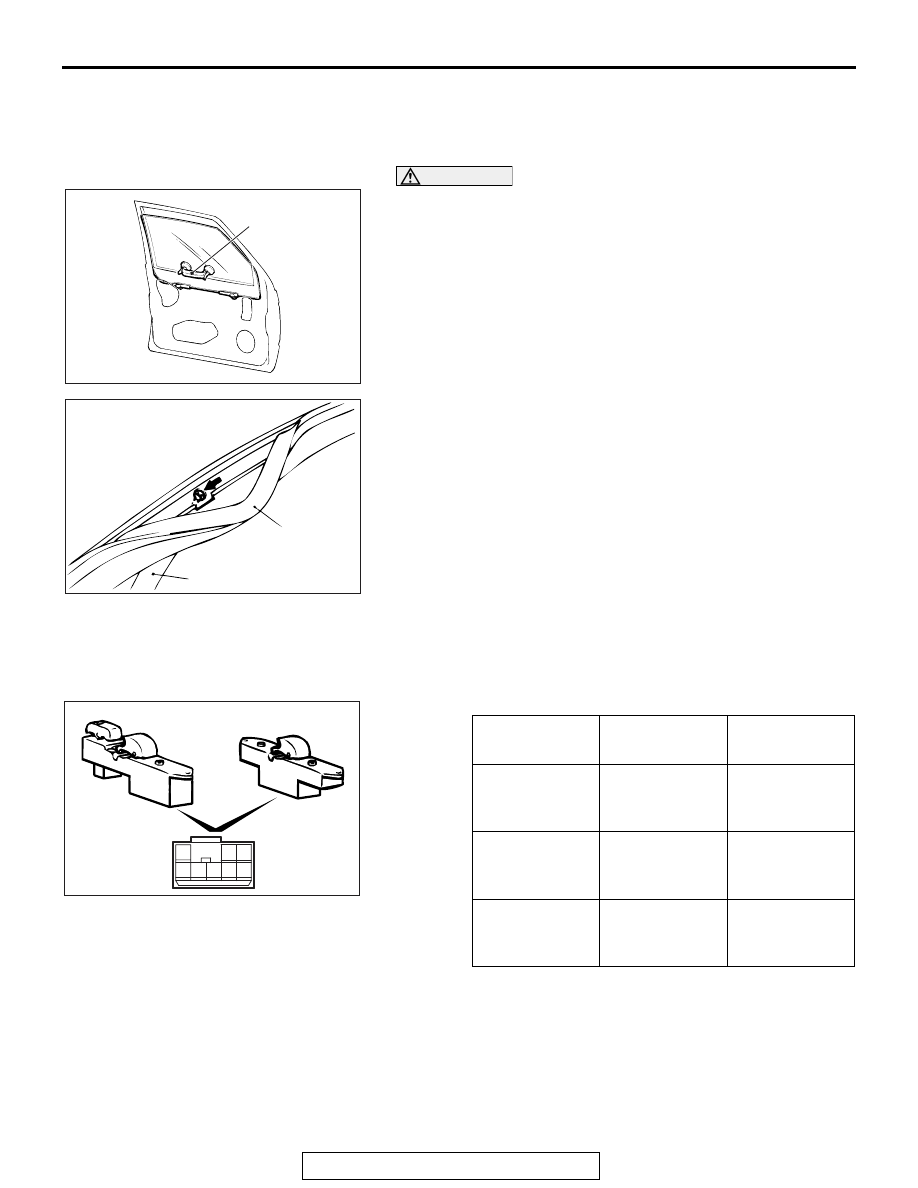

<<A>> POWER WINDOW REGULATOR REMOVAL

1. Remove the door window glass installation bolts.

CAUTION

If tinting film is adhered to the door window glass, attach
special tool MB990480 to the outside of the glass to pre-
vent the film from peeling off.
2. Lift the door window glass, and attach special tool

MB990480 to the glass as shown to prevent the glass from
falling.

3. Remove the power window regulator.

.

<<B>> DOOR CENTER SASH REMOVAL

1. Remove the door outer opening weatherstrip from the door

center sash only.

2. Remove the door center sash mounting screws, and then

remove the door center sash from the door panel.

INSPECTION

M1429001400914

POWER WINDOW SWITCH CONTINUITY CHECK

.

SUB SWITCH

AC605591AC

MB990480

AC000602

Door opening

weatherstrip outer

Door center sash

AE

Switch
position

Tester
connection

Specified
condition

UP

− 5, 6 − 7

Continuity
exists (2

Ω or

less)

OFF

− 5, 7 − 8

Continuity
exists (2

Ω or

less)

DOWN

− 6, 7 − 8

Continuity
exists (2

Ω or

less)

AC609538

8

3

4 5

1

2

6 7

<Front door>

<Rear door>

AB

DOOR

TSB Revision

BODY

42A-128

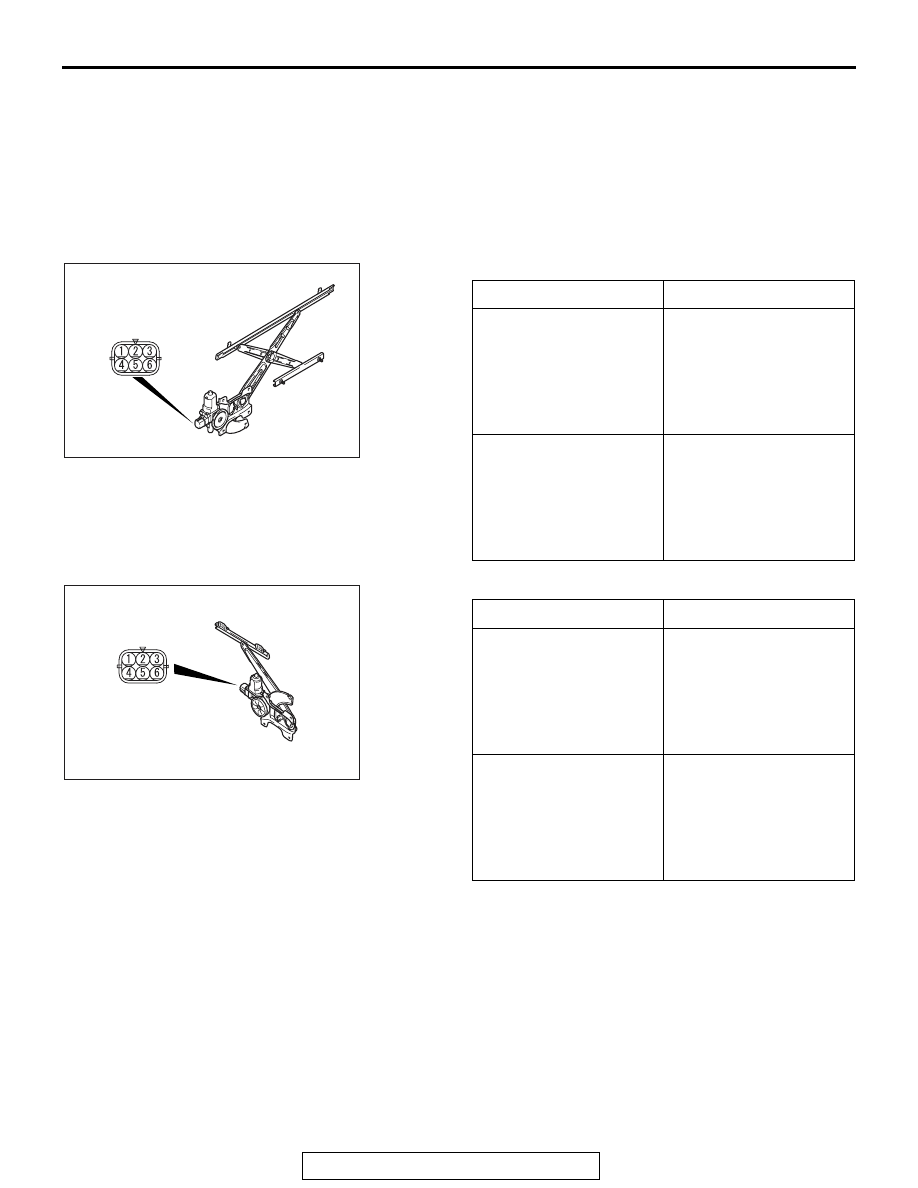

DOOR WINDOW REGULATOR CHECK

.

1. Connect a battery directly to the motor terminals and check

that the motor runs smoothly.

2. Check that the motor runs in the opposite direction when the

battery is connected with the polarity reversed.

3. If a defect is found, replace the window regulator as an

assembly.

.

FRONT DOOR (PASSENGER’S SIDE)

.

REAR DOOR

Battery connection

Slider position

• Connect terminal No.

1 to the negative
battery terminal.

• Connect terminal No.

4 to the positive
battery terminal.

UP

• Connect terminal No.

4 to the negative
battery terminal.

• Connect terminal No.

1 to the positive
battery terminal.

DOWN

Battery connection

Slider position

• Connect terminal No.

4 to the negative
battery terminal.

• Connect terminal No.

1 to the positive
battery terminal.

UP

• Connect terminal No.

1 to the negative
battery terminal.

• Connect terminal No.

4 to the positive
battery terminal.

DOWN

AC609372AB

AC609373AB

DOOR

TSB Revision

BODY

42A-129

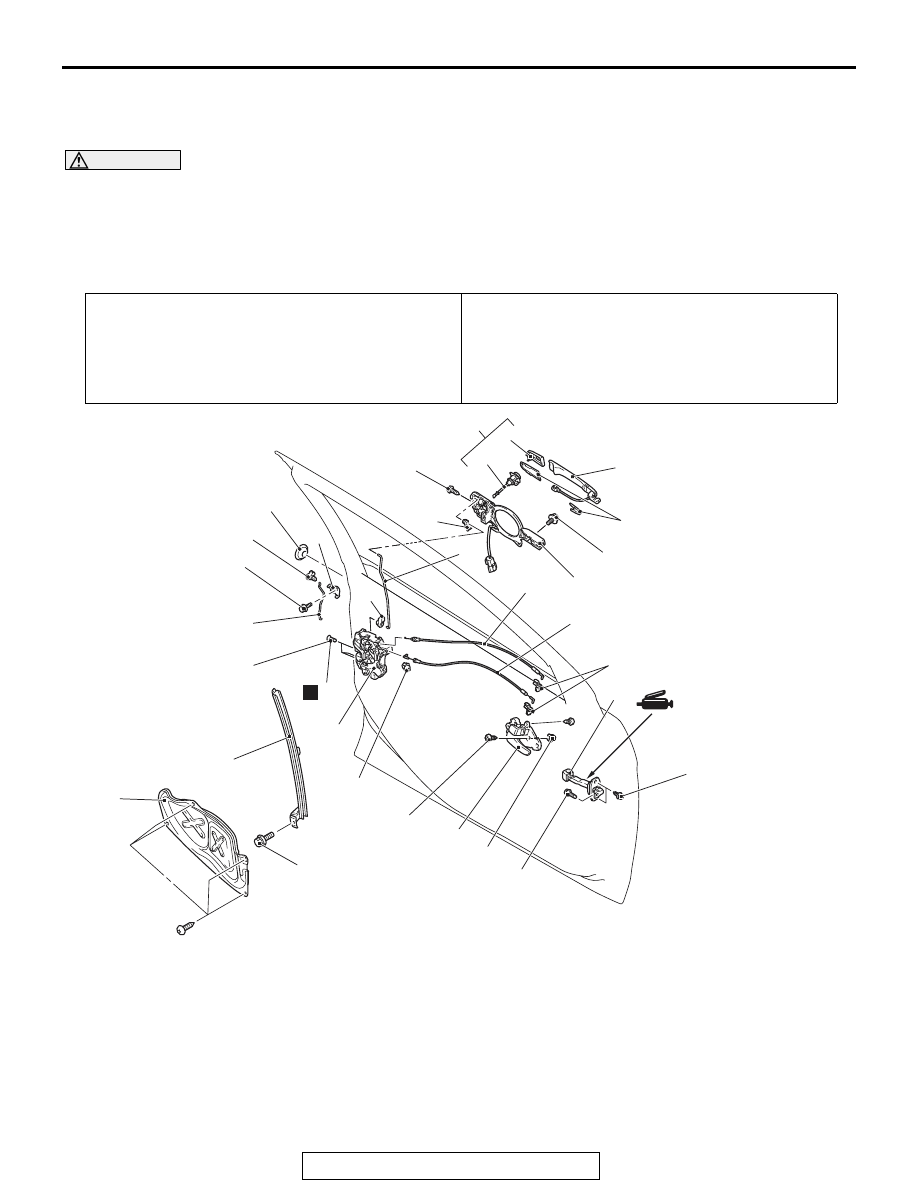

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M1423004601268

CAUTION

When the door lock cylinder of the vehicle with
WCM is replaced as a full service key set, the key
must be registered with the barcode No. attached
to the ignition key. (Refer to GROUP 42C, ID Code
Registration Criteria Table

P.42C-9

.)

Pre-removal operation
• Door trim assembly removal (Refer to GROUP 52A, Door

Trim

P.52A-15

).

• Waterproof film removal (Refer to

P.42A-136

).

Post-installation operation
• Door inside handle play check (Refer to

P.42A-119

).

• Door outside handle play check (Refer to

P.42A-118

).

• Waterproof film installation (Refer to

P.42A-136

).

• Door trim assembly installation (Refer to GROUP 52A,

Door Trim

P.52A-15

).

AC711102

AC607393

AC607393

1

4

5

6

7

8

9

10

14

15

16

17

18

22

N

19

AB

<Front door>

25 ± 4 N·m
19 ± 3 ft-lb

7.0 ± 2.0 N·m
43 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

13

12

3

21

21

20

2

21

11

DOOR

TSB Revision

BODY

42A-130

AC605594

1

10

AH

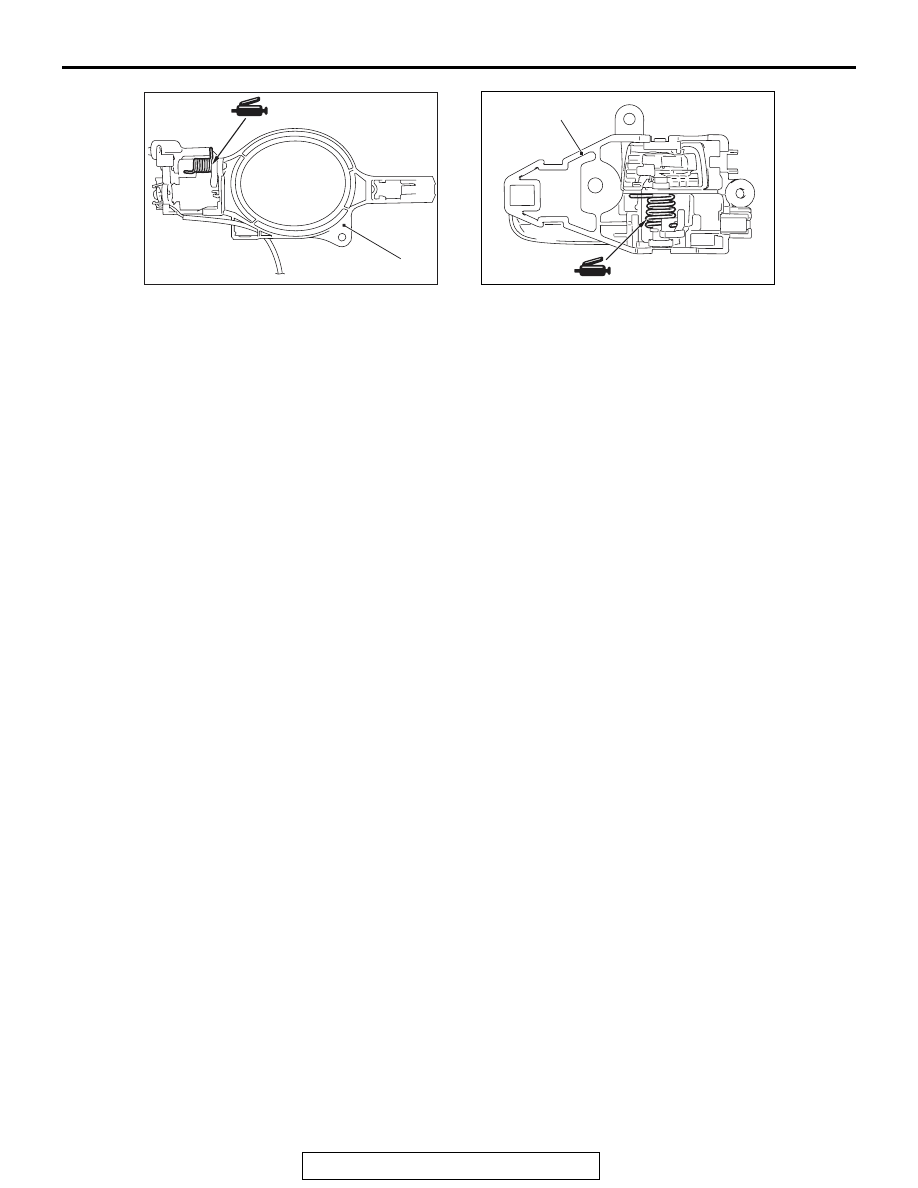

Door inside handle removal
steps

>>B<<

1.

Door inside handle

2.

Clip

3.

Grommet
Door outside handle removal
steps

4.

Plug

<<A>>

>>C<<

5.

Door outside handle cover
assembly <Driver’s side>

6.

Door lock key cylinder <Driver’s
side>

7.

Door outside handle cover

8.

Door outside handle

9.

Door outside handle gasket

10. Door outside handle base
11. Clip

Door latch assembly removal
steps

>>B<<

1.

Door inside handle

12. Door speaker bracket
13. Rear lower sash
14. Screw
15. Door latch assembly
16. Door inside lock cable
17. Door inside handle cable
18. Door outside handle rod
19. Door outside lock rod <Driver’s

side>

20. Door panel bracket <Driver’s side>
21. Clip

Door check removal steps

Front door speaker (Refer to
GROUP 54A, Speaker

P.54A-575

.)

>>A<<

22. Door check
